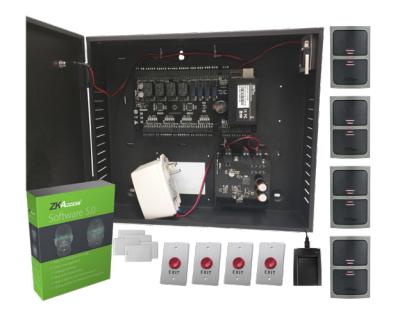

C3 IP-based RFID card Access Control Kit

C3 4-Door Kit

• Easy to install and program
• Often uses the same wiring & power as existing systems
• FREE user-friendly browser-based ZKAccess 5.3 management software
• Stores up to 30,000 cards and 100,000 events

C3 Kit options:

1-Door Kit	2-Door Kit	4-Door Kit	Description
			US-C3-100-BUN US-C3-200-BUN US-C3-400-BUN Panel, Power Supply and Metal Closure
1	1	1	CR10E Enrollment Reader
1	2	4	KR500E Card Reader
1	2	4	PTE-1 Exit Button
50	50	50	Prox-Thick-Card
FREE	FREE	FREE	ZKAccess 5.3 Software

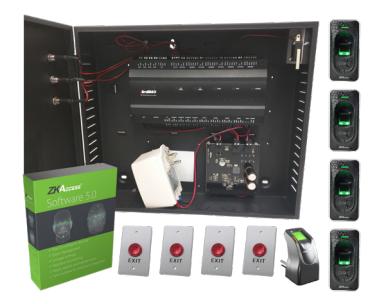

InBio IP-based Biometric Access Control Kit

InBio 4-Door Kit

• Easy to install and program
• FREE user-friendly browser-based ZKAccess 5.3 management software
• InBio panels eliminate the need for template management.
• Store & match up to 3,000 fingerprint templates and 30,000 cards.

InBio Kit options:

1-Door Kit 2-Door Kit		4-Door Kit	Description
			US-inBio-160-BUN US-inBio-260-BUN US-inBio-460-BUN Panel, Power Supply and Metal Closure
1	1	1	ZK4500 Enrollment Reader
1	2	4	FR1200-ID fingerprint and card reader
1	2	4	PTE-1 Exit Button
FREE	FREE	FREE	ZKAccess 5.3 Software

Standalone IP-based Fingerprint, Face, Finger Vein, Palm Vein and RFID Wiegand Access Control Readers

TF1700 F22-ID SMK-V SMK-H MB700-ID

• Easy to install and program. No need for panel or computer.
• Often use the same wiring and power as existing readers
• FREE user-friendly ZKAccess management software
• Communication ports include TCP/IP, Wiegand In/Out, USB and RS485
• Relay contacts for Lock, Alarm and Exit button (REX)
• Connect with both ZKTeco and 3rd party access control panels via Wiegand protocol.
• FAST & ACCURATE Fingerprint, Face, Finger Vein & Palm Vein recognition
• Stores up to 3000 fingerprints, 1500 faces and 1000 finger-veins.

Access Control Kit with built-in Web Application

Atlas400-4 Door Kit Atlas460-4 Door Kit

• Fast & simple installation. Access control panels require NO software.
• Panels support PoE and Wi-Fi communication
• Built-in web application supports up to 84 doors
• Advanced access control features include User Enrollment & Management, Door Control & Monitoring, Lockdown, Reporting, Maps, Anti-Passback and more.
• Panels support both Wiegand and OSDP prox card readers
• Atlas x60 Series panels store & match up to 5,000 fingerprints & card holders (use ZKTeco FR1500A fingerprint readers)
• Mobile app available for device and user management

Who is ZKTeco?

• 03 Manufacturing bases all around the world
• 14 R&D Centers all around the world
• 14 Service Outlets
• 18 Countries use our products
• 28 Branch Offices Overseas
• 30 Offices and Branches in China

ZKTeco Global Team

1,000+ R&D Engineers

500+ Salespeople

500+ Consultants

1,000+ Factory Workers 200+ Global Employees

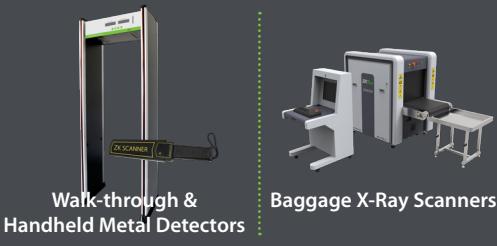

Other ZKTeco Product Lines Include:

Please scan this QR code to receive an invitation to our 1-hour Access Control technical training conducted every Wednesday at 2.30pm EST.

ZKTeco USA

1600 Union Hill Rd, Alpharetta, GA 30005 Phone: (862) 505-2101 • Fax: (862) 204-5906 sales@zktecousa.com • www.zktecousa.com

Flexible, Affordable and Comprehensive Biometric & RFID Security Solutions

UL Certified Pro Series Access Control Panels

Pro Series Standalone IP-based Fingerprint, Face, Finger Vein Wiegand Access Control Readers

ZKBioSecurity Software used to manage Pro Series Panels and Readers at one low price

Variety of Access Controllers, Readers and Accessories to satisfy ANY requirement:

C3-Pro Access Control Panel / Compatible Readers

KR500E KR702E KR500H KR502H

• Next generation of C3 series of access control panels
• Advanced access control features include: Global Anti-passback, First and Multi Card Opening, Duress password/card entry, E-map support and Real time Push protocol
• Available in 1, 2 and 4 door panel only or UL certified bundles which includes panel, metal cabinet and power supply
• Supports both ZKTeco and 3rd party Wiegand readers.
• Storage capacity up to 30,000 card holders and 100,000 transactions
• Compatible only with ZKBioSecurity software which includes enterprise level features for management and configuration
• SDK available for OEM software developers

inBio-Pro Access Control Panel / Compatible Readers

inBio-Pro Bundle

FR1500-HID KR500BT SLK20R

• Next generation of inBio series of access control panels which store and match fingerprints on the panel
• Advanced access control features include: Global Anti-passback, Duress finger/card/password support and Linkages for aux relay inputs and outputs
• Available in 1, 2 and 4 door DIN rail mounted panel only or UL certified bundles which includes panel, metal cabinet and power supply
• Designed to be used with ZKAccess FR1500 slave fingerprint readers, but works with any ZKTeco and 3rd party Wiegand readers.
• Storage Capacity up to 20,000 fingerprints and 60,000 card holders and 100,000 transactions
• Compatible only with ZKBioSecurity software which includes enterprise level features for management and configuration
• SDK available for OEM software developers *

ProCapture-X

ProBio inPulse+

• Options for PoE and IP65-rated weatherproof biometric models which read fingerprints, faces or finger-veins.
• Fingerprint models include next-generation SilkID sensor.
• Relay contacts for Lock, Alarm and Exit button/REX
• Communication ports include TCP/IP and Wiegand IN/OUT
• Stores up to 5,000 fingerprint templates and 1,500 face templates and 1,000 finger-vein templates
• Compatible only with ZKBioSecurity software which includes enterprise level access control features.
• Mobile app available for device and user management

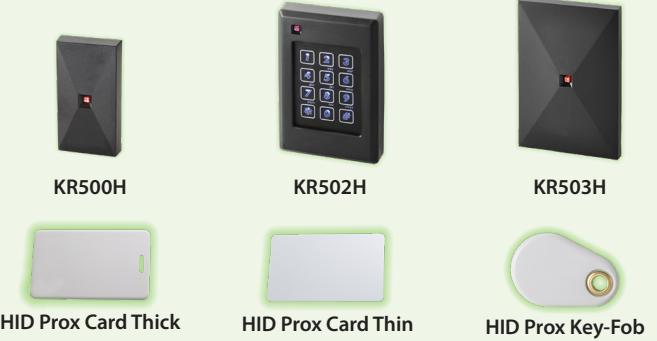

HID Compatible Card Readers* and Credentials

KR50xH series also reads ZKTeco credentials

ZKBioSecurity is the ultimate "All in One" enterprise level security platform with integrated modules for Access Control, Elevator Control, Video Camera and VMS Integration, Visitor Management & Badging and LPR gate control.

ZKBioSecurity works only with ZKAccess Pro Series panels & readers and provides the most advanced solution for a whole new user experience.

• Supports up to 8,000 doors
• Advanced Access Control Functionality including mobile app, Zone Control and Who's inside status
• Global Anti-Passback and global linkage triggers with email notifications
• VMS Integration (i.e. Milestone, OnSSI, Mirasys, Arteco, etc)
• Video Linkage with Hikvision, Dahua and any Onvif compliant cameras
• Automatic and Scheduled Data Backup
• Real Time Monitoring screen with animated icons displayed on the map
• System Log Monitoring and support for different databases
• Active Directory integration
• Supports encrypted communication between panels and software

Time Saving Installation Tools

PoE Splitter Option to eliminate need

for hard-wired power (supports only 1 & 2 Door installations)

InBridge Server

Option to eliminate need for downloading management software

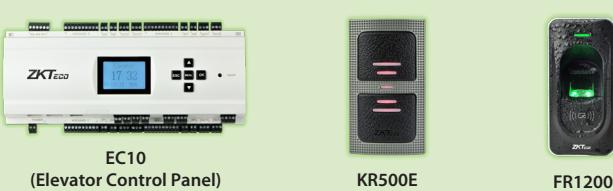

Elevator Controller & Readers

UHF Long Range & LPR readers

LPRS 1000

Why ZKTeco Biometric and RFID Security Solutions?

Flexible: Often can be mixed and matched with 3rd party readers and panels

Affordable: ZKTeco USA is one of the lowest priced security vendors in the industry. Our huge economies of scale allows us to pass our significant cost savings on to our customers.

Simple to install & operate: ZKTeco panels and readers install like any other conventional access control devices. They often use the same wiring, power and communication as existing systems.

Access Control Hardware Features: Multiple relay contacts for door alarm, door sensor, door bell, exit button/REX, etc. RFID card reader options include ZKAccess 125 kHz, HID 125 kHz, HID iClass or Mifare. Options for PoE, Inbridge Server and Wireless Bridge further reduce installation time & money.

Applications:

FLR 2B Fob

Traditional door/gate/elevator access control Turnstile access control Electronic Safe/Cabinet/Drawer access control Door Locks for small business and residential applications Cardboard baler start-up control Forklift truck start-up control . . . control ANY 12V electrical device!
