SECURITY DOOR CONTROLS
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service @sdcsecurity.com

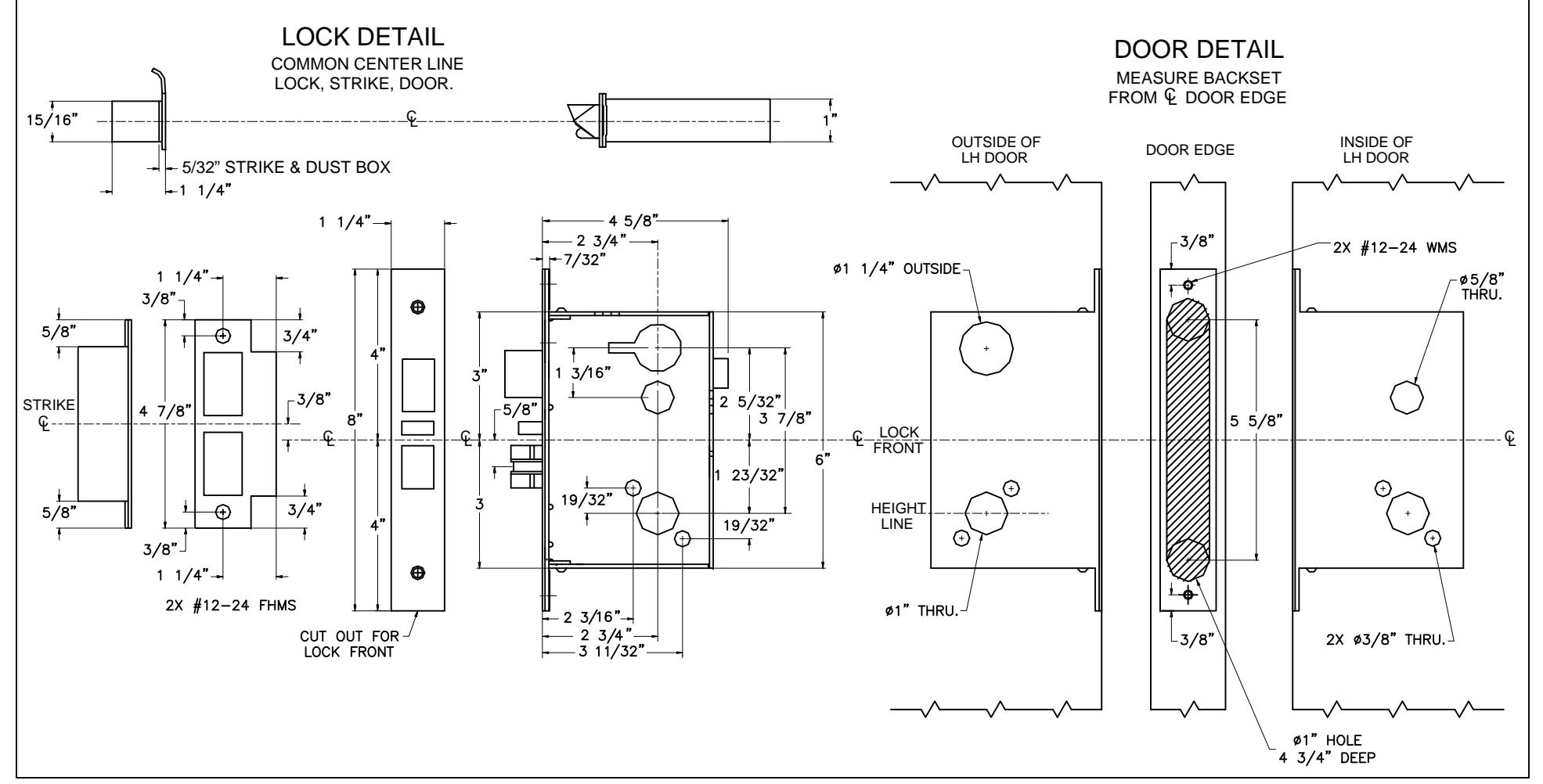

HITOWER Z7870/80 SERIES TEMPLATE ROSE TRIM, WOOD DOOR, PREP.
FLAT OR BEVELED, WOOD OR COMPOSITE DOORS
| CHART FOR DRILLING TRIM HOLES | ||||||
|---|---|---|---|---|---|---|
| OUTSIDE | INSIDE | |||||
| FUNCTION |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
| Z7870 | • | • | • | • | ||
| Z7872 | • | • | • | • | ||
| Z7880 | • | • | • | • | • | • |
| Z7882 | • | • | • | • | • | • |
