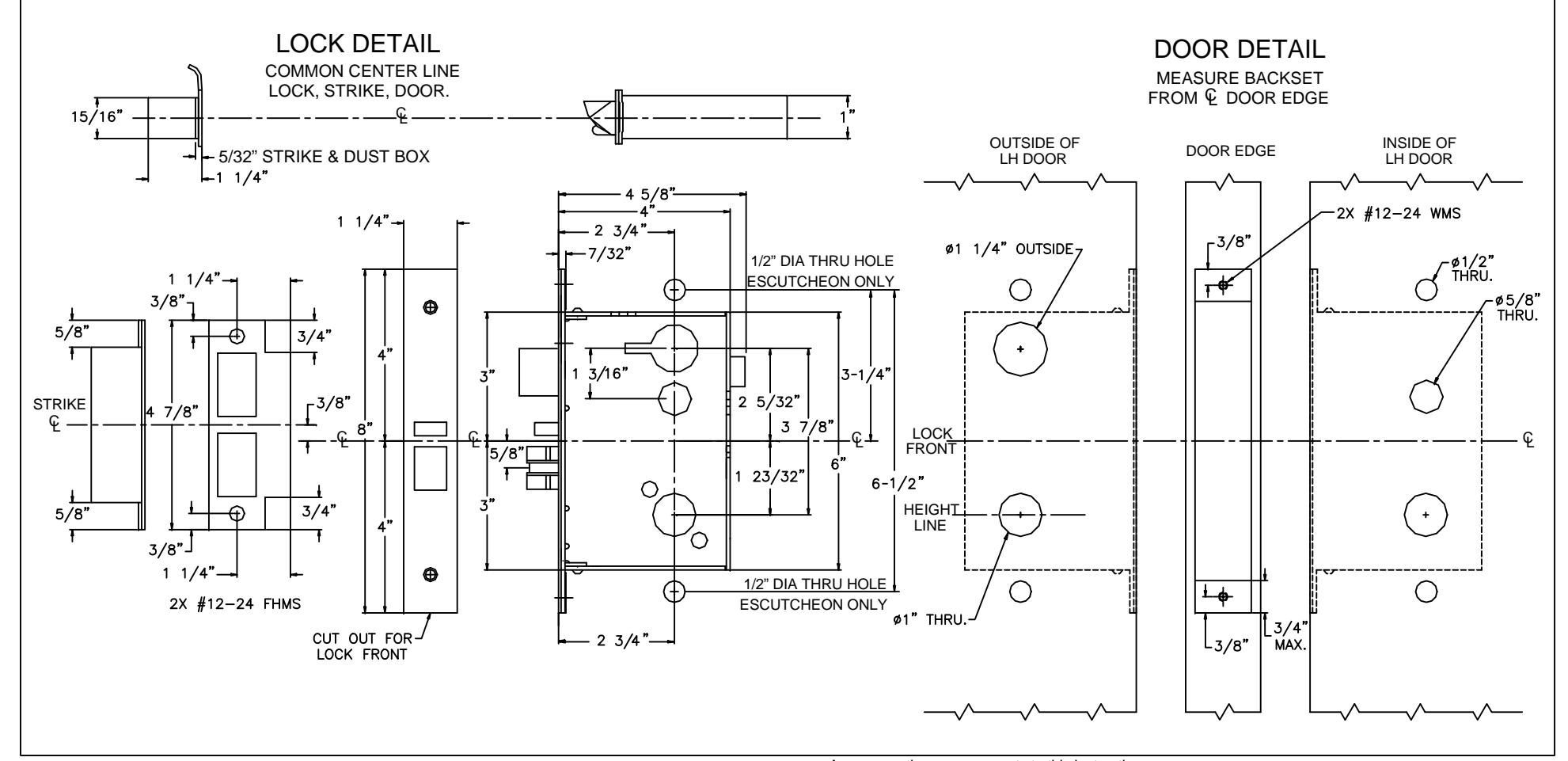

HITOWER Z7870/80 SERIES TEMPLATE ESCUTCHEON, METAL DOOR, PREP.
FLAT OR BEVELED, HOLLOW METAL DOORS
| CHART FOR DRILLING TRIM HOLES | ||||||
|---|---|---|---|---|---|---|
| OUTSIDE | INSIDE | |||||
| FUNCTION |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
| Z7870 | • | • | • | • | ||
| Z7872 | • | • | • | • | ||
| Z7880 | • | • | • | • | • | |
| Z7882 | • | • | • | • | • | |
