Z7800 Electrified Mortise Lock Pricesheet
Open the original PDF document
View PDFSELECTRIC® Pro Locksets incorporate an SDC manufactured Grade 1 Heavy Duty mortise lockset and vandal resistant clutch mechanism. Proprietary to SDC, SELECTRIC® Pro locksets. All operational attributes are field selectable. In addition, SELECTRIC® Pro locksets retrofit many other mechanical lock brands making them fully compatible with new and retrofit applications.
FIELD SELECTABLE ATTRIBUTES (SEE DATASHEET FOR SPECIFIC MODELS)
- Selectable mode, failsafe or failsecure
- Selectable function, locked outside only or both sides
- Selectable voltage, 12 or 24VDC
- Selectable handing

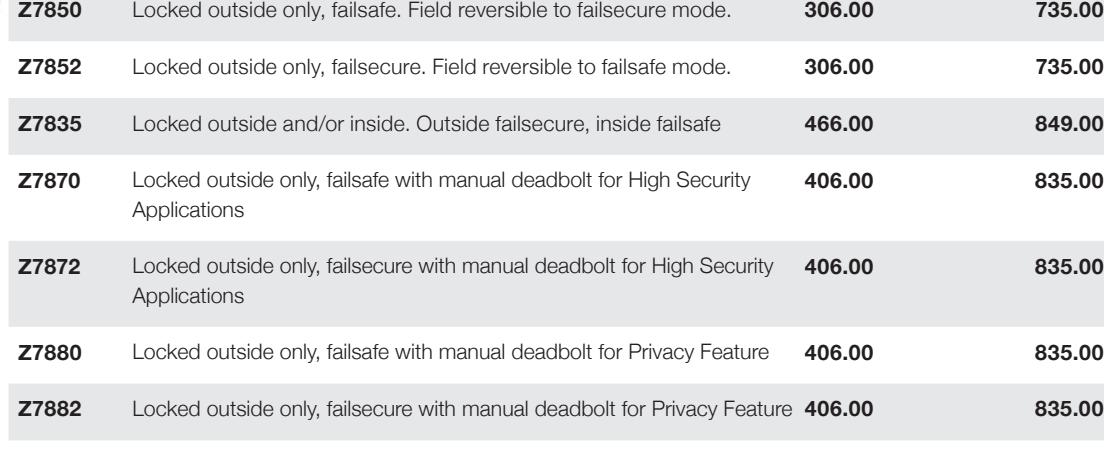

SPECIFY FUNCTION AND MODE LIST
Electrically Controlled Single Point Locks or Latches 3 Hr A Label Fire
Rated Doors 3773-0324:104
* Less Trim With SDC Trim
406.00 835.00
406.00 835.00
Z7850/Z7852 Z7835
Z7830 Locked both sides, failsafe. Field reversible to failsecure mode. 306.00 735.00 Z7832 Locked both sides, failsecure. Field reversible to failsafe mode. 306.00 735.00 SDC Supplied Electrified Lock (Mortise cylinder not included). SDC Brand 7800 lockset. Clutch for lever trim vandal resistance. * Less trim - compatible with Schlage trim
VOLTAGE - Z7835/7870/7872/7880/7882 ONLY
Specify voltage for Z7835/7870/7872/7880/7882 function only. Leave blank for all other functions which are 12/24VDC, field selectable
E 12VDC C 24VDC N/C
| SPECIFY HAND | ||||||
|---|---|---|---|---|---|---|
|
L
Left hand |
LR | Left hand reversed | All hands are field reversible | N/C | ||
| R Right hand | RR | Right hand reversed | without disassembly (exeption Z7835) | N/C |
| SPECIFY FINISH | Add to List | |||
|---|---|---|---|---|
| Q 626 Dull Chrome (standard) | N/C | |||
| C 605 Bright Brass | 52.00 | G 612 Dull Bronze | 52.00 | S 629 Bright Stainless Steel 52.00 |
| D 606 Dull Brass | 52.00 | H 613 Oil Rubbed Bronze | 52.00 |
U 630 Dull Stainless Steel
52.00 |
| F 611 Bright Bronze | 52.00 | P 625 Bright Chrome | 52.00 |
CUL)US LISTED
| OPTIONS | AND ACCESSORIES | Add to List | ||||
|---|---|---|---|---|---|---|
| Optional Ou | tputs | |||||
| Request-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC | ||||||
| ition status output. Indicates door open and door closed. SPDT 5 Amp @ 30VDC. 32/7850/7852/7835 only) | 83.00 | |||||
| & locked status output. Indicates door latched and locked and door unlocked. Amp @ 30VDC. (7830/7832/7850/7852/7835 only) | 104.00 | |||||
| B Deadbolt | Status (7870/7872/7880/7882 only), SPDT 5Amp@30VDC | 83.00 | ||||
| Ontional Ca | able and Connectors | |||||
| CC1-5 | 47.00 | |||||
| 5ft. Cable and connectors for locks without optional outputs | 47.00 | |||||
| CC3-5 | 5ft. Cable and connectors for locks with optional outputs | 63.00 | ||||
| Optional Ke | cy Cylinders 1 required for 7850/7852/7870/7872/7880/7882 2 required for 7830/78 | 332/7835 | ||||
| CYL-6KDQ | 6 pin, 1.125" keyed different, 626 Dull Chrome | 32.00 | ||||
| CYL-6KAQ | 6 pin, 1.125" keyed alike, 626 Dull Chrome | 32.00 | ||||
| Power Trans |
sfer Hinge
", five knuckle hinge. Special finish available |
|||||
| PTH-4Q | Four wire, dull chrome | 156.00 | ||||
| PTH-10Q | Ten wire, dull chrome | 202.00 | ||||
| · | ||||||
| P1H-2+4Q | 6-wire Electric Hinge 1-pair 16 Amp inrush, 4 Amp continuous;2-pair 1 Amp @ 12/24V | 182.00 | ||||
UL 10B Listed for 3Hr Fire Rated Doors See page 88
