MLR Z7700 Series

Motorized Latch Retraction Mortise Locksets with Solenoid Trim Control

MLR Mortise Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Ideal for automatic door operator applications.

BUILDING AND FIRE LIFE SAFETY CODE COMPLIANCE

MLR locksets ensure that the door stays latched even when de-energized, maintaining fire door integrity. MLR locksets comply with all national building and fire life safety code requirements for use on fire rated doors where the use of electric strikes and magnetic locks is prohibited.

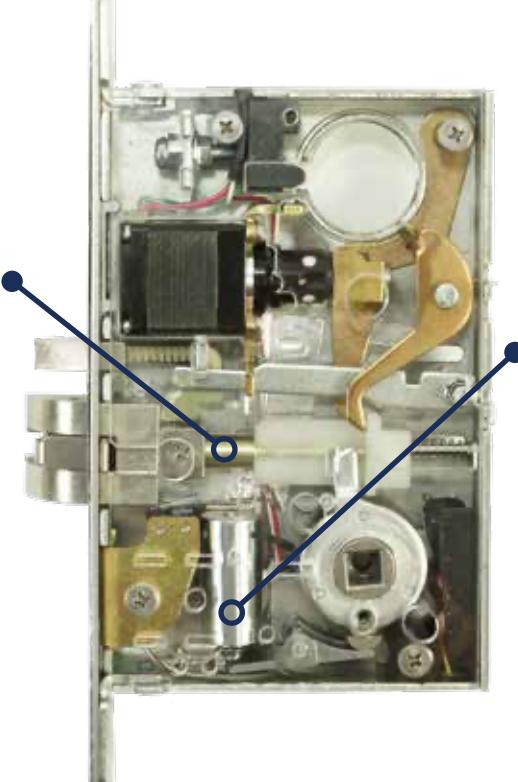

Mortise Latch Retraction

for use on fire rated doors to provide access control and building and fire life safety compliance. Door stays latched even when deenergized. Ideal for automatic door opener applications

Electric Solenoid control of inside. outside or both door levers. Combines versatile passage functionality with failsafe or failsecure access control while meeting ADA Compliance

FEATURES

• Motorized low current operation 620mA inrush, 160 mA holding force @ 24VDC
• Solenoid current operation 300mA @ 24VDC
• Activate Motor and Solenoid individually
• SDC Fully Featured Lockset with Complete Application Flexibility for New Construction or Retrofit of Major Brand Mechanical Locks
• New or Retrofit Application, Replaces Most Mechanical Locks
• Field Selectable Handing
• Order with SDC Trim or Less Trim. Compatible with Schlage Trim Provided by Others
• Key Cylinder Latch Retraction

Full Monitoring Capability (Optional)

• Request-to-Exit, N.O.SPST
• MC-4 Door Contact External
• Latchbolt Status, SPDT
• Recommended Power Supply: 631RF

Z7730 SDC Brand Locksets Complete with SDC Lever Trim Locked Both Sides, Failsafe Mode

Z7732 SDC Brand Locksets Complete with SDC Lever Trim Locked Both Sides. Failsecure Mode

Z7750 SDC Brand Locksets Complete with SDC Lever Trim Locked Outside Only, Failsafe

Z7752 SDC Brand Locksets Complete with SDC Lever Trim Locked Outside Only, Failsecure

Input Voltage	620 mA inrush, 160mA holding @ 24VDC (motor) 300 mA @ 24VDC (solenoid)
Mode	Failsecure/Failsafe (must be specified)
Door Thickness	1-3/4" Standard
Door Prep	ANSI A 156.13
Latch Bolt	3/4" Anti-friction Bolt with Auxiliary Deadlatch
Backset	2-3/4"
Strike	4-7/8" (Standard)
Key Override	6 PIN, 1'1/8" Mortise Cylinder with Schlage "C" Keyway (Optional)
Wiring	External terminal board - 6 cond min to lock, 10 cond with options
Weight	7.0 lbs

Locked from both sides: Unlocked by an access control, remote control or key from either side.

5| SPECIFY OUTPUTS (OPTIONAL)

N.O.SPST 1 Amp @ 30VDC.

6 | CABLE AND CONNECTORS

Request-to-exit. Indicates inside lever operation for

access control request-to-exit input, alarm shunt,

Door position status output. (MC-4 Door Contact)

5ft. Cable & Connectors for Locks

5ft. Cable & Connectors for Locks

remote annunciation or CCTV activation,

Latchbolt Status SPDT 1Amp @ 30VDC

(OPTIONAL) FOR Z7700 SERIES ONLY

without Optional Outputs

with Optional Outputs

Locked from outside only: Unlocked by an access control or key from the outside. Uninhibited egress at all times by turning the inside lever handle.

PRODUCT SKU SAMPLE: Z7730 L Q E R D L

HOW TO ORDER

11 SPECIFY FUNCTION AND ELECTRICAL MODE

Z7730 Lock Both Sides, Failsafe Mode

Z7732 Lock Both Sides, Failsecure Mode

Z7750 Lock Outside Only, Failsafe

Z7752 Lock Outside Only, Failsecure

2 SPECIFY HAND

L Left Hand LR Left Hand Reverse

R Right Hand RR Right Hand Reverse

All hands are field reversible without disassembly

3 | SPECIFY FINISH

626 Dull Chrome (standard)

C 605 Bright Brass

606 Dull Brass

611 Bright Bronze

612 Dull Bronze

613 Oil Rubbed Bronze

625 Bright Chrome

629 Bright Stainless

630 Dull Stainless Steel

7| MORTISE KEY CYLINDERS (OPTIONAL)

1 required for 7752 2 required for 7732

CC1-5-90

CC3-5-90

CYL-6KDQ 6 pin, 1-1/8" Keyed different, 626 Dull Chrome

CYL-6KAQ 6 pin, 1-1/8" Keyed alike, 626 Dull Chrome

AUTO1 PUSH Operator - one motor assembly, PUSH arm AUTO2 PULL Operator - one motor assembly, PULL arm AUTO3 PUSH & PULL Arms with one motor assembly

4| SPECIFY LEVER TRIM

GE Galaxy

PTH-10Q Ten Wire, Dull Chrome

Six Wire Electric Hinge 1-pair 16 Amp inrush, PTH-2+4Q 4 Amp continuous; 2 -pair 1 Amp @ 12/24V

631RF 1.5 Amp. 12/24 VDC Class 2 Output Power Supply

© 2020 SECURITY DOOR CONTROLS • WWW.SDCSECURITY.COM

LIT-Z7700 SERIES MLR MORTISE LOCKSET HYBRID 01/20
