Z7600 Series Mortise Locks Escutcheon Wood Door Prep CAD Template
Open the original PDF document
View PDF
SECURITY DOOR CONTROLS
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

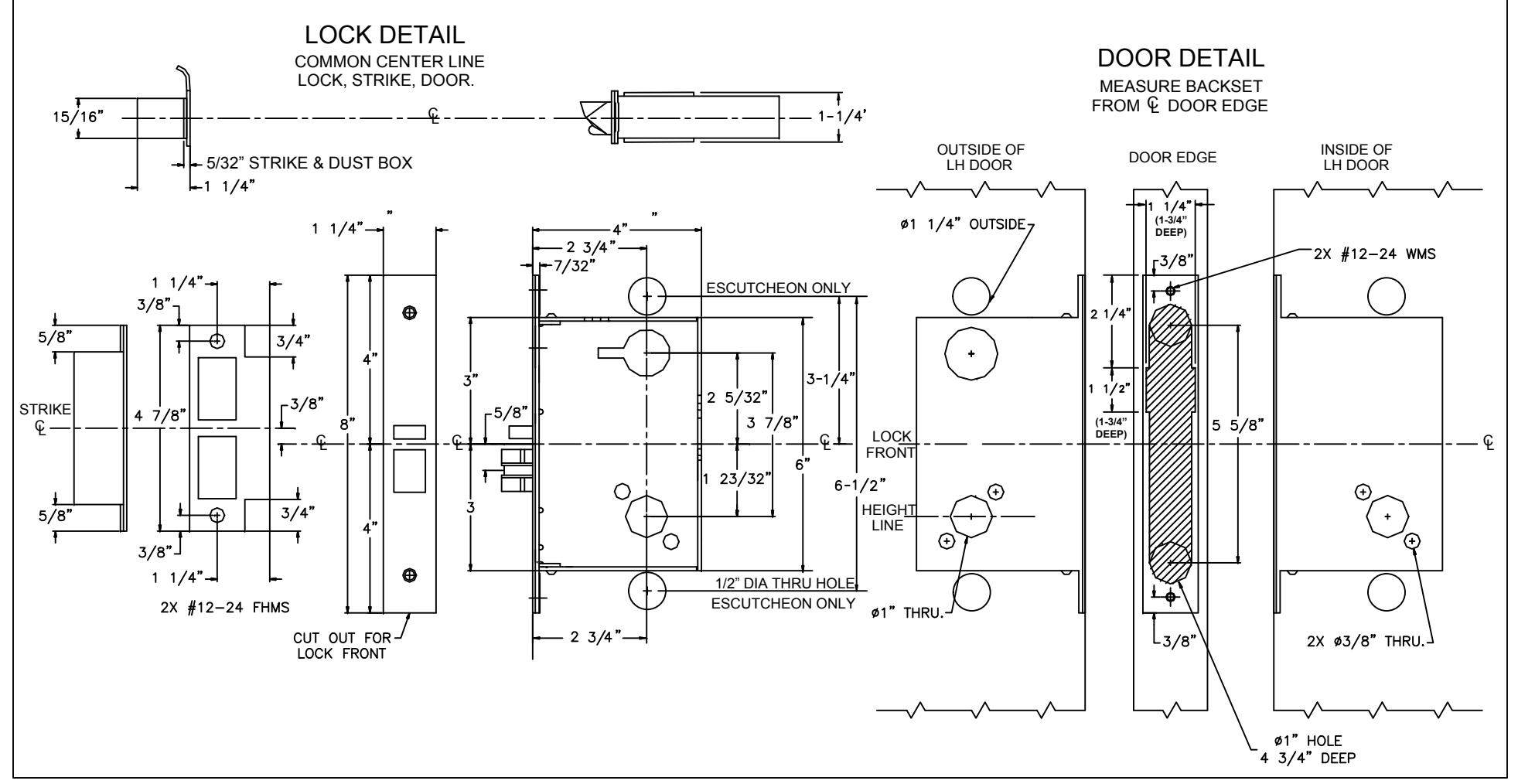

Z7600 SERIES TEMPLATE ESCUTCHEON, WOOD DOOR, PREP.
FLAT OR BEVELED, WOOD OR COMPOSITE DOORS
| CHART FOR DRILLING TRIM HOLES | ||||||
|---|---|---|---|---|---|---|
| OUTSIDE | INSIDE | |||||
| FUNCTION |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
LEVER
HOLE |
CYLINDER
HOLE |
THUMBTURN
HOLE |
| Z7652 | • | • | • | |||
| Z7632 | • | • | • | • | ||
