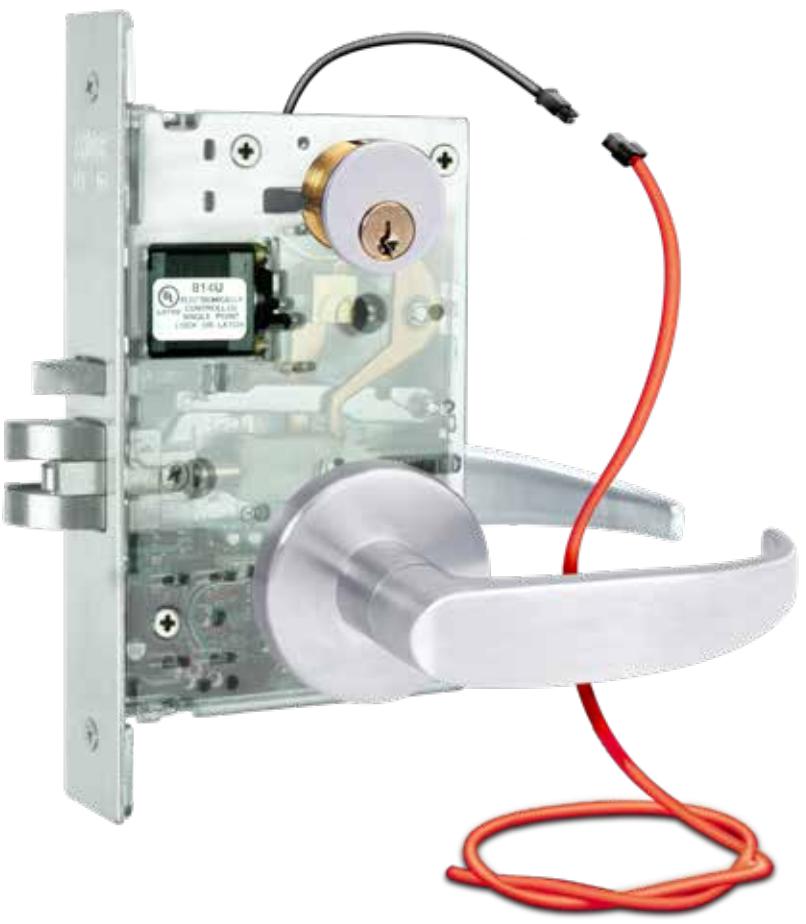

MLR Z7600 Series

Motorized Latch Retraction

Mortise Locksets

MLR Mortise Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

MLR locksets ensure that the door stays latched even when de-energized, maintaining fire door integrity. MLR locksets comply with all national building and fire life safety code requirements for use on fire rated doors where the use of electric strikes and magnetic locks is prohibited.

FEATURES

Motorized low current operation 620mA inrush, 160 mA holding force @ 24VDC
SDC Fully Featured Lockset with Complete Application Flexibility for New Construction or Retrofit of Major Brand Mechanical Locks
New or Retrofit Application, Replaces Most Mechanical Locks
Field Selectable Handing
Order with SDC Trim or Less Trim. Compatible with Schlage Trim Provided by Others
Key Cylinder Latch Retraction

Full Monitoring Capability (Optional)

Request-to-Exit, SPDT
MC-4 Door Contact
Latchbolt Status, SPDT

MODELS MODELS

Patent Pending

Z7632 SDC Brand Locksets

Z7652 SDC Brand Locksets

Complete with SDC Lever Trim

Complete with SDC Lever Trim Both Levers Always Active, Passage

SDC Brand Locksets

Locked Outside Only, Failsecure

Locked Both Sides, Failsecure Mode


Input Voltage	620 mA inrush, 160mA holding @ 24VDC
Mode	Failsecure
Door Thickness	1-3/4" Standard
Door Prep	ANSI A 156.13
Latch Bolt	3/4" Anti-friction Bolt with Auxiliary Deadlatch
Backset	2-3/4"
Strike	4-7/8" (Standard)
Key Override	6 PIN, 1'1/8" Mortise Cylinder with Schlage "C" Keyway (Optional)

Locked from both sides: Unlocked by an access control, remote control or key from either side.

Locked from outside only: Unlocked by an access control or key from the outside. Uninhibited egress at all times by turning the inside lever handle.

PRODUCT SKU SAMPLE: Z7650 LR Q EE

HOW TO ORDER

Weight 7.0 lbs

1| SPECIFY FUNCTION AND ELECTRICAL MODE

Z7632 Locked Both Sides, Failsecure Mode

Z7652 Locked Outside Only, Failsecure Mode

Z7620 Both Levers Always Active, Passage

2| SPECIFY HAND

L Left Hand LR Left Hand Reverse

R Right Hand RR Right Hand Reverse

All hands are field reversible without disassembly

3| SPECIFY FINISH

Q 626 Dull Chrome (standard)

C 605 Bright Brass

D 606 Dull Brass

F 611 Bright Bronze G 612 Dull Bronze

H 613 Oil Rubbed Bronze

P 625 Bright Chrome

S 629 Bright Stainless

Steel

5| SPECIFY OUTPUTS (OPTIONAL)

R Request-to-exit. Indicates inside lever operation for access control request-to-exit input, alarm shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC. Not available for model Z7632.
D Door position status output. (MC-4 Door Contact)
LM Latchbolt Status SPDT 5Amp @ 30VDC
