HiTower® Pro 7500 Series Frame Actuator Controlled Lockset

SDC PIONEERED AND PATENTED SINCE 1973

HiTower® lock technology has established the standard for security, safety and performance for electric lock-sets. Thousands of HiTower's® have been installed in buildings dominating city skylines worldwide.

SDC HiTower® locksets comply with all national and regional building codes for locking interior office, elevator lobby, exit and stairwell fire rated doors, where the use of electric strikes and magnetic locks is prohibited. HiTower® locksets also provide higher security and superior aesthetics compared to exposed and vulnerable electric strikes and magnetic locks. While providing controlled access and remote control capability the door stays latched even when unlocked, maintaining fire door integrity.

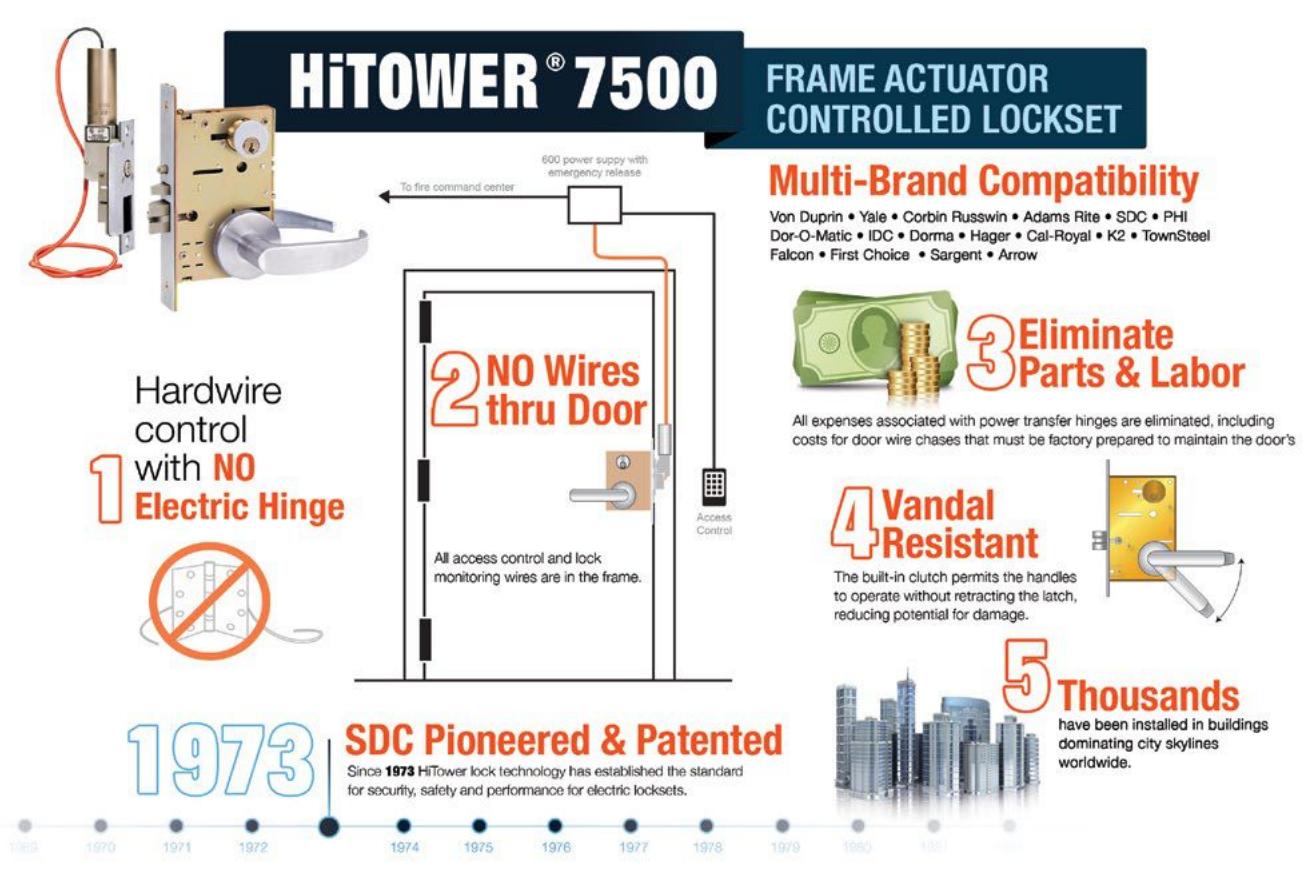

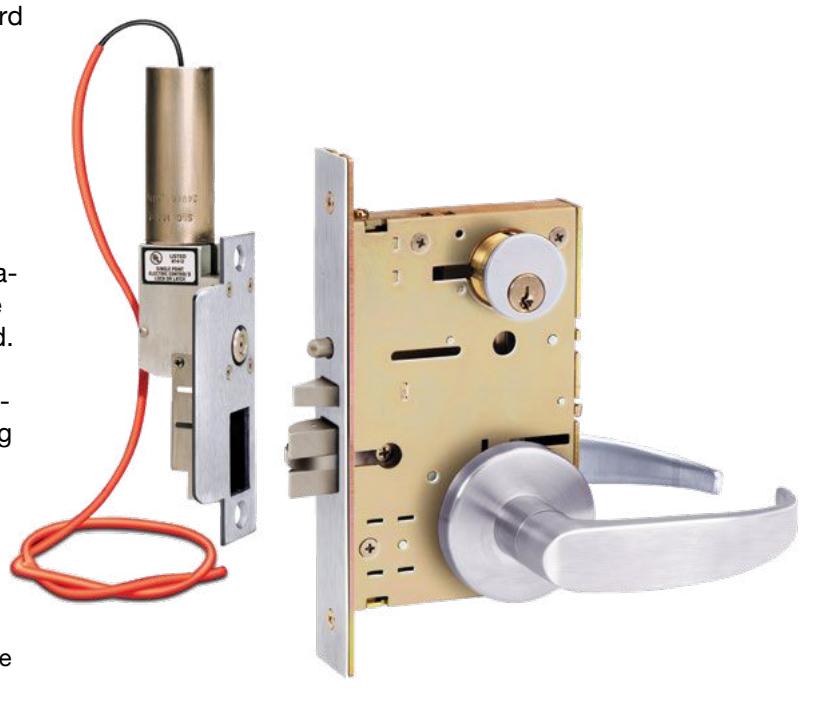

The HiTower® lock consists of a mechanical door lock controlled by an electric actuator installed in the frame. All access control and monitoring wires are maintained in the frame. Power transfer hinges and wires through the door are not required. All expenses associated with power transfer hinges are eliminated, including costs for door wire chases that must be factory prepared to maintain the door's fire ratings.

Electric Actuator for Standard Frame Fits Standard Strike Preparation
Compact Actuator Design provides for Easy Frame Fit and Room for Wires
Choice of Two Actuator Sizes for Standard or Narrow Frames
Exclusive Alignment Compensation for Wide Door Gaps up to 0.3125" (8 mm)
High Security Locking Operation Deadlocks the Latchbolt and Hubs
Spring Loaded Hub Locking Mechanism absorbs Pressure for Smooth Lever Action
Mechanical Key retracts the Latchbolt when locked

Z7500 SDC Brand Lockset

ZY7500 SDC retrofit lockset replaces SDC modifications of discontinued manufacturer models:

Falcon-LM581; Sargent-7704/7705; Corbin-9557L/2257; Russwin- 7059L; Arrow-1600EW; Yale-8705; Almet-5007; Best-35HEW

ZR7500 SDC retrofit lockset replaces discontinued 5000/6000 Series

ZS7500 SDC supplied Schlage L9080 and electric frame actuator, LESS TRIM

APPLICATIONS

High-rise stairwell doors
Elevator lobby doors
Perimeter exit doors
Hospital communicating bathroom
Office doors

Computer rooms
Equipment rooms
Pharmacy storage rooms
Money counting rooms
Security and safety mantraps

COMPETITIVE LOCK COMPARISON CHART

SDC - HiTower®	ACSI - Gemini	Corbin/Russwin
FAILSAFE
7530	8500-M2-PL	ML22960
		ML22907
7550	8500-M1-PL	ML22950
		ML22905
FAILSECURE
7560	8500-M2-PUL	ML22980
		ML22909
7570	8500-M1-PUL	ML22970
		ML22908
OPTIONS
SC-10	QC
L SPDT (Latch Status only)
S SPDT (Latch & Deadlock Status)	CLS Closed loop only (SPDT not available)

MORTAR GUARD
7500EB-S (1.75" - 2" Face Frames)	302-03-02
7500EB-N (1.25" - 1.5" Face Frames)	303-03-04

LOCK FUNCTION

Locked when energized, the failsafe mode is recommended for fire life safety applications. Such as, stairwell doors, perimeter exit doors and safety mantraps. Loss of power or a signal from the life safety system causes all doors to unlock for free uninhibited access and egress.

Recommended for Fire Life Safety Applications. Unlocked by power loss or signal from the fire life safety system. See SDC power supplies with fire life safety system interface for release of locks in an emergency.

7530 LOCKED FROM BOTH SIDES

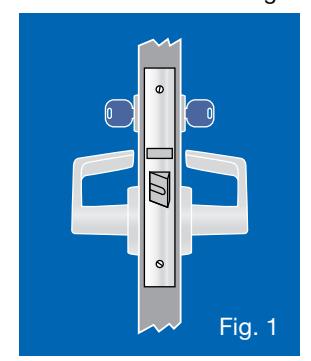

Locked when energized, unlocked by an access control, remote control or a key from either side (SEE FIG. 1).

Suggested use: Openings that are to be locked on both sides, such as: communicating doors; inner offices; safety mantraps.

7550 LOCKED OUTSIDE ONLY, FREE EGRESS FROM THE INSIDE

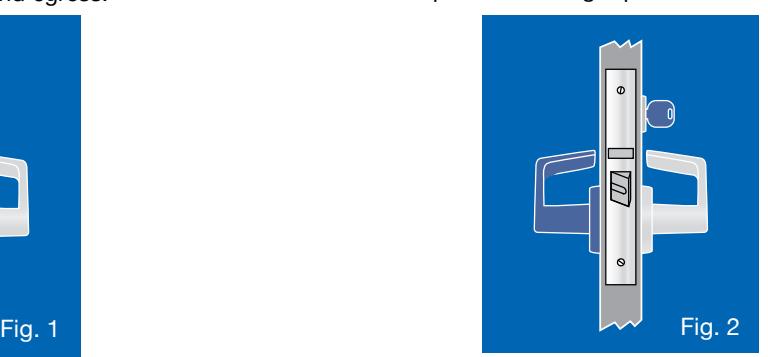

Locked when energized, unlocked by an access control, key from the outside. Uninhibited egress at all times by rotating the inside lever (SEE FIG. 2).

Suggested use: Stairwell doors, lobby doors, exit doors, inner offices, safety mantraps, communicating bathrooms.

FAILSAFE - POWER TO LOCK FAILSECURE - POWER TO UNLOCK

Locked when de-energized, the failsecure mode is recommended for security applications. Such as, inner offices, equipment rooms and security mantraps. Loss of power causes all doors to lock. Battery back-up is required for continued operation during a power loss.

7530 / 7560 7550 / 7570

Recommended for High Security Applications. Power loss causes doors to lock. See SDC power supplies for continued operation during power failures. (SDC and Schlage only)

7560 LOCKED FROM BOTH SIDES

Locked when de-energized, unlocked by an access control, remote control or a key from either side (SEE FIG. 1).

Suggested use: Openings that are to be locked on both sides, such as: communicating doors, inner offices, security mantraps.

7570 LOCKED OUTSIDE ONLY, FREE EGRESS FROM THE INSIDE

Locked when de-energized, unlocked by an access control, key from the outside. Uninhibited egress at all times by rotating the inside lever (SEE FIG. 2).

Suggested use: Inner offices, computer rooms, equipment or storage rooms, cashier rooms, security mantraps.

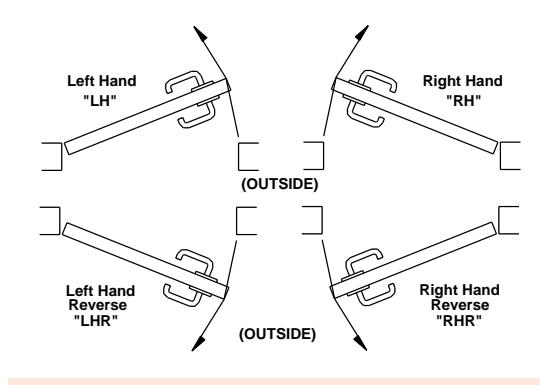

SPECIFICATIONS


Grade	ANSI 156.13 Grade 1
Backset	2.75"
Min. Door Thickness	1.75"
Weight	7.0 lbs
Electrical	.5 Amp @24VDC; .5 Amp @ 24VAC; .2 Amp @115Vac
Standard Frame Actuator Strike Prep
Dimension	Standard ANSI 4-7/8" x 1-1/4"
Face Frame Thickness	1-3/4" to 2"

Narrow Frame Actuator Strike
Dimension	8-1/2" x 1-1/4"
Face Frame Thickness	1-1/4" to 1-1/2"
Failsecure Actuator Strike
Dimension	SDC Z/ZR7560, Z/ZR7570: 4-7/8" x 1-1/4"
	Schlage ZS7560, ZS7570: 5-3/4" x 1-1/4"
Face Frame Thickness	2"
