HITOWER Z7500 SERIESTEMPLATE 1¾" - 2" FRAMES

IMPORTANT

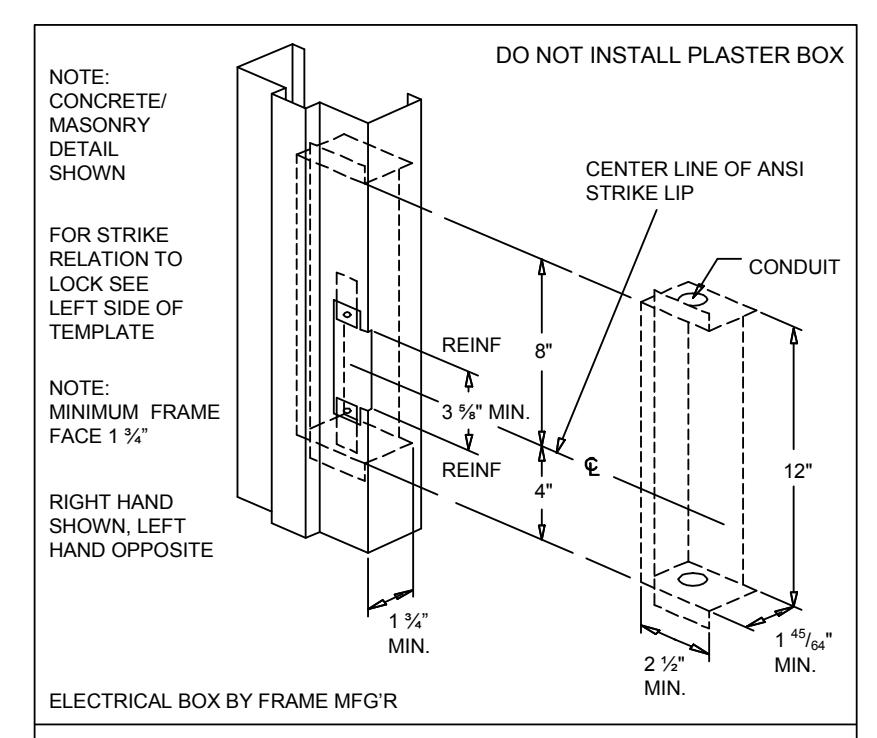

Details show space requirements for electric controller box. Allowances for different wall construction materials must be taken into consideration. Install conduit connectors in top of box before welding to frame.

NOTE:

THE 3-⅝" CLEARANCE BETWEEN THE STRIKE REINFORCEMENT TABS IS CRITICAL.*MAXIMUM THICKNESS OF TABS .125

UL LISTED BOX AS SHOWN AVAILABLE FROM SECURITY DOOR CONTROLSPART #7500EB-S

NOT TO SCALE

SECURITY DOOR CONTROLS

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

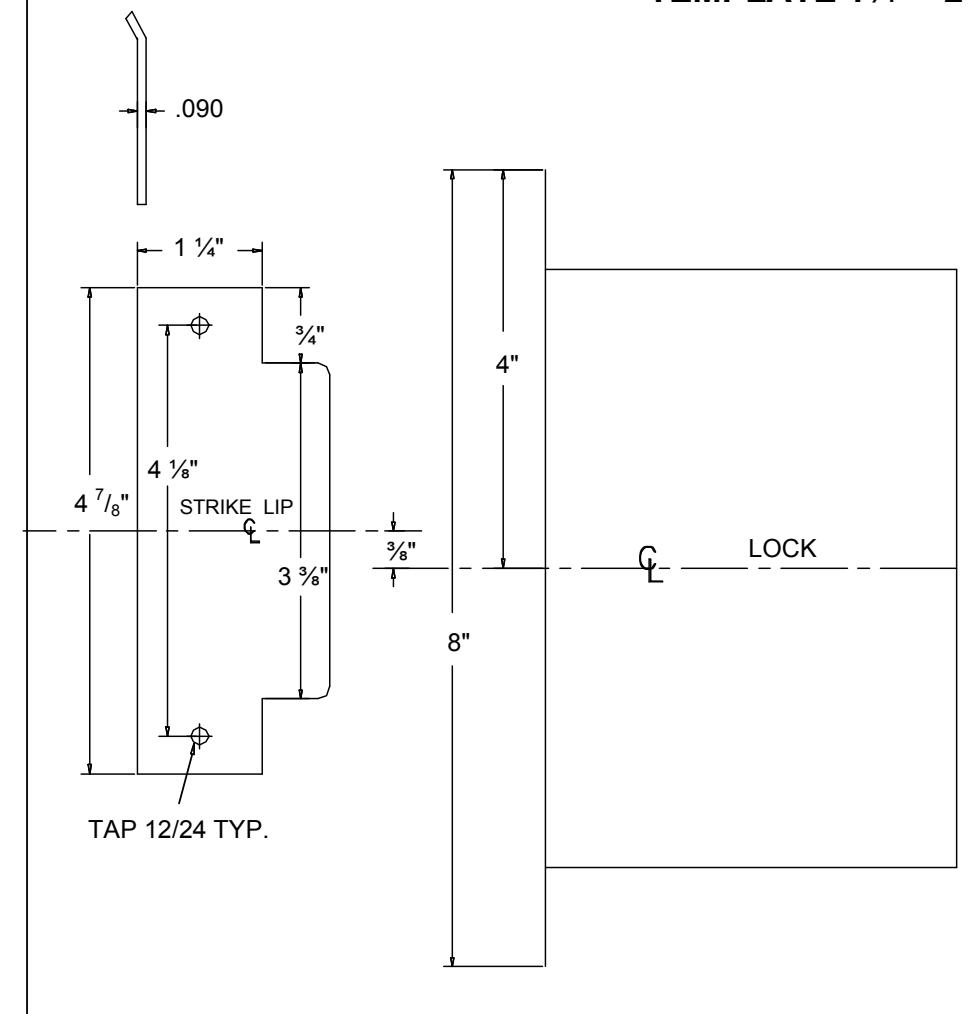

HITOWER Z, S, I, D, P, T, H & N 7500 SERIES TEMPLATE 1-1/4" - 1-3/4" FRAMES

IMPORTANT

Details show space requirements for electric controller box. Allowances for different wall construction materials must be taken into consideration. Install conduit connectors in top of box before welding to frame.

NOTE:

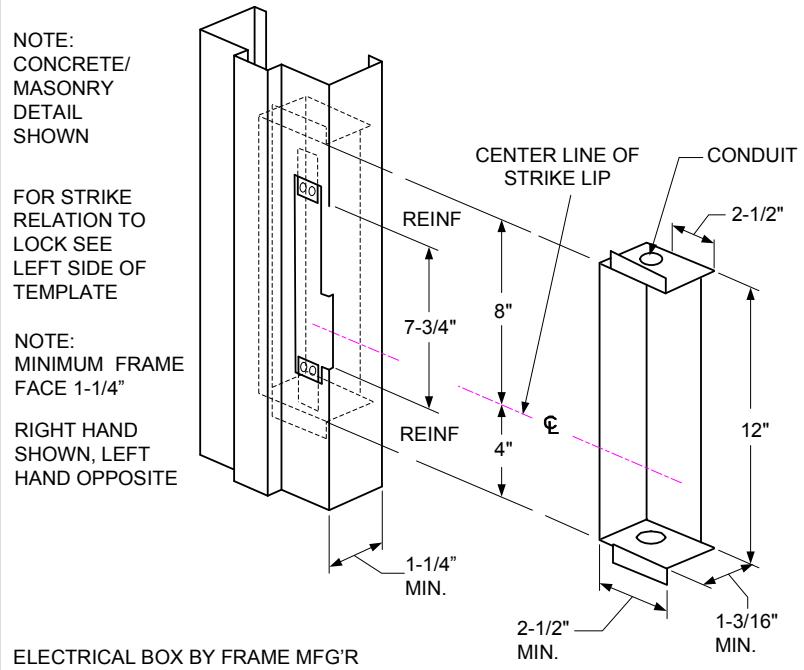

THE 7-3/4" CLEARANCE BETWEEN THE STRIKE REINFORCEMENT TABS IS CRITICAL.*MAXIMUM THICKNESS OF TABS .125

UL LISTED BOX AS SHOWN AVAILABLE FROM SECURITY DOOR CONTROLSPART #7500EB-N

HOLES REQUIRED FUNCTIONS

Door Prep. Only

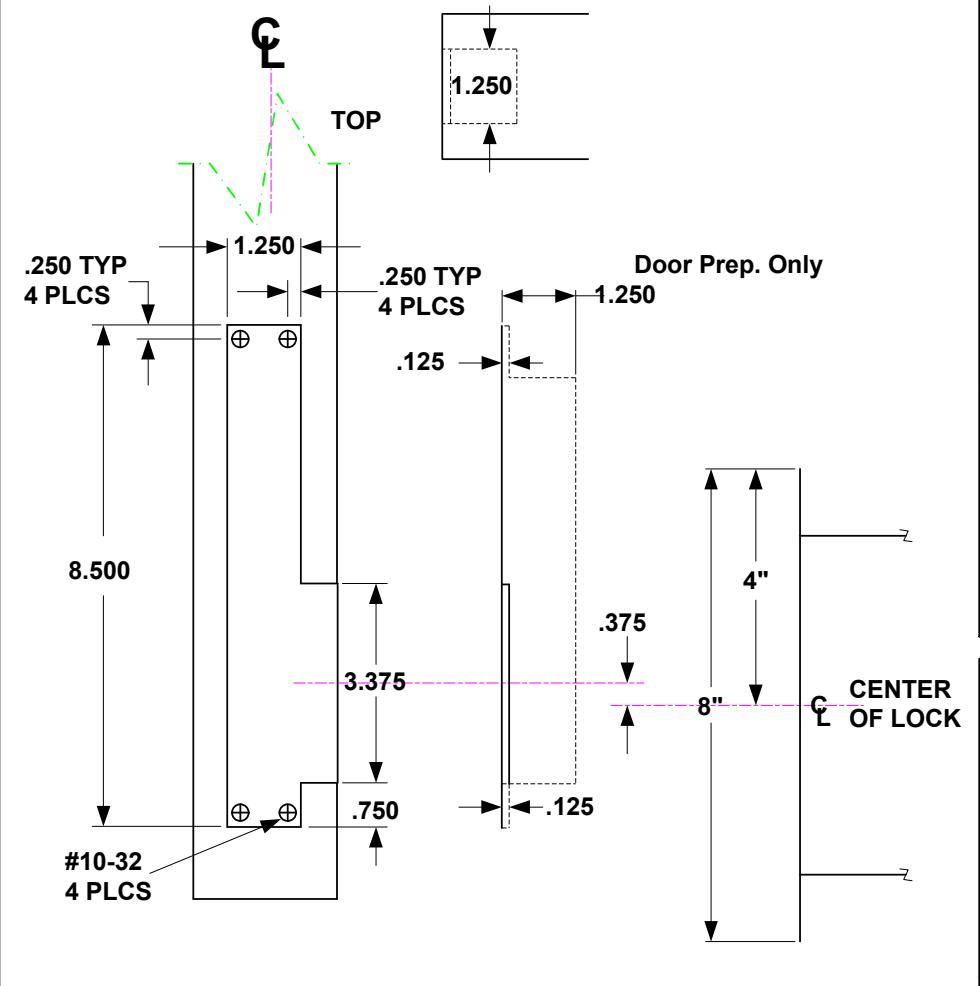

Identify the lock and manufacturer by letter prefix. Review proper manufactures template requirements for door prep only . See details far left and above for frame prep.

SO CE # UR	MO L # DE
SD C Z	00 75
S Sc hla ge	L9 08 0
I C in/ orb Ru in ssw	ML 20 57
D S t arg en	82 00
P Y ale	88 05
T B t es	45 H
N A rro w	B1 2
H Ha ge r	38 80

NOT TO SCALE
