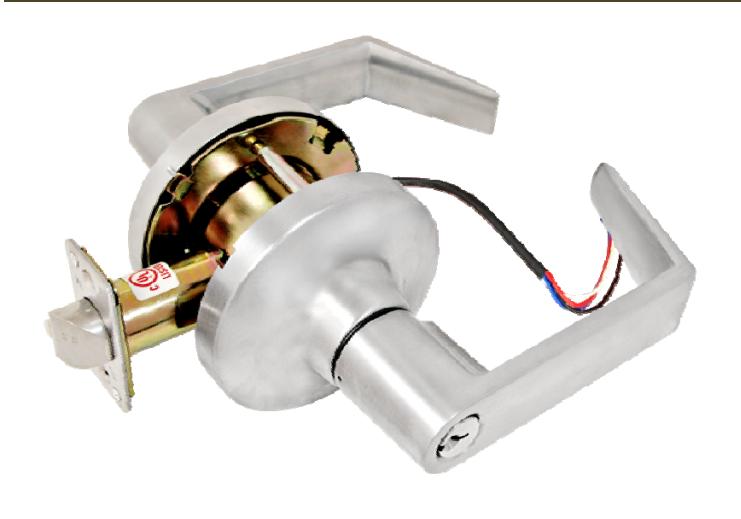

XCDC‐ Electrified Grade 1 Cylindrical‐ Clutched

Electronic Specifications:

Input Voltage: Single, 24VDC or 12VDC

Fail Secure: Available Fail Safe: Available

Electrical Parameter

12VDC 0.32AMP 37.5±10% Ohm 24VDC 0.16AMP 150±10% Ohm

Wire: 22AVG, 4 wires

RX Switch : Request‐to‐Exit switch standard

Mechanical Specifications:

Door Thickness: 1‐3/8"‐2"

Backset: 2‐3/4" standard, 2‐3/8" , 3‐3/4"

and 5" available Lever Trim: Clutched

Latch: Stainless steel, 1/2" throw standard. Anti‐friction fire door latch with 3/4" throw available.

Strike: ASA, 1‐1/4" X 4‐7/8"

  • Cylinder: 6 pin solid brass. Schlage "C" Keyway, 2 keys per each cylinder, keyed different standard
  • Best® SFIC: Available with or without core on all three lever trims.
  • Schlage® LFIC: Available in less core on Sentinel lever trim only.
  • Keying: KA, MK, GMK, GGMK available

Finish: US26D and US10B

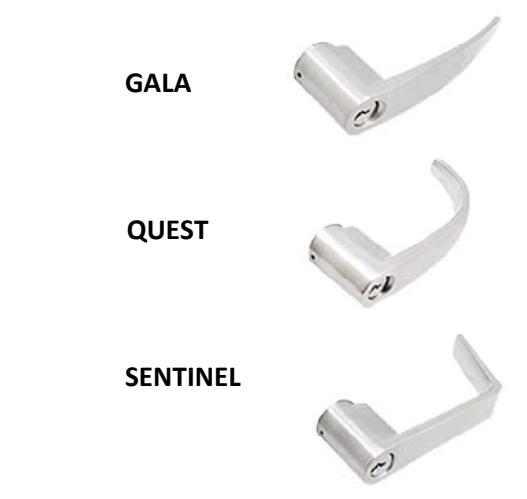

Lever: Sentinel, Gala, and Quest

Door Prep: 161 standard with through bolts

Warranty: 1‐year limited on electronic, 10‐year limited on mechanical

Code Compliance:

ANSI/BHMA: A156.2 Grade 1 Certified

UL: UL 10C 3‐Hour rated

BAA: Meets guidelines of The Buy American Act

ADA: Meets guidelines of The American with Disabilities Act
