X-09™ & CDX-09™ High Security Locks
X-09™
Meets FF-L-2740A
Because it meets the United States Government's stringent FF-L-2740A specification, the X-09 high security electromechanical lock is approved by the GSA (General Services Administration) for use on approved Class 5 and Class 6 filing cabinets and Class 5 and Class 8 Security vault doors.
The X-09 is self-powered using Kaba Mas' exclusive PowerStar™ technology (an internal self-activating power plant). This eliminates the threat of compromise of external power sources or internal batteries. Rotating the dial in either direction provides all the power necessary to enter the combination and review audit features.
The X-09 boasts a limited-view LCD display preventing detection of entry codes or dial position. Additionally, the tamper-resistant X-09 can not be "hacked" because the digital information is hidden in the processor's nonvolatile memory.
Representing a giant step forward in high security locking technology, the X-09 features multiple modes of user access with audit capabilities. These user-friendly locks provide the high level of security and maintenancefree operation.
National Stock Number (NSN) 5340-01-498-2758

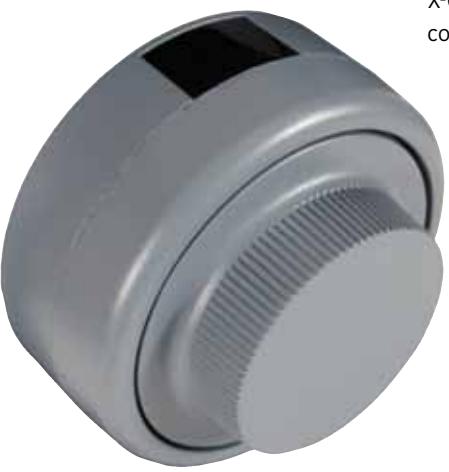

X-09 Combination Lock for GSA approved security containers and GSA approved vault doors.
X-09™ Features
Three Modes of Operation
Choose your level of operation. The Single Combination Mode allows access by dialing a six-digit combination. The Dual Combination Mode allows access only when two separate codes are entered within 40 seconds of one another. The Supervisory/Subordinate Mode allows access by a subordinate's code only after a supervisor's code has been entered.
Audit Feature
The X-09 has a full complement of auditing features, including a non-resettable record of openings and an unsuccessful attempts record (audits after 3 unsuccessful attempts) that resets once the proper access code is entered.
PowerStar™ Technology
The X-09 features our patented PowerStar™ technology which generates its own electrical energy with each rotation of the dial. This exclusive self-powered technology is highly reliable and independent of vulnerable external power sources or internal batteries.
X-09™ Specifications
| HARDWARE SPECIFICATIONS | • Wrong Try Penalty: 10-14 errors results in a 3 minute | ||
|---|---|---|---|
| • Power: Internal, self-powered by | time out. 15 errors or greater | ||
| PowerStar™ technology. | results in a 4 minute time out. | ||
| Combinations: 3 modes: | Both error count and penalty | ||
| • Single: 1 million combinations | time resets with | ||
| • Dual: 500 billion combinations | valid combination. | ||
| • Supervisor/Subordinate: 2 million combinations | |||
| • Back Cover: Lock On Back Cover pin | |||
| • Direct Dial: No need to clear before | prevents removing the back | ||
| entering combination. Once | cover without the combination. | ||
| you stop turning the dial, the | |||
| power will shut down after | ENVIRONMENTAL PERFORMANCE | ||
| 40 seconds. | •Temperature: Tested -10°F to 155°F | ||
| • Dead Zones: None | Operational Range. | ||
| • Memory: Non-volatile | • Salt Spray: Operational After 72 hours | ||
| • LCD: Limited View Liquid Crystal | of continuous exposure | ||
| Display with indicator arrows | (per ASTM B117-90). | ||
| makes dialing easy and exact. | • High R.P.M.:Not operational after 4 hours in | ||
| • Combination Changes: (LCD indicator in change key | each direction @ 600R.P.M. | ||
| mode). Combination changed | Fails Secure. | ||
| with correct combination or | • Cycle Test: Meets or exceeds | ||
| serial number. | FF-L-2740A specifications. | ||
| • Random Number View: True Scramble | • Humidity: Operational after 10 days of | ||
| • Daylocking: No | 140°F @ 98% humidity | ||
| • Back Dialing: No | (Operational after 10 days | ||
| • Lock Reset: Automatic when bolt is | testing per MIL-STD-810E, | ||
| thrown or 40 seconds after | Method 507.3, Procedure III, | ||
| turning has stopped. | Temperature Cycling 86°F to | ||
| • Manipulation: Fail secure against high- | 140°F @ 98% RH) | ||
| voltage attack, robot attack, | • Stress: Operational after 7 days in a | ||
| X-ray methods, magnetic, | stress chamber @ 194°F. Meets | ||
| vibration, and R/F. | FF-L-2740A specification. | ||
| • Audit: The X-09 records all | • Vibration: MIL-STD-810 | ||
| openings, and the record | • Shock: MIL-STD-901 | ||
| is non-resettable. The X-09 | • Electrical Discharge: 250KV on Dial | ||
| records unsuccessful | • Electromagnetic Pulse: Meets FF-L-2740A specification | ||
| attempts after 3 incorrect | for simulation of high altitude | ||
| combination attempts | nuclear blast. | ||
| and resets after a | • Case & Bolt Strength: 600 pounds in two directions. | ||
| correct opening. | |||
IMPORTANT NOTE:
Department of Defense and Agencies - Inquiries please contact:
Naval Facilities Engineering Service Center, Security Engineering Division, DoD Lock Program, 1100 23RD Avenue, Port Hueneme, CA 93043-4370. Phone: (805) 982-1212 | https://portal.navfac.navy.mil/go/locks

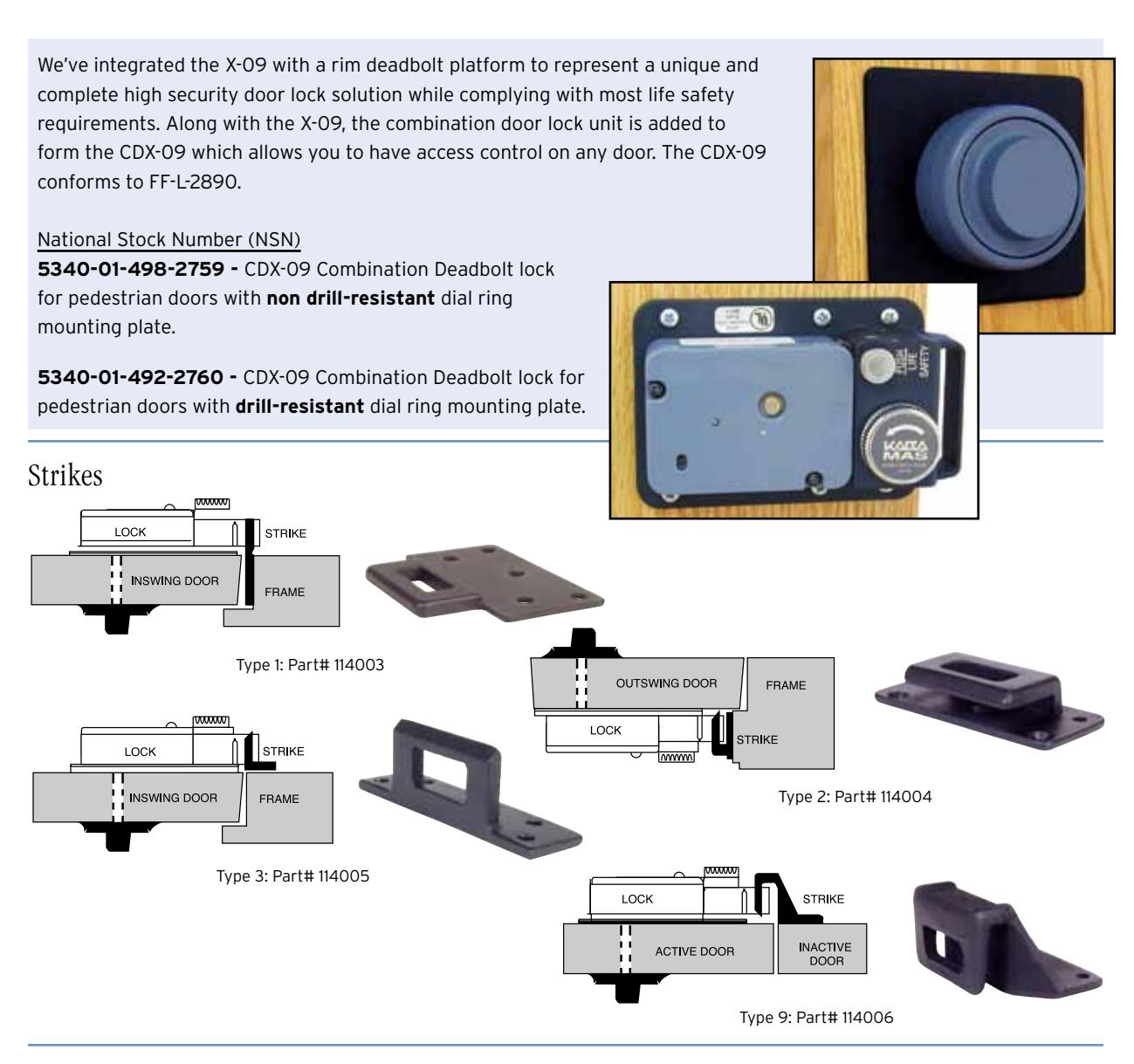

Additional Applications - CDX-09™

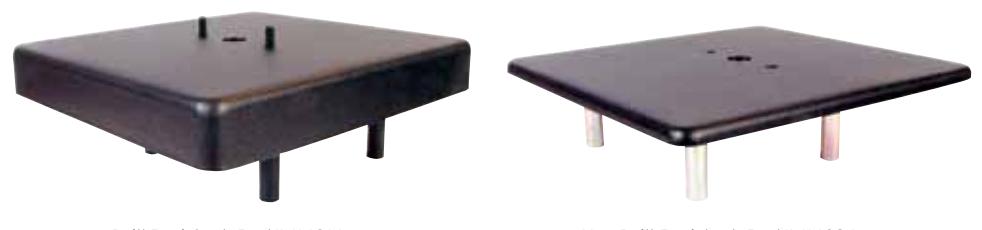

Dial Ring Mounting Plates
Drill Resistant: Part# 114014 Non Drill-Resistant: Part# 114024
