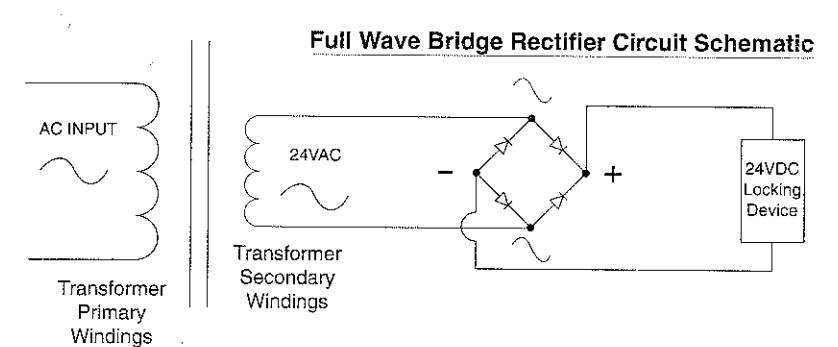

Wiring Instructions for SARGENT Full Wave Bridge Rectifier (Solenoid Operated Locks)

Open the original PDF document

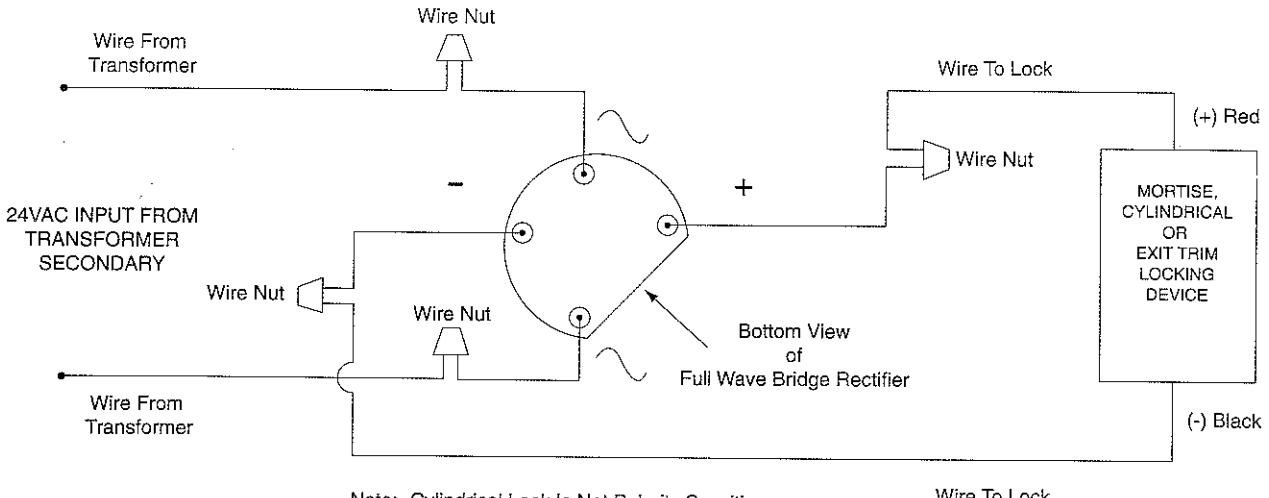

Wiring Instructions for SARGENT Solenoid Operated Locks

For installation assistance, contact SARGENT Electrical Technical Support at 1-800-WIRE (9473)

Note: Cylindrical Lock Is Not Polarity Sensitive.

(4) Wire Nuts Are Enclosed to Make Connections.
