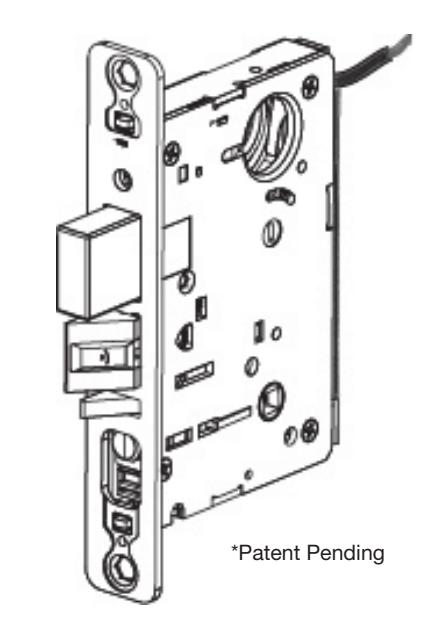

SARGENT Wiring Instructions for Ecoflex™ Electrified Mortise Locks* (7970,71,72,73 & 8270,71,72,73) for 12-24 Volts and Mechanical Mortise Locks with Monitoring Prefixes (RX, LX & DX) with the ElectroLynx ® Connector System

For assistance, contact SARGENT at 800-810-WIRE (9473) or www.sargentlock.com

w

Important

CAUTION: The voltage applied to the lock actuator must not exceed 10% of rated voltage. If the voltage exceeds this value, the actuator may be damaged.

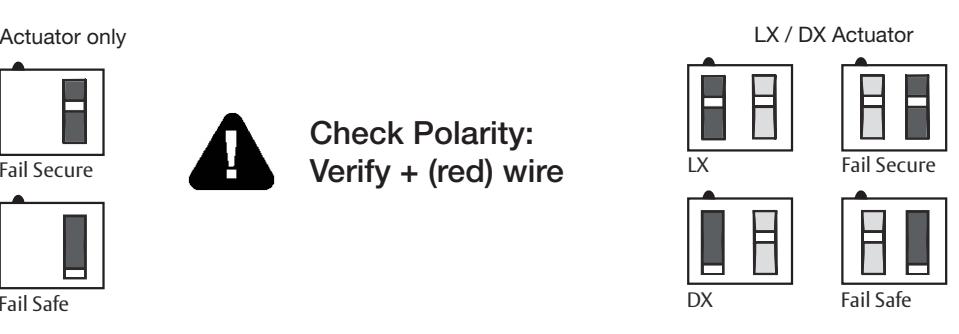

Specifications / Functions

Ecoflex Actuator

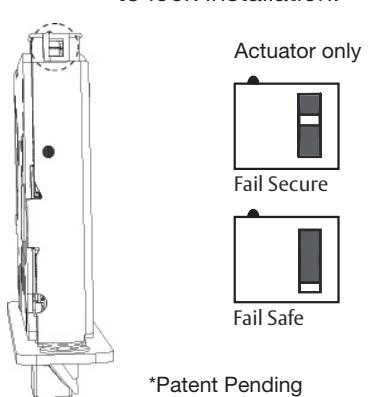

12/24 volts) Fail Safe Models: 7970, 7972, 8270 and 8272 (each 12/24 volts)

RX-, LX-, and DX- Lock Switches

2 AMP max @ 24VDC

RX- (lever monitor switches)

LX- (latch monitor switch):

Table of Contents

Important/CAUTION1
Specifications/Functions1
Installation Notes2

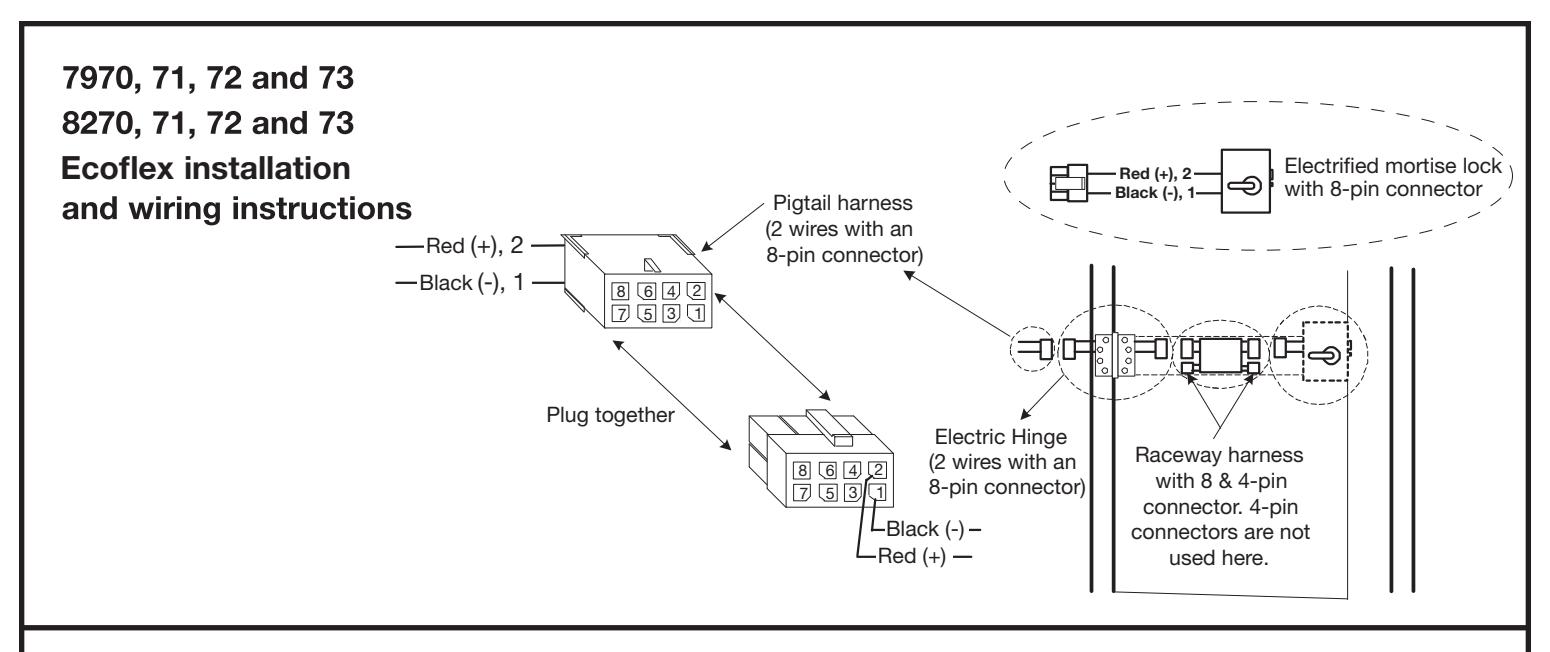

Installing And Wiring Ecoflex Electrified Mortise Locks
3 7900 & 8200 Series
RX-7900 & RX-8200 Series4
RX-LX-8200 Series 4
5 LX-8200 Series
Installing And Wiring Mechanical Mortise Locks With Monitoring
RX-7900 & RX-8200 Series 5
RX-LX-8200 Series6
RX-DX-8200 Series 6
LX-8200 Series 7
DX-8200 Series 7

IMPORTANT: twoto

Installation Notes

• 1. Install mortise lock and electric hinge. With new applications, a raceway harness with 8 & 4-pin connectors will be pre-installed inside the door by ASSA ABLOY door manufacturer when specified during ordering process. Raceway harness kits are also available for retrofit applications.
• 2. If door does not have a raceway harness with connectors, either consult factory for raceway retrofit kit or cut the connectors off product and hardwire, as required.
• 3. Wiring to pigtail harness is per facility wiring requirement. Follow individual instructions below.

® ElectroLynx Connector System Notes

The system is designed to be installation friendly with connectors from the electric hinge through the door to the lock. The only wiring is to the harness which plugs into the electric hinge.

IMPORTANT:

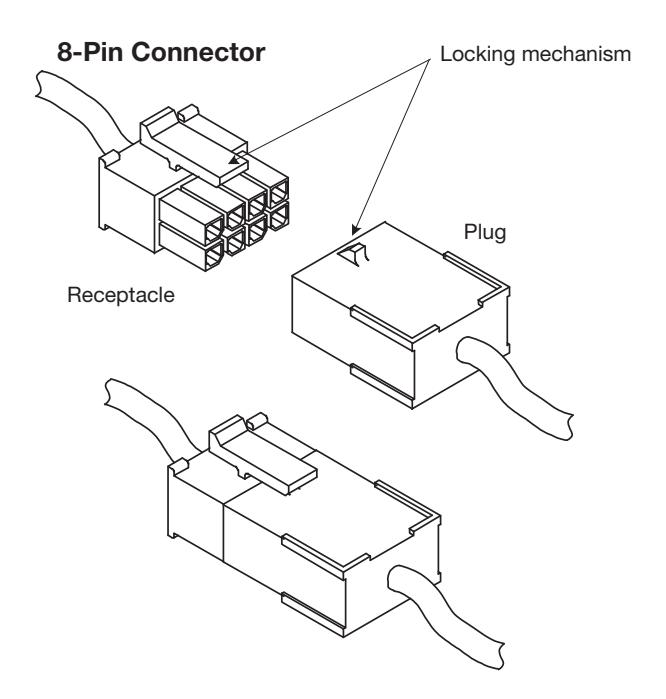

The plug and receptacle connectors are designed to mate and lock together as shown in the illustration. Plug the connectors into each other with the locking mechanism aligned as indicated.

Do NOT force connectors on any other way.

™ Look for the LYNX

® ElectroLynx

As part of their promise to provide innovative, fast and effective, and higher security solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx, a universal quick-connect system that simplifies the electrification of the door opening.

® ElectroLynx is a registered trademark of ASSA ABLOY, Inc.

ASSA ABLOY, the global leader in door opening solutions

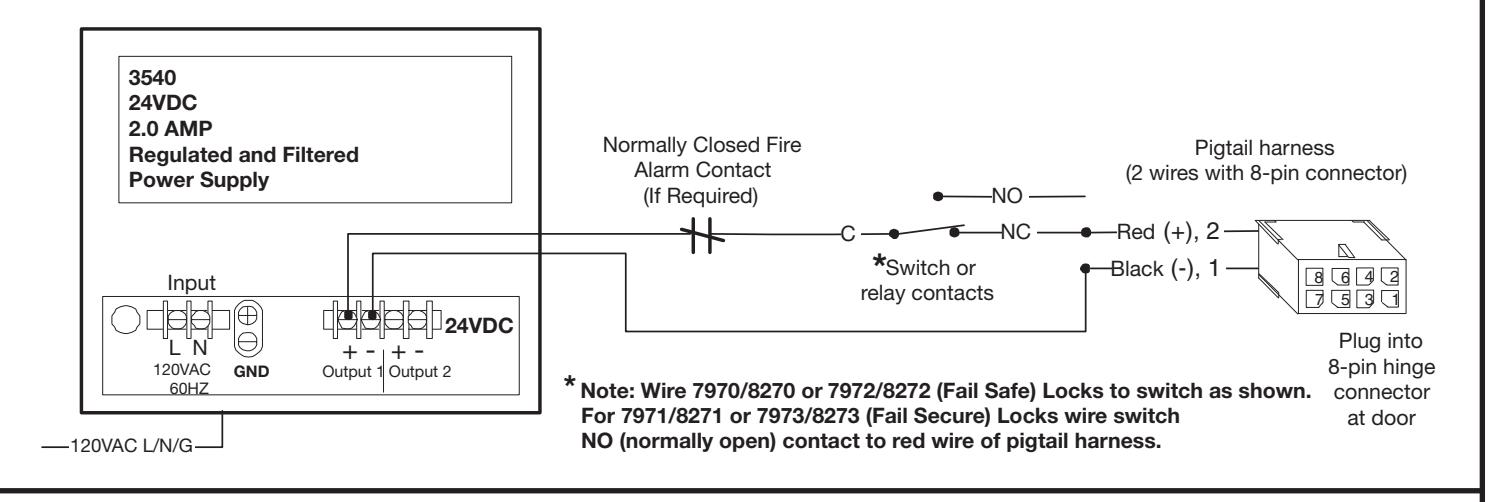

Sample wiring 8270-24 Volt Series actuator locks with a 24VDC Regulated and Filtered Power Supply. A 12V lock would use a 12 volt supply.

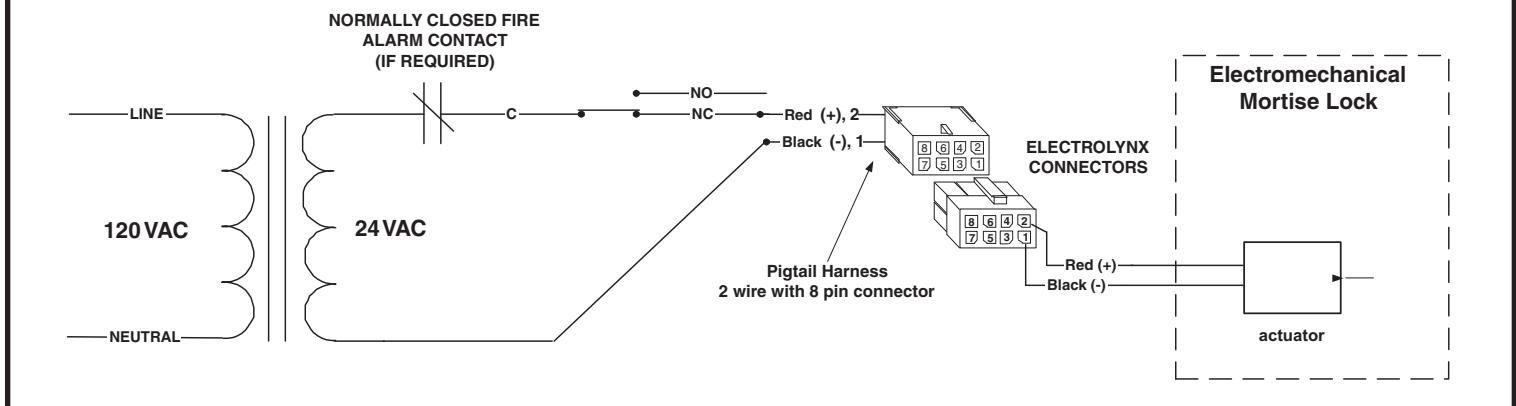

Sample wiring (8270-24 Volt) Fail Safe actuator with a 120/24VAC transformer

SARGENT

ASSA ABLOY

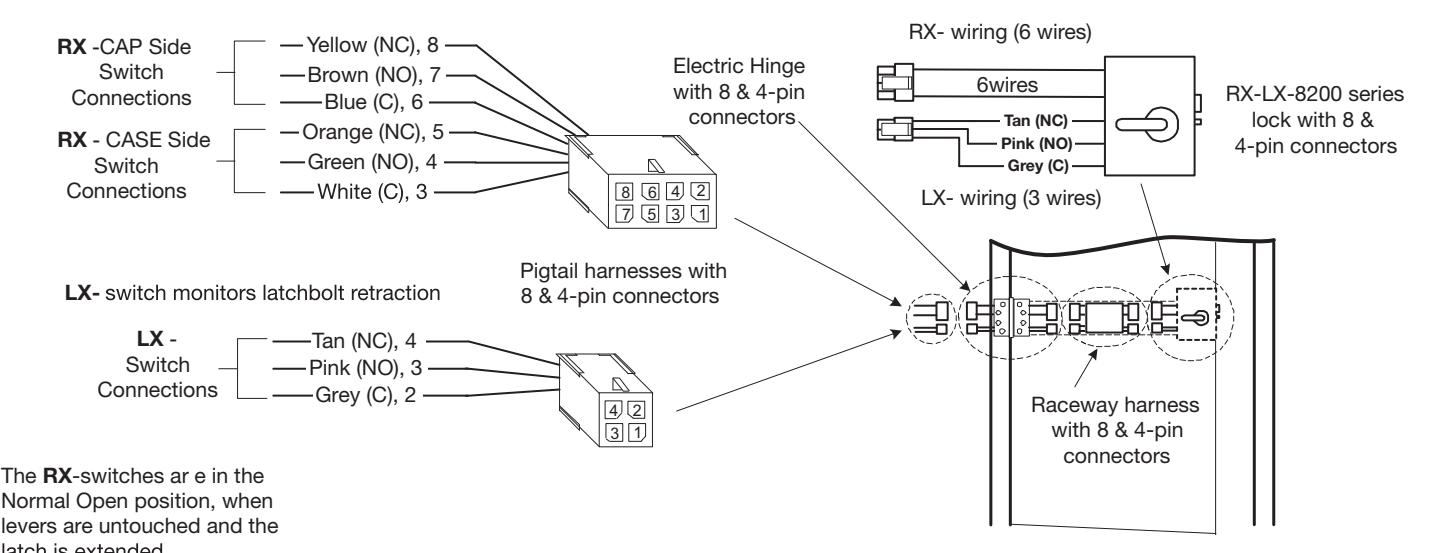

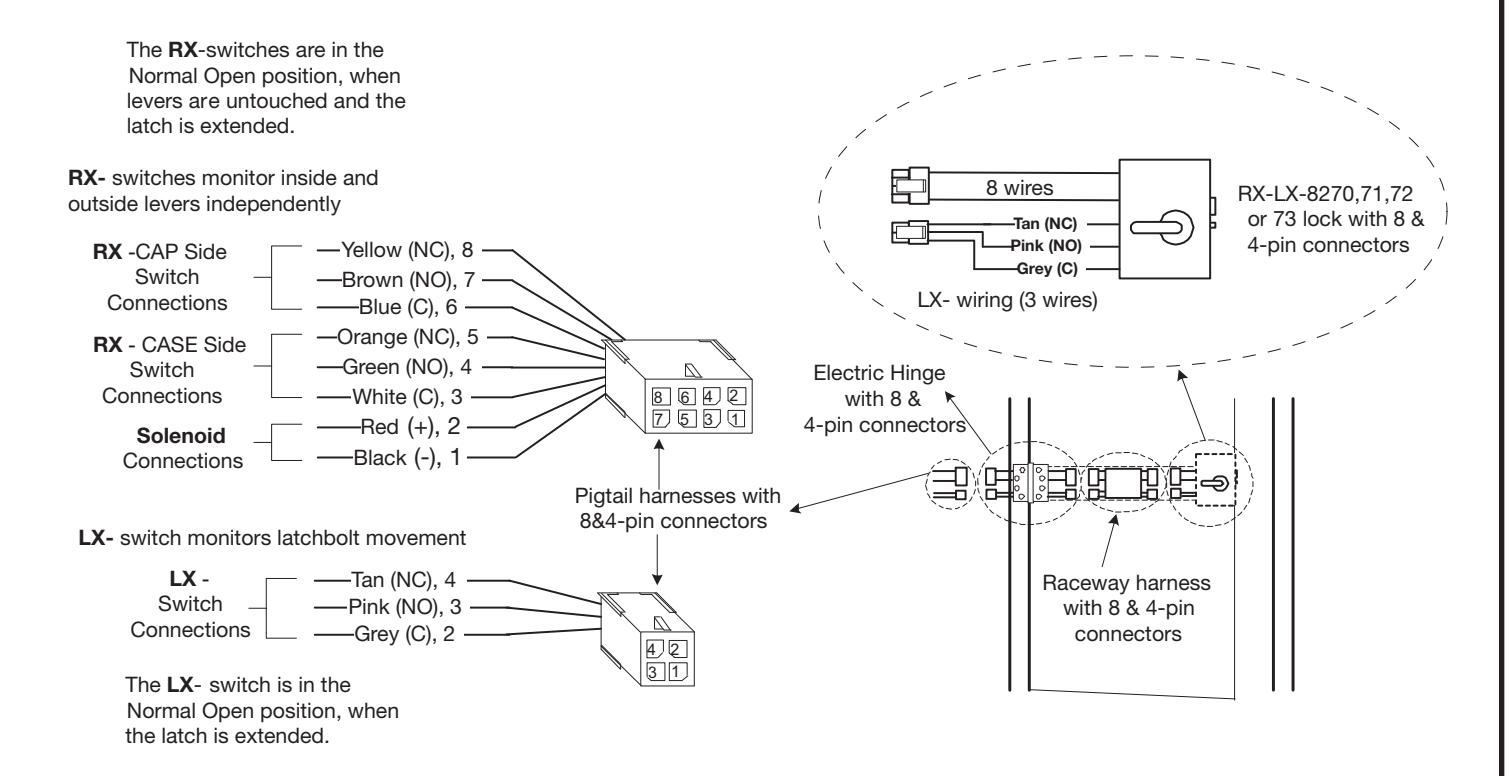

Ecoflex RX- and LX- wiring (8200 locks only)

For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side. For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.

ASSA ABLOY, the global leader in door opening solutions

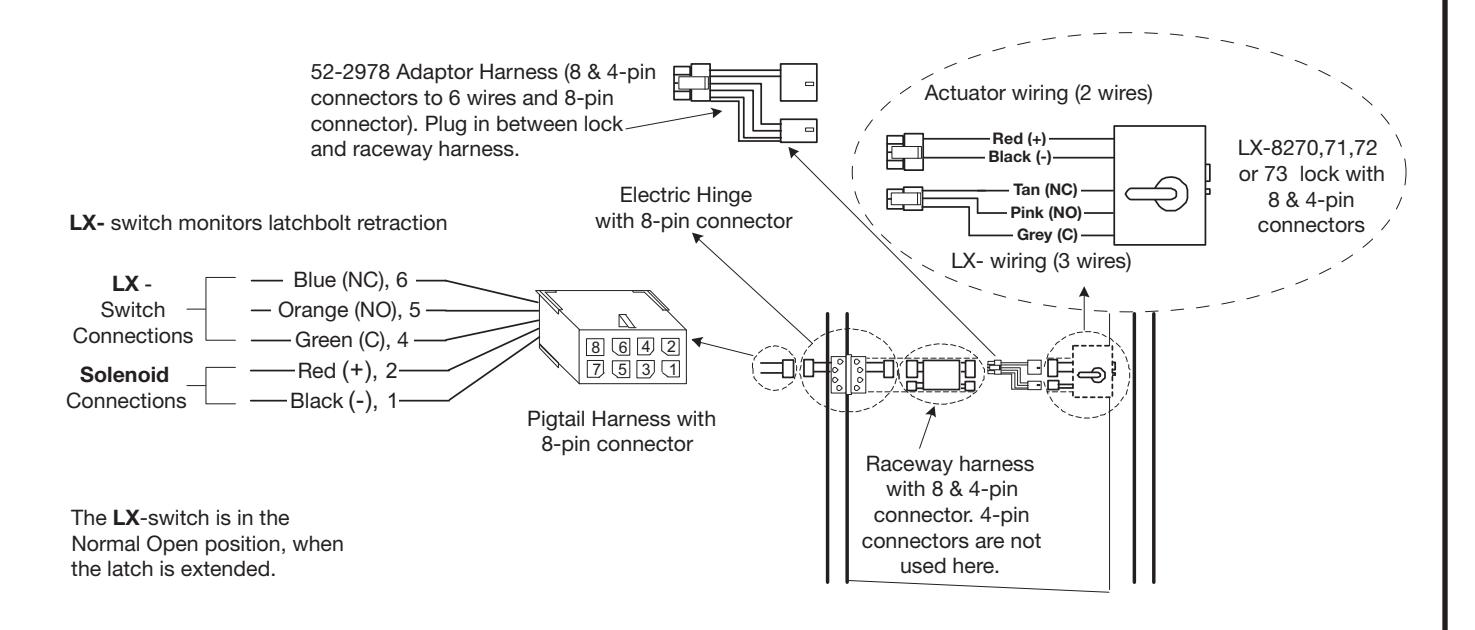

Actuator with LX- wiring (8200 locks only)

For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side. For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.

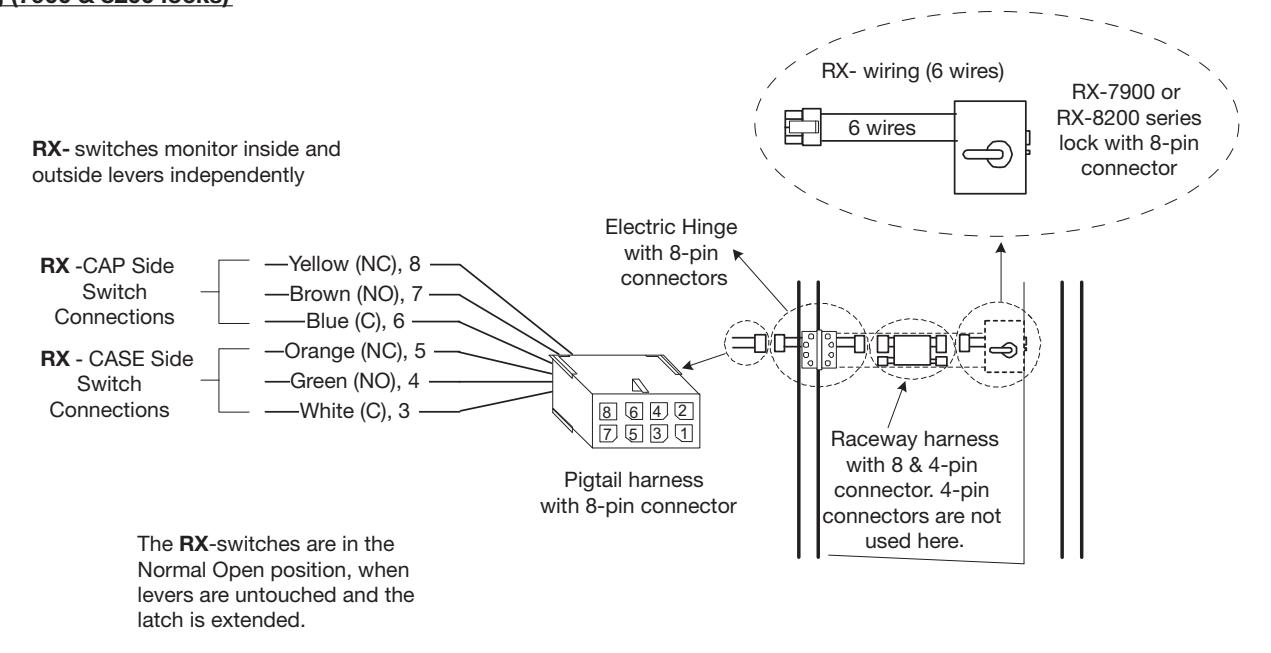

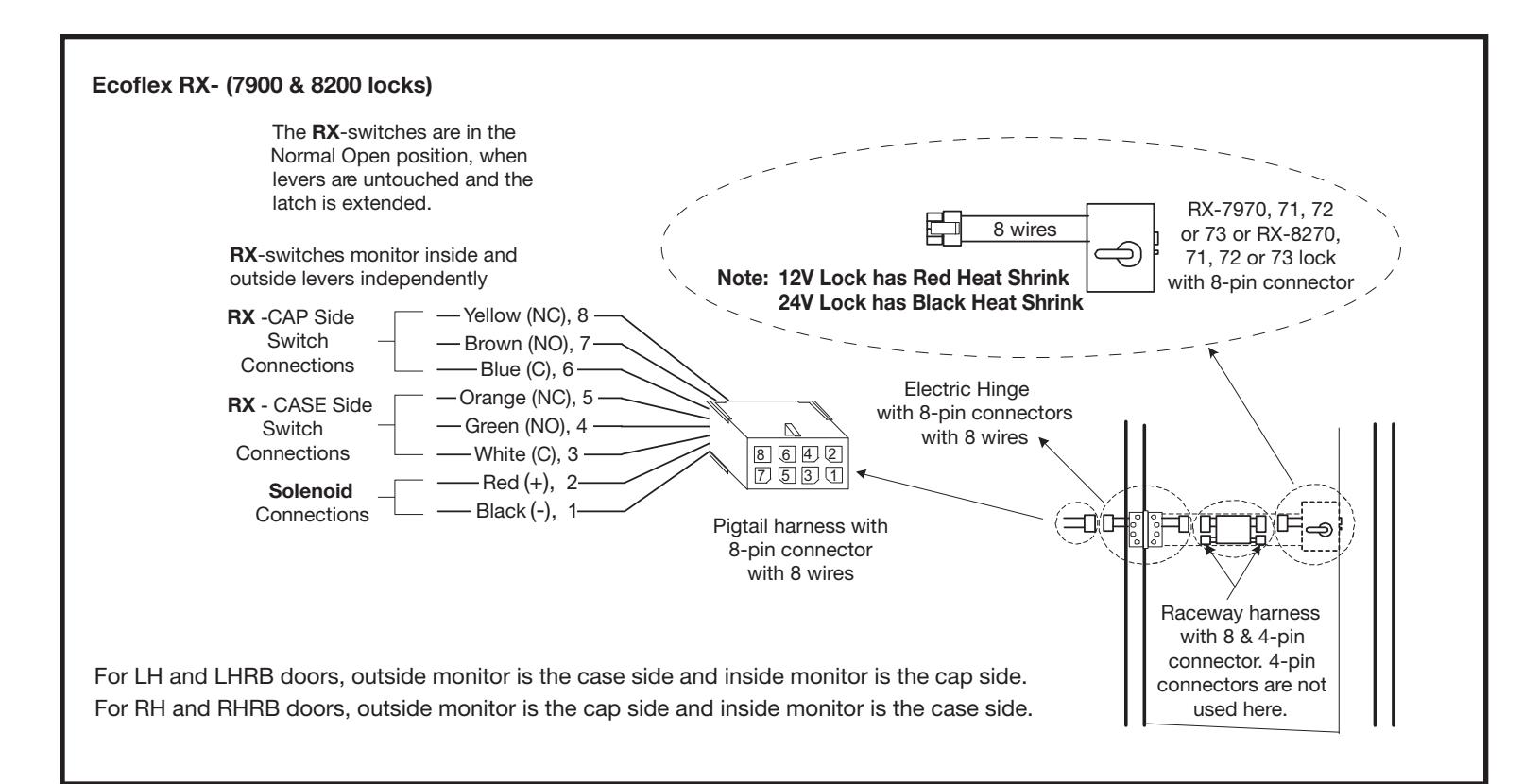

RX- wiring (7900 & 8200 locks)

RX- switches monitor inside and outside levers independently

The LX -switch is in the Normal Open position, when

For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side. For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.

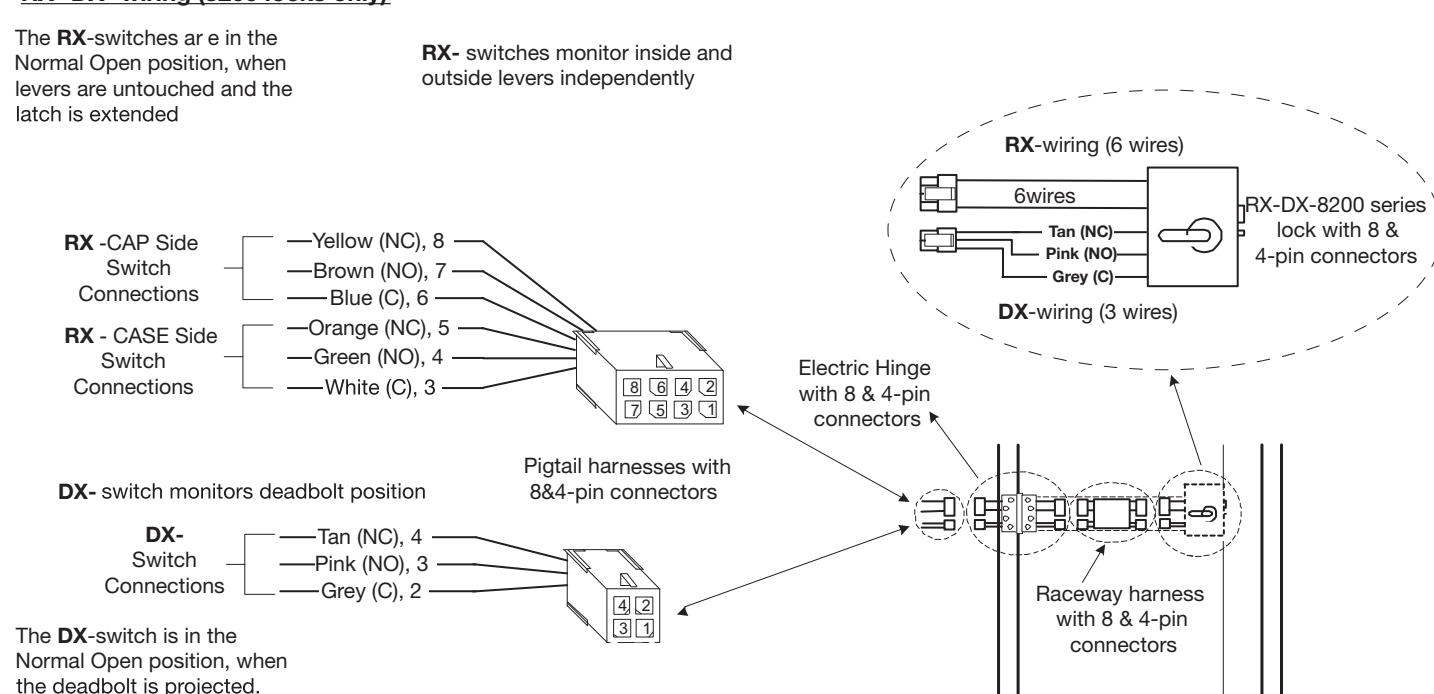

RX- DX- wiring (8200 locks only)

For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side. For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.

ASSA ABLOY, the global leader in door opening solutions

LX- wiring (8200 only) LX-LX - 7 5 1 6 4 8 2 Tan (NC) Pink (NO) Grey (C) LX

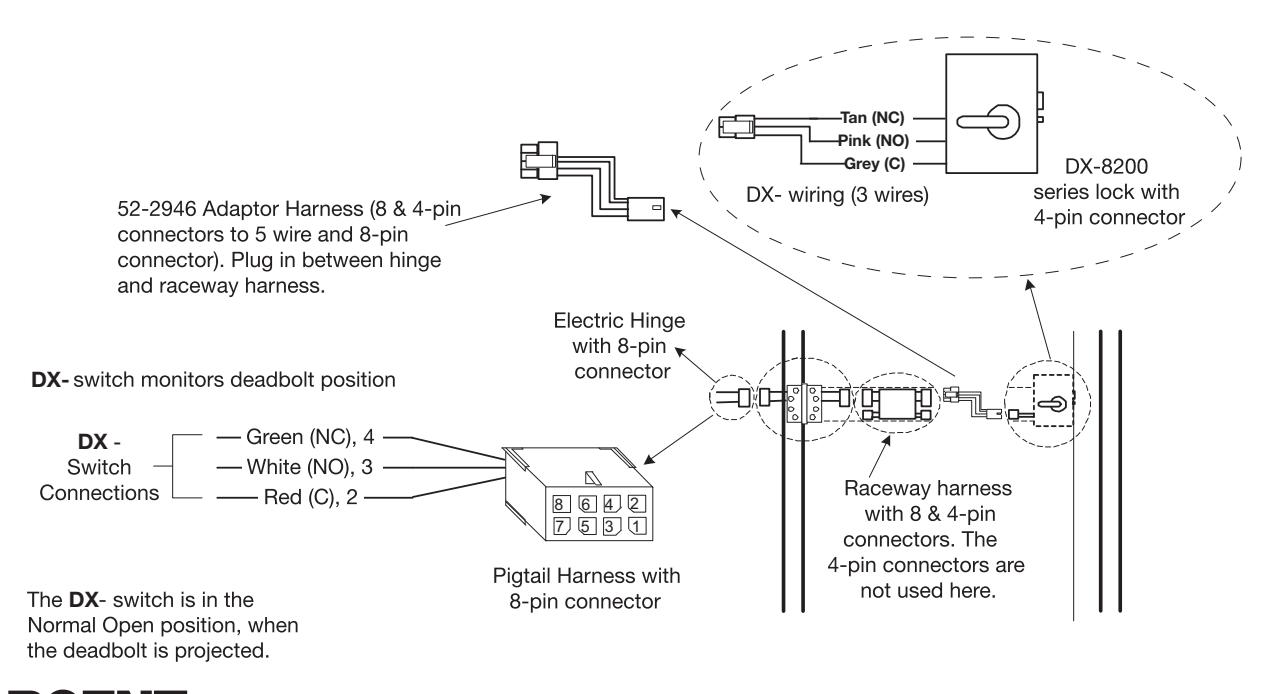

DX- wiring (8200 locks only)
