Wide Throw Geared Continuous Hinge Template

Open the original PDF document

Wide Throw Geared Hinges

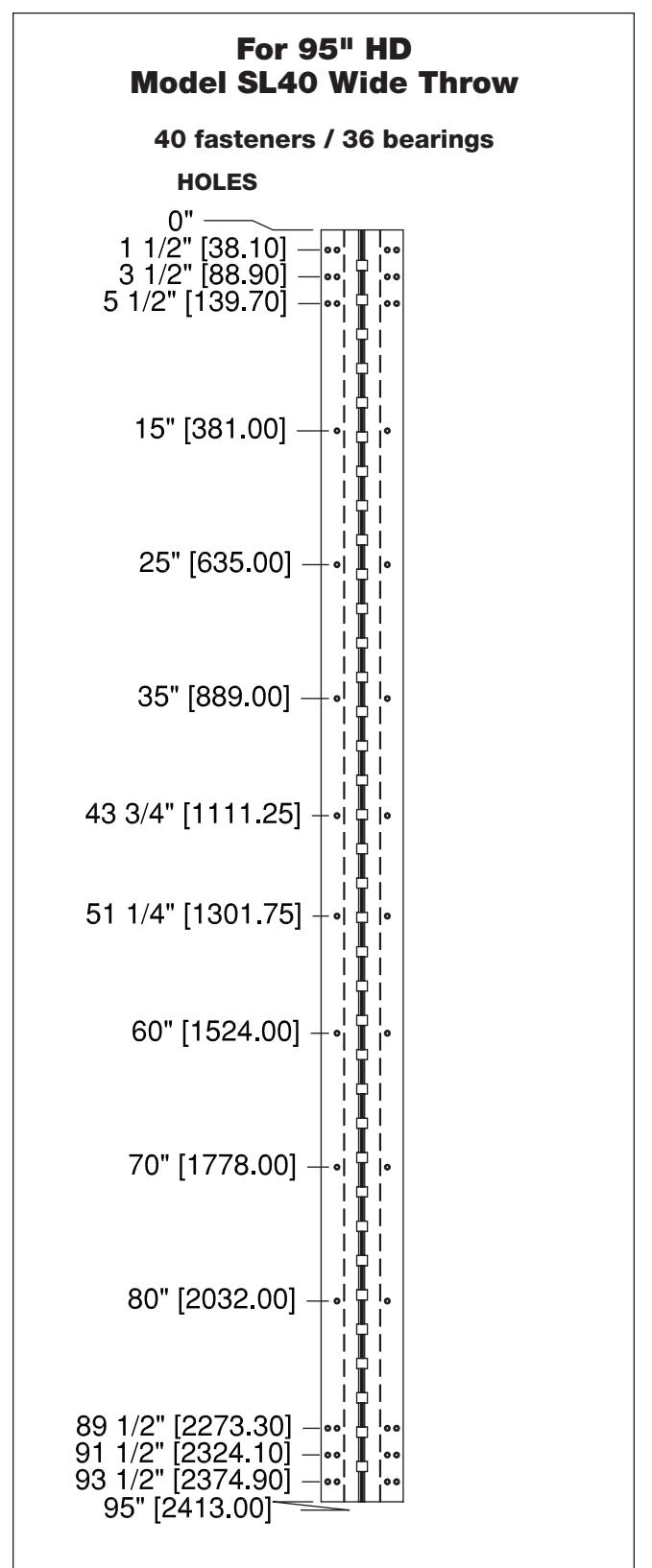

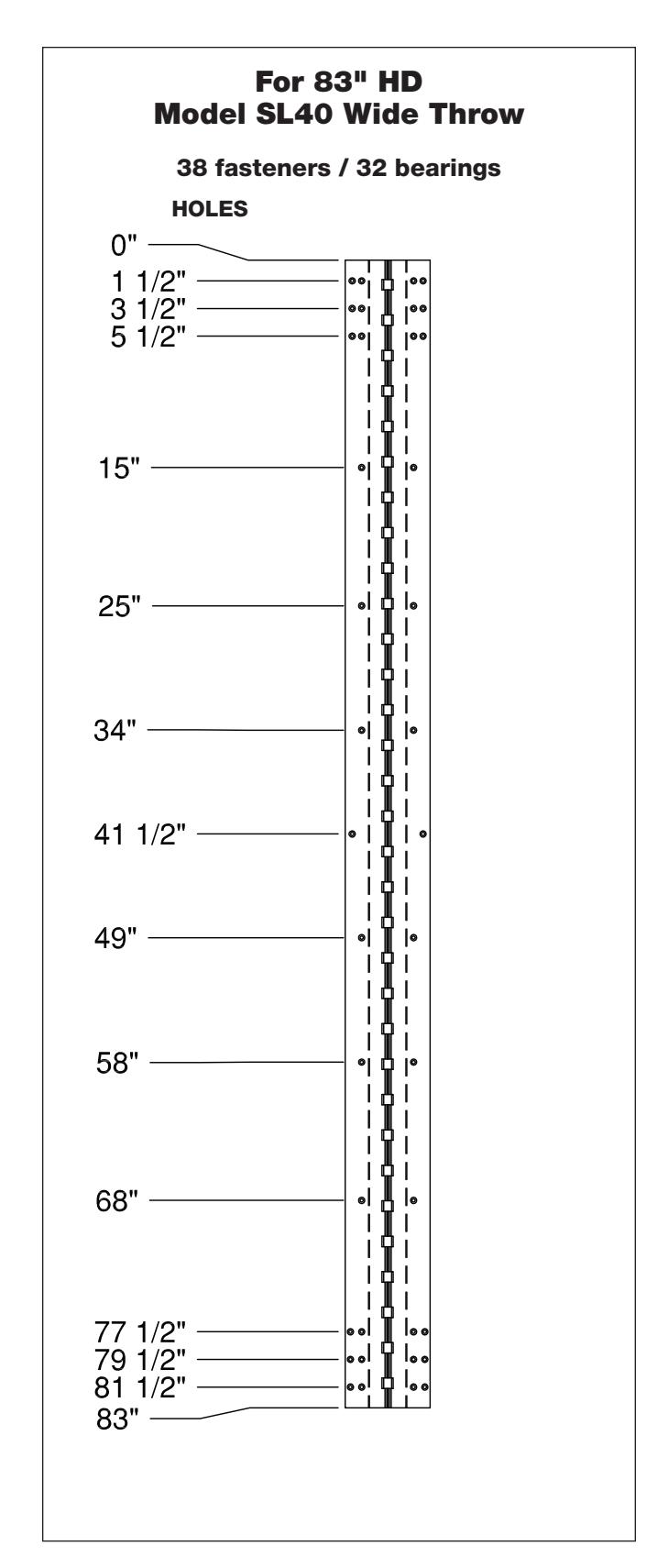

■ All dimensions are measured in inches and [millimeters] from the top of the door to the centerline of the holes.
