Subject: NETWORXPANEL : What's in the Box?

Models: NETDKPAK/26D , NETPDKPAK/26D , NETHIDNSPAK

All NETWORXPANEL shipping boxes contain the following hardware:

• Metal enclosure with the NETWORXPANEL circuit board (Dimensions: 8⅜"W x 10⅜"H x 3"D). Supplied with a lock cylinder and two keys (key number N277)
• Sealed Lead Acid Battery: 12 Volt, 4 Amp-Hour (PS4-12)
• Plug-in Transformer: 16.5 Volt AC, 50VA (TRF14 / T125)
• Two (2) Transient Protection Devices (36 Volt MOV) (part number 9DKNMOVBAG)
• Documentation:
  • o NETWORXPANEL Installation Instructions (WI1856)
  • o NETWORXPANEL Programming Instructions (WI1855)

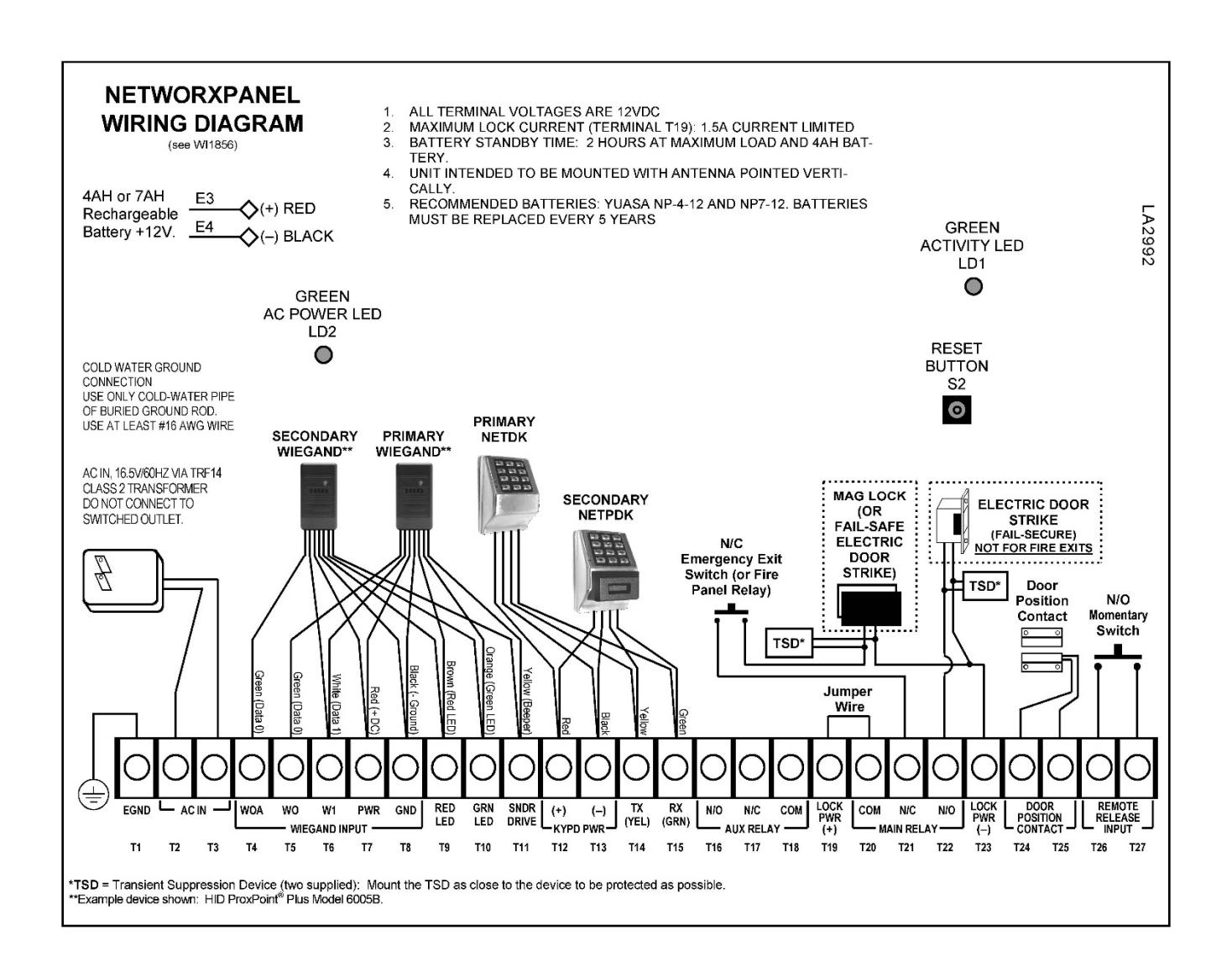

  • o NETWORXPANEL Wiring Diagram (LA2992, shown below)
  • o Lock ID Card (OI353)
  • o Firmware Update Note (WI2006)

Model NETHIDNSPAK:

Add 1 HID Prox Point Plus Mini Mullion Reader (part number HID1326; Dimensions: 1⅝"W x 3⅛"H x ⅝"D).

Model NETPDKPAK/26D:

• Add 1 NETPDK Keypad
• Add 1 NETPDK Keypad Mounting Plate (Dimensions: 3½"W x 4⅞"H)
• Add Installation Screws, Anchors and Wire Nuts
• Add 1 NETDK & NETPDK Installation Instructions / Wiring Diagram (WI1881)

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

Model NETDKPAK/26D:

• Add 1 NETDK Keypad
• Add 1 NETDK Keypad Mounting Plate (Dimensions: 3½"W x 4⅞"H)
• Add Installation Screws, Anchors and Wire Nuts
• Add 1 NETDK & NETPDK Installation Instructions / Wiring Diagram (WI1881)
