ALARM LOCK Tech Support

TECH TIP

Date: Thursday, August 07, 2014

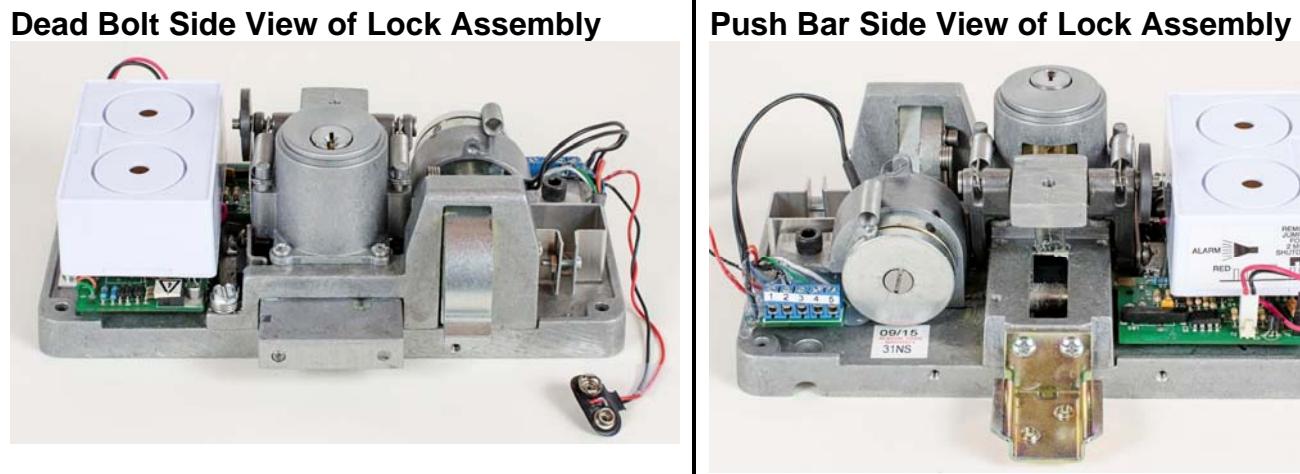

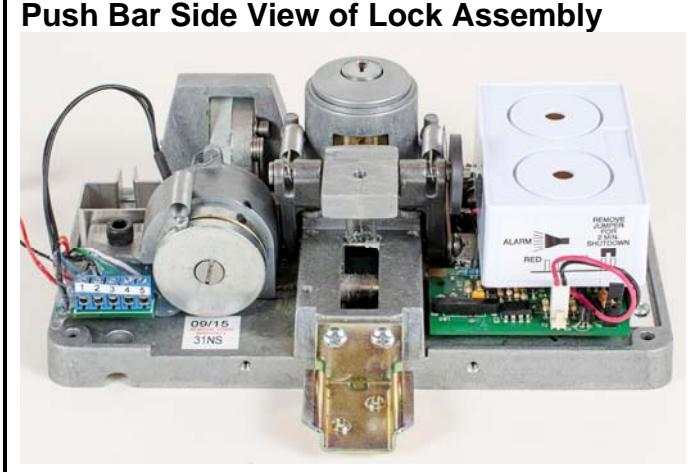

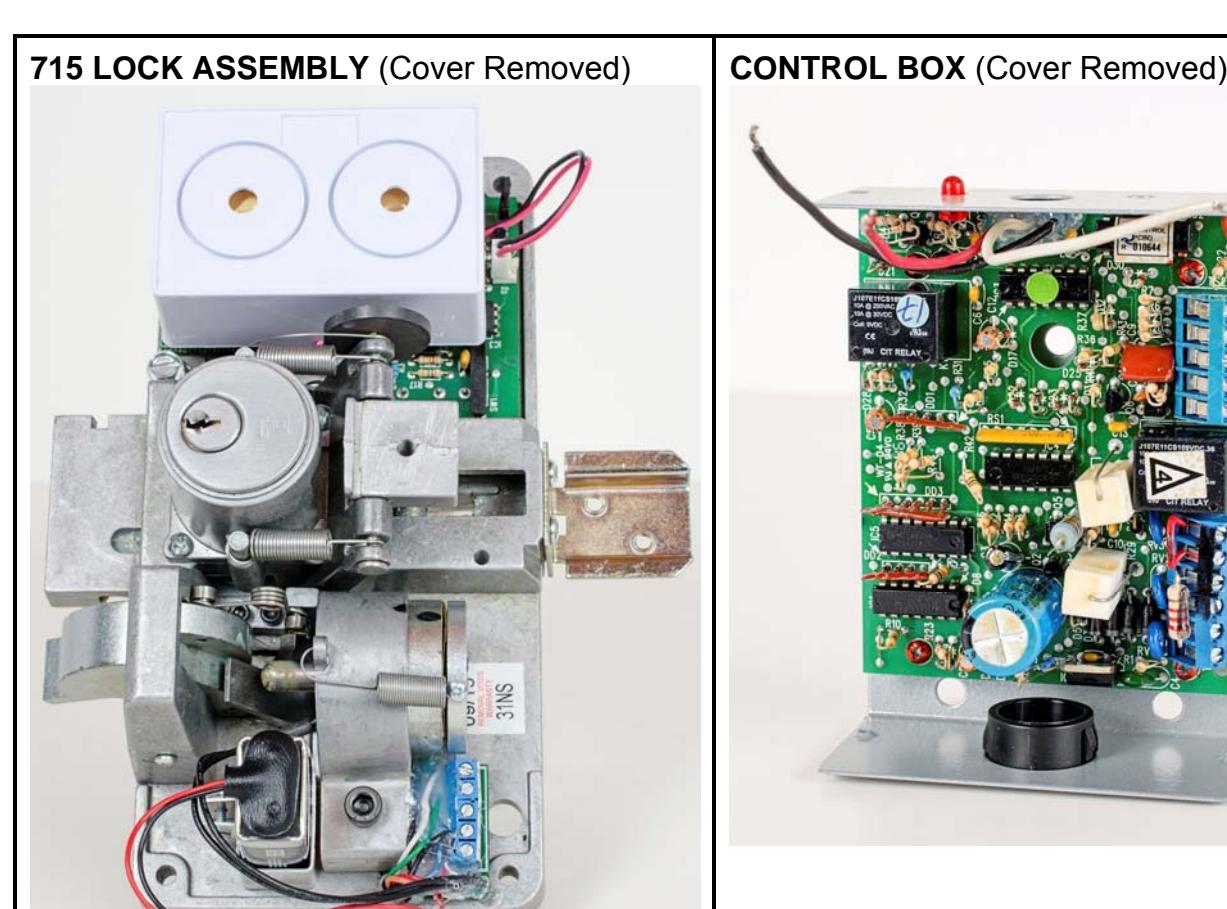

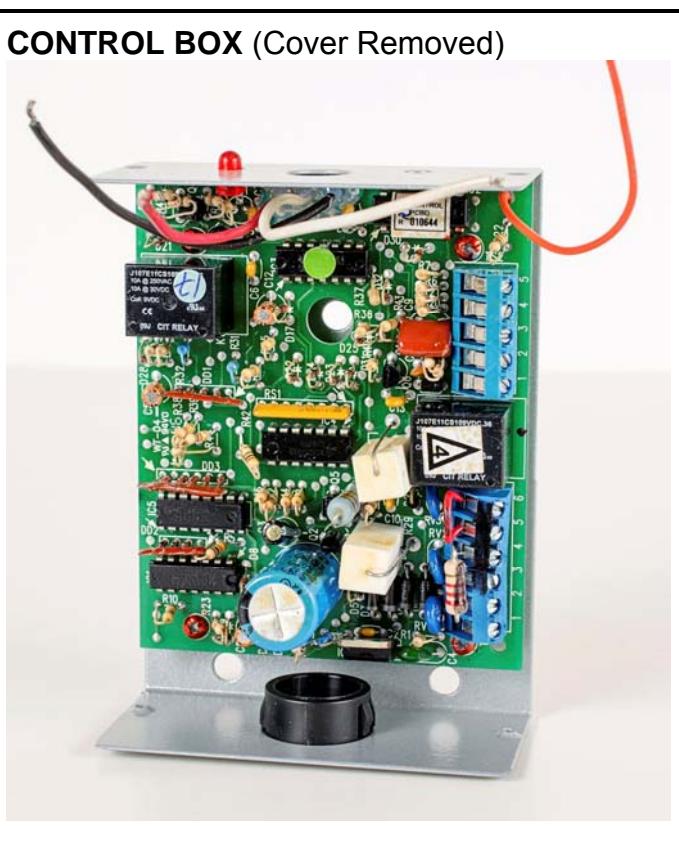

Subject: Ordering Options, What's in the Box, Internal View of Major Components

Models: Model 715 Delayed Egress Panic Lock

ORDERING OPTIONS

The Alarm Lock Model 715 Delayed Egress Panic Lock is available in 2 lengths:

Part Number: 715x28x88 has an overall length (Dimension A) of 33"

Part Number: 715x28x88x48 has an overall length (Dimension A) of 44-⅞"

Both model numbers listed above can be cut down to the same minimum length.

Minimum cut length (Dimension A) = 29-½"

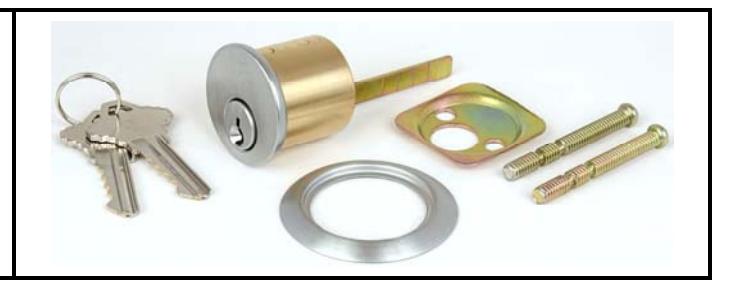

A standard RIM type cylinder is required but not included. Alarm Lock part number CER-KD (pictured at right) is recommended. If the installation requires keyed access from the outside of the door; a second RIM type cylinder can be installed into the door.

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

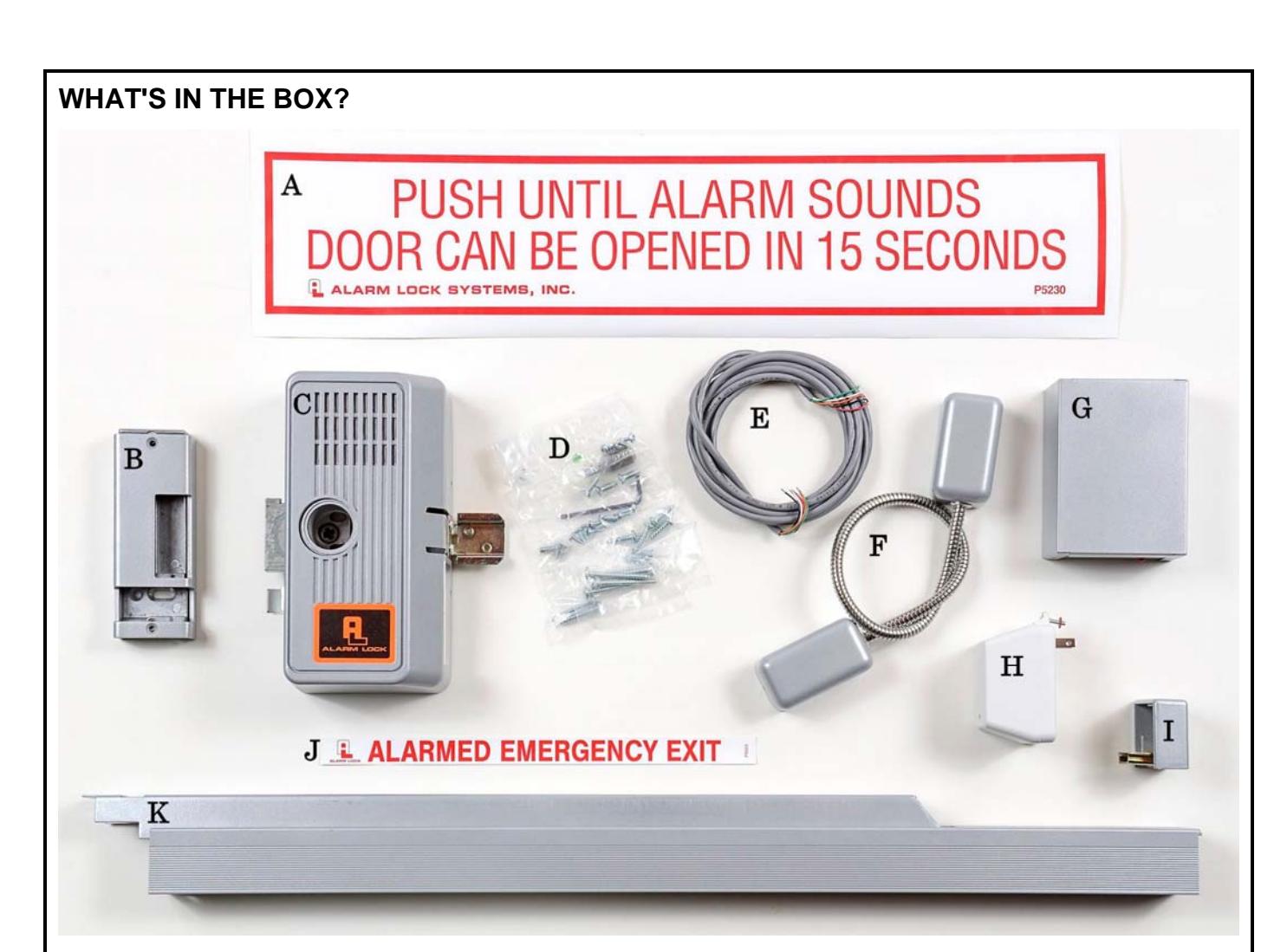

• A= Self-Adhesive Warning Label: Part Number P5230 (24" x 5-¾")
• B= Single-Door Keeper Assembly: Part Number 725x28 (5-½" x 2-1/16" x 1")
• C= Lock Assembly (8-½" x 4-¼" x 3")
• D= Hardware Package Part Number S5250
• E= 5-Conductor Cable (10' long)
• F= Armored Door Cord Part Number 271 (17" long)
• G= Control Box Part Number S5912 (4-½" x 3-¼" x 1-5/8")
• H= Plug in Power Transformer Output = 12VAC 20VA, Part Number P5090
• I= End Cap, Part Number P5034 & Retaining Bracket, Part Number P5045
• J= Push Bar Self-Adhesive Label Part Number P5023 (11-½" x ¾")
• K= Push Bar & Channel Assembly Part Number S5614
  • (9-Volt Backup Battery, not shown)

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

Paperwork:

Model 715 Parts List: WI1091

Model 715 Installation and Operating Instructions: P5708A

Model 715 Installation template: P5709A

Model 715 Option 88 External Siren Instructions: WI642

700 Series Addendum: WI2018

A separate caution label stating, "Do Not Connect Battery Before AC" ( LA1319 )
