ALARM LOCK Tech Support

TECH TIP

Thursday, March 17, 2011 Date:

Subject: What's in the Box?

Models: ETPDL

Hardware List:

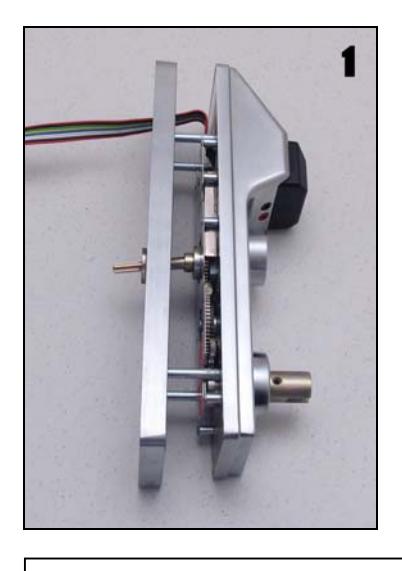

1. Lock Housing, Housing Sub-Plate and Lever (not shown).

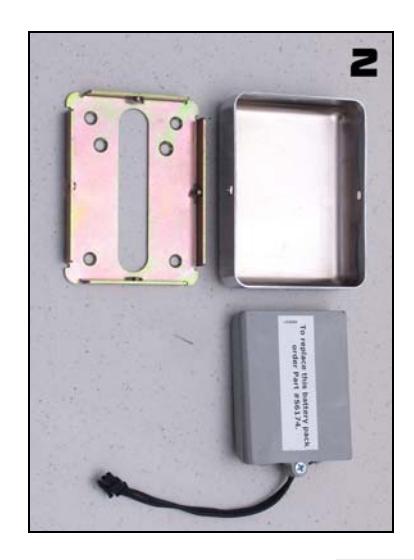

2. Battery Holder Mounting Plate, Cover Plate and Batteries.

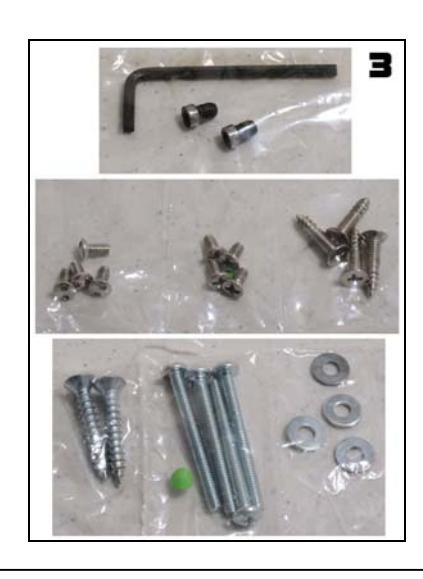

3. Mounting Screws, Washers, Lever Set Screws and Allen Wrench.

Also Included:

Rim Cylinder (in Lock Housing) Schlage C Keyway
2 Keys
· Small Tube of Dielectric Grease

Dimensions:

Lock Housing 3 <sup>3</sup>/<sub>16</sub>" x 11 <sup>5</sup>/<sub>16</sub>" Lock Housing Through Bolts <sup>8</sup>/<sub>32</sub>" x 1 <sup>11</sup>/<sub>16</sub>" long
Battery Holder 3" x 3 <sup>15</sup>/<sub>16</sub>" (1 inch high) Battery Holder Cover Screws <sup>6</sup>/<sub>32</sub> x <sup>1</sup>/<sub>4</sub>"
Battery Voltage Reading 7.96 VDC
Battery Part Number S6174 Lever Set Screw <sup>10</sup>/<sub>32</sub> x ½" long
Allen Wrench Hex Size 1/8"

Paperwork:

"Important" Start Up Procedure WI1133A
"Important" Dielectric Grease WI1822A
"New Feature" Addendum WI1266
Installation Template WI1121-V99
Programming Manual WI1671
Quick Reference Programming Guide OI263
Cylinder Adapter Kit Instructions WI1163D
Cylinder Adapter Kit Addendum WI1177
Daylight Saving Time Addendum WI1568
