Subject: What's in the Box?

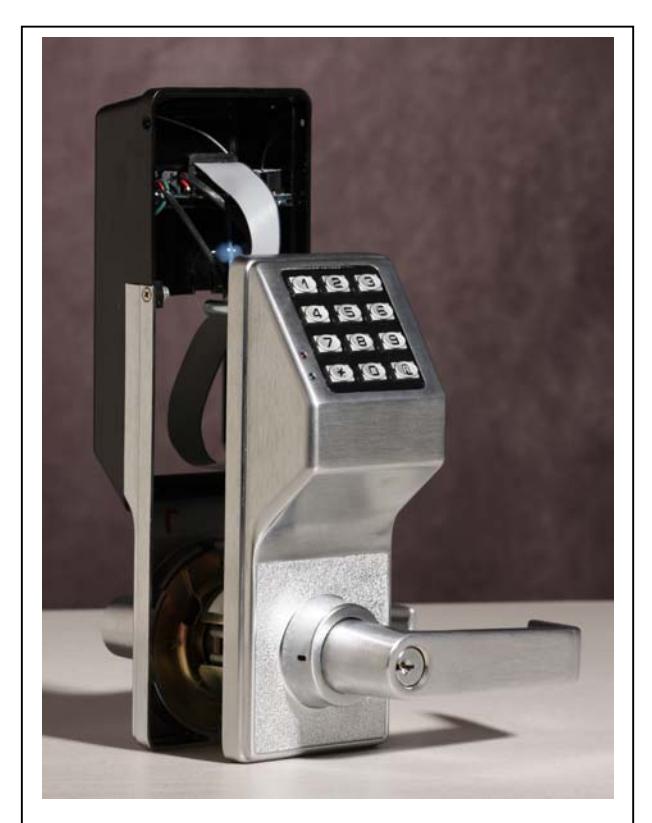

Models: Networx DL6100 Lockset

Outside Housing: 8" H x 3¼" W Inside Housing: 10⅝" H x 3¼" W Outside & Inside Levers Cylindrical Lock Body Standard Cylinder with 2 Keys

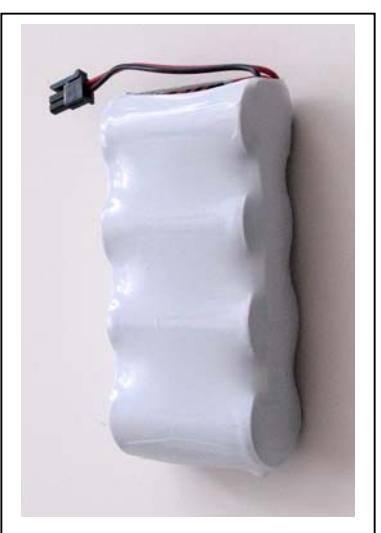

Battery Pack S6181

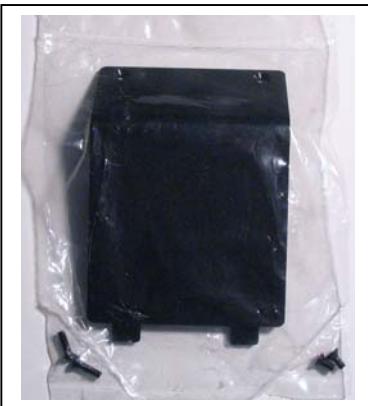

Battery Cover Plate 2 Philips Head Screws Optional: 2 Spanner Head Screws

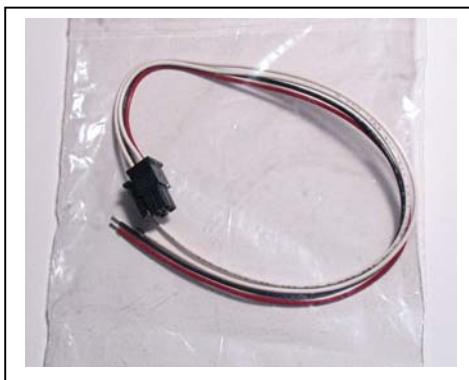

Plug In Connector: Auxiliary Power (RED / BLACK) Remote Release (WHITE / WHITE)

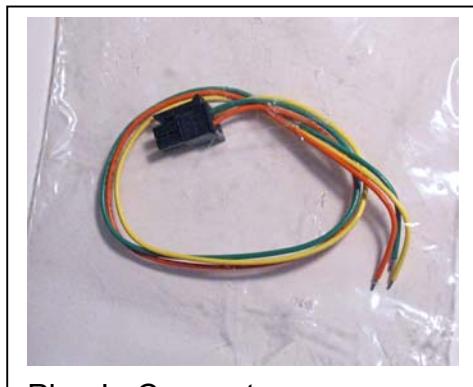

Plug In Connector: External Relay Contacts Normally Closed (YELLOW) Normally Open (GREEN) Common (ORANGE)

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

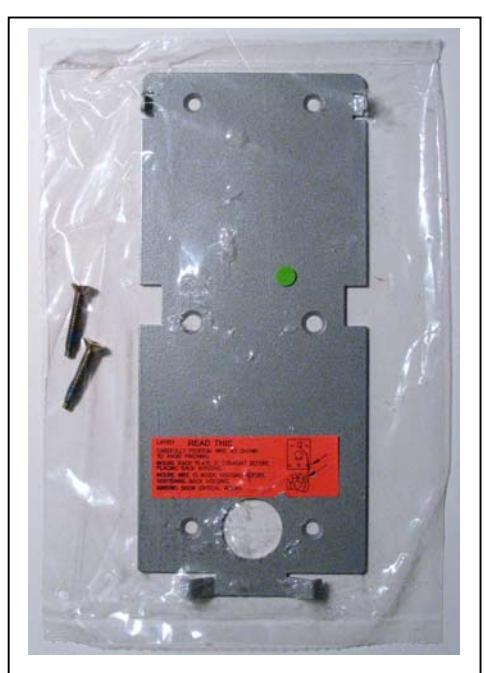

Inside Mounting Plate 2 Screws

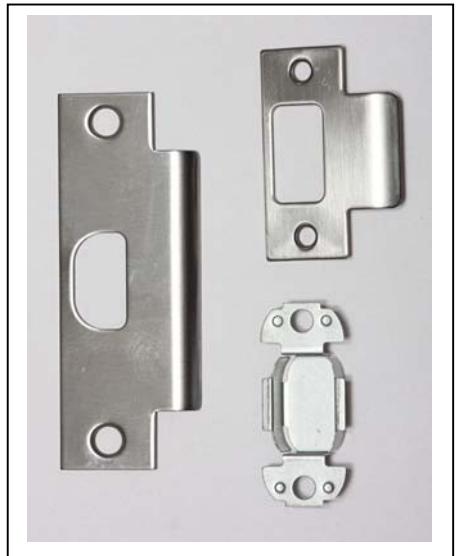

ASA Strike Plate Standard Strike Plate Metal Strike Cup

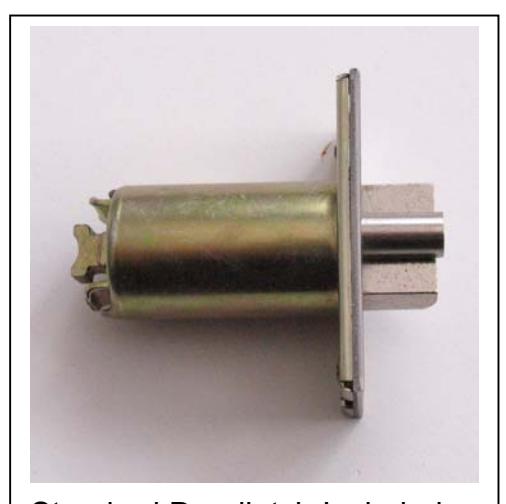

Standard Deadlatch Included: 2 ¾ B.S. P5849 Optional Backset Available: Deadlatch 2 3/8 B.S. S5980-1

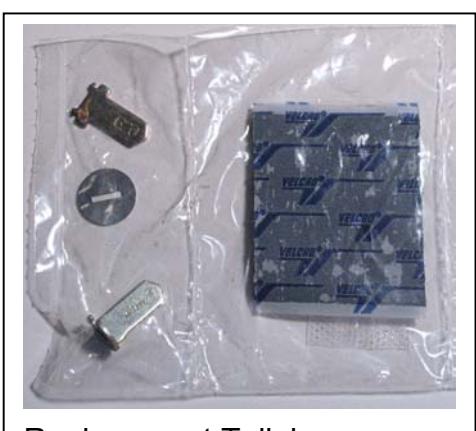

Replacement Tailpieces: • For ILCO/LORI: HW620 • For SCHLAGE: HW580

Tailpiece Washer WA160A Velcro to Secure the Battery

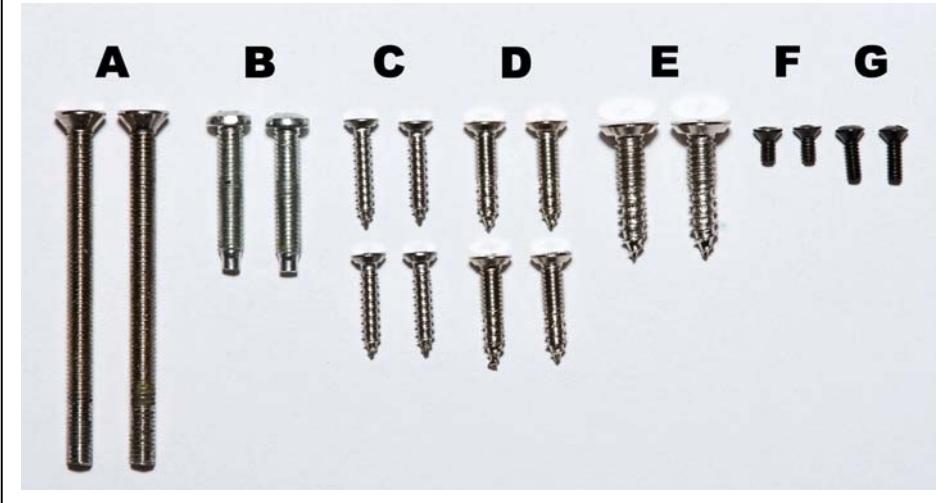

A ---- 2 Lock Housing Through Bolts

B ---- 2 Cylindrical Lock Body Screws

C ---- 4 Inside Mounting Plate Screws

D ---- 4 Deadlatch & Standard Strike Plate Screws

E ---- 2 ASA Strike Plate Screws

F ----- 2 Phillips Head Inside Housing to Mounting Plate Screws

G ---- 2 Optional Spanner Head Screws

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

Paperwork:

"Important" Read First: WI1133A Do Not Over-Tighten: LA2344

Lock ID Card: OI353

"Important" Dielectric Grease: WI1822A

Networx Relay Wiring Colors Addendum: WI1880

Correct Way to Remove Inside Housing from Spindle: WI1871

Warranty Registration: OI221A

Wireless Trilogy Installation Instructions: WI1674 DL6100 Programming Instructions: WI1820

Installation Template: WI1676
