Subject: What's in the Box: DL3500CR

Models: DL3500CR Mortise Lock

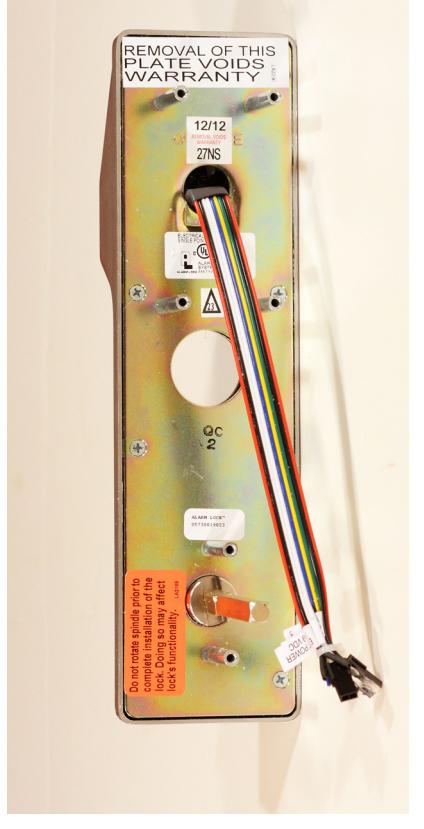

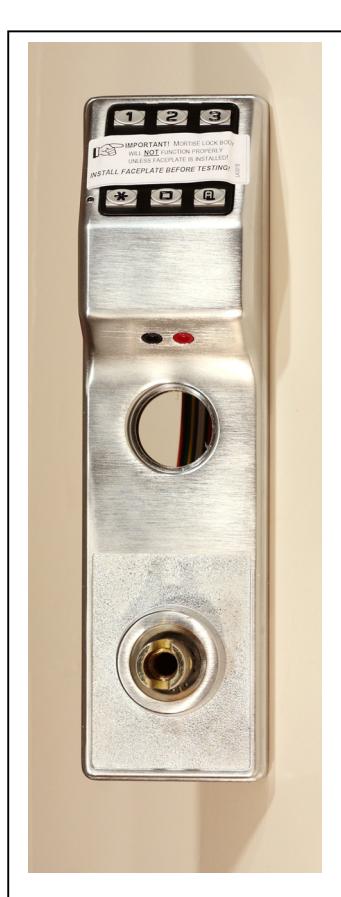

Outside Housing (Front and Rear View) Dimensions: (H x W) 11-1 /16" x 3" # S6123-26D (Keypad) # S6165-26D (Keypad + Prox Reader) Lock Body

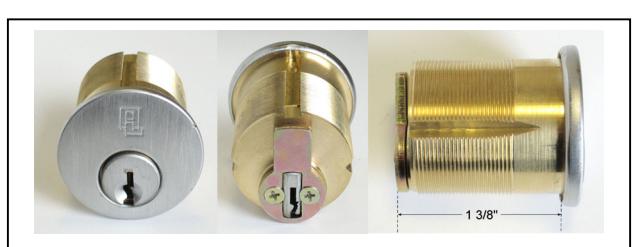

1 3/8" Mortise Cylinder / Standard Cam. # HW850-26D-KD

# HW875CR (Hand) 26D

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

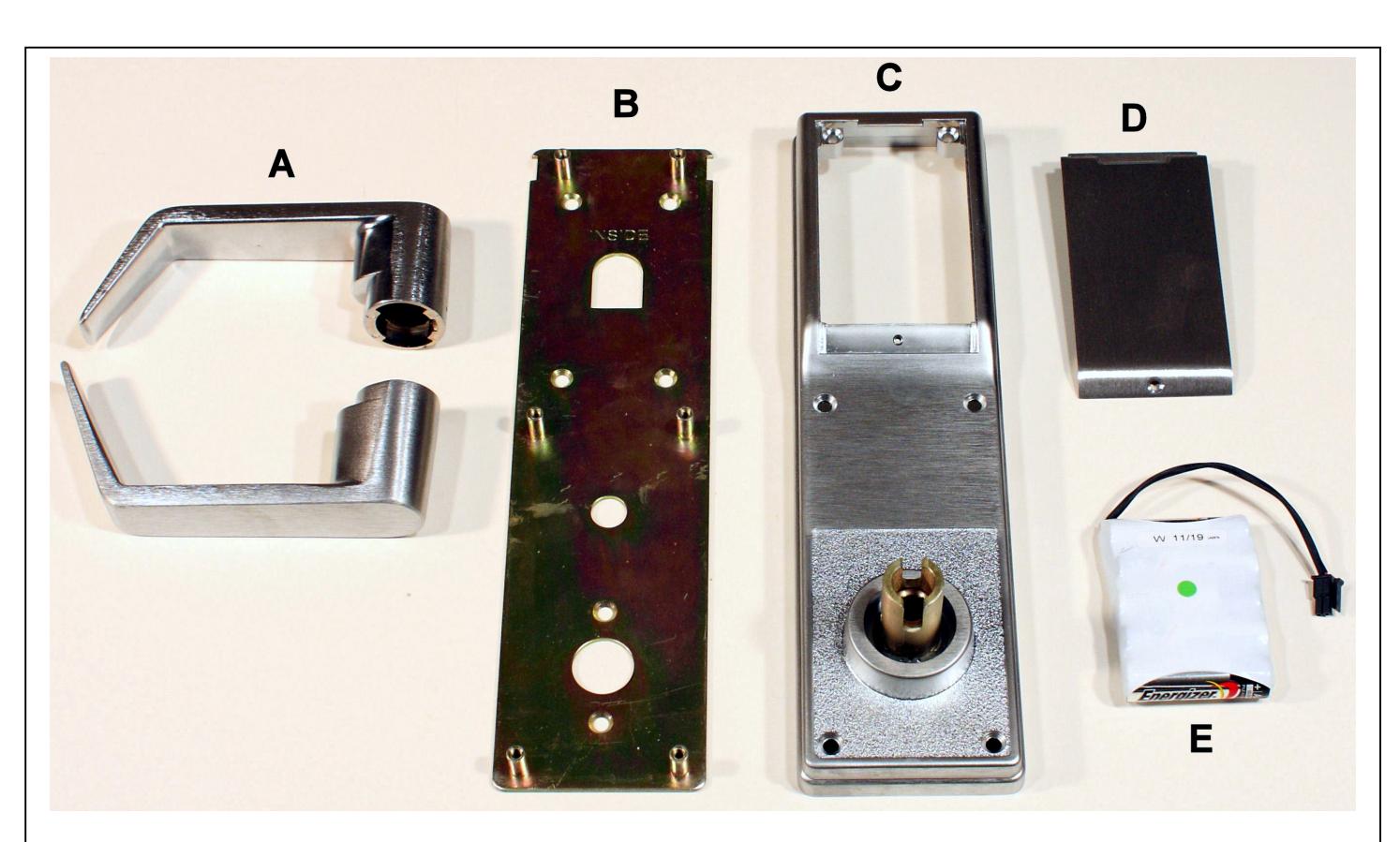

A Levers: HW819C-26D

B Inside Mounting Plate: S6136

C Inside Housing Assembly: S6131-26D

D Battery Cover: HW844C-26D

■ Battery Pack: S6065

Lever Set Screws (1/4" x 10/32)

Inside Mounting Plate Through Bolt Screws (1" x 8/32)

Inside Housing Assembly Screws (3/8" x 8/32) 2 Additional Screws Installed under the Battery cover, and

under the Battery cover, and 4 Optional Spanner Head Screws (not shown)

Battery Cover Screw (3/8" x 4/40) Optional Spanner Head Screw

ALARM LOCK

345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com

Note: Technical Service is for security professionals only

Paperwork:

• "Important" Start Up Procedure (WI1133A)
• "Important" Dielectric Grease Warning (WI1822A)
• "New Feature" Addendum (WI1266)
• Installation Instructions (WI1004)
• Installation Template (WI1003C)
• Programming Manual (WI1005D)
• Quick Reference Programming Guide (OI225C)
• Exploded View / Parts List (WI1162)
• Correction to T3 Programming Instructions (WI1644)
• Daylight Saving Time Addendum (WI1568)
