WEATHERSTRIP

STANDARD RIGID JAMB

• Rigid jamb weatherstrip shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal. Seal depth provided on each illustration (example: the YDW204 has 1/4" seal; therefore, it can seal up to a 1/4" gap)
• Punched on 6" center with slotted holes for adjustment

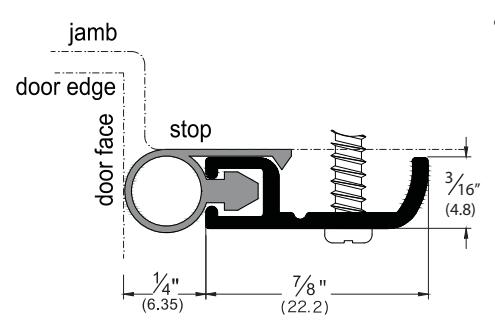

YDW201

Finishes: A&D

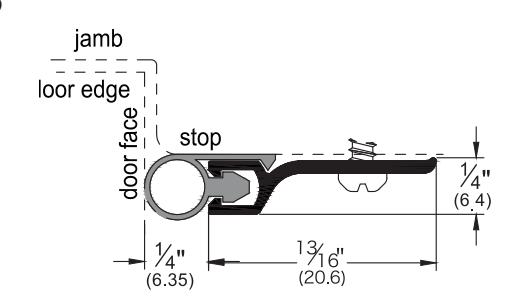

YDW204

• Finishes: A&D

FINISHES:

• A (Mill Finish Aluminum), D (Dark Bronze Aluminum)

ADHESIVE WEATHERSTRIP

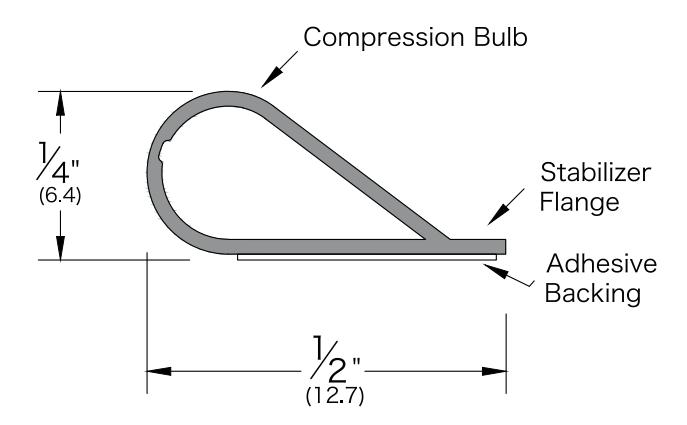

YDW100

• Available Lengths: 17', 21'
• Silicone Seal begins compressing at 1/4"; compresses to seal up to a 1/16" gap
• Finish: B

FINISHES:

• B (Black)

NOTE: Products shown in this section may not be drawn to scale.

West: 800-544-4422 • East: 800-225-6737
