WR MAGLOCKS SLIDING • SWINGING GATES • HIGH SECURITY DOORS UL LISTED WEATHER RESISTANT

FEATURES

• Built-in remote lock status sensor ideal for remote monitoring
• Available in a front mount model with a ¾ inch male universal threaded conduit fitting and a side mount model for swinging doors and gates.
• No residual magnetism
• Field selectable 12 or 24 VDC
• Built-in surge protection
• UL and ULC Listed for use on fire rated doors for up to 1½ hours

Designed with a rugged stainless steel housing, these electromagnetic locks are the ideal solution for sliding and swinging gates and high security doors.

FAMILY OF PRODUCTS

10GL1200SR 1200LB – SIDE MOUNT

10GL1200R 1200LB – FRONT MOUNT

10LZBRGATE1200 L & Z MOUNTING BRACKETS

TECHNICAL SPECIFICATIONS

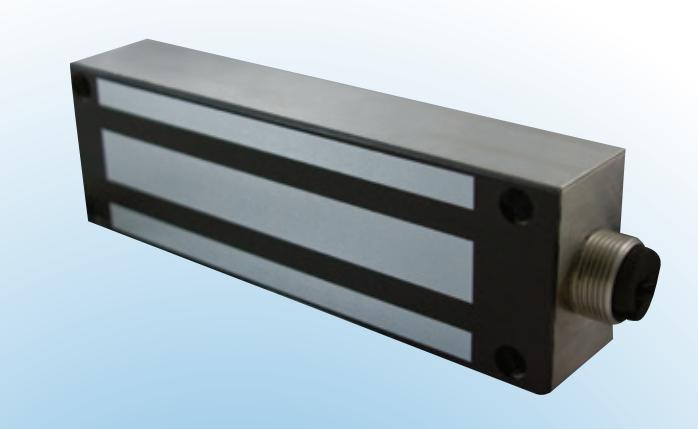

10GL1200R (Front Mounted)

Certifications	Holding Force	Dimensions (L×H×D)	Input Voltage	Current Draw	Contact	Rating Cable Spec	Housing Material
NEMA 4 UL / ULC Listed	1200 lb	8.75" × 2.5" × 1.625"	12 or 24 VDC	500 mA @ 12 VDC 250 mA @ 24 VDC	0.250 A @ 12 V 0.125 A @ 24 V	24 AWG 7 conductor; 3.5 ft	Stainless Steel

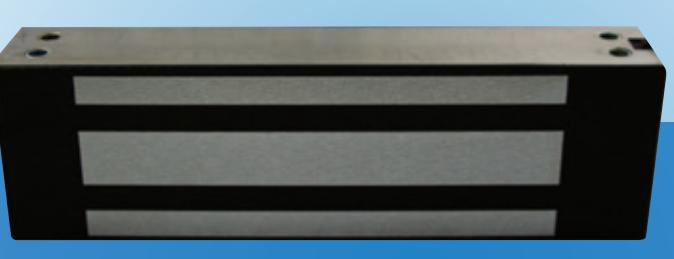

10GL1200SR (Side Mounted)

Certifications	Holding Force	Dimensions (L×H×D)	Input Voltage	Current Draw	Contact	Rating Cable Spec	Housing Material
NEMA 4 UL / ULC Listed	1200 lb	8.75" × 2.5" × 1.625"	12 or 24 VDC	500 mA @ 12 VDC 250 mA @ 24 VDC	0.250 A @ 12 V 0.125 A @ 24 V	24 AWG 7 conductor; 9.5 ft	Stainless Steel

APPLICATIONS

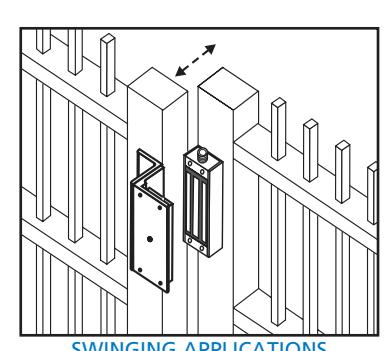

SWINGING APPLICATIONS 10GL1200R with Z-Bracket mounting option

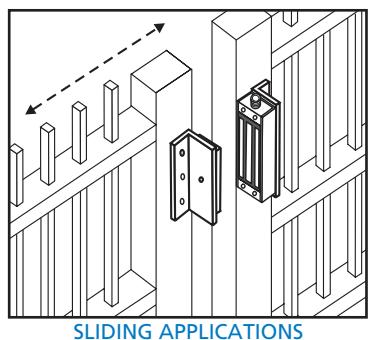

SLIDING APPLICATIONS 10GL1200R with L-Bracket mounting option

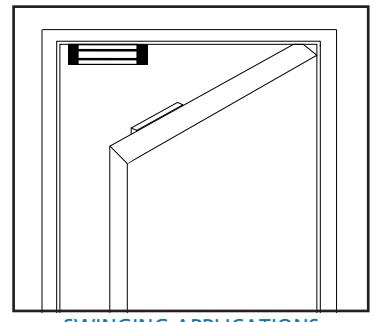

SWINGING APPLICATIONS 10GL1200SR mounted on a standard outswinging door

• Ideal for outswinging perimeter doors requiring additional protection
• Suitable for use in washdown and other harsh environments
• All internal electronics are sealed (NEMA 4 Enclosure)
