Von Duprin NY5547L @ 38 inch CL (For California) Vertical Rod Device For Metal Doors Template
Open the original PDF document
View PDF

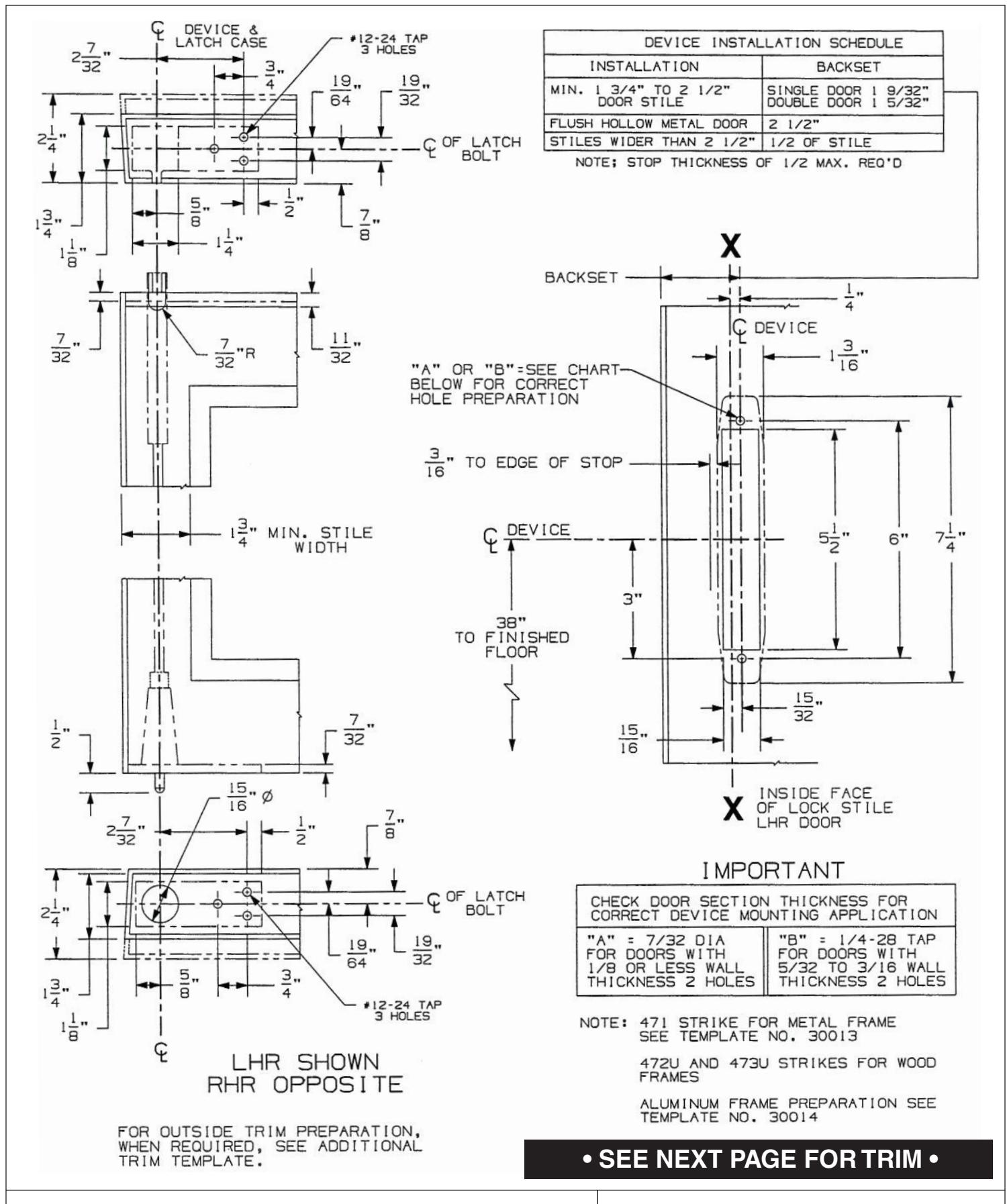

NY5547L @ 38" CL (FOR CALIFORNIA) VERTICAL ROD DEVICES (METAL DOOR)
VON DUPRIN ®
TEMPLATE NUMBER:
931048_a
DATE: 04-28-20

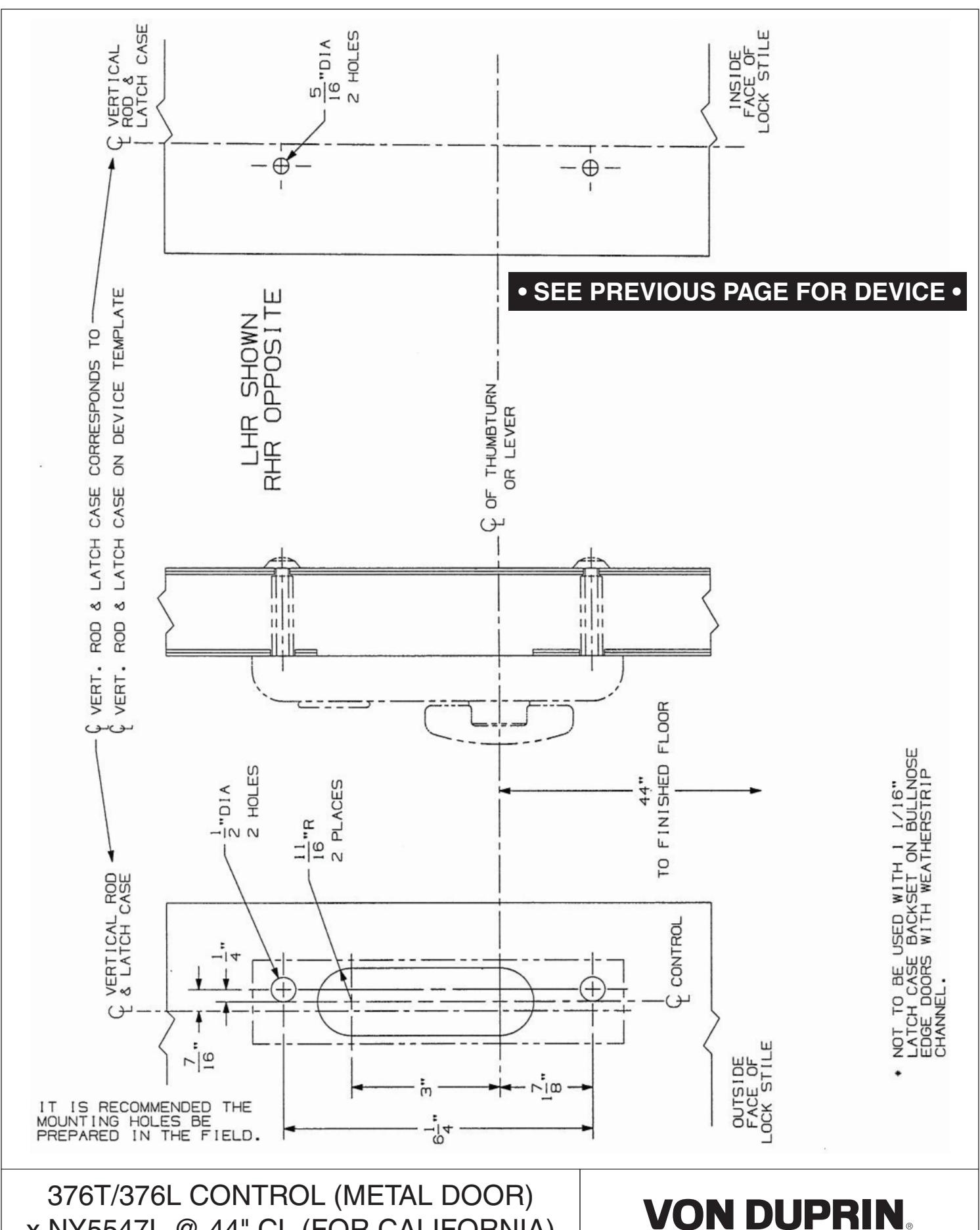

x NY5547L @ 44" CL (FOR CALIFORNÍA)
TEMPLATE NUMBER:
931049_a
DATE: 04-28-20
