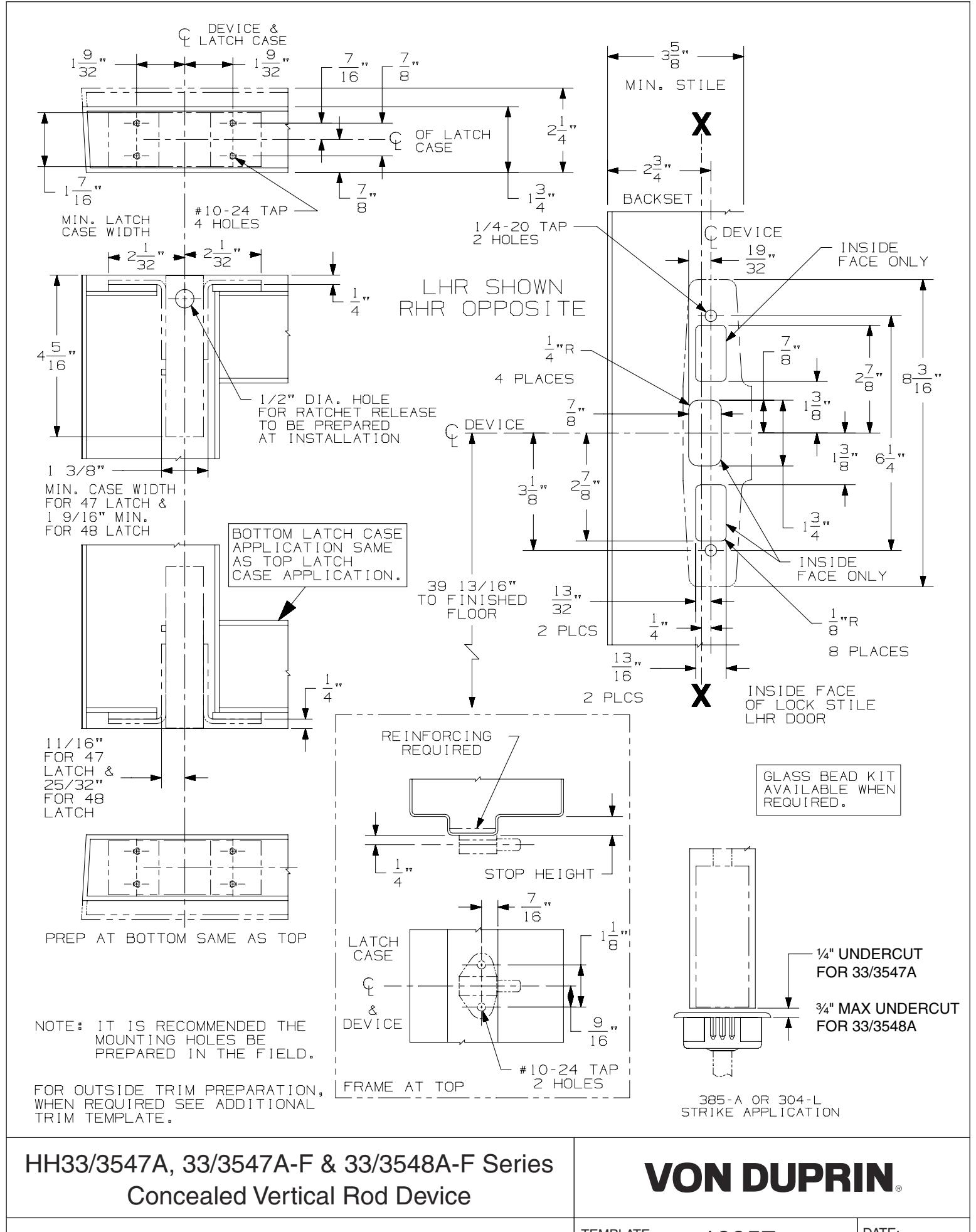

Von Duprin HH3347A, HH3547A 3347A-F, 3547A-F, 3348A-F & 3548A-F Concealed Vertical Rod Series Metal Door Template
Open the original PDF document
View PDF
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
10057_c
DATE: 05-21-21
