Von Duprin EL, SS, CX98 and 99 Series Rim Device Single Door Hinge Stile Preparation For Wood Door Template
Open the original PDF document
View PDF

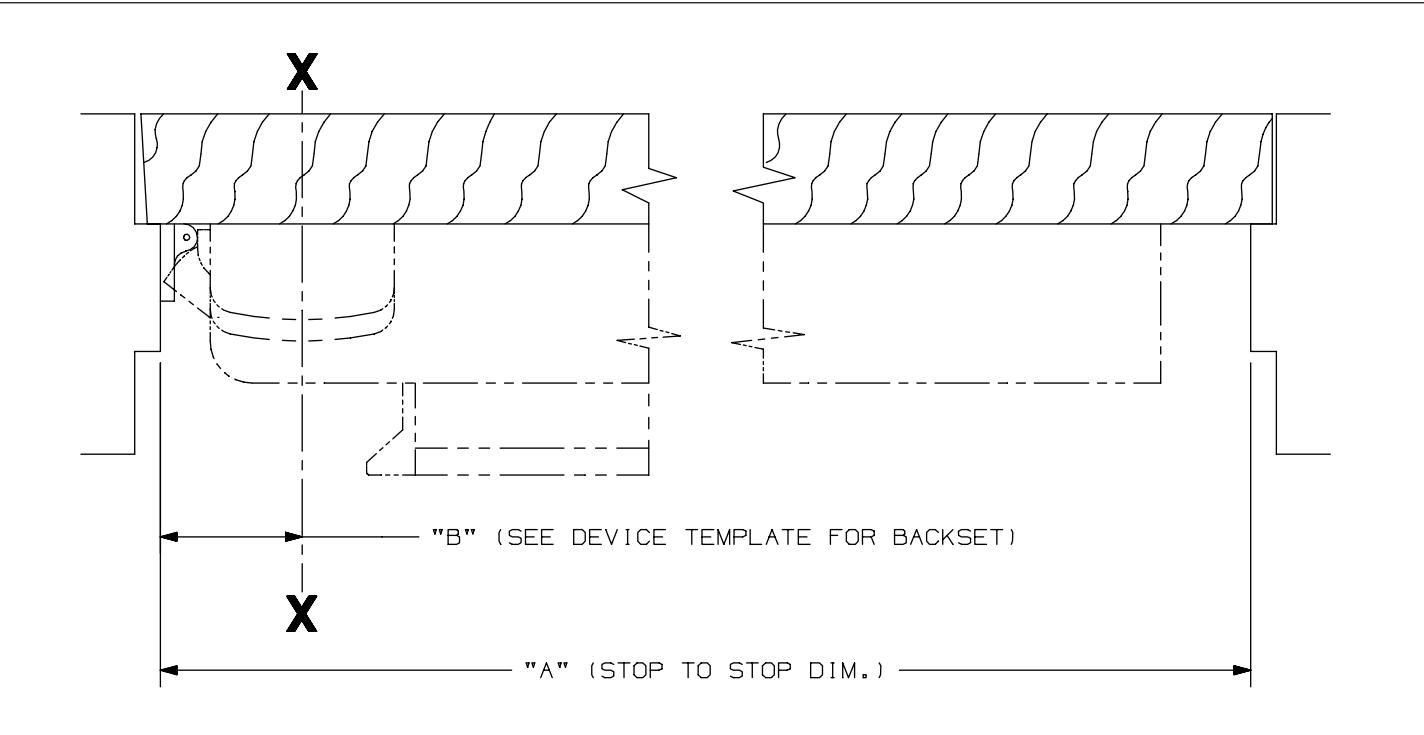

| , | "C" DIMENSION FORMULA |
|---|---|
| "A" (STOP TO STOP DIM.) | |
| - | "B" (SEE DEVICE TEMPLATE FOR BACKSET) |
| = | |
| - | SUBTRACT 30 1/2" FOR DOOR FROM 2'6" THRU 3'0" SUBTRACT 42 1/2" FOR DOOR FROM 3'0" THRU 4'0" |
| = |

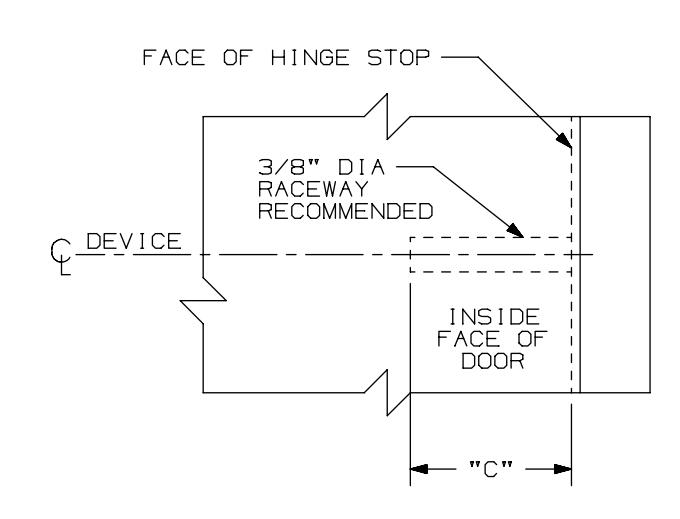

"C" DIM. (ENTER CALCULATED DIMENSION BUT NOT
LESS THAN 1 11/32") |
LHR SHOWN RHR OPPOSITE
NOTE: MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.
EL, SS, CX98/99 Series Rim Device Single Door Hinge Stile Preparation (Wood Door)
VON DUPRIN ®
TEMPLATE NUMBER:
W40084_a
DATE: 05-29-13
