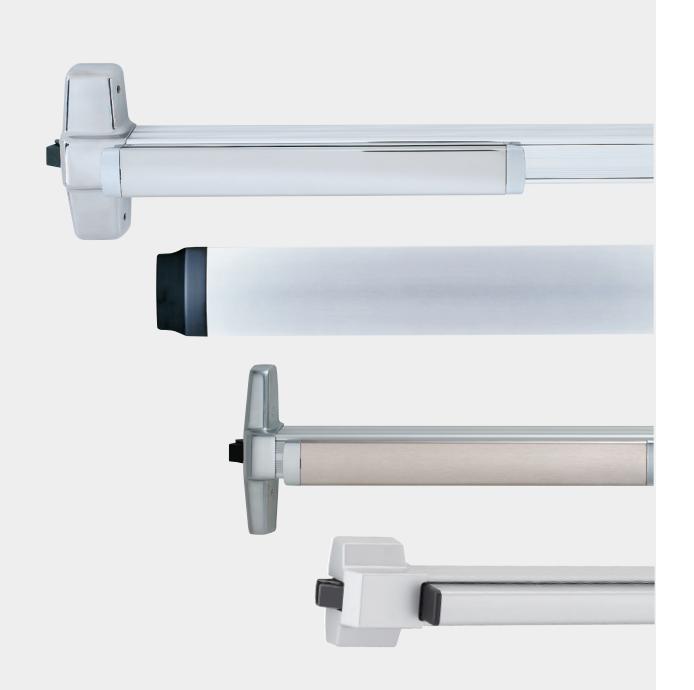

AX exit devices
Featuring the 98/99, 94/95, 33/35A and 22 Series devices
The exit device that requires only 5 lbs. of force to operate
The AX was born out of a need to provide the market with a solution that meets the 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4) that state the force reqiured to activate operable parts shall be 5 lbs. maximum. The 2013 California Building Code (Chapter 11B-309.4) adopted virtually identical requirements that went into effect January 1st, 2013.
Since pioneering the first exit device in 1908, Von Duprin life safety products have provided unparalleled quality, performance and flexibility for schools, hospitals, stadiums and public buildings. These products come with the support and customer care only offered by Von Duprin. Providing the confidence and peace of mind at critical moments of life safety.
AX device specification requirements
Provide exit devices tested to ANSI/BHMA A156.3 Grade 1, [OPTION for specific compliant products/applications: UL certified to meet maximum 5 pound requirements according to the 2010 ADA Standards for Accessible Design (Chapters 404.2.7 and 309.4) and California Building Code (Chapter 11B-309.4)] and UL listed for Panic Exit or Fire Exit Hardware.
How to identify the Von Duprin AX device
1. Look for the "AX" Prefix in the door schedule and/or specification.

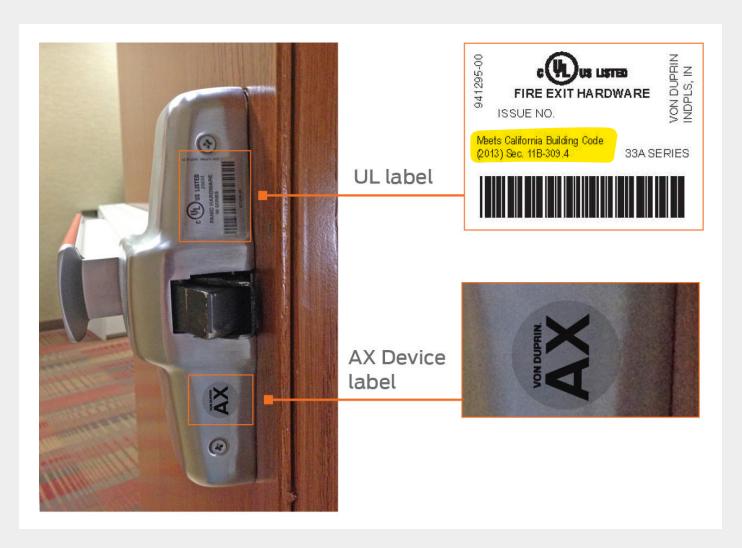

2. In the field, look for the Compliance note on the UL Label and the AX Device Label. Both labels can be found on the center case cover of the exit device as shown below.
Contact Allegion today at 888.925.4359 or ax.allegion.com to learn how the AX device can help you provide accessibility without compromise.
| AX98/99 Series Specifications | |||
|---|---|---|---|
| Device types | AX98/99 - Rim AXXP98/99 - Rim AX98/9927 - LBR AX98/9950 WDC - LBL AX98/9949 - LBL & LBL-AFL - Concealed Vertical Cable Less Bottom Latch | ||
|
Device
functions |
EO, DT, NL, NLOP, L, LBE, LDT, LNL | ||
| Device lengths | 3' / 4' | ||
| Rating | Panic and Fire | ||
|
Electric
options |
EL - Electric latch retraction LX - Latchbolt monitor switch LXLC - Latchbolt monitor switch low current LXRX - Latchbolt pushpad monitor LXRXLC - Latchbolt pushpad monitor low current RX - Pushpad monitor switch RXLC - Pushpad monitor switch low current RX2 - Double pushpad monitor switch LXRXLC - Signal switch | ||
|
Mechanical
options |
GBK - Glass bead kit -2 - Double cylinder SNB - Sex bolts SEC - Security screws WP - Weep holes | ||
|
Dogging
options (Panic only) |
Hex key dogging = Standard CD - Cylinder dogging DI - Dogging indicator LD - Less dogging SD - Special dogging | ||
| Device types | AX94/9547 | ||
|---|---|---|---|
|
Device
functions |
EO, DT, L, LDT, LBE, LNL | ||
| Device lengths | 3' / 4' | ||
| Rating | Panic and Fire | ||
|
Electric
options |
LX - Latchbolt monitor switch | ||
| AX33/35A | Series Specifications | ||
|
Device
types |
AX33/35A - Rim
AX33/3549 - LBL & LBL-AFL - Concealed Vertical Cable Less Botton Latch |
||
|
Device
functions |
EO, DT, NL, NLOP, L, LBE, LDT | ||
| Device lengths | 3' / 4' | ||
| Rating | Panic and Fire (3349 LBL/AFL only) | ||
|
Electric
options |
EL - Electric latch retraction LX - Latchbolt monitor switch LXLC - Latchbolt monitor switch low current LXRX - Latchbolt pushpad monitor LXRXLC - Latchbolt pushpad monitor low current RX - Pushpad monitor switch RXLC - Pushpad monitor switch low current RX2 - Double pushpad monitor switch ALK - Alarm kit SS - Signal switch | ||
GBK - Glass bead kit SEC - Security screws WP - Weep holes
LD - Less dogging
Hex key dogging = Standard CD - Cylinder dogging
|
m
LBR L, NLOP, L, LBE |
|---|
| L, NLOP, L, LBE |
| f Fire |
|
nbolt monitor switch
npad monitor switch uble pushpad witch rm kit |
| ass bead kit |

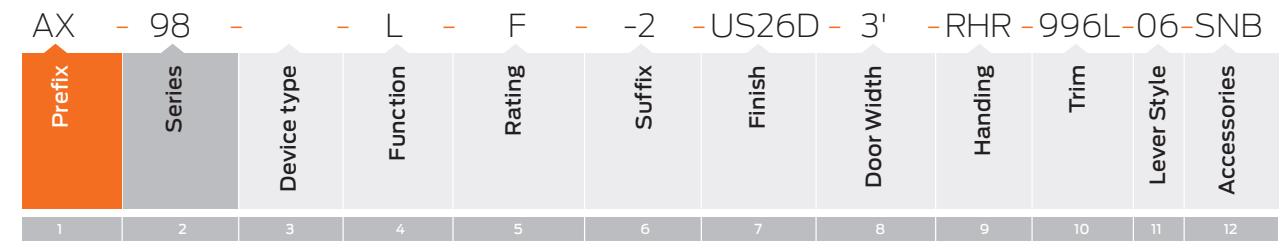

Ordering information
Device Type
Mechanical
options
Dogging
options
(Panic only)
Selections correspond with the numbers above. See price book for specific configuration options. 3
| 1 | Prefix |
|---|---|
| AX* | Accessible Device |
| EL | Electric latch retraction |
| LX | Latchbolt Monitor Switch |
| LXLC | Latchbolt Monitor Switch Low Current |
| LXRX | Latchbolt Pushpad Monitor |
| LXRXLC | Latchbolt Pushpad Monitor Low Current |
| RX | Pushpad Monitor Switch |
| RXLC | Pushpad Monitor Switch Low Current |
| RX2 | Double Pushpad Monitor Switch |
| SS | Signal Switch |
| *Must he | specified: may select more than one prefix |
| *Must he | specified: | may s | elect | more | than | one | nrefix |
| 2 | Series | |
|---|---|---|
|
98
99 94 95 33A 35A 22 |
Series 98 - smooth
Series 99 - grooved Series 94 - smooth Series 95 - grooved Series 33A - grooved Series 37A - smooth Series 27 |
|
Contact Allegion today at 888.925.4359 or ax.allegion.com to learn how the AX device can help you provide accessibility without compromise.
|
N/A
27 47 49 |
Rim
Surface Vertical Rod Concealed Vertical Rod Concealed Vertical Cable |
|---|---|
| 4 | Function |
|
EO
DT NL NLOP L LBE LDT LNL |
Exit Only Dummy Trim Night Latch Night Latch - Optional Pull Lever Lever - Blank Escutcheon Lever, Rigid - Dummy Trim Lever, Rigid - Night Latch |
| 5 | Rating |
|
N/A
F |
Panic
Fire-rated |
| 6 | Suffix |
|
-2
LBL/LBR LBL-AFL WH |
| 7 | Finish |
|---|---|
| See prid | cebook for finish offering |
| 8 | Door Width |
|
3'
4' |
Standard Default |
| 9 | Handing |
|
RHR
LHR |
Right Hand Reverse
Left Hand Reverse |
| 10 | Trim |
| 11 | 1 Lever Style | |||
|---|---|---|---|---|
|
See pricebook
for lever style offering |
||||
| 12 Accessories | ||||
|
ALK
GBK SNB |
Alarm Kit
Glass Bead Kit Sex Bolts |
|||
© 2017 Allegion 010333, Rev. 1/17 allegion.com/us
