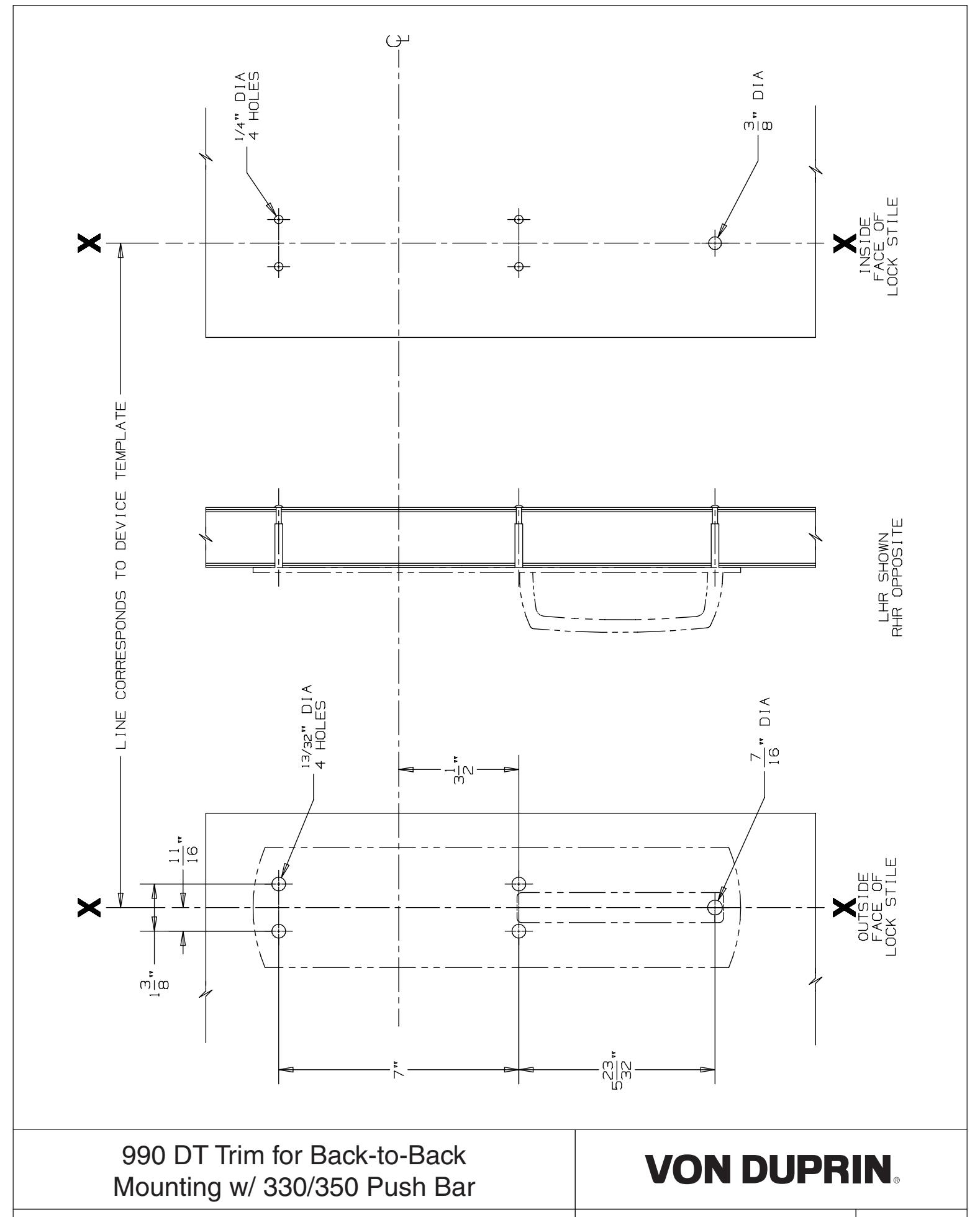

Von Duprin 990DT Trim Used with 330, 350 Push Bar For 98 and 99 Series Exit Device Metal Door Template

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

20285_a

DATE: 05-23-13
