Von Duprin 9875, 9975 Series Device Hinge Stile Preparation For Wood Door Template
Open the original PDF document
View PDF
| "C" DIMENSION FORMULA | |
|---|---|

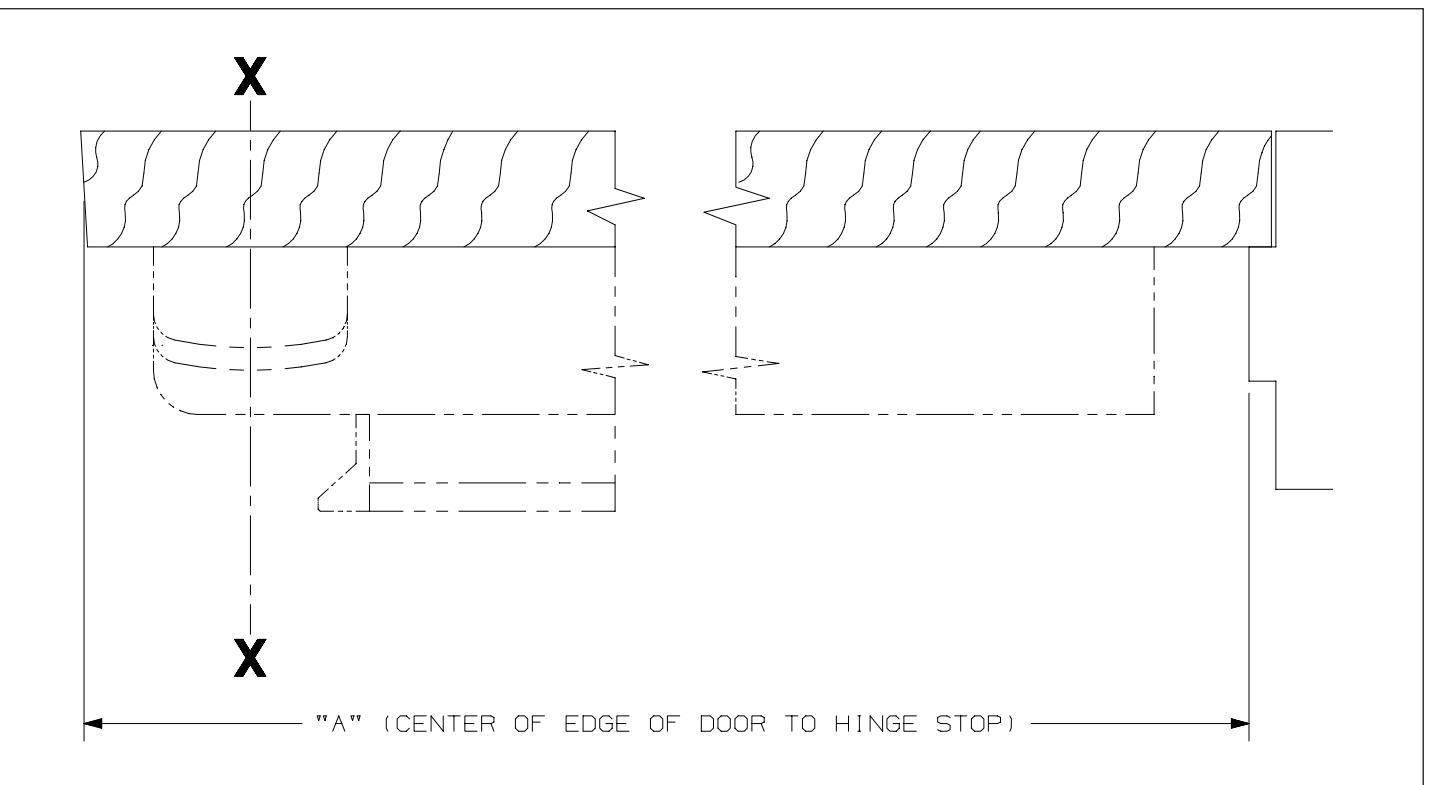

| "A" (CENTER OF EDGE OF DOOR TO HINGE STOP) | |
| _ |
SUBTRACT 33 1/4" FOR DOOR FROM 2'6" THRU 3'0"
SUBTRACT 45 1/4" FOR DOOR FROM 3'0" THRU 4'0" |
| = |

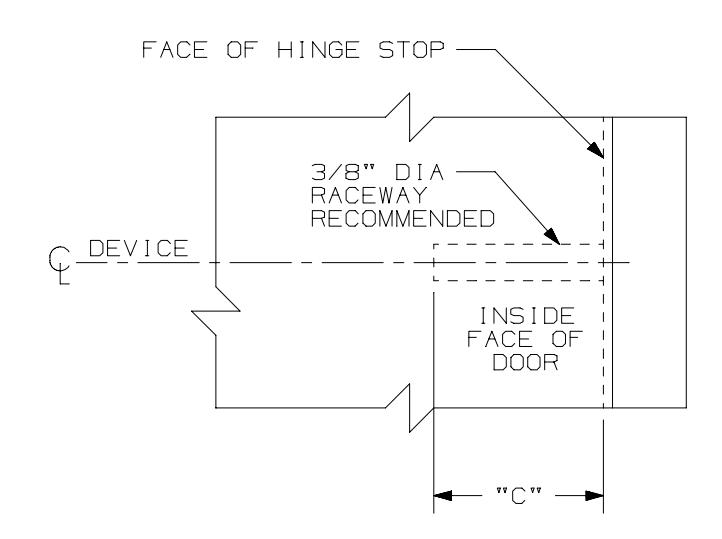

"C" DIM. (ENTER CALCULATED DIMENSION BUT NOT
LESS THAN I 13/32") |
NOTE: MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.
EL, SS, CX9875/9975 Series Device Hinge Stile Preparation (Wood Door)
VON DUPRIN ®
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
W40087_a
DATE: 05-29-13
