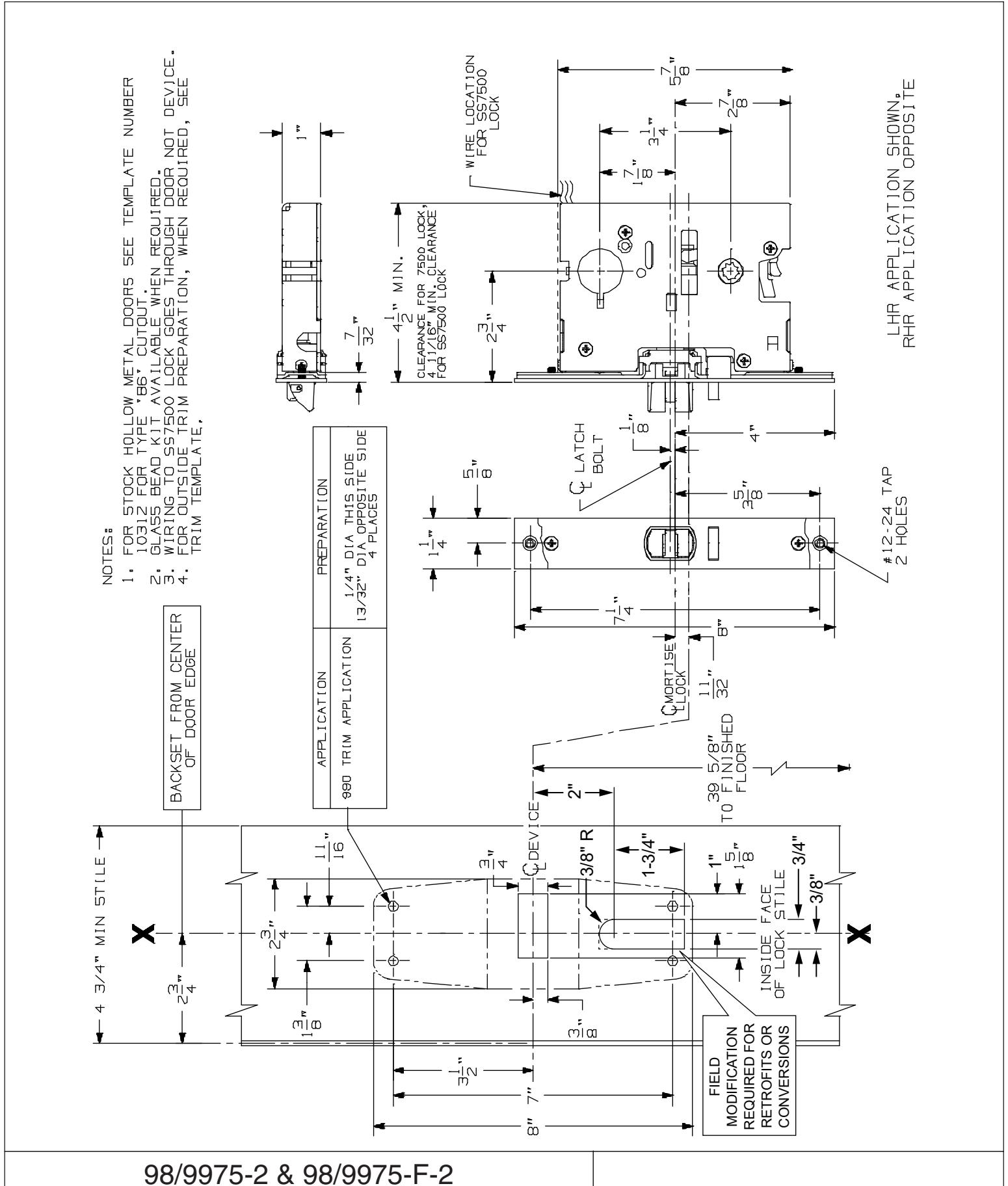

Von Duprin 9875, 9975, 9875-F, 9975-F, E9875, E9975 K-2, L-2 Functions Mortise Device Metal Door Template
Open the original PDF document
View PDF
98/9975-2 & 98/9975-F-2 98/9975-2 SI & 98/9975-F-2 SI Mortise Lock Devices
VON DUPRIN ®
TEMPLATE NUMBER:
10368_b
DATE: 04-22-22
