Von Duprin 9847WDC, 9947WDC Concealed Vertical Rod Hinge Stile Preparation For Wood Door Template
Open the original PDF document
View PDF
LHR SHOWN RHR OPPOSITE

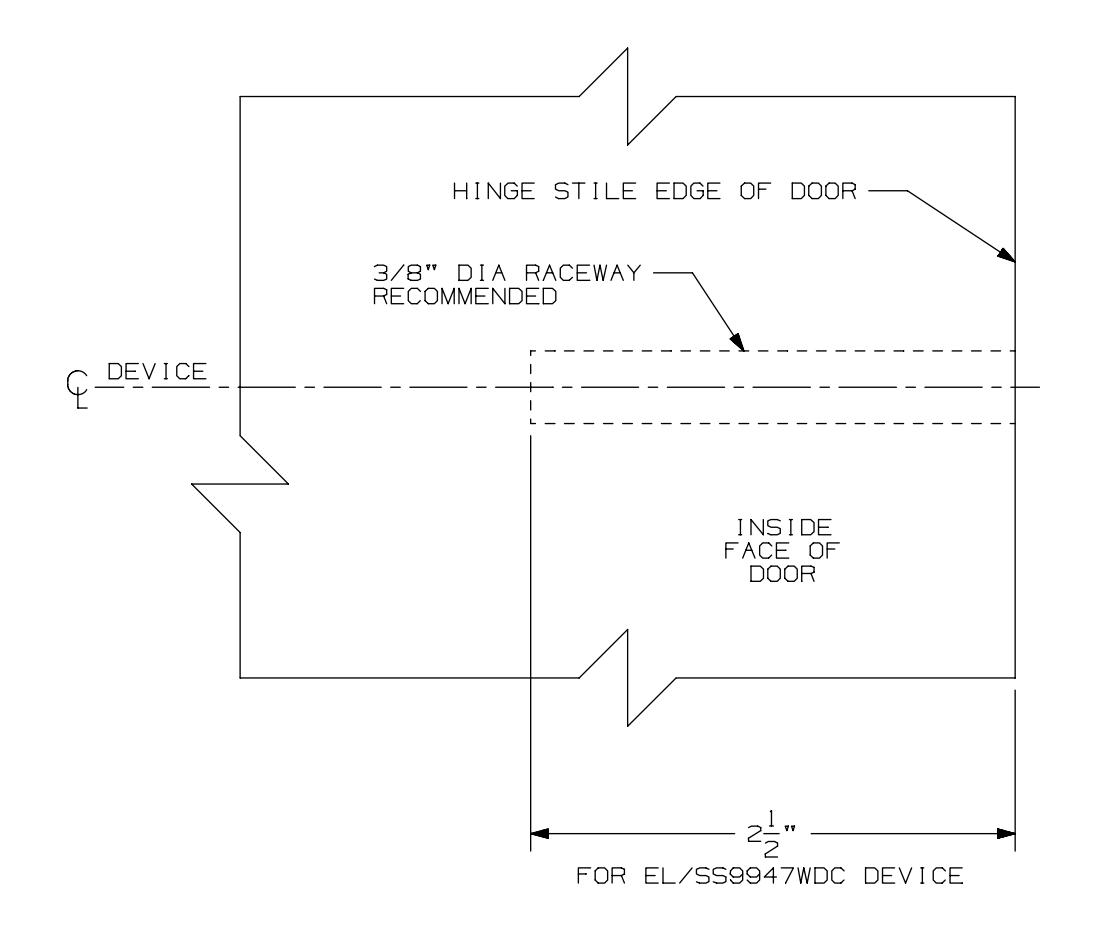

EL, SS, CX9847WDC/9947WDC Series Device Hinge Stile Preparation (Wood Door)
VON DUPRIN ®
ì
TEMPLATE
NUMBER:
W40088_a
DATE: 05-29-13
