Von Duprin 9827 and 9927 TP, K, L Surface Vertical Rod Device for Type “161” Stock Hollow Metal Applications Template

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10304

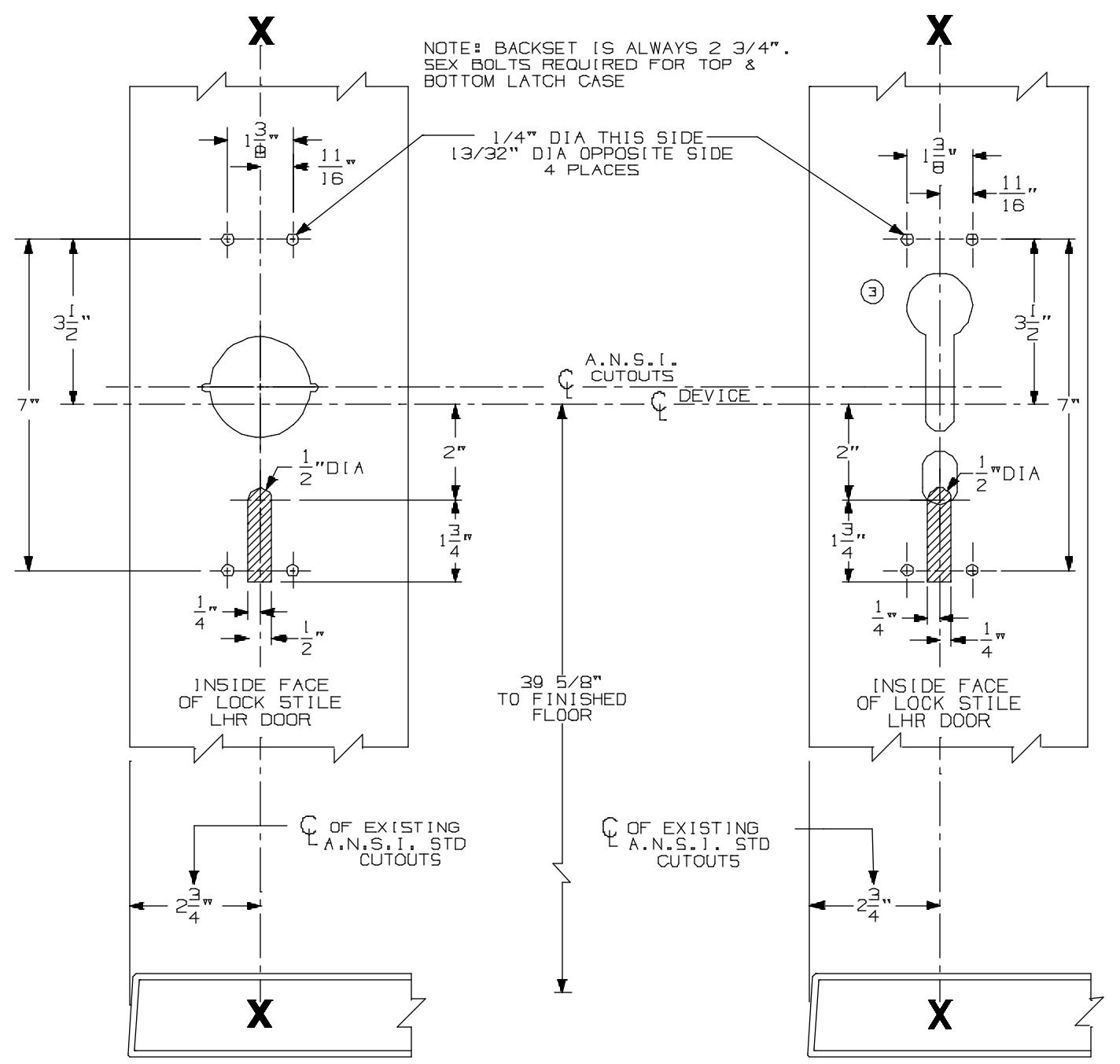

TYPE 161 STOCK HOLLOW METAL DOOR

TYPE 86 STOCK HOLLOW METAL DOOR

A.N.S.I. CUTOUTS ARE SHOWN FOR REFERENCE ONLY. SEE A.N.S.I. SPECIFICATION NO. A115 FOR THE SIZE AND LOCATION OF THESE CUTOUTS.

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

LHR SHOWN RHR OPPOSITE

9827/9927 TP, K, & L Vertical Rod Devices w/ 990, 991, & 992 Trim for Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

10311 a

DATE: 05-21-13
