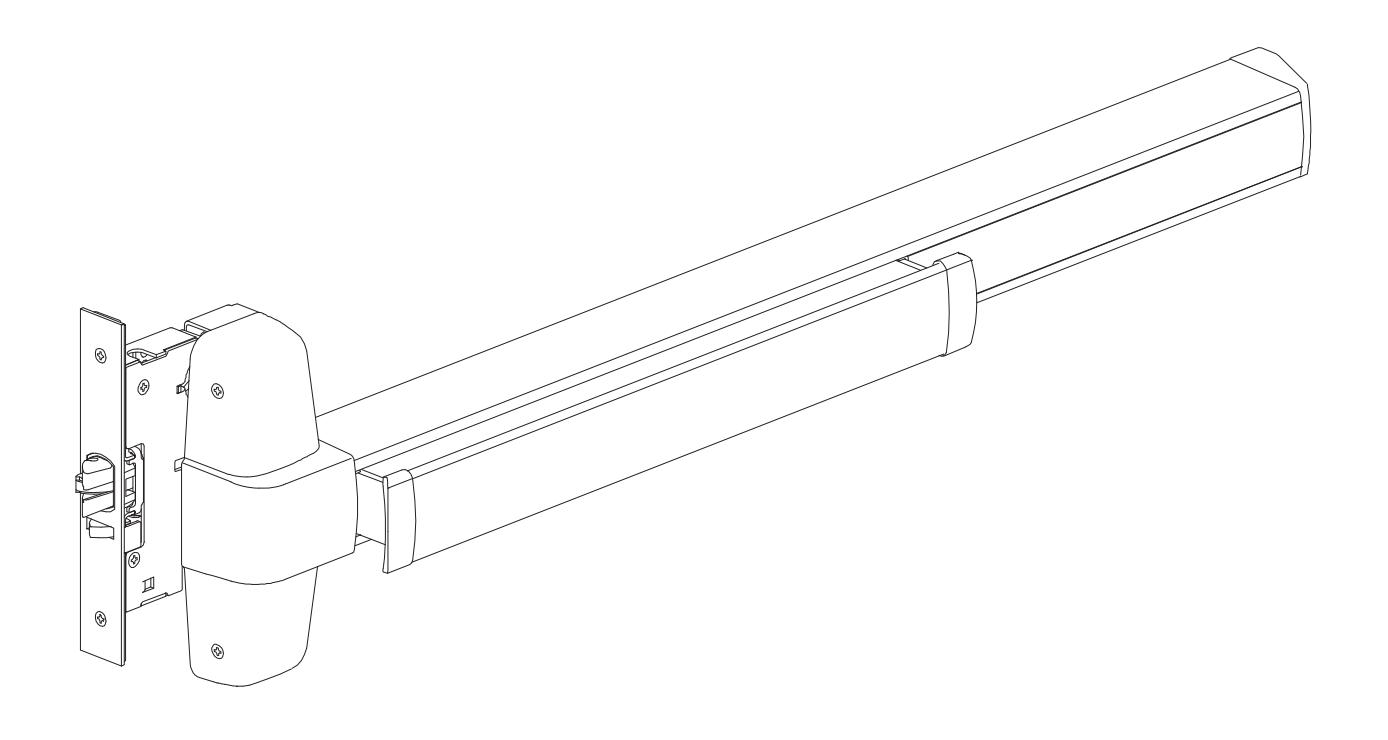

98/9975 Mortise Lock Exit Devices
Service manual
INDEX
| 98/9975 Devices | |
|---|---|
| Basic Panic Device | 4-5 |
| Basic Fire Device | 6-7 |
| Baseplate Assemblies | 8 |
| Center Case Assembly | 9 |
| Variations of the Basic Device | |
| CD (Cylinder Dogging) | 4-5 |
| 98/9975-2 (Double Cylinder) | 9 |
| HD-EL (Hex Dogging/Electric Latch Retraction) | 10 |
| EL (Electric Latch Retraction) | 11 |
| SS (Signal Switch) | 11 |
| RX (Request to Exit) | 12-13 |
| LX (Latch Bolt Monitoring) | 12-13 |
| CX (Chexit Discontinued) | 14 |
| CX (Chexit New) | 15 |

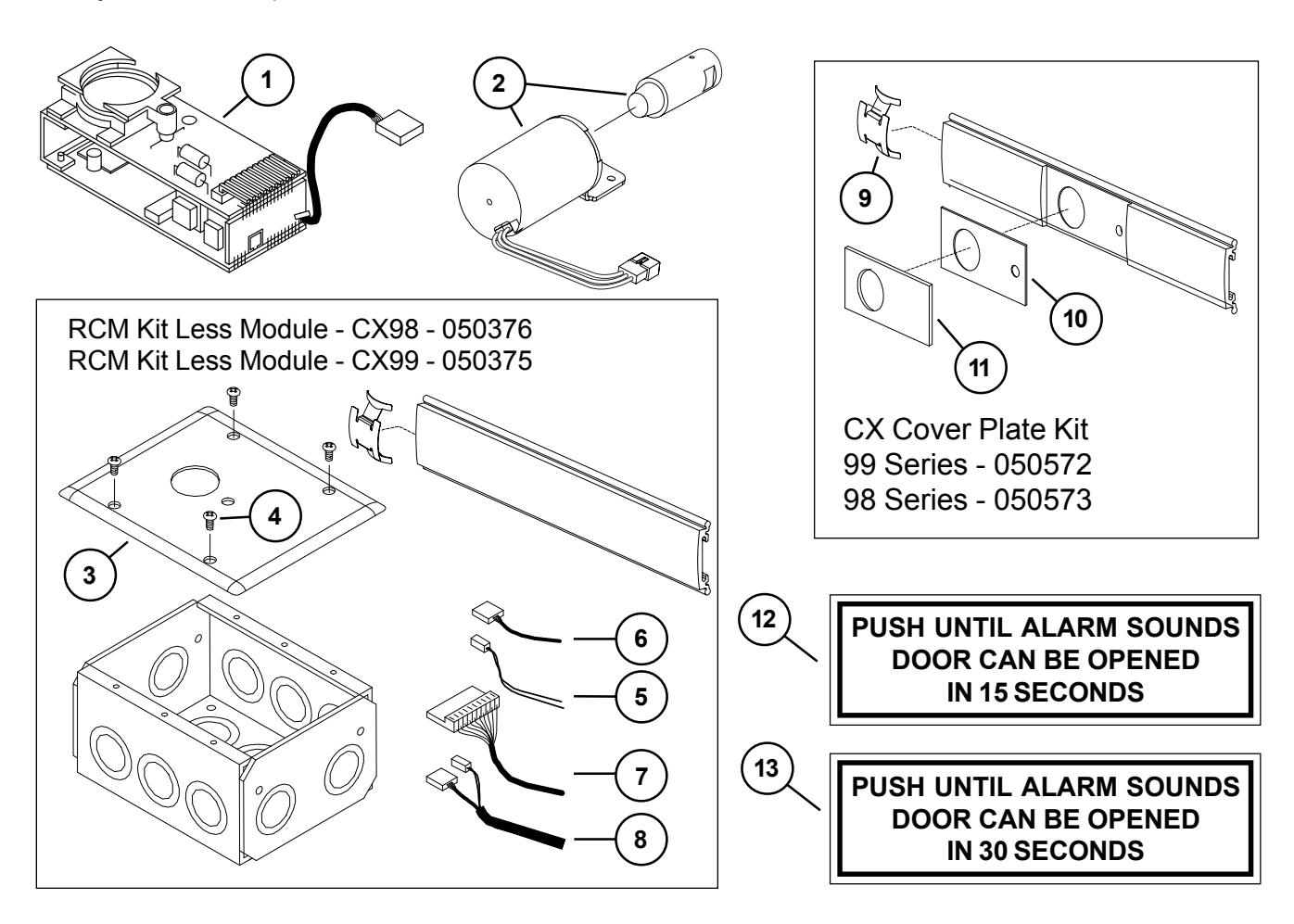

| CX (Chexit New RCM/DE5300 Option) | 16 |

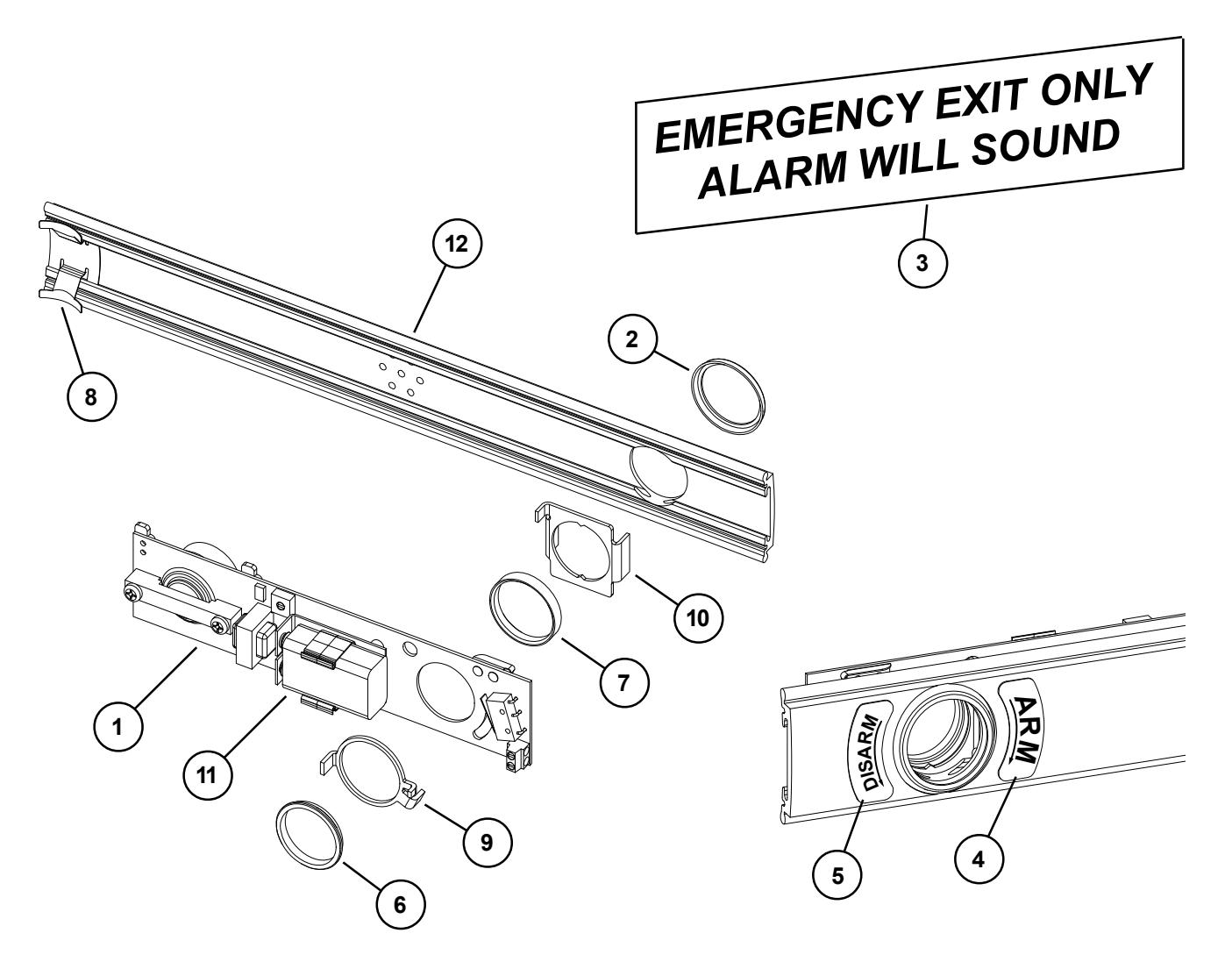

| ALK (Exit Alarm Kit) | 17 |

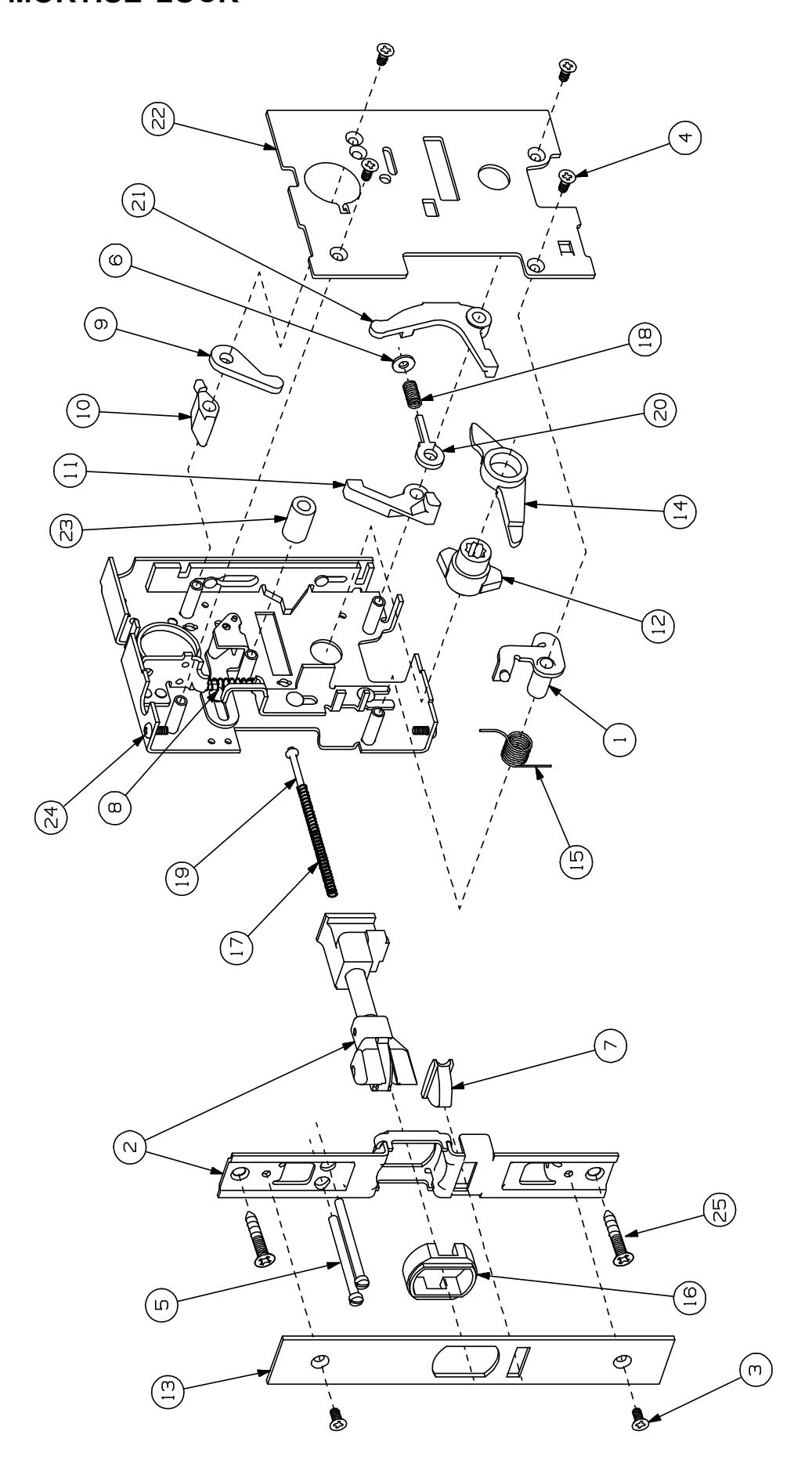

| 7500 Mortise Lock | 18-19 |
| E7500 Mortise Lock (F.S.E.) | 20 |
| E7500 Mortise Lock (F.S.) | 21 |
| SS7500 Mortise Lock | 22 |
| Service Replacement Items | 23-24 |
| General Information | |
| Introduction | 2 |
| How to Order | 2 |
| Part Number Changes | 2 |
| Finishes | 3 |
| Outside Trim Functions | 3 |
| Strikes | 3 |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 98/9975 Exit Hardware Devices. 98 Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 Series has a smooth case.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
98/99 SERIES FINISHES
BHMA
U.S. Std
OUTSIDE TRIM FUNCTIONS
|
OUTSIDE
TRIM FUNCTIONS |
Reference | Reference | Description | ||||||
|---|---|---|---|---|---|---|---|---|---|
| US3 | 605 | Polished Brass | |||||||
| US4 | 606 | Dull Brass | |||||||
| US10 | 612 | Dull Bronze | |||||||
| US15 | 619 | Satin Nickel | |||||||
| US26 | 625 | Polished Chrome | |||||||
| US26D | 626 | Dull Chrome | |||||||
| US28 | 628 | AnodizedAlum. (Clear) | |||||||
| US32D | 630 | Satin Stainless Steel | |||||||
| 992L | 992L-BE* | 313AN | 710 | AnodizedAlum. (313) | |||||
| 996L | 996L-BE* | 992EO | 994L | 994L-BE* | Dark Bronze | ||||
|
992L-NL**
996L-NL** |
992L-DT***
996L-DT*** |
996EO | 994L-NL** | 994L-DT*** | 994EO | 315AN | 711 | AnodizedAlum. (Black) | |
|
991K
991K-NL** |
991K-BE*
991K-DT*** |
990EO | 990DT | 990NL | 990TP | 990TP-BE* | |||
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** "OP" (Optional Pull) needs to be added

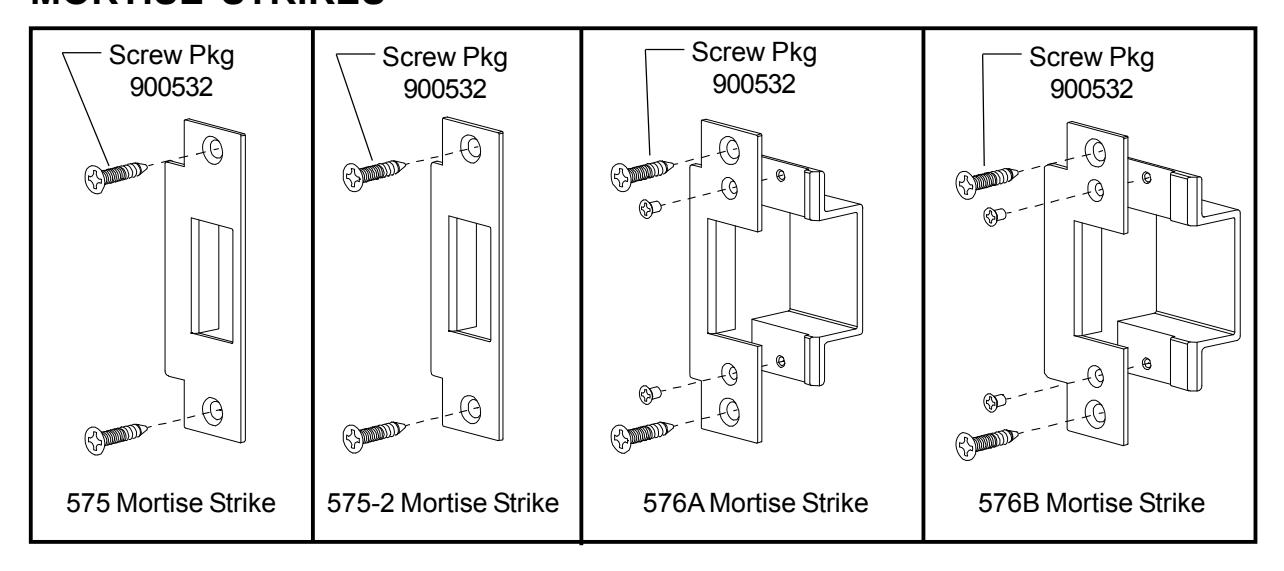

MORTISE STRIKES

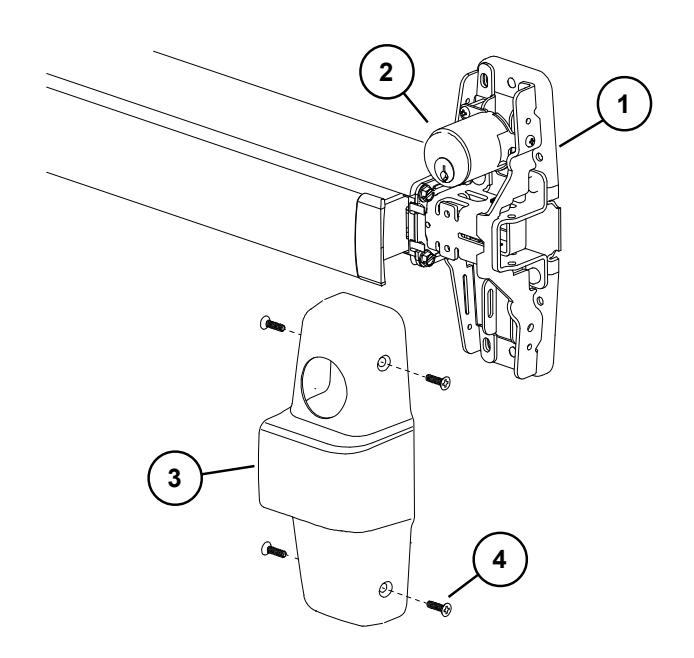

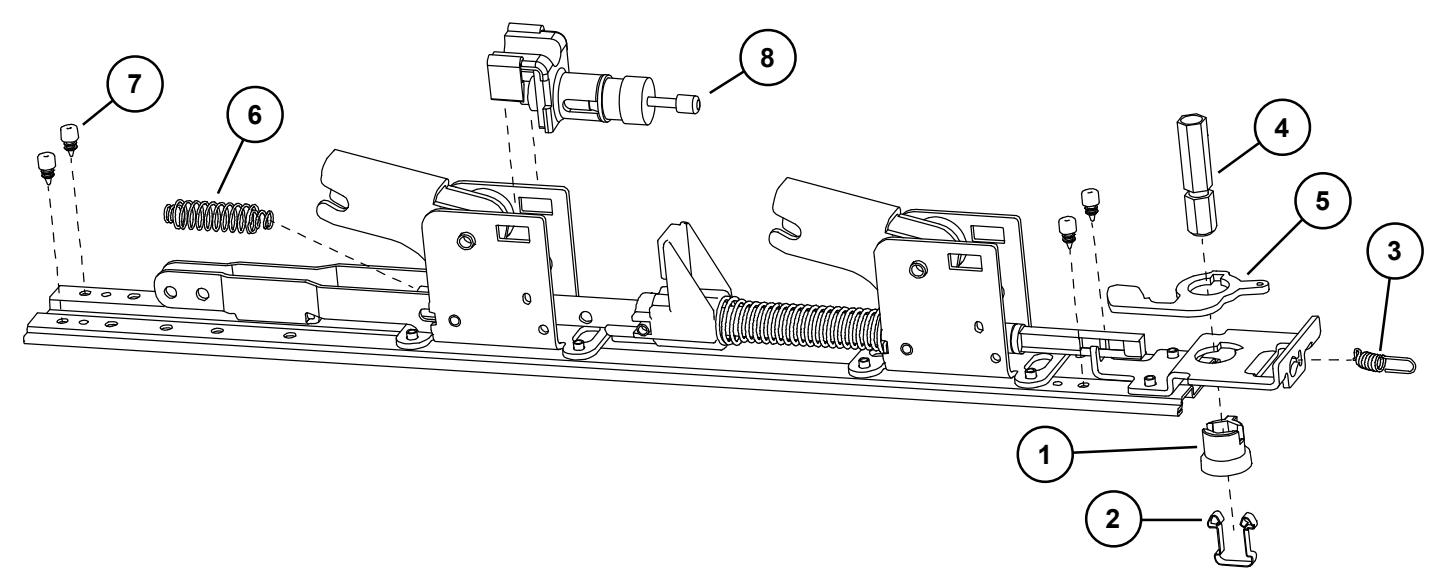

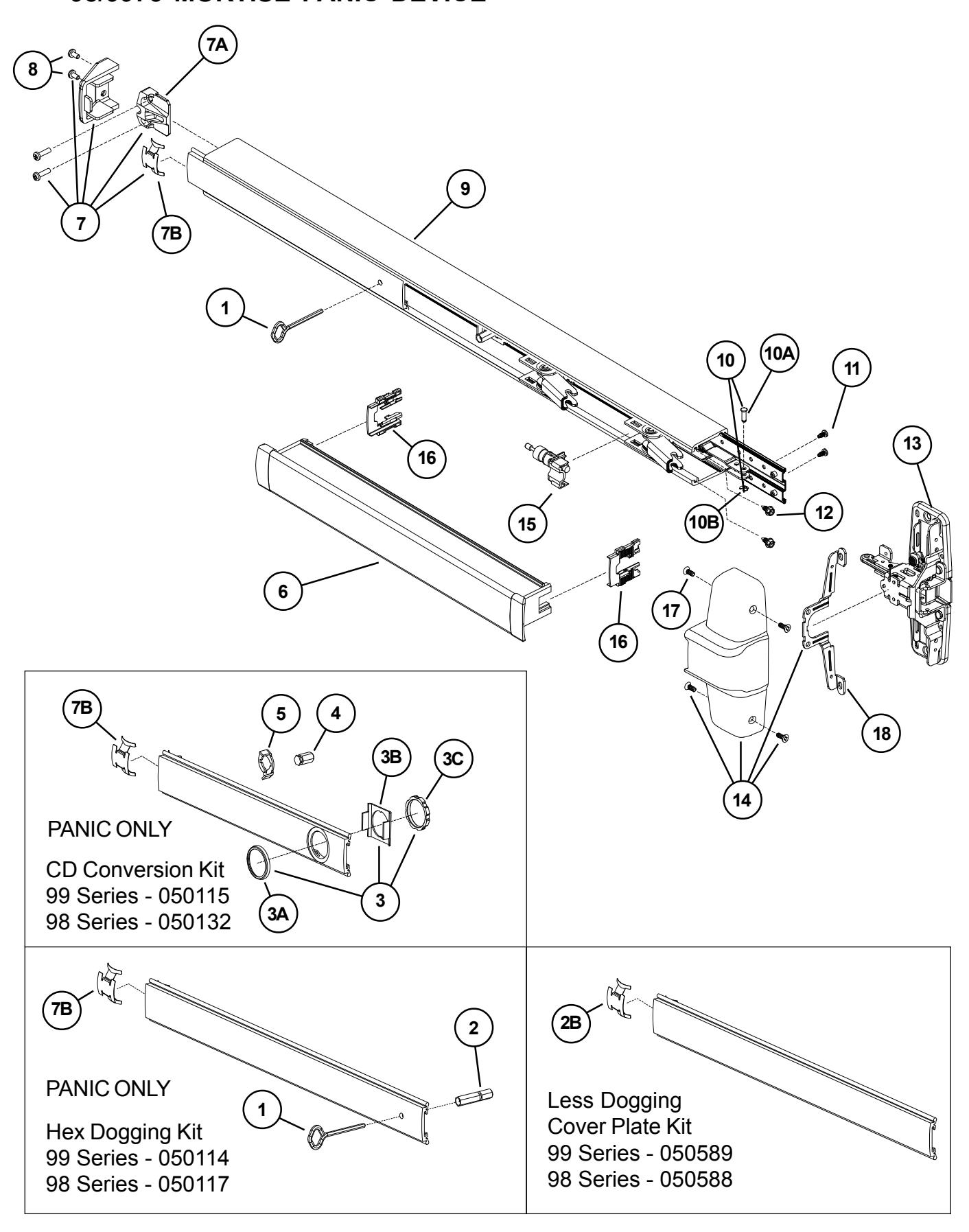

98/9975 MORTISE PANIC DEVICE
98/9975 MORTISE PANIC DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900561 |
98/99
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 090040 |
Hex
Dog Shaft (Pkg of 2) |
|
| 3 | 1 | 107813 |
Cylinder
MountingPkg |
X |
| 3A | 1 | 050525 |
Cylinder
Collar |
X |
| 3B | 1 | 050490 |
Cylinder
Locating Washer - CD/SS |
|
| 3C | 1 | 050526 |
Cylinder
Locknut |
|
| 4 | 1 | 090046 |
CD
Dogging Plug (Pkg of 2) |
|
| 5 | 1 | 090045 |
CDActuatorArm
(Pkg of 2) |
|
| 6 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 3' Door |
X |
| 6 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 4' Door |
X |
| 7 | 1 | 050014 |
98/99
Series End Cap Kit |
X |
| 7A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 7B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 8 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 9 | 1 | 968144 |
99
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 968146 |
99
Series Mechanism Case - 4' Door |
X |
| 9 | 1 | 970191 |
98
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 970192 |
98
Series Mechanism Case - 4' Door |
X |
| 10 | 1 | 050529 |
98/99
Series Control Link Pin & Ret. Ring |
|
| 10A | 1 | 090031 |
98/99
Series Control Link Pin (Pkg of 10) |
|
| 10B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 11 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 12 | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 13*** | 1 | 050023 |
98/9975
Center Case Less Cover |
|
| 14** | 1 | 050073 |
98/9975
Center Case Cover Kit |
X |
| 15 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 16 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 17 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
| 18 | 1 | 050564 |
Center
Case Cover Bracket |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3' US28
** Includes parts for three piece cover conversion
*** Center case assembly parts shown on page 9.

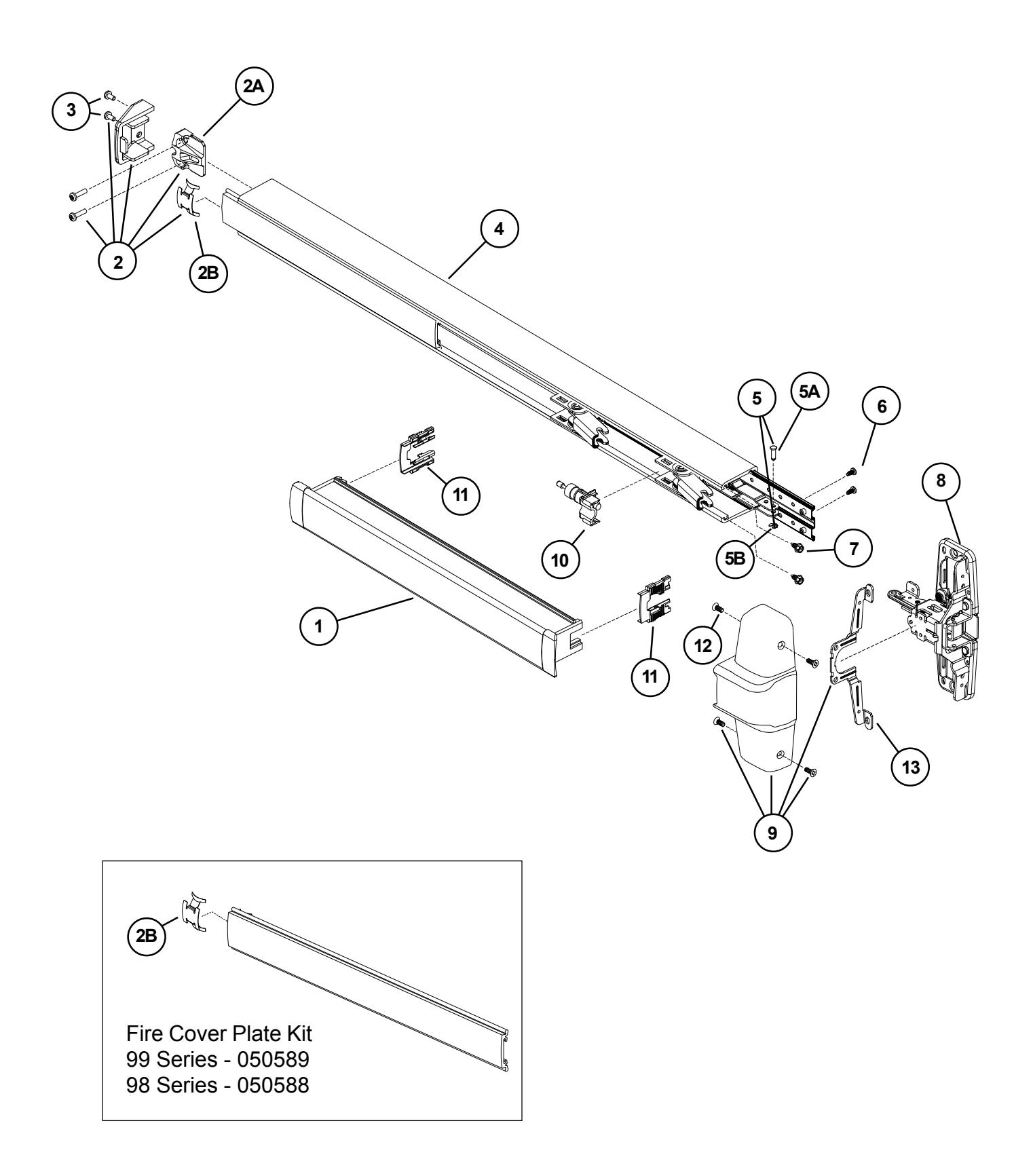

98/9975-F FIRE DEVICE
98/9975-F FIRE DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900561 |
98/99
Series Mounting Pkg. (1-3/4 & 2-1/4) |
||
| 1 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 3' Door |
X |
| 1 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 4' Door |
X |
| 2 | 1 | 050014 |
98/99
Series End Cap Kit |
X |
| 2A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 2B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 3 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 4 | 1 | 968144 |
99
Series Mechanism Case - 3' Door |
X |
| 4 | 1 | 968146 |
99
Series Mechanism Case - 4' Door |
X |
| 4 | 1 | 970191 |
98
Series Mechanism Case - 3' Door |
X |
| 4 | 1 | 970192 |
98
Series Mechanism Case - 4' Door |
X |
| 5 | 1 | 050529 |
98/99
Series Control Link Pin & Ret. Ring |
|
| 5A | 1 | 090031 |
98/99
Series Control Link Pin (Pkg of 10) |
|
| 5B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 6 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 7 | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 8*** | 1 | 050023 |
98/9975
Center Case Less Cover |
|
| 9** | 1 | 050073 |
98/9975
Center Case Cover Kit |
X |
| 10 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 11 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 12 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
| 13 | 1 | 050564 |
Center
Case Cover Bracket |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3' US28
** Includes parts for three piece cover conversion
*** Center case assembly parts shown on page 9.

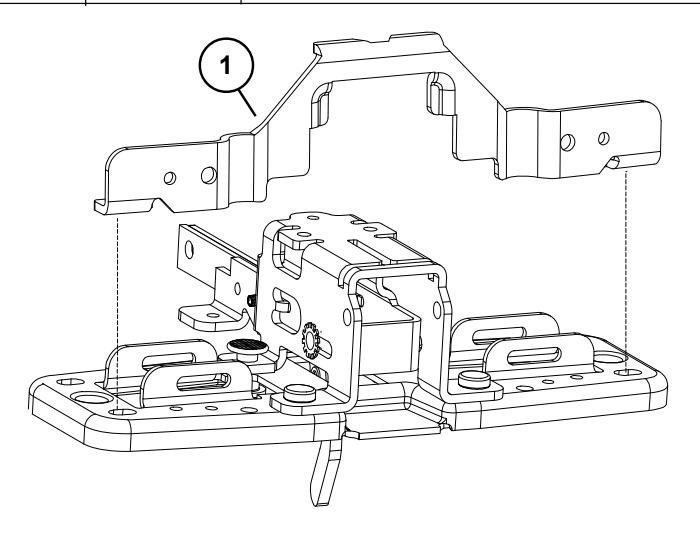

98/9975 PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 1 | 050491 |
Shock
absorber |

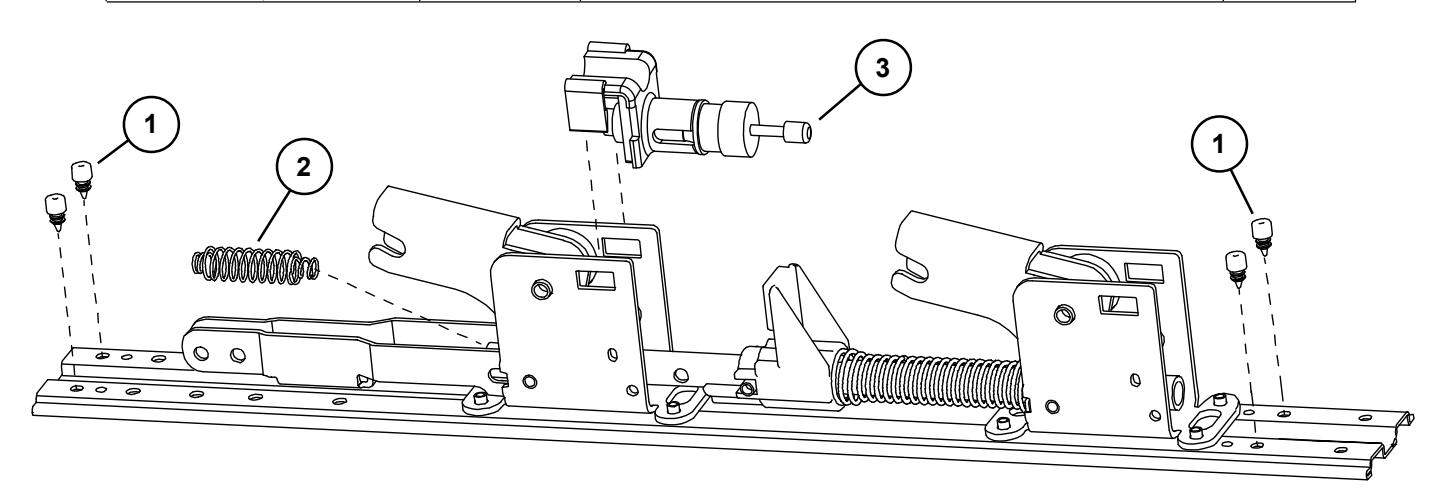

98/9975-F FIRE DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 2 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 3 | 1 | 050491 |
Shock
absorber |
98/9975 DEVICE CENTER CASE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050565 |
Center
Case Reinforcing Bracket |
98/9975-2 & 98/9975-F-2 DOUBLE CYLINDER OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050029 |
98/9975-2
RHR Center Case Less Cover |
|
| 1 | 1 | 050030 |
98/9975-2
LHR Center Case Less Cover |
|
| 2 | 1 | 113100 | 98/9975-2 Cylinder Bracket Assembly LHR | X |
| 2 | 1 | 113101 | 98/9975-2 Cylinder Bracket Assembly RHR | X |
| 3 | 1 | 050557 |
98/9975-2/SD
RHR Center Case Cover Kit |
X |
| 3 | 1 | 050558 |
98/9975-2/SD
LHR Center Case Cover Kit |
X |
| 4 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |

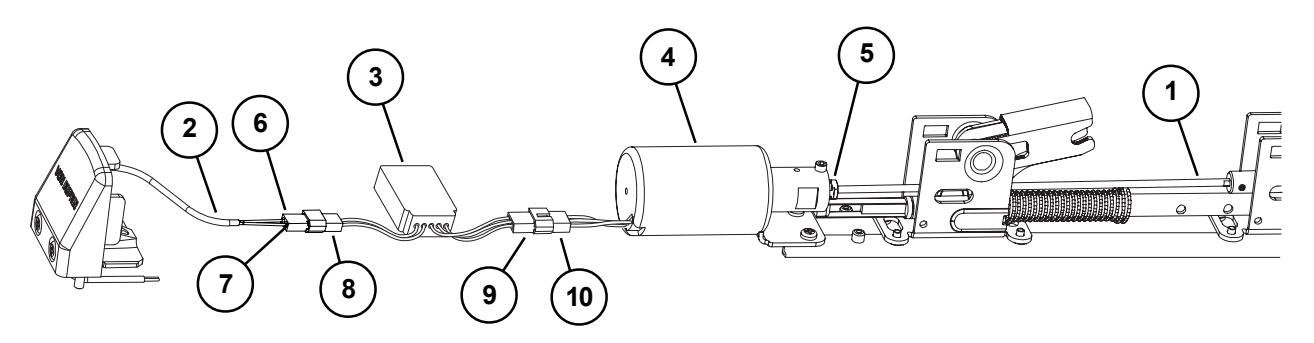

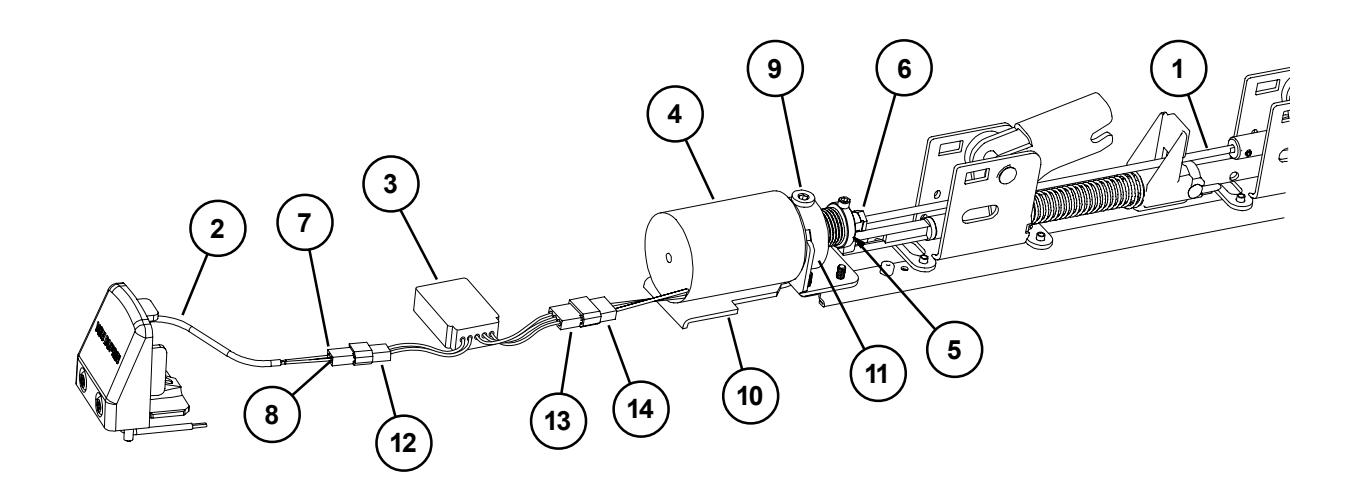

HD-EL9875/HD-EL9975 HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050536 | HD-EL Solenoid | |
| 5 | 1 | 050537 | HD-EL Solenoid Plunger | |
| 6 | 1 | 050538 | EL Dogging Rod Retainer | |
| 7 | 1 | 050539 | EL Receptacle Connector - 2 Position | |
| 8 | 2 | 050540 | EL Female Terminal | |
| 9 | 1 | 050541 | HD-EL Dog Screw | |
| 10 | 1 | 050542 | HD-EL Solenoid Bracket | |
| 11 | 1 | 050543 | HD-EL Dogging Spring | |
| 12 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 13 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 14 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050384 | HD-EL Conversion Kit - 3' | |
| * | 1 | 050385 | HD-EL Conversion Kit - 4' |
* Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
EL9875/EL9975 SERIES ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050535 | EL Solenoid Assembly | |
| 5 | 1 | 050538 | EL Dogging Rod Retainer | |
| 6 | 1 | 050539 | EL Receptacle Connector | |
| 7 | 2 | 050540 | EL Female Terminal | |
| 8 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 9 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 10 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050070 | EL Conversion Kit - 3' | |
| * | 1 | 050078 | EL Conversion Kit - 4' |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

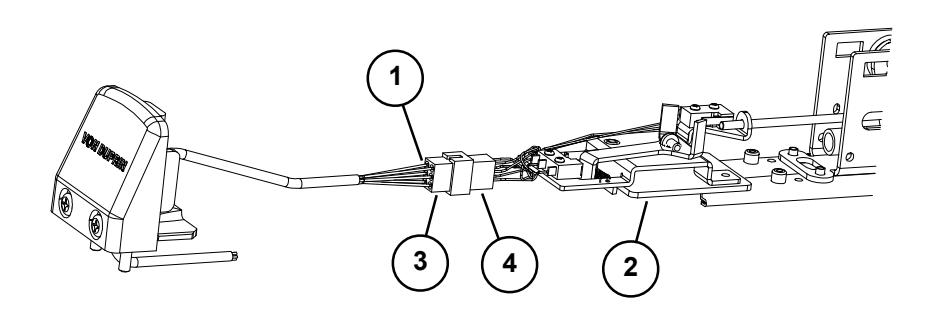

SS9875/SS9975 SERIES (SIGNAL SWITCH) OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050544 |
SS
Cable |
|
| 2 | 1 | 050545 |
SS
Housing |
|
| 3 | 1 | 990601 |
SS
Plug Connector - 6 Position |
|
| 4 | 1 | 990602 |
SS
Receptacle Connector - 6 Position |

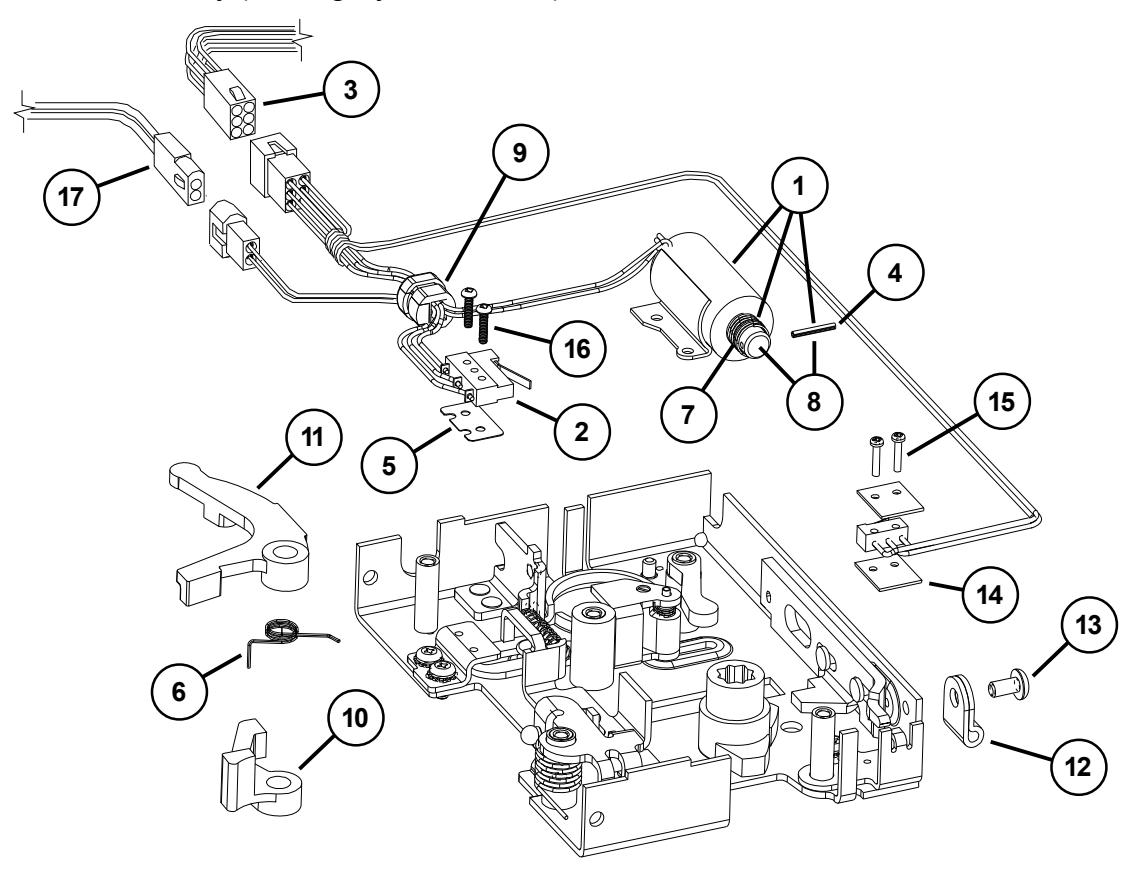

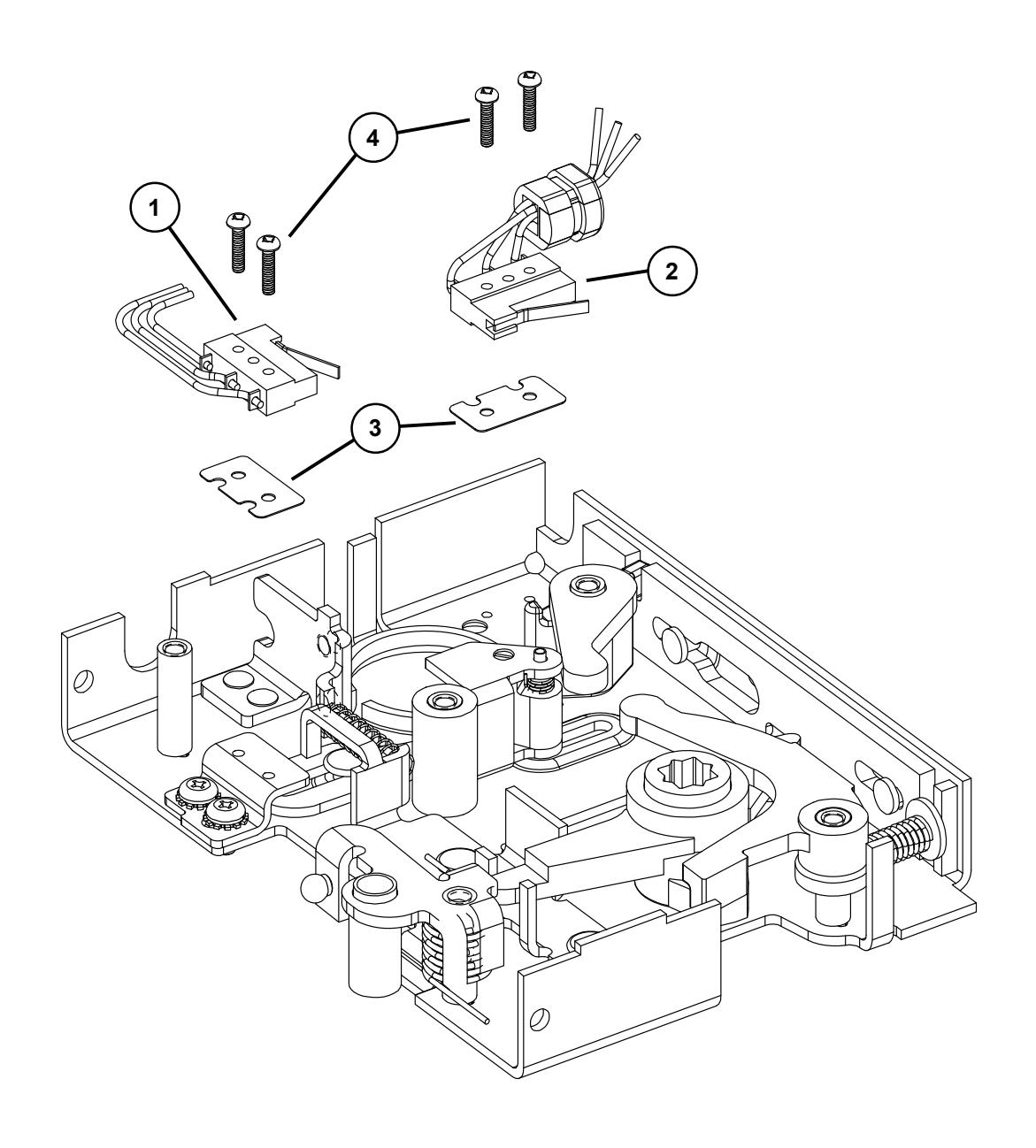

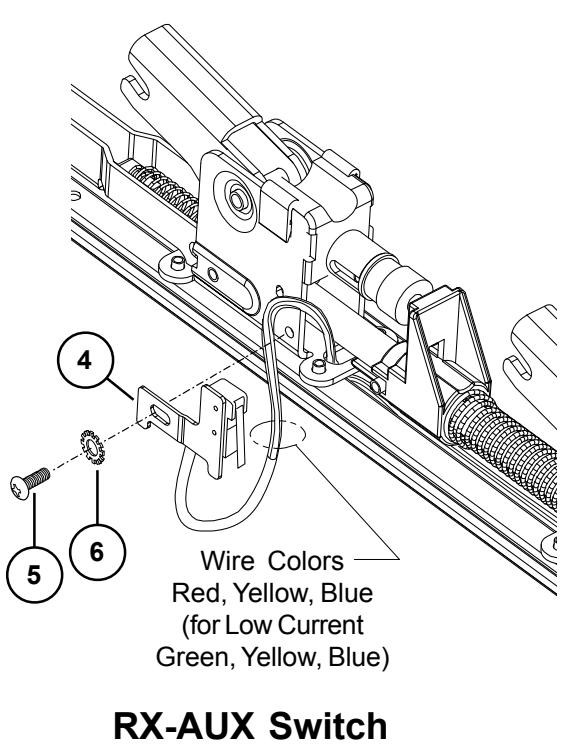

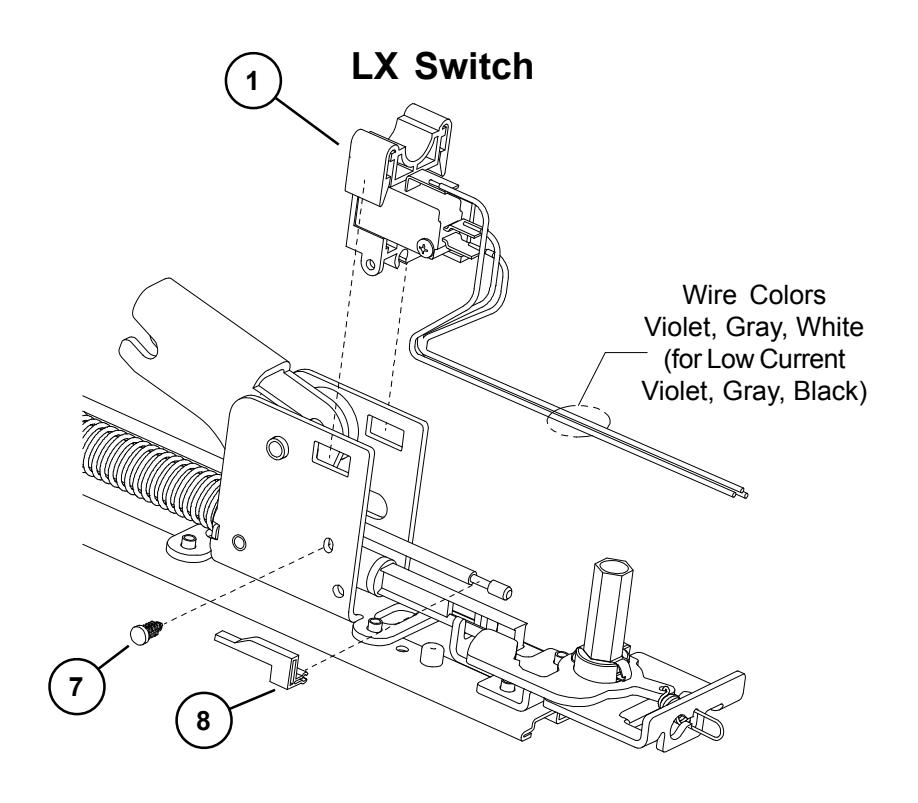

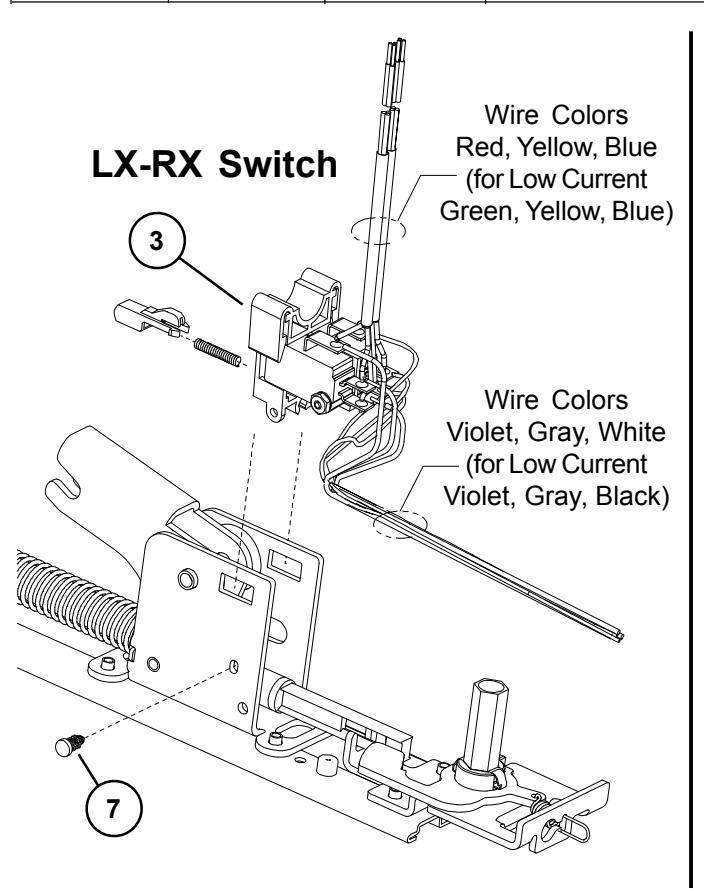

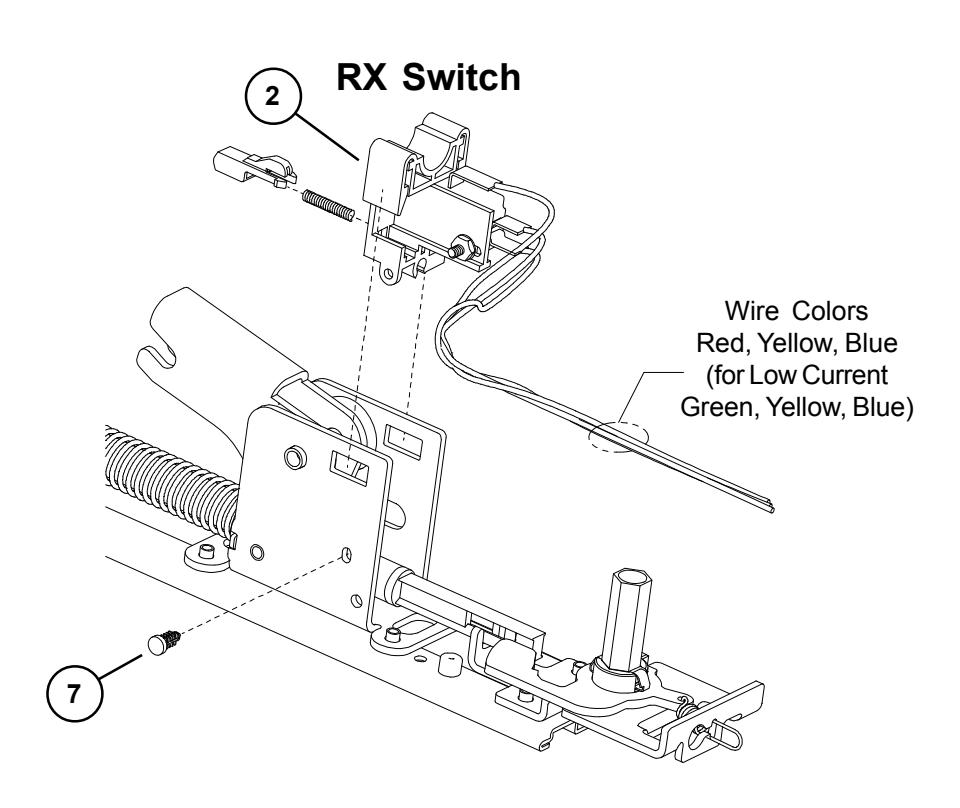

98/99 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
98/99 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX Switch
Kit 3' Device |
|
| 1 | 1 | 050255 |
LX Switch
Kit 4' Device |
|
| 1 | 1 | 050247 |
LX-EL
Switch Kit |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 1 | 1 | 050287 |
LX-LC-EL
(Low Current) Switch Kit |
|
| 2 | 1 | 050251 |
RX Switch
Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 050256 |
LX-RX
Switch Kit 3' Device |
|
| 3 | 1 | 050257 |
LX-RX
Switch Kit 4' Device |
|
| 3 | 1 | 050259 |
LX-RX-EL
Switch Kit |
|
| 3 | 1 | 050289 |
LX-RX-LC
(Low Current) Sw. Kit 3' Device |
|
| 3 | 1 | 050291 |
LX-RX-LC
(Low Current) Sw. Kit 4' Device |
|
| 3 | 1 | 050293 |
LX-RX-LC-EL
(Low Current) Switch Kit |
|
|
2
& 4 |
1 | 050270 |
RX-2
Switch Kit |
|
| 4 | 1 | 050271 |
RX-AUX
Switch Kit |
|
| 5 | 1 | 964558 |
8-32
x 5/16" PPHMS |
|
| 6 | 1 | 964019 |
#8
Washer |
|
| 7 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 8 | 1 | 971091 | LXActuator |
CX98/9975 SERIES CHEXIT
For discontinued Chexit devices made before August, 24 2015
| Item No. | Quantity | Part No. | Description | Finish |
| 1 | 1 | 050228 | Chexit PCB Kit - 15 Second Release | |
| 1* | 1 | 050700 | Chexit PCB Kit - 30 Second Release | |
| 1 | 1 | 050701 | Chexit PCB Kit - 0 Second Release | |
| 1 | 1 | 050702 | Chexit PCB Kit - Boca 15 Second Release | |
| 1* | 1 | 050703 | Chexit PCB Kit - Boca 30 Second Release | |
| 2 | 1 | 050533 | CX Solenoid and Plunger | |
| 3 | 1 | 113111 | Faceplate and Adapter | X |
| 4 | 4 | 963898 | 6-32 x 3/8" OPHMS Faceplate Screws | X |
| 5 | 1 | 991338 | RCM 2-Wire RX Cable | |
| 6 | 1 | 991339 | RCM 3-Wire Solenoid Cable | |
| 7 | 1 | 112018 | Chexit Wiring Assembly | |
| 8 | 1 | 991336 | CX-RCM Cable Assy - 5 Wire | |
| 9 | 1 | 090036 | Cover Plate Anti-rattle Spring (Pkg of 10) | |
| 10 | 1 | 970513 | LED Cover Mask - Chexit | |
| 11 | 1 | 970519 | LED Cover - Chexit | |
| 12 | 1 | 113781 | Sign 15 Second - Chexit | |
| 13 | 1 | 113782 | Sign 30 Second - Chexit |
* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.

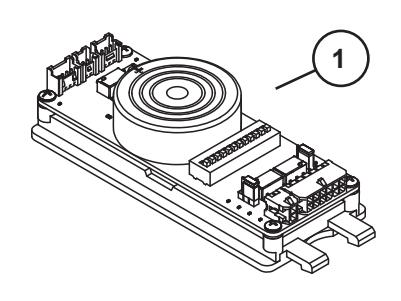

CX98/9975 SERIES CHEXIT
For new Chexit devices made after August, 24 2015

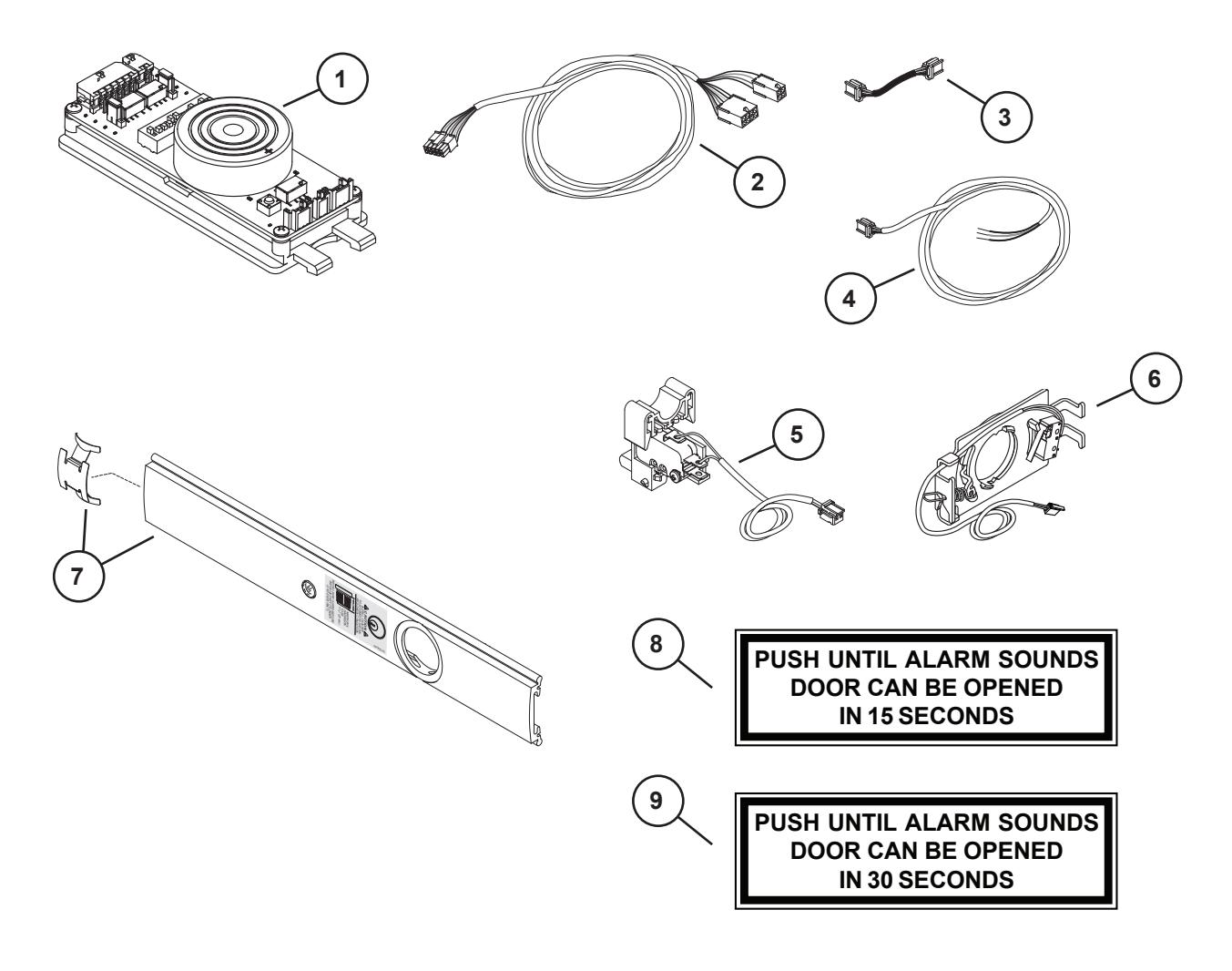

| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 040086 | Standard - 15 Second Release Delay | |
| 1* | 1 | 040087 | Special Infinite Release Delay | |
| 1* | 1 | 040088 | Special 30 Second Release Delay | |
| 1 | 1 | 040089 | Special 0 Second Release Delay | |
| 1 | 1 | 040090 | Special Mute 15 Second Release Delay | |
| 1 | 1 | 040091 | BOCA 15 Second Release Delay | |
| 2 | 1 | 040191 | CX Field Wiring Cable | |
| 3 | 1 | 040192 | CX Motor Cable | |
| 4 | 1 | 040193 | CX Trim Device Cable | |
| 5 | 1 | 116717 | CX RX Switch Assembly | |
| 6 | 1 | 040170 | CX Key Switch Assembly 3' | |
| 6 | 1 | 040189 | CX Key Switch Assembly 4' | |
| 7 | 1 | 040093 | CX33/99 Cover Plate Kit | X |
| 7 | 1 | 040094 | CX35/98 Cover Plate Kit | X |
| 8 | 1 | 113781 | Sign 15 Second | |
| 9 | 1 | 113782 | Sign 30 Second |
* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.
CX-RCM/DE5300 OPTIONS
For new RCM/DE5300 devices made after August, 24 2015

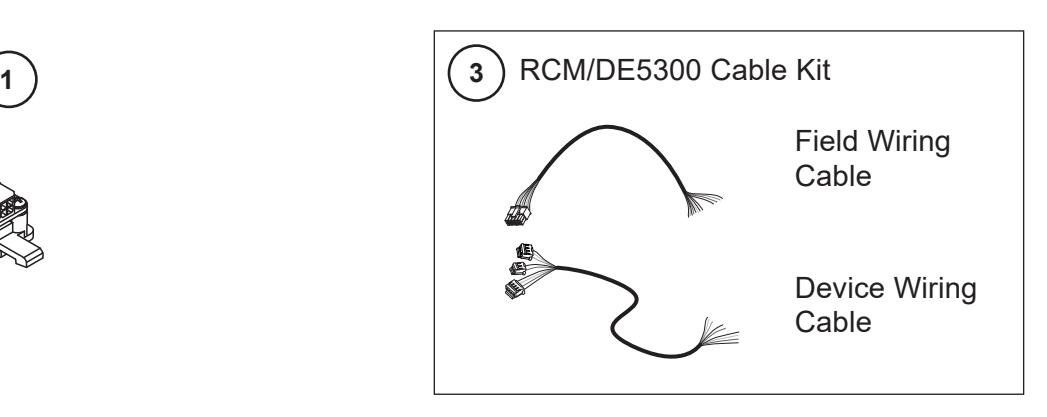

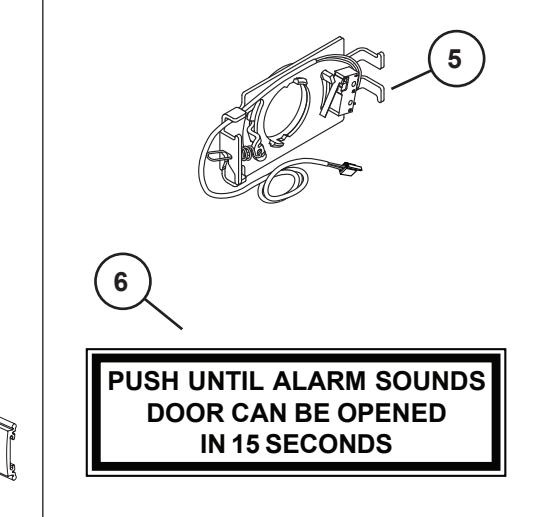

| Item No. | Quantity | Part No, | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 116711 | Standard - 15 Second Release Delay | |
| 2 | 1 | 040092 | RCM Device Cable | |
| 3 | 1 | 040188 | DE5300/RCM Cable Kit | |

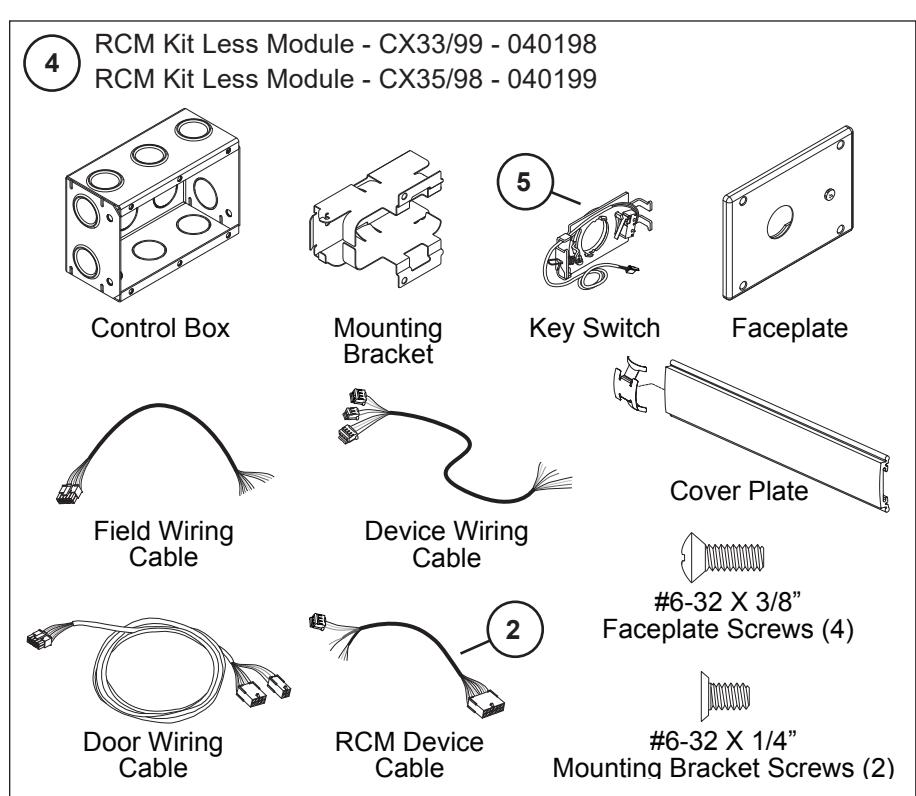

| 4 | 1 | 040198 | RCM Kit Less Module - CX33/99 | X |
| 4 | 1 | 040199 | RCM Kit Less Module - CX35/98 | X |
| 5 | 1 | 040169 | DE5300/RCM Key Switch Assy | |
| 6 | 1 | 113781 | Sign 15 Second |
98/99 ALK EXIT ALARM KIT
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 | ALK PCB Assembly | |
| 2 | 1 | 050525 | Cylinder Collar | X |
| 3 | 1 | 969122 | ALK Alarm Device Sign | |
| 4 | 1 | 969349 | ALK Arming Label | |
| 5 | 1 | 969350 | ALK Disarming Label | |
| 6 | 1 | 969354 | Retainer Nut | |
| 7 | 1 | 970594 | ALK Cylinder Spacer | |
| 8 | 1 | 090036 | Cover Plate Anti-rattle spring (Pkg of 10) | |
| 9 | 1 | 971556 | ALK Switch Actuator | |
| 10 | 1 | 971557 | ALK Cylinder Bracket | |
| 11 | 1 | 990637 | ALK Battery | |
| 12 | 1 | 050569 | 99 Series ALK Cover Plate Kit | X |
| 12 | 1 | 050570 | 98 Series ALK Cover Plate Kit | X |
X in "Finish" column designates finished items; finish must be specified when ordering.
7500 MORTISE LOCK
MORTISE LOCK
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109347 |
7500AuxiliaryBolt
LinkSub-Assembly |
|
| 2 | 1 | 109773 |
7500
Latchbolt and FaceplateSub-Assembly |
|
| 3 | 2 | 963080 |
7500
Scalp Plate - 8-32 x 3/8" FPHMS |
X |
| 4 | 4 | 963812 |
7500
Hsg. Cover - 8-32 x 3/8" UFPHMS |
|
| 5 | 2 | 963954 |
7500
Cyl. Set - 8-32 x 2" Fill SHMS |
|
| 6 | 1 | 963984 |
#8
SAE Flat Washer |
|
| 7 | 1 | 968668 | 7500AuxiliaryBolt | |
| 8 | 1 | 968748 |
7500
Deadlocking Spring |
|
| 9 | 1 | 968761 |
7500Trim
Bolt Retractor |
|
| 10 | 1 | 968793 |
7500Trim
LockActuator |
|
| 11 | 1 | 968763 |
7500
Thumb Latch Lift |
|
| 12 | 1 | 968765 |
7500
Knob Cam |
|
| 13 | 1 | 968766 |
7500
Scalp Plate -Aluminum |
X |
| 13 | 1 | 970872 |
7500
Scalp Plate - Brass |
X |
| 13 | 1 | 970873 |
7500
Scalp Plate - Bronze |
X |
| 14 | 1 | 968773 |
7500
Deadlock ReleaseArm |
|
| 15 | 1 | 968935 | 7500AuxiliaryBoltSpring | |
| 16 | 1 | 968939 |
7500
Latchbolt Collar |
|
| 17 | 1 | 969089 |
7500
Latch ReturnSpring |
|
| 18 | 1 | 969364 |
7500
Trim Lock Slide Spring |
|
| 19 | 1 | 969610 |
7500
Latch ReturnSpring Guide |
|
| 20 | 1 | 970188 |
7500
Trim Lock Spring Guide |
|
| 21 | 1 | 970318 |
7500
CrossbarInputArm |
|
| 22 | 1 | 971822 |
7500
Housing Cover |
|
| 23 | 1 | 970735 |
7500
Stem Support |
|
| 24 | 2 | 964390 |
8-32
x 3/8" PPHTF Screw |
|
| 25 | 2 | 900532 |
7500
Lock Mounting Pkg |
|
X in "Finish" column designates finished items; finish must be specified when ordering.

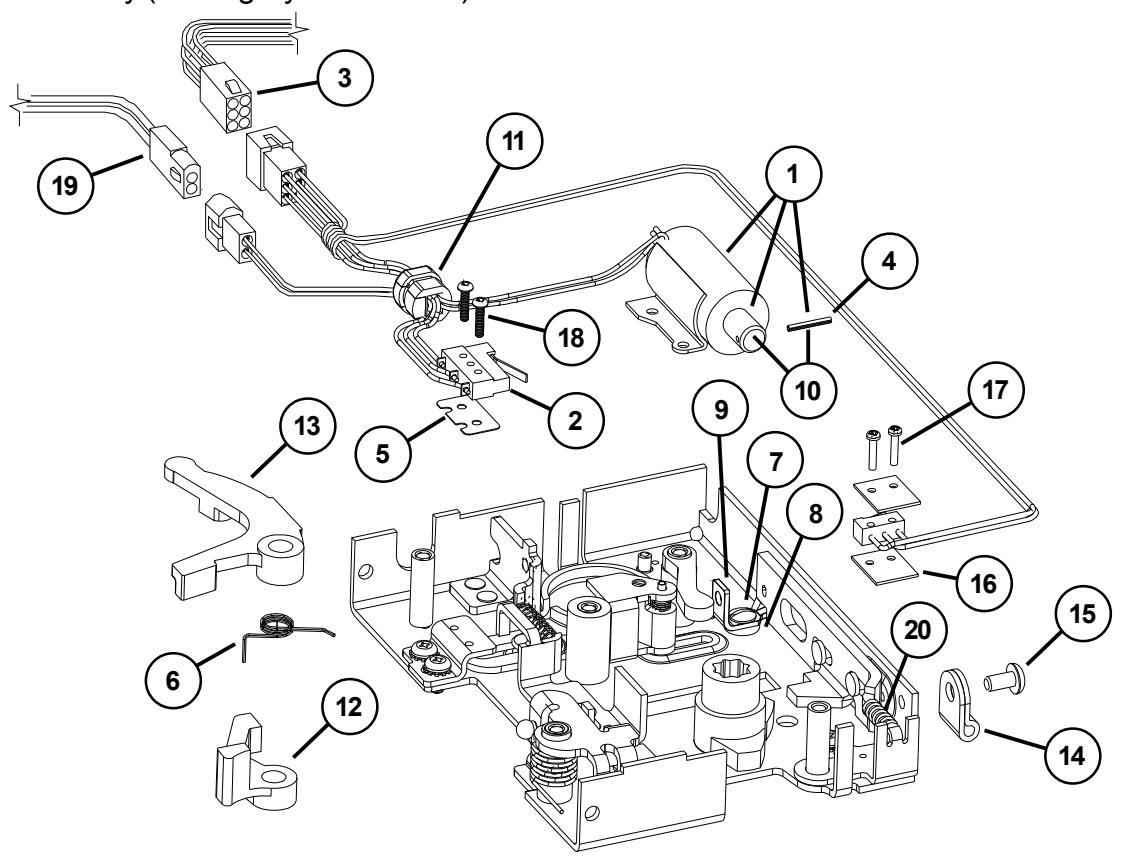

E7500 MORTISE LOCK FAIL SECURE (F.S.E)
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
| 1 | 1 | 050212 |
E7500
Solenoid Replacement Kit 12VDC FSE |
|
| 1 | 1 | 050214 |
E7500
Solenoid Replacement Kit 24VDC FSE |
|

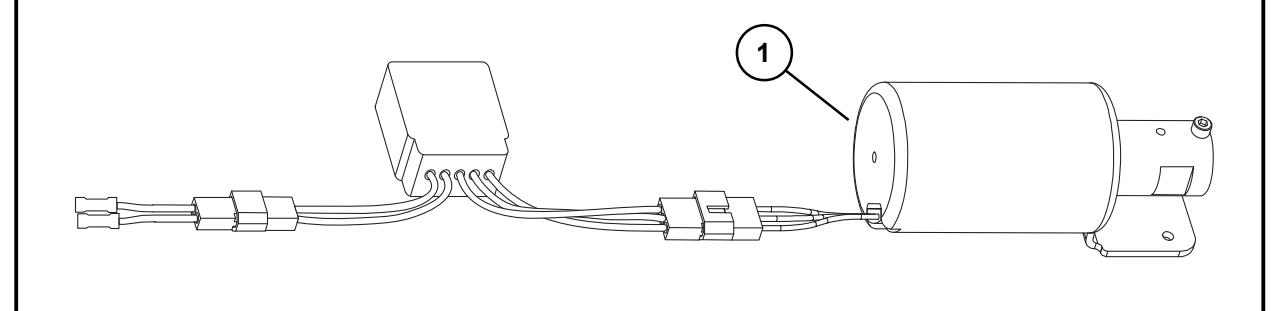

| 2* | 1 | 114294 |
E7500
Switch Kit |
|
| 3 | 1 | 110744 |
E7500
Switch ConnectorAssembly |
|
| 4 | 1 | 963974 |
E7500
Roll Pin - 3/32 x 9/16" |
|
| 5 | 1 | 968770 |
E/SS7500Switch
Insulator |
|
| 6 | 1 | 969107 |
E7500
Torsion Spring |
|
| 7 | 1 | 971320 |
E7500
Solenoid Spring |
|
| 8 | 1 | 113186 |
E7500
PlungerAssembly FSE |
|
| 9 | 1 | 966504 |
Wire
Strain Relief |
|
| 10 | 1 | 970866 |
E7500
Thumb Latch Lift |
|
| 11 | 1 | 970318 |
7500
CrossbarInputArm |
|
| 12 | 1 | 970596 |
E7500
Cable Clamp |
|
| 13 | 1 | 964558 |
E7500
Cable Clamp Screw |
|
| 14 | 2 | 970868 |
E7500
Switch Insulator |
|
| 15 | 2 | 964393 |
E7500
Switch Insulator Screw |
|
| 16 | 2 | 964269 |
E7500
Switch WiringAssembly Screw |
|
| 17 | 1 | 114140 |
Hook
Up WireAssembly |
* Kit includes items 2 and 16 plus the switch wiring assembly (red/yellow/blue wires), switch assembly (white/gray/violet wires) and connectors.
E7500 MORTISE LOCK FAIL SAFE (F.S.)
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
| 1 | 1 | 050213 |
E7500
Solenoid Replacement Kit 12VDC FS |
|
| 1 | 1 | 050215 |
E7500
Solenoid Replacement Kit 24VDC FS |
|
| 2* | 1 | 114294 |
Switch
WiringAssembly (R/Y/B Wires) |
|
| 3 | 1 | 110744 |
E7500
Switch ConnectorAssembly |
|
| 4 | 1 | 963974 |
E7500
Roll Pin - 3/32 x 9/16" |
|
| 5 | 1 | 968770 |
E/SS7500Switch
Insulator |
|
| 6 | 1 | 969107 |
E7500
Torsion Spring |
|
| 7 | 1 | 970861 |
E7500
Lever Screw |
|
| 8 | 1 | 970862 |
E7500
Lever Spacer |
|
| 9 | 1 | 972549 |
E7500
FS Trim Lock Lever |
|
| 10 | 1 | 113187 |
E7500
PlungerAssembly FS |
|
| 11 | 1 | 966504 |
Wire
Strain Relief |
|
| 12 | 1 | 970866 |
E7500
Thumb Latch Lift |
|
| 13 | 1 | 970318 |
7500
CrossbarInputArm |
|
| 14 | 1 | 970596 |
E7500
Cable Clamp |
|
| 15 | 1 | 964558 |
E7500
Cable Clamp Screw |
|
| 16 | 2 | 970868 |
E7500
Switch Insulator |
|
| 17 | 2 | 964393 |
E7500
Switch Insulator Screw |
|
| 18 | 2 | 964269 |
E7500
Switch WiringAssembly Screw |
|
| 19 | 1 | 114140 |
Hook
Up WireAssembly |
|
| 20 | 1 | 970546 |
E7500
Trim Lock Slide Spring FS |
|
* Kit includes items 3 and 18 plus the switch wiring assembly (red/yellow/blue wires), switch assembly (white/gray/violet wires) and connectors.
SS7500 MORTISE LOCK
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 109658 |
Switch
WiringAssembly (R/Y/B Wires) |
|
| 2 | 1 | 109659 |
Switch
WiringAssembly (V/G/W Wires) |
|
| 3 | 2 | 968770 |
E/SS7500Switch
Insulator |
|
| 4 | 4 | 964299 |
SS7500
Switch WiringAssembly Screws |
98/99 SERIES SERVICE REPLACEMENT ITEMS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050153 |
Old
Style Hex Dogging Replacement Kit |
|
| 2 | 1 | 963909 |
#22
Hitch Pin - Hex/CD Dogging Old Style |
|
| 3 | 1 | 968112 |
Old
Style Hex Dog Shaft |
|
| 4 | 1 | 969941 |
Old
Style Dogging Hook |
|
| 5 | 1 | 968116 |
Old
Style CD ActuatorArm |
|
| 6 | 1 | 900905 |
Old
Style End Cap and Bracket Assembly |
X |
| 7 | 1 | 970548 |
Old
Style Cover Plate Stop - End Cap |
|
| 8 | 1 | 900901 |
Old
Style End Cap Screw Package |
X |
| 9 | 1 | 971082 |
Old
Style 98/99 End Cap - Stainless Steel |
X |
| 9 | 1 | 971083 |
Old
Style 98/99 End Cap - Brass |
X |
| 9 | 1 | 971084 |
Old
Style 98/99 End Cap - Bronze |
X |
| 9 | 1 | 971085 |
Old
Style 98/99 End Cap -Aluminum |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.
1 2 3 4 5 OLD STYLE DOGGING PARTS (FOR DEVICES SHIPPED BEFORE AUGUST 1997)

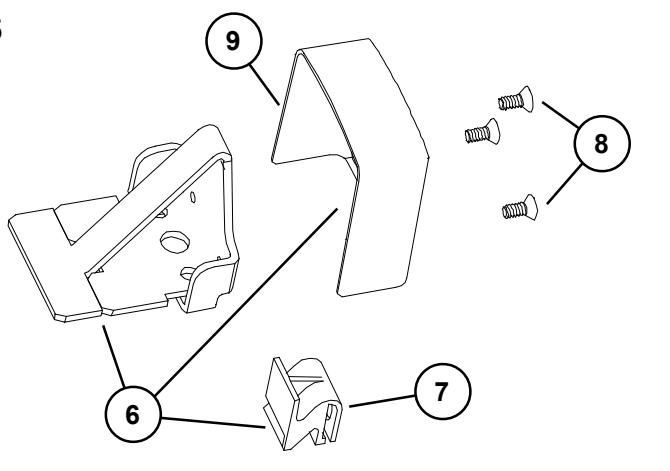

OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED BEFORE JANUARY 2002)
Note: Newer style end cap kit shown on pages 4-5. Newer style end cap kit can be used on devices manufactured before January 2002, but mechanism case and cover plate on hinge stile must have a square cut and a clean edge.
98/99 SERIES SERVICE REPLACEMENT ITEMS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050218 |
EL
Solenoid Replacement Kit |
X in "Finish" column designates finished items; finish must be specified when ordering.
Note: This kit replaces the old style EL solenoid parts with the new style.
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 8,000 people and sells products in more than 120 countries across the world. Allegion comprises 27 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.
For more, visit www.allegion.com .
