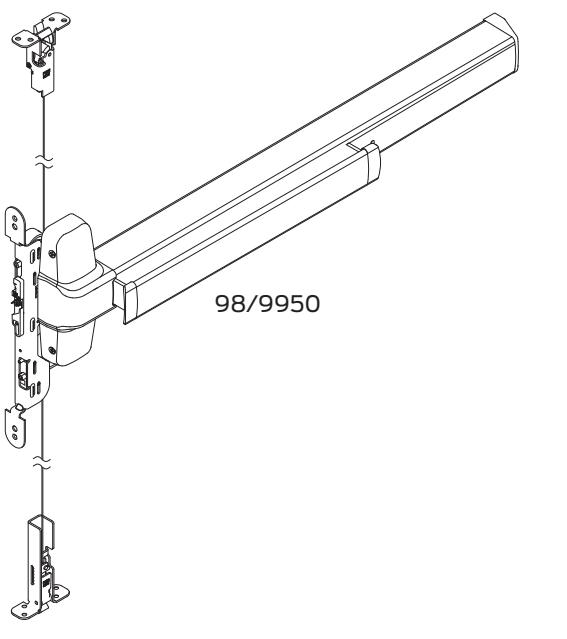

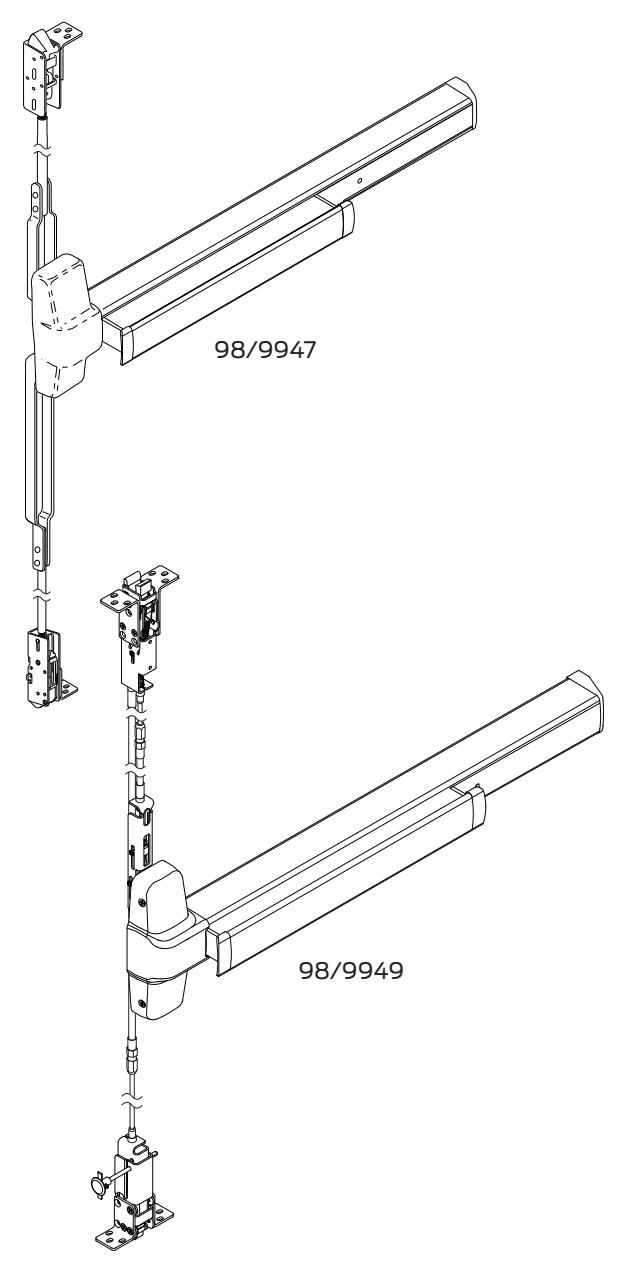

98/9947, 98/9949, & 98/9950 Series Exit Devices

Service manual

INDEX

98/9947, 98/9949, & 98/9950WDC Devices
Basic Device 4-5
Panic and Fire Metal Door Concealed Vertical Rods and Latches 6-7
WDC Wood Door Concealed Vertical Rods and Latches 8-9
Panic and Fire Metal Door Concealed Vertical Cables and Latches 10-11
WDC Wood Door Concealed Vertical Cables and Latches 12-15
Baseplate Assembly 16
Center Case Assembly 17
LBR (Less Bottom Rod) / LBL (Less Bottom Latch) Fire Latch Kit 17
Variations of the Basic Device
CD (Cylinder Dogging) 4-5

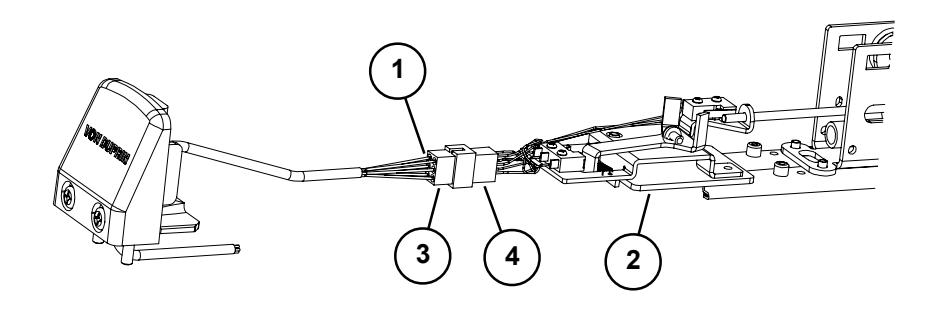

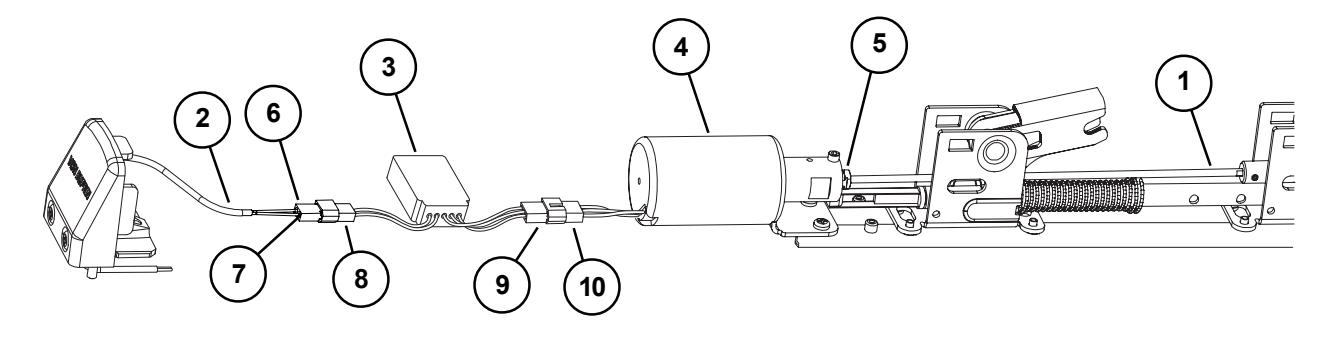

HD-EL (Hex Dogging/Electric Latch Retraction) 18
EL (Electric Latch Retraction) 19
SS (Signal Switch) 19
RX (Request to Exit) 20-21

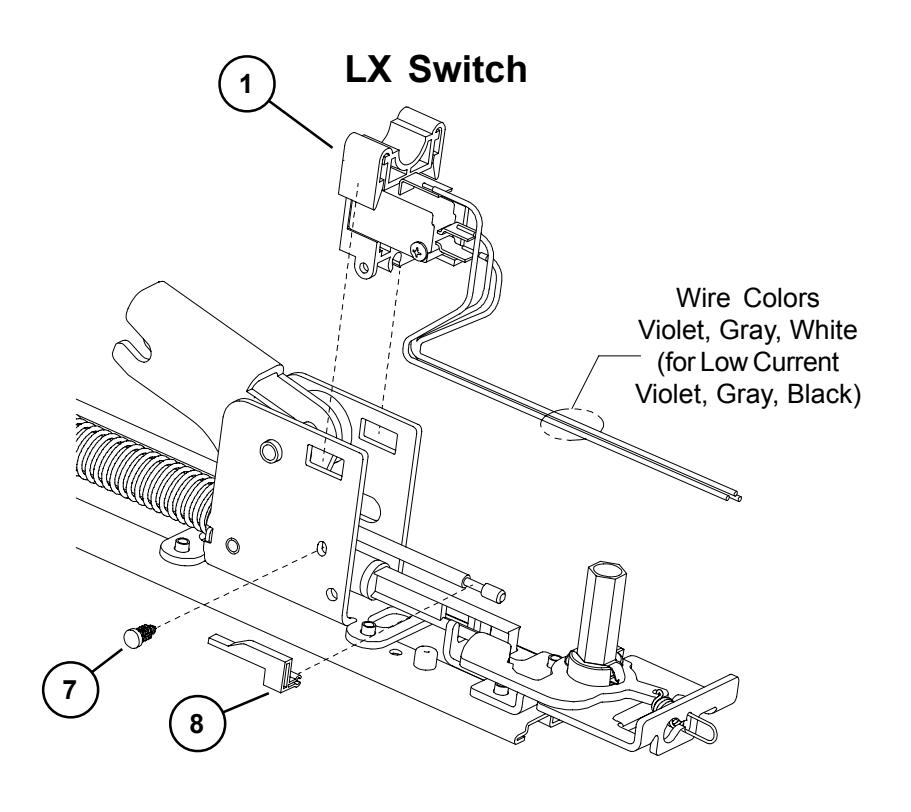

LX (Latch Bolt Monitoring) 20-21
CX (Chexit Discontinued) 22
CX (Chexit New) 23
CX (Chexit New RCM Option) 24
CX-CD/SD (Chexit/Special Dogging) 25
ALK (Exit Alarm Kit) 26
Service Replacement Items 27-28
General Information
Introduction 2
How to Order 2
Part Number Changes 2
Finishes 3
Outside Trim Functions 3
Strikes 3

INTRODUCTION

This manual contains a listing of replaceable parts and assemblies for the 98/9947 Concealed Vertical Rod Exit Devices and the 98/9949 / 98/9950WDC Concealed Vertical Cable Exit Devices. 98 Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 series has a smooth case.

HOW TO ORDER

Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:

  • Part number or assembly number
  • Description
  • Quantity needed
  • Finish desired (if available finished)
  • Date of original purchase (if known)

To find out the name of your local Von Duprin distributor or sales representative, contact:

Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011

PART NUMBER AND AVAILABILITY CHANGES

This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.

98/99 SERIES FINISHES

BHMA

U.S. Std

OUTSIDE TRIM FUNCTIONS

OUTSIDE
TRIM
FUNCTIONS 		Reference Reference Description
US3 605 Polished Brass
US4 606 Dull Brass
US10 612 Dull Bronze
US15 619 Satin Nickel
US26 625 Polished Chrome
US26D 626 Dull Chrome
US28 628 AnodizedAlum. (Clear)
US32D 630 Satin Stainless Steel
992L
996L 		992L-BE*
996L-BE* 		313AN 710 AnodizedAlum. (313)
992L-NL** 992L-DT*** 992EO 994L 994L-BE*
994L-DT*** 		Dark Bronze
996L-NL** 996L-DT*** 996EO 994L-NL** 994EO 315AN 711 AnodizedAlum. (Black)
991K 991K-BE*
991K-NL** 991K-DT*** 990EO 990DT*** 990NL** 990TP 990TP-BE* 376T 110NL****

  • "BE" (Blank Escutcheon) no cylinder used lever always active *
  • "NL" (Night Latch) rigid lever key retracts latch bolt **

Panic or Fire Exit Hardware

  • "DT" (Dummy Trim) rigid lever for pull operation ***
  • Optional Pull needs to be added ****

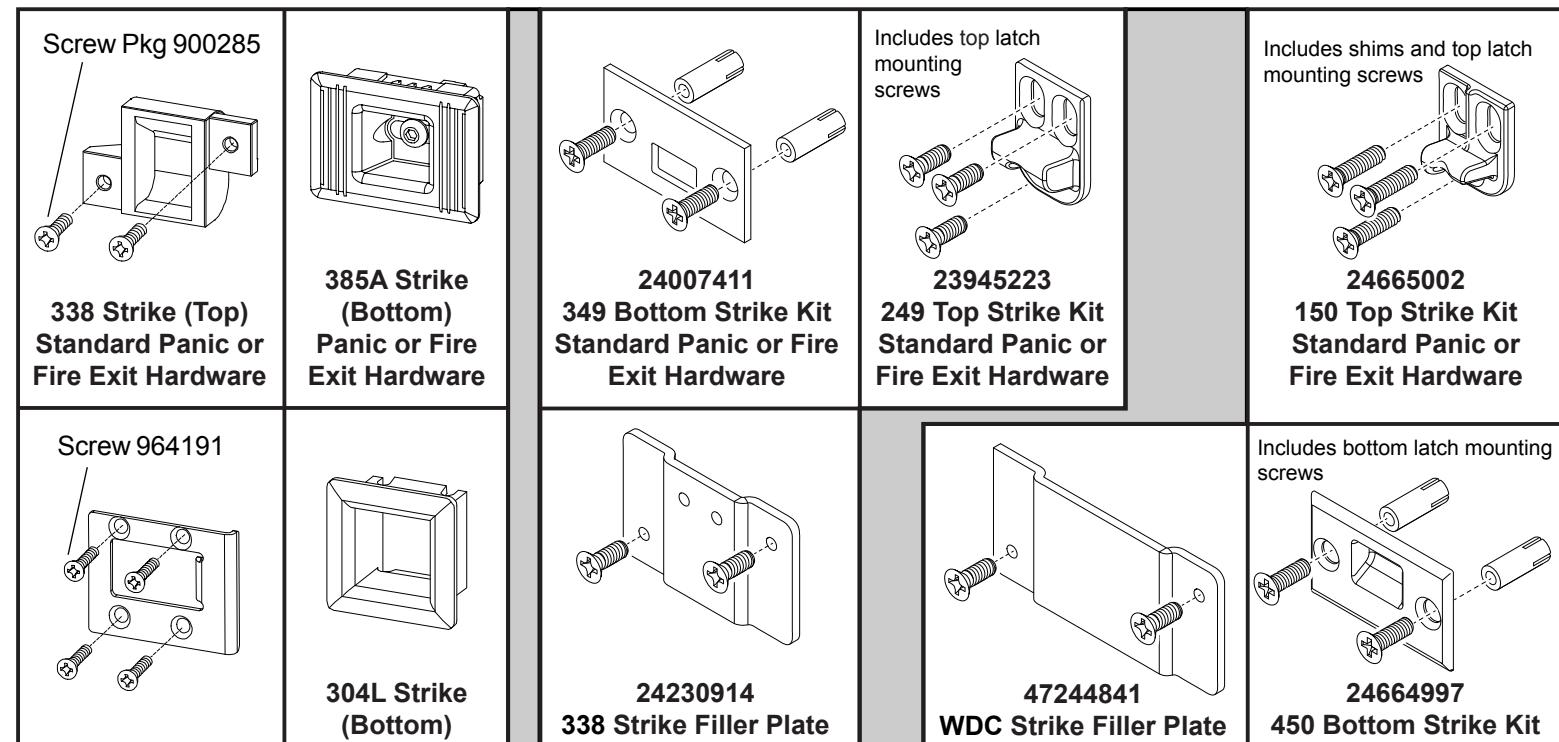

98/9947 STRIKES

283 Strike (Top) Wood Frame

98/9949 STRIKES

98/9950 STRIKES

Standard Panic or Fire Exit Hardware

(Top) used for 47 Series retrofit

(Top) used for 47 Series retrofit

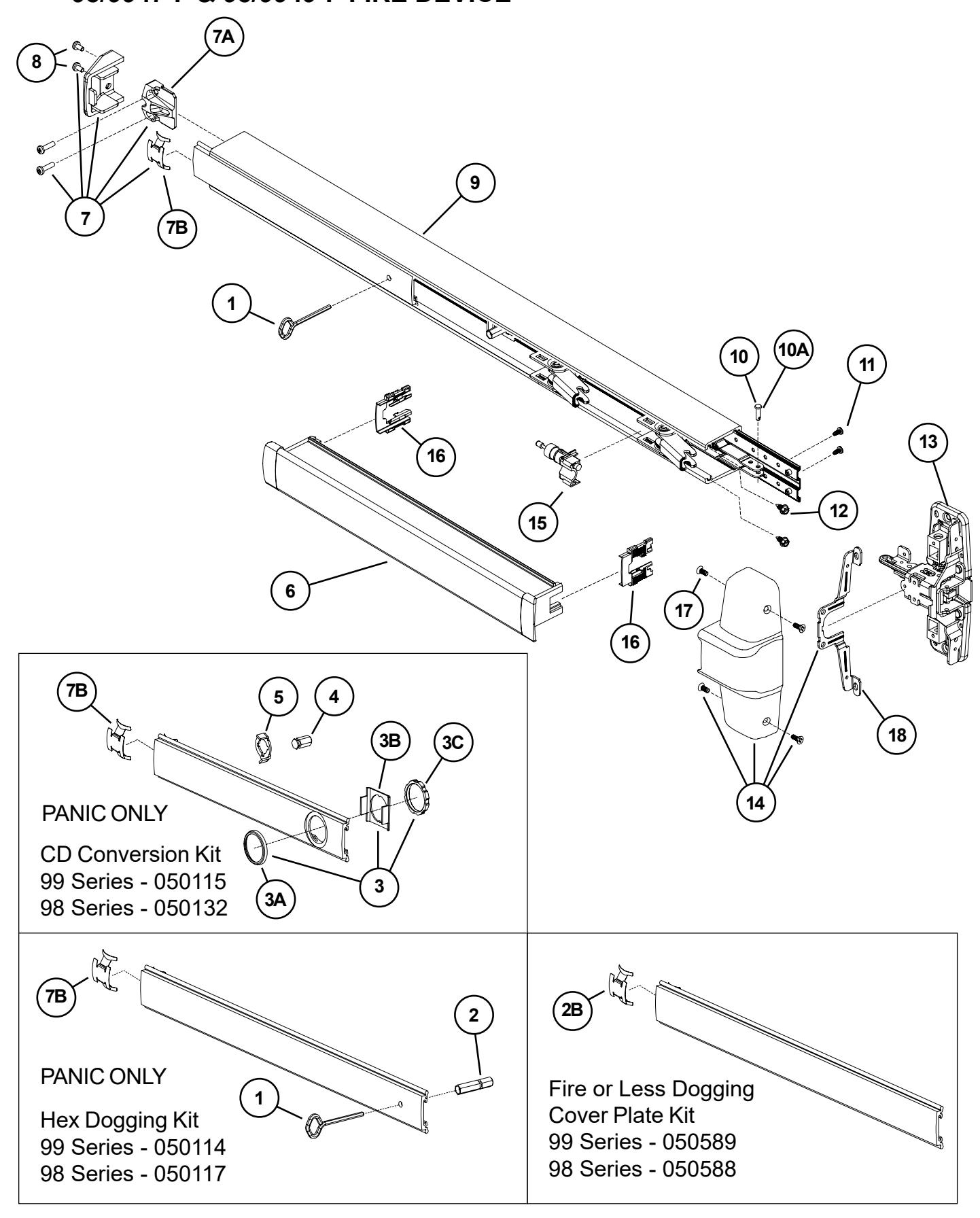

98/9947 & 98/9949 PANIC DEVICE 98/9947-F & 98/9949-F FIRE DEVICE

98/9947 & 98/9949 PANIC DEVICE 98/9947-F & 98/9949-F FIRE DEVICE

Item
No. 		Quantity Part
No. 		Description Finish
1 900563 98/9947 & 98/9949 Series Mtg. Pkg. (1-3/4)
1 900568 98/9947 & 98/9949 Series Mtg. Pkg. (2-1/4)
1 1 090085 227
Dog
Key
5/32"
Hex
(Pkg
of
10)
1 1 090005 227
Dog
Key
5/32"
Hex
(Pkg
of
2)
2 1 090040 Hex
Dog
Shaft
(Pkg
of
2)
3 1 107813 Cylinder
MountingPkg 		X
3A 1 050525 Cylinder
Collar 		X
3B 1 050490 Cylinder
Locating
Washer
-
CD/SS
3C 1 050526 Cylinder
Locknut
4 1 090046 CD
Dogging
Plug
(Pkg
of
2)
5 1 090045 CDActuatorArm
(Pkg
of
2)
6 1 *PBKIT 98/99
Series
Push
Bar
Retrofit
Kit
-
3'
Door 		X
6 1 *PBKIT 98/99
Series
Push
Bar
Retrofit
Kit
-
4'
Door 		X
7 1 050014 98/99
Series
End
Cap
Kit 		X
7A 1 050524 Impact
ResistantEnd
CapBracket
7B 1 090036 Cover
PlateAnti-rattle
Spring
(Pkg
of
10)
8 1 900597 Device
End
Cap
and
C/Case
Screw
Pkg. 		X
9 1 968144 99
Series
Mechanism
Case
-
3'
Door 		X
9 1 968146 99
Series
Mechanism
Case
-
4'
Door 		X
9 1 970191 98
Series
Mechanism
Case
-
3'
Door 		X
9 1 970192 98
Series
Mechanism
Case
-
4'
Door 		X
10 1 050529 Control
Link
Pin
10A 1 090031 Control
Link
Pin
(Pkg
of
10)
11 2 090037 #8-32
x
3/8"
Baseplate
Screw
(Pkg
of
10)
12 2 090073 Mechanism
Case
Bracket
Screw
(Pkg
of
10)
13*** 1 050022 98/9947-F & 98/9949-F C/Case Kit Less Cover
14** 1 050073 98/9947-F & 98/9949-F C/Case
Cover Kit 		X
15 1 050491 ShockAbsorber
&
HolderAssembly
16 2 090049 Push
Bar
Guide
(Pkg
of
10)
17 4 900892 Center
Case
Cover
Screws
(Pkg
of
4) 		X
18 1 050564 Center
Case
Cover
Bracket

X in "Finish" column designates finished items; finish must be specified when ordering.

* To order, specify device type, size, and finish. Example: PBKIT 98 3' US28

** Includes parts for three-piece cover conversion.

*** Center case assembly parts shown on page 17.

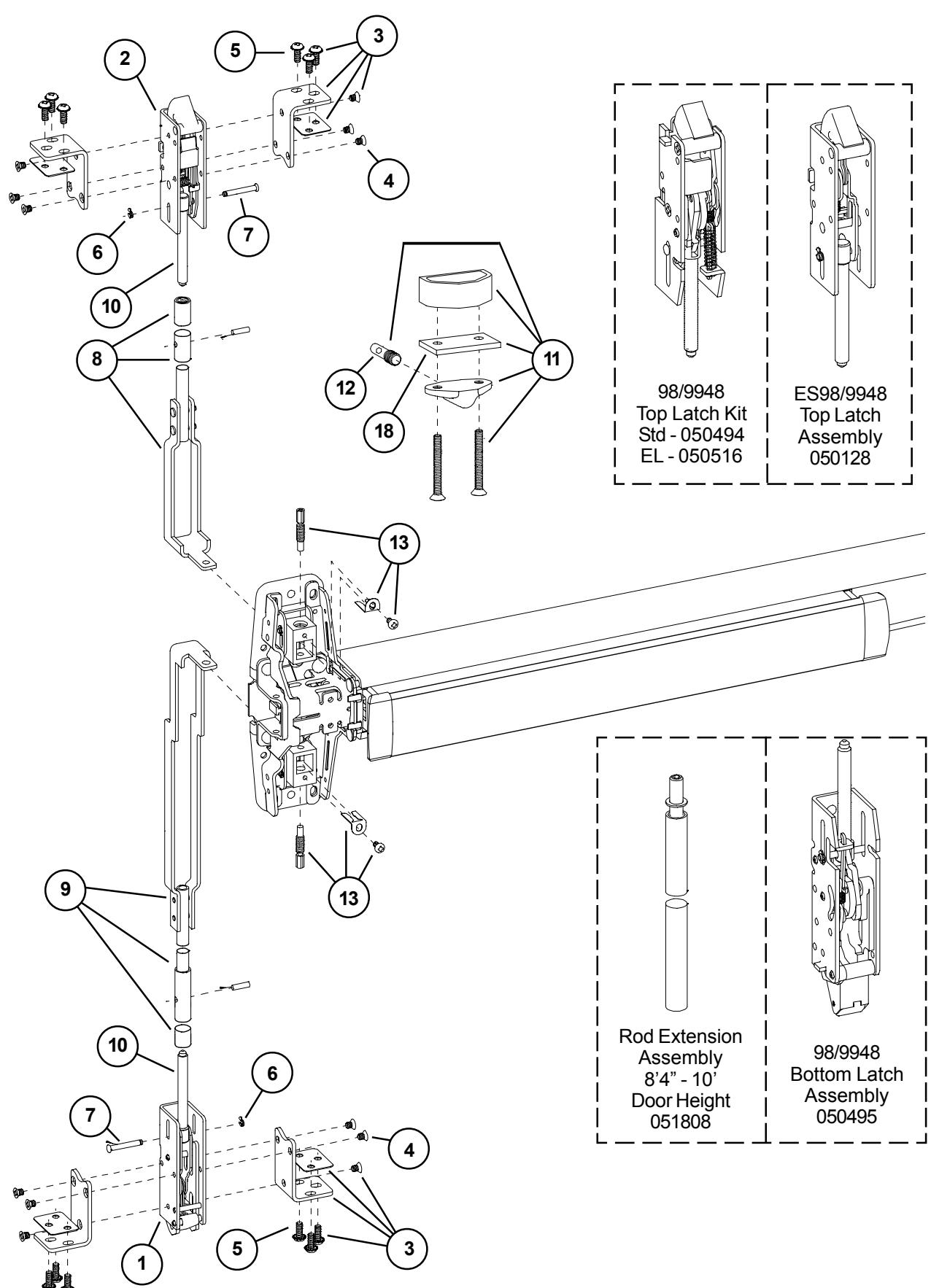

98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES

98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES

Item
No. 		Quantity Part
No. 		Description Finish
* 1 050047 98/9948
Latch
Retrofit
Kit-(non
EL)
* 1 050048 98/9948-F Latch
Retrofit
Kit-(non
EL)
* 1 050522 EL98/9948
Latch
Retrofit
Kit
* 1 050523 EL98/9948-F
Latch
Retrofit
Kit
1** 1 050493 98/9947
Bottom
Latch
Kit
2** 1 050492 98/9947
Top
Latch
Kit
3** 2 109324 98/9947
Latch
Mtg
Bracket
3** 2 112868 98/9948
Latch
Mtg
Bracket
4 6 090059 Latch
Bracket
Mtg
Screw
(Latch)
5 6 090061 Latch
Bracket
Mtg
Screw
(Metal
Door)
5 6 900856 Latch
Bracket
Mtg
Screw
(Wood
Door)
6 2 090063 Retaining
Ring
(Pkg
of
10)
7 2 090064 Latch
Link
Pin
(Pkg
of
10)
8 1 050574 Adjustable
Top
Rod
6'8"
-
8'4"
Door
9 1 050575 Adjustable
Bottom
Rod
Kit
10 2 090071 98/9947
Rod
Connecting
Screw
(Pkg
of
2)
10 2 090072 98/9948
Rod
Connecting
Screw
(Pkg
of
2)
11 1 106222 Ratchet
Release
Pkg 		X
12 1 090070 Ratchet
Release
Screw
13 1 900620 98/9947
Adjusting
Screw
Package
(Pkg
of
2)
13 1 900898 98/9947
Adjusting
Screw
LBR
Package
14 1 090065 Bolt
Return
Spring
(Pkg
of
10)
15 1 090066 Top Latch
Compression
Spring
(Pkg
of
10)
16 1 090069 Ratchet
Lever
Spring
(Pkg
of
2)
17 1 090062 Btm Latch Case Spirol Pin (Pkg of 10)
18 1 970978 98/9947
Ratchet
Release
Spacer

X in "Finish" column designates finished items; finish must be specified when ordering.

** Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). Panic device uses only 1 mounting bracket per latch while Fire (F) device uses 2 per latch. For service replacement only. Refer to retrofit kits to convert 98/9947 to 98/9948.

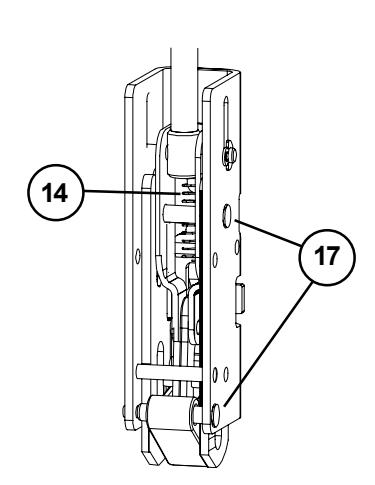

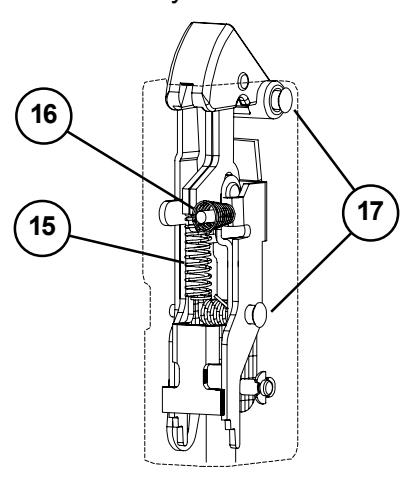

98/9947 Top Latch 98/9947 Bottom Latch

* Retrofit kit includes items 1-3 to convert 98/9947 to 98/9948.

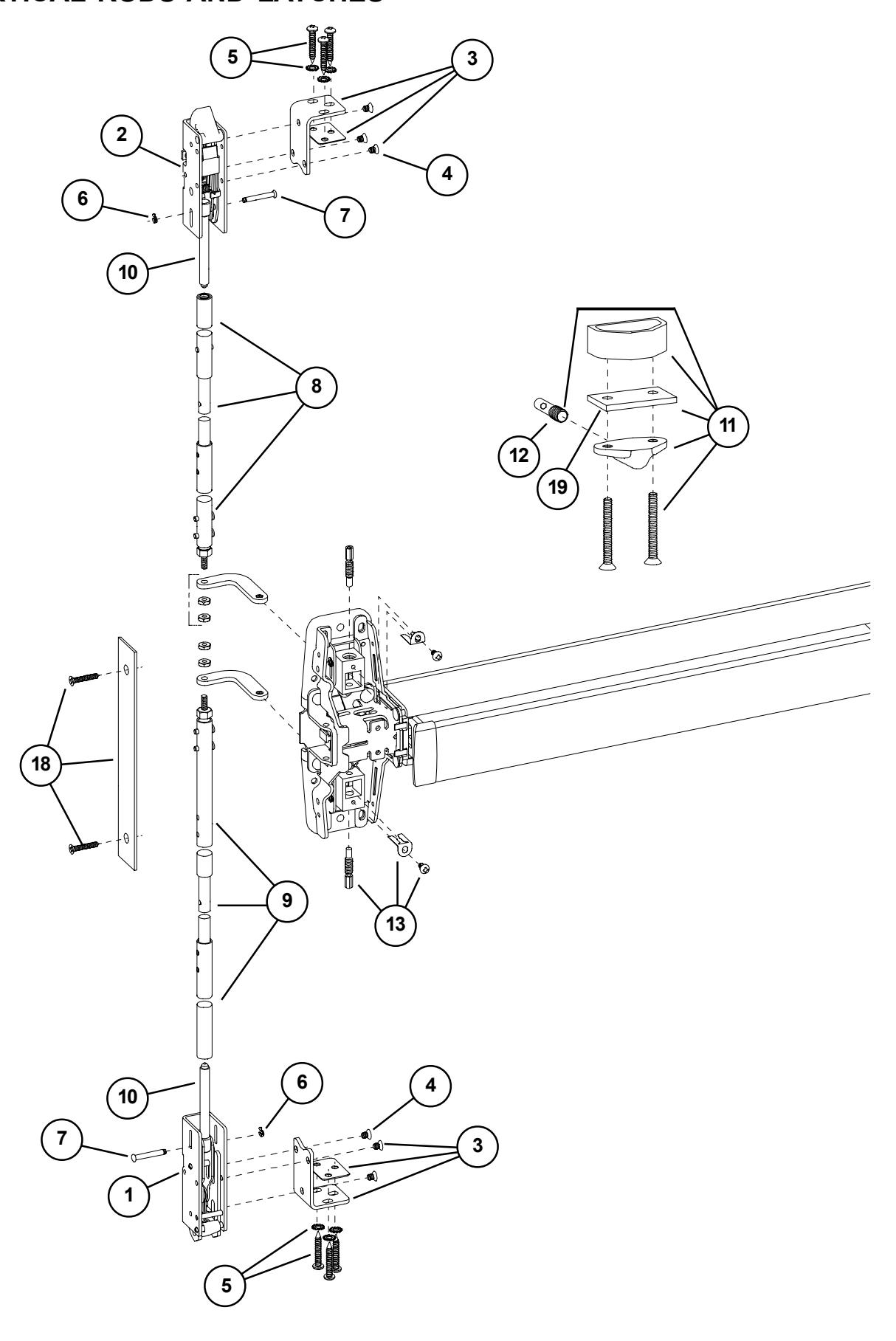

98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED) VERTICAL RODS AND LATCHES

98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED) VERTICAL RODS AND LATCHES

Item
No. 		Quantity Part
No. 		Description Finish
1* 1 050493 98/9947
Bottom
Latch
Kit
2* 1 050492 98/9947
Top
Latch
Kit
3* 2 109324 98/9947
Latch
Mtg
Bracket
4 6 090059 Latch
Bracket
Mtg
Screw
(Latch)
5 1 900856 WDC
Auxiliary
Mtg.
Package
6 2 090063 Retaining
Ring
(Pkg
of
10)
7 2 090064 Latch
Link
Pin
(Pkg
of
10)
8 1 050582 WDC
Adjustable
Top
Rod
6'8"
-
8'4"
Door
9 1 050583 WDC
Adjustable
Bottom
Rod
Kit
10 2 090071 98/9947
Rod
Connecting
Screw
(Pkg
of
2)
10 2 090072 98/9948
Rod
Connecting
Screw
(Pkg
of
2)
11 1 106222 Ratchet
Release
Pkg 		X
12 1 090070 Ratchet
Release
Screw
(Pkg
of
2)
13 1 900620 98/9947/48
Rod
Adjust
Pkg
13 1 900898 LBR
Adjusting
Screw
Pkg
14 1 090065 Bolt
Return
Spring
(Pkg
of
10)
15 1 090066 Top
Latch
Compression
Spring
(Pkg
of
10)
16 1 090069 Ratchet
Lever
Spring
(Pkg
of
2)
17 1 090062 Btm
Latch
Case
Spirol
Pin
(Pkg
of
10)
18 1 050088 98/9947WDC & 98/9949WDC Scalp
Plate 		X
19 1 970978 98/9947
Ratchet
Release
Spacer

X in "Finish" column designates finished items; finish must be specified when ordering.

* Each latch kit (item 1-2) includes only one latch mtg bracket (item 3).All WDC devices require only 1 mounting bracket per latch.

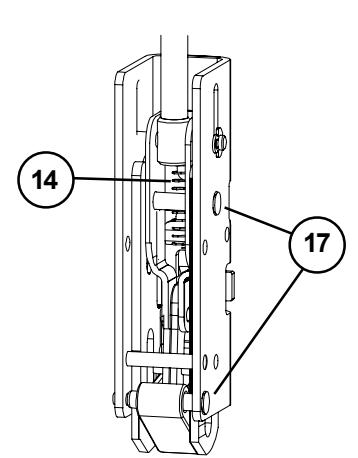

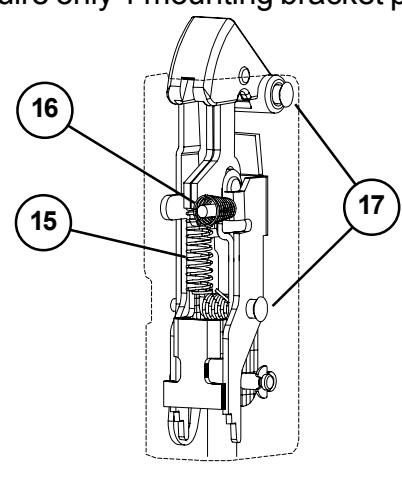

98/9947 Top Latch 98/9947 Bottom Latch

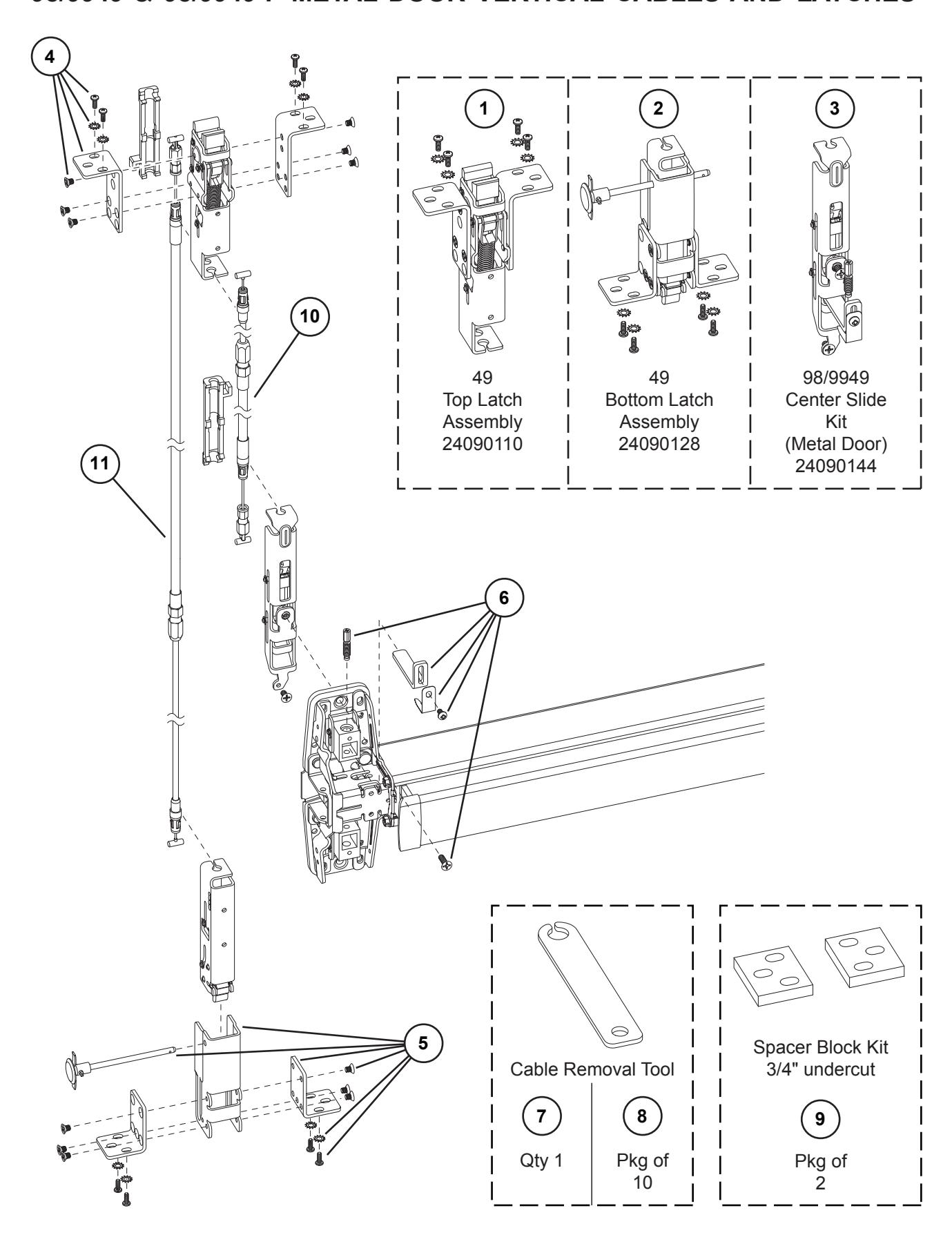

98/9949 & 98/9949-F METAL DOOR VERTICAL CABLES AND LATCHES

98/9949 & 98/9949-F METAL DOOR VERTICAL CABLES AND LATCHES

Item
No. 		Quantity Part
No. 		Description Finish
1
* 		1 24090110 49 Top Latch Assembly
2 1 24090128 49 Bottom Latch Assembly
3 1 24090144 98/9949 Center Slide Kit (Metal Door)
4
* 		1 23946429 49 Top Mounting Pkg
5 1 23946437 49 Bottom Mounting Pkg
6 1 23946445 98/9949 HM/AL Center Slide Mounting Pkg
7 1 24052979 Cable Removal Tool
8 10 24090706 Cable Removal Tool (Pkg of 10)
9 2 24231516 Spacer Block Kit - 3/4" undercut (Pkg of 2)

* A cable removal tool is included with the assembly/package.

Each latch assembly includes two latch mounting brackets.

STANDARD SIZE CABLES

Item
No. 		Quantity Part
No. 		Description / Door Opening Height * Finish
10 1 47250175 Top Cable (6' 10" - 8' 0")
10 1 47250176 Top Cable (8' 0" - 9' 2")
10 1 47250177 Top Cable (9' 2" - 10' 4")
11 1 47250178 Bottom Cable (6' 10" - 8' 0")
11 1 47250179 Bottom Cable (8' 0" - 9' 2")
11 1 47250180 Bottom Cable (9' 2" - 10' 4")

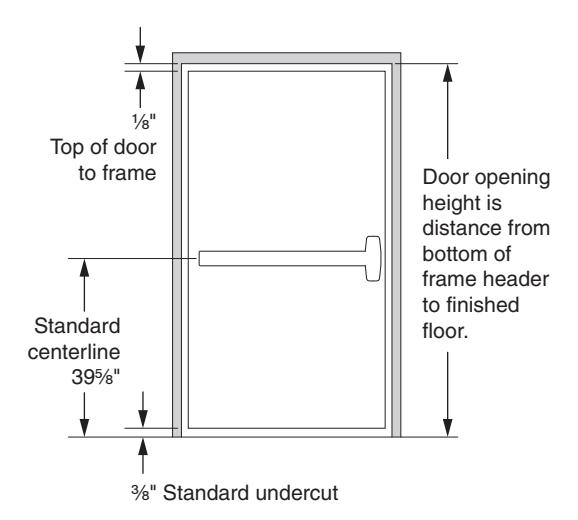

* Based on standard centerline of 39⁵⁄₈" from finished floor

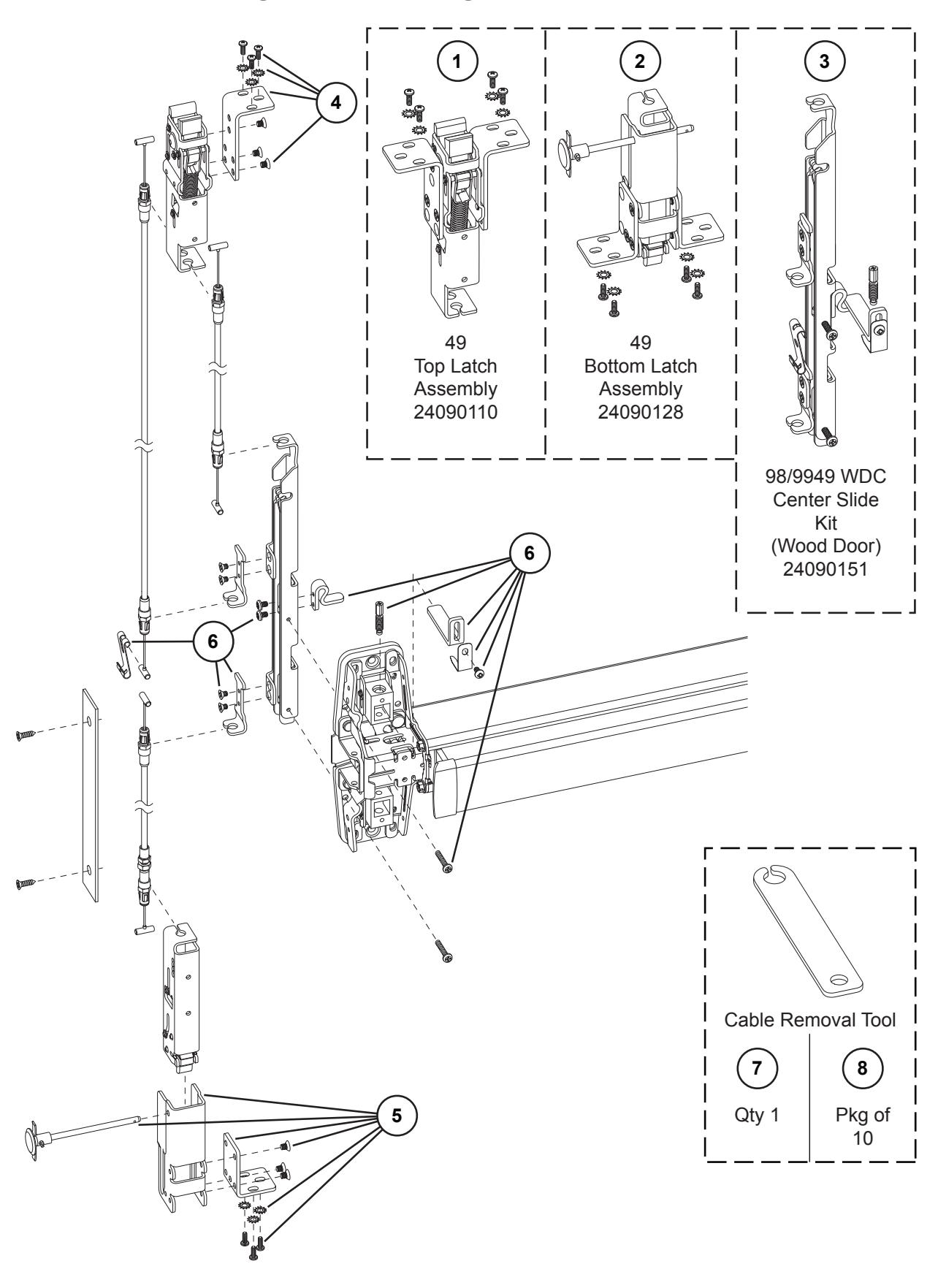

98/9949 & 98/9949-F WDC (WOOD DOOR CONCEALED) VERTICAL CABLES AND LATCHES

98/9949 & 98/9949-F WDC (WOOD DOOR CONCEALED) VERTICAL CABLES AND LATCHES

Item
No. 		Quantity Part
No. 		Description Finish
1
* 		1 24090110 49 Top Latch Assembly
2 1 24090128 49 Bottom Latch Assembly
3
* 		1 24090151 98/9949 WDC Center Slide Kit (Wood Door)
4
* 		1 23946429 49 Top Mounting Pkg
5 1 23946437 49 Bottom Mounting Pkg
6 1 24010902 98/9949 WDC Center Slide Mounting Pkg
7 1 24052979 Cable Removal Tool
8 10 24090706 Cable Removal Tool (Pkg of 10)
9 2 24231516 Spacer Block Kit - 3/4" undercut (Pkg of 2)

* A cable removal tool is included with the assembly/package.

Each latch assembly includes two latch mounting brackets.

98/9950WDC & 98/9950WDC-F (WOOD DOOR CONCEALED) VERTICAL CABLES AND LATCHES 6

98/9950WDC & 98/9950WDC-F (WOOD DOOR CONCEALED) VERTICAL CABLES AND LATCHES

Item
No. 		Quantity Part
No. 		Description Finish
1 1 48968820 50WDC Top Latch Kit
2 1 48968838 50WDC Bottom Latch Kit
3 1 48973291 98/9950WDC Center Slide Kit
4 1 48968861 98/9950WDC-F Fire Kit
5 1 47258386 98/9950WDC Lift Finger Kit
6 1 47260629 98/9950WDC Lift Finger Retrofit Kit
7 1 24648180 Top Cable 6'8"-7'0" WDC
7 1 24647273 Top Cable 7'1"-8'0" WDC
7 1 24647281 Top Cable 8'1"-9'0" WDC
7 1 24647299 Top Cable 9'1"-10'0" WDC
8 1 24647265 Bottom Cable WDC

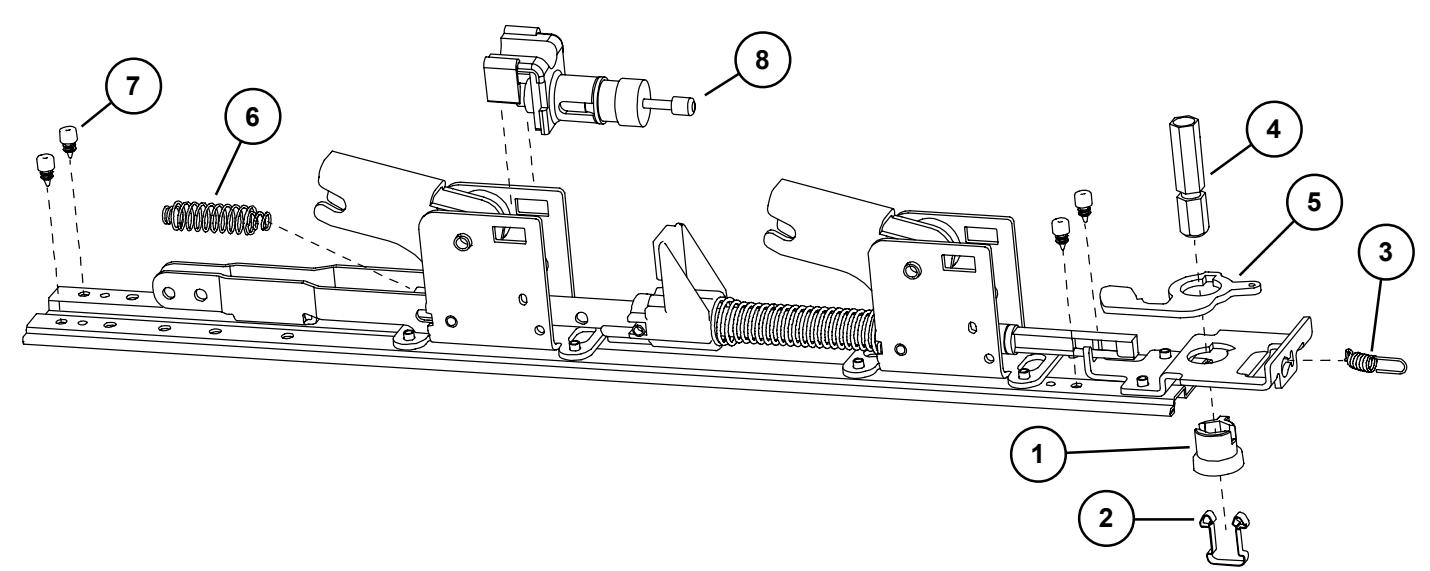

98/9947, 98/9949, & 98/9950 PANIC DEVICE BASEPLATE ASSEMBLY

Item
No. 		Quantity Part
No. 		Description Finish
1 1 090043 Dogging
adapter
(Pkg
of
2)
2 1 090042 Dogging
adapter
spring
(Pkg
of
2)
3 1 090041 Dogging
spring
(Pkg
of
2)
4 1 090040 Hex
dogging
shaft
(Pkg
of
2)
5 1 090044 Dogging
hook
(Pkg
of
2)
6 1 090039 Latch
return
spring
(Pkg
of
10)
7 4 090038 Rubber
bumper
(Pkg
of
4)
8 1 050491 Shock
absorber

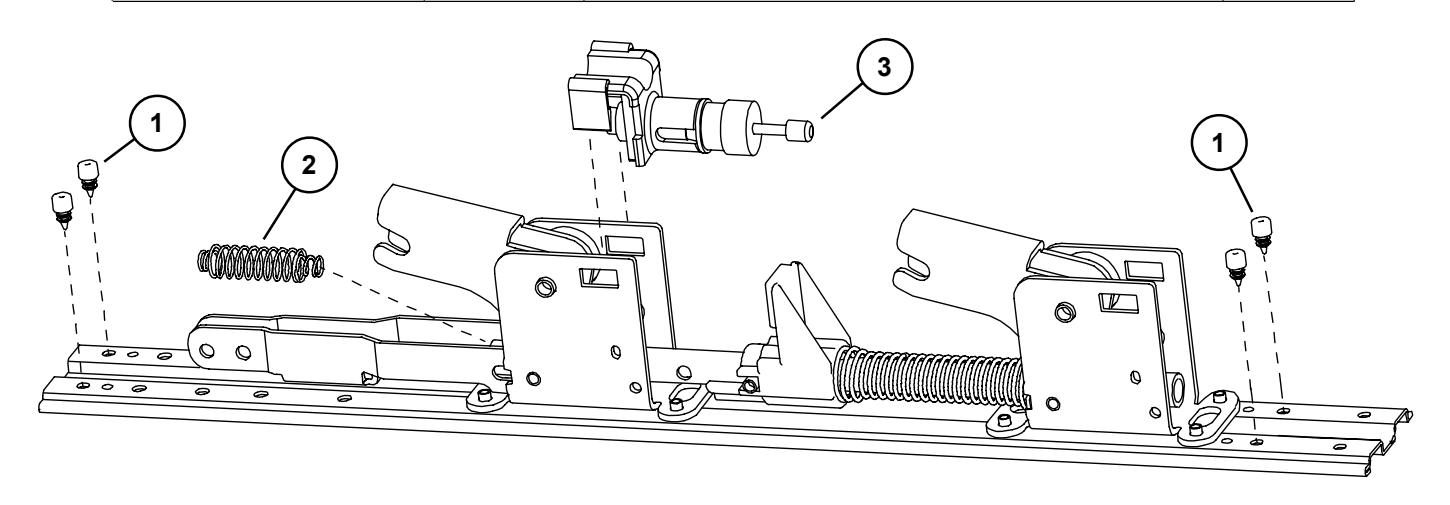

98/9947-F, 98/9949-F, & 98/9950-F FIRE DEVICE BASEPLATE ASSEMBLY

Item
No. 		Quantity Part
No. 		Description Finish
1 4 090038 Rubber
bumper
(Pkg
of
4)
2 1 090039 Latch
return
spring
(Pkg
of
10)
3 1 050491 Shock
absorber

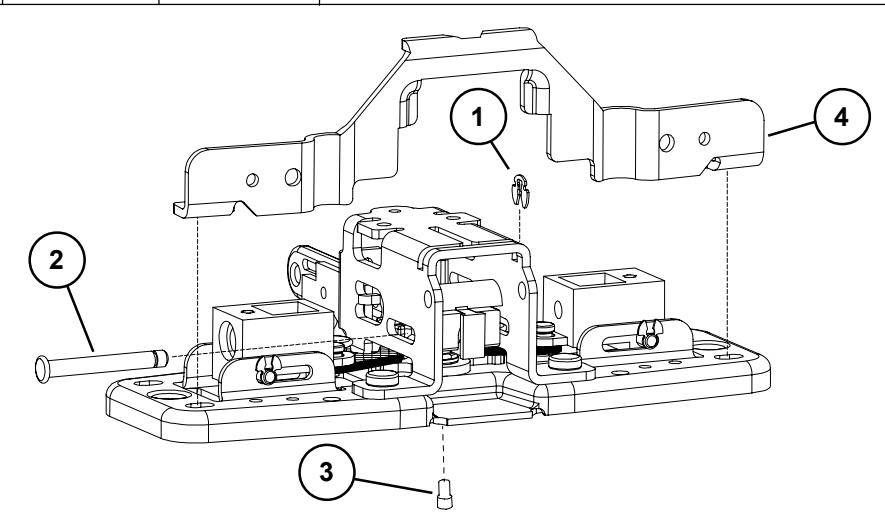

98/9947, 98/9949, & 98/9950 DEVICE CENTER CASE ASSEMBLY

Item
No. 		Quantity Part
No. 		Description Finish
1 2 090107 Retaining
Ring
(Pkg
of
10)
2 2 090079 Latch
Bolt
Pin
(Pkg
of
10)
3 1 090074 NL
Drive
Screw
(Pkg
of
10)
4 1 050565 Center
Case
Reinforcing
Bracket

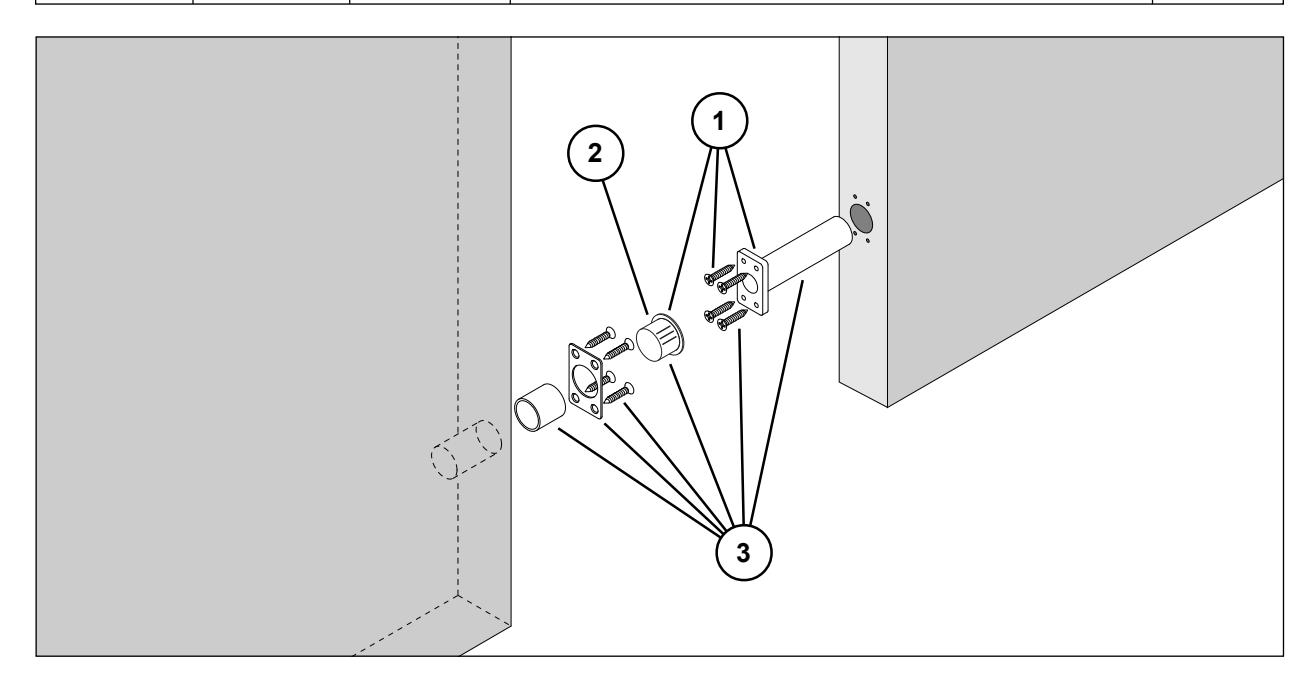

98/9947-F LBR, 98/9947WDC-F LBR (LESS BOTTOM ROD) 98/9949-F LBL (LESS BOTTOM LATCH) 98/9950WDC-F LBL (LESS BOTTOM LATCH) FIRE LATCH KIT

Item
No. 		Quantity Part
No. 		Description Finish
1 1 051860 47/47WDC/49 LBR/LBL Fire Pin Kit
2 1 050509 LBR/LBL Fire Strike Plug
3 1 48968887 50WDC LBL Fire Pin Kit

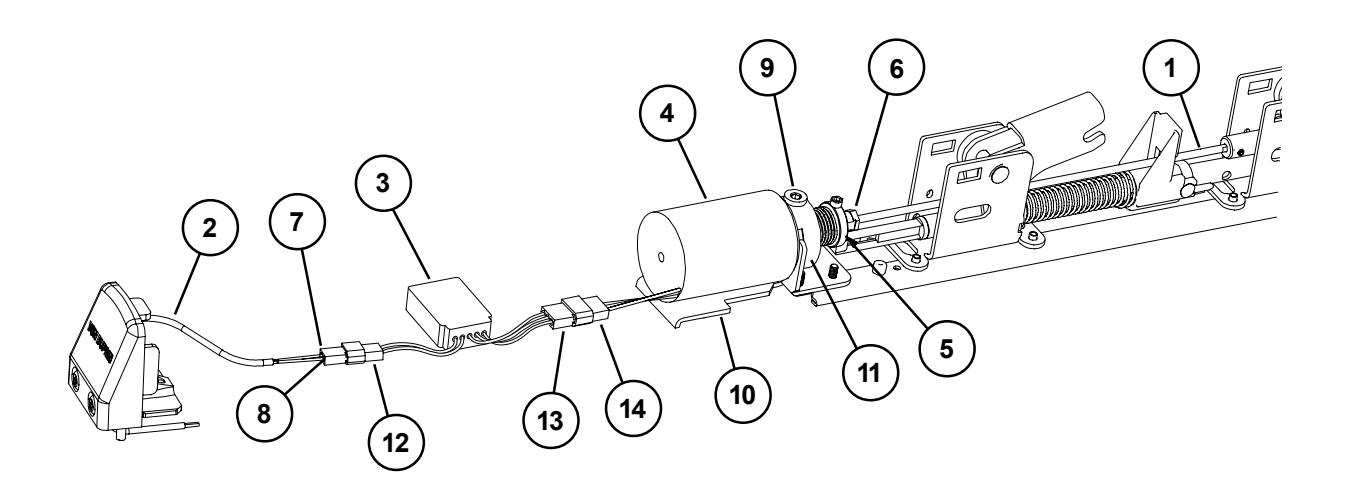

HD-EL9847/HD-EL9947, HD-EL9849/HD-EL9949, & HD-EL9850/HD-EL9950 HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION - PANIC DEVICE ONLY

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050531 EL Dogging Rod Kit - 3' device
1 1 050532 EL Dogging Rod Kit - 4' device
2 1 110388 EL 6' Cable and Connector
3 1 050534 EL Potted Module
4 1 050536 HD-EL Solenoid
5 1 050537 HD-EL Solenoid Plunger
6 1 050538 EL Dogging Rod Retainer
7 1 050539 EL Receptacle Connector - 2 Position
8 2 050540 EL Female Terminal
9 1 050541 HD-EL Dog Screw
10 1 050542 HD-EL Solenoid Bracket
11 1 050543 HD-EL Dogging Spring
12 1 990599 EL Plug Connector - 2 Position
13 1 990857 EL Receptacle Connector - 3 Position
14 1 990858 EL Plug Connector - 3 Position
* 1 050384 HD-EL Conversion Kit - 3'
* 1 050385 HD-EL Conversion Kit - 4'

* Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.

EL9847/EL9947, EL9849/EL9949, & EL9850/EL9950 SERIES ELECTRIC LATCH RETRACTION OPTION

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050531 EL Dogging Rod Kit - 3' device
1 1 050532 EL Dogging Rod Kit - 4' device
2 1 110388 EL 6' Cable and Connector
3 1 050534 EL Potted Module
4 1 050535 EL Solenoid Assembly
5 1 050538 EL Dogging Rod Retainer
6 1 050539 EL Receptacle Connector
7 2 050540 EL Female Terminal
8 1 990599 EL Plug Connector - 2 Position
9 1 990857 EL Receptacle Connector - 3 Position
10 1 990858 EL Plug Connector - 3 Position
* 1 050070 EL Conversion Kit - 3'
* 1 050078 EL Conversion Kit - 4'

* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

SS9847/SS9947, SS9849/SS9949, & SS9850/SS9950 SERIES SIGNAL SWITCH OPTION

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050544 SS
Cable
2 1 050545 SS
Housing
3 1 990601 SS
Plug
Connector
-
6
Position
4 1 990602 SS
Receptacle
Connector
-
6
Position

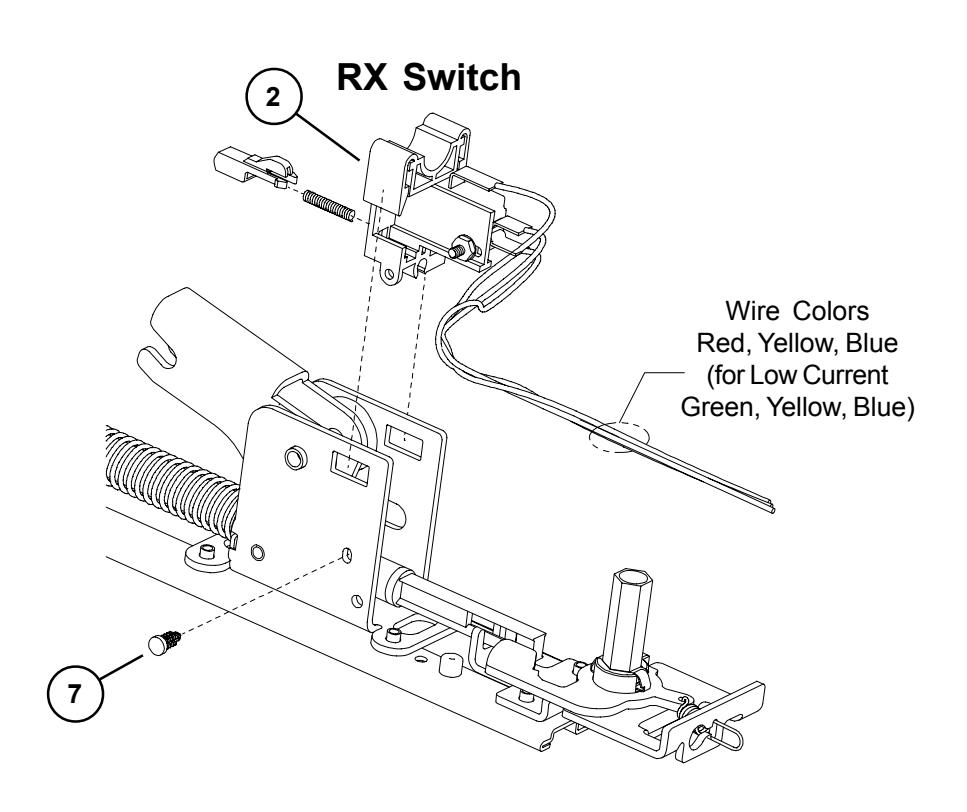

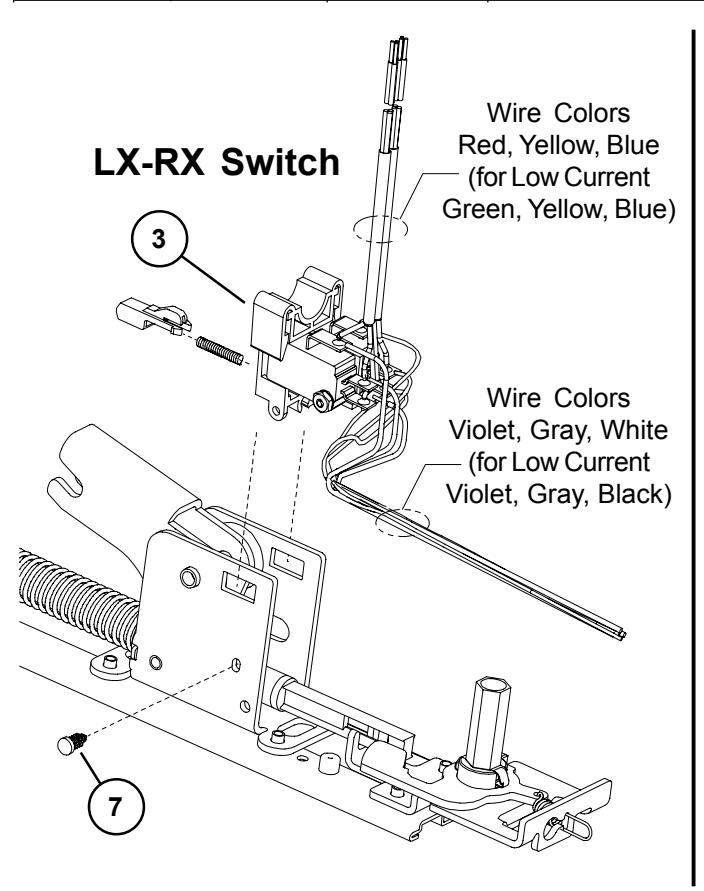

98/9947, 98/9949, & 98/9950 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS

98/9947, 98/9949, & 98/9950 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050254 LX Switch
Kit
3'
Device
1 1 050255 LX Switch
Kit
4'
Device
1 1 050247 LX-EL
Switch
Kit
1 1 050283 LX-LC
(Low
Current)
Switch
Kit
3'
Device
1 1 050285 LX-LC
(Low
Current)
Switch
Kit
4'
Device
1 1 050287 LX-LC-EL
(Low
Current)
Switch
Kit
2 1 050251 RX Switch
Kit
2 1 050281 RX-LC
(Low
Current)
Switch
Kit
3 1 050256 LX-RX
Switch
Kit
3'
Device
3 1 050257 LX-RX
Switch
Kit
4'
Device
3 1 050259 LX-RX-EL
Switch
Kit
3 1 050289 LX-RX-LC
(Low
Current)
Sw.
Kit
3'
Device
3 1 050291 LX-RX-LC
(Low
Current)
Sw.
Kit
4'
Device
3 1 050293 LX-RX-LC-EL
(Low
Current)
Switch
Kit
2
&
4 		1 050270 RX-2
Switch
Kit

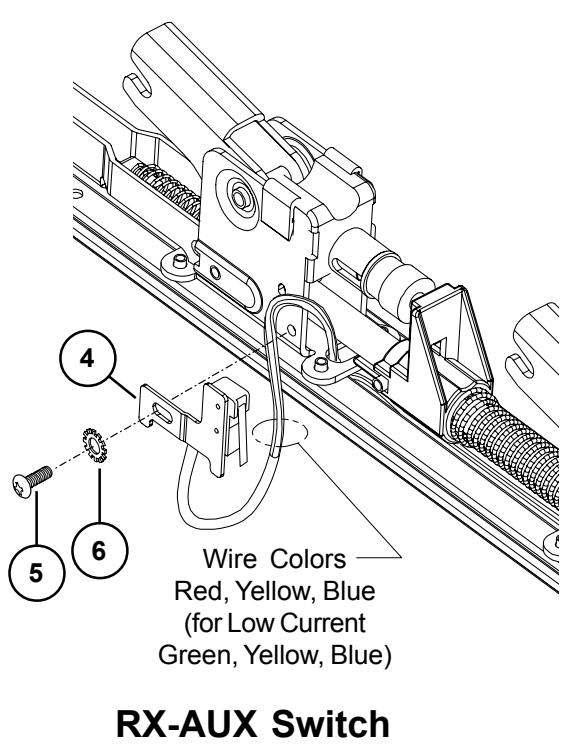

4 1 050271 RX-AUX
Switch
Kit
5 1 964558 8-32
x
5/16"
PPHMS
6 1 964019 #8
Washer
7 1 090099 Pine
Tree
Clip
(Pkg
of
10)
8 1 971091 LXActuator

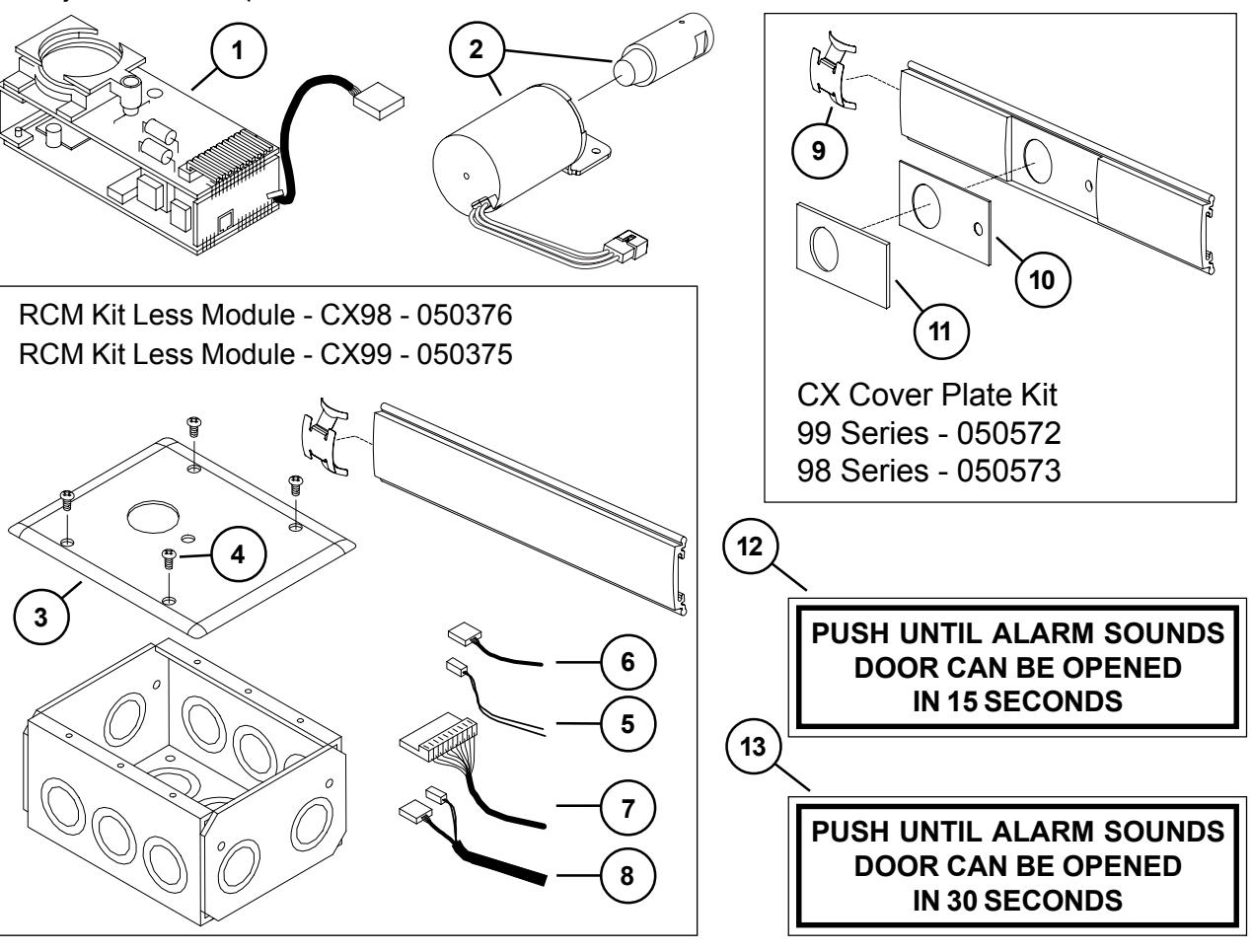

CX98/9947, CX98/9949, & CX98/9950 SERIES CHEXIT AND CX-RCM OPTION For discontinued Chexit devices made before August, 24 2015

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050228 Chexit
PCB
Kit
-
15
Second
Release
1* 1 050700 Chexit
PCB
Kit
-
30
Second
Release
1 1 050701 Chexit
PCB
Kit
-
0
Second
Release
1 1 050702 Chexit
PCB
Kit
-
Boca
15
Second
Release
1* 1 050703 Chexit
PCB
Kit
-
Boca
30
Second
Release
2 1 050533 CX
Solenoid
and
Plunger
3 1 113111 Faceplate
andAdapter 		X
4 4 963898 6-32
x
3/8"
OPHMS
Faceplate
Screw 		X
5 1 991338 RCM
2-Wire
RX
Cable
6 1 991339 RCM
3-Wire
Solenoid
Cable
7 1 112018 Chexit
Wiring
Assembly
8 1 991336 CX-RCM
Cable
Assy
-
5
Wire
9 1 090036 Cover
PlateAnti-rattle
Spring
(Pkg
of
10)
10 1 970513 LED
Cover
Mask
-
Chexit
11 1 970519 LED
Cover
-
Chexit
12 1 113781 Sign
15
Second
-
Chexit
13 1 113782 Sign
30
Second
-
Chexit

* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.

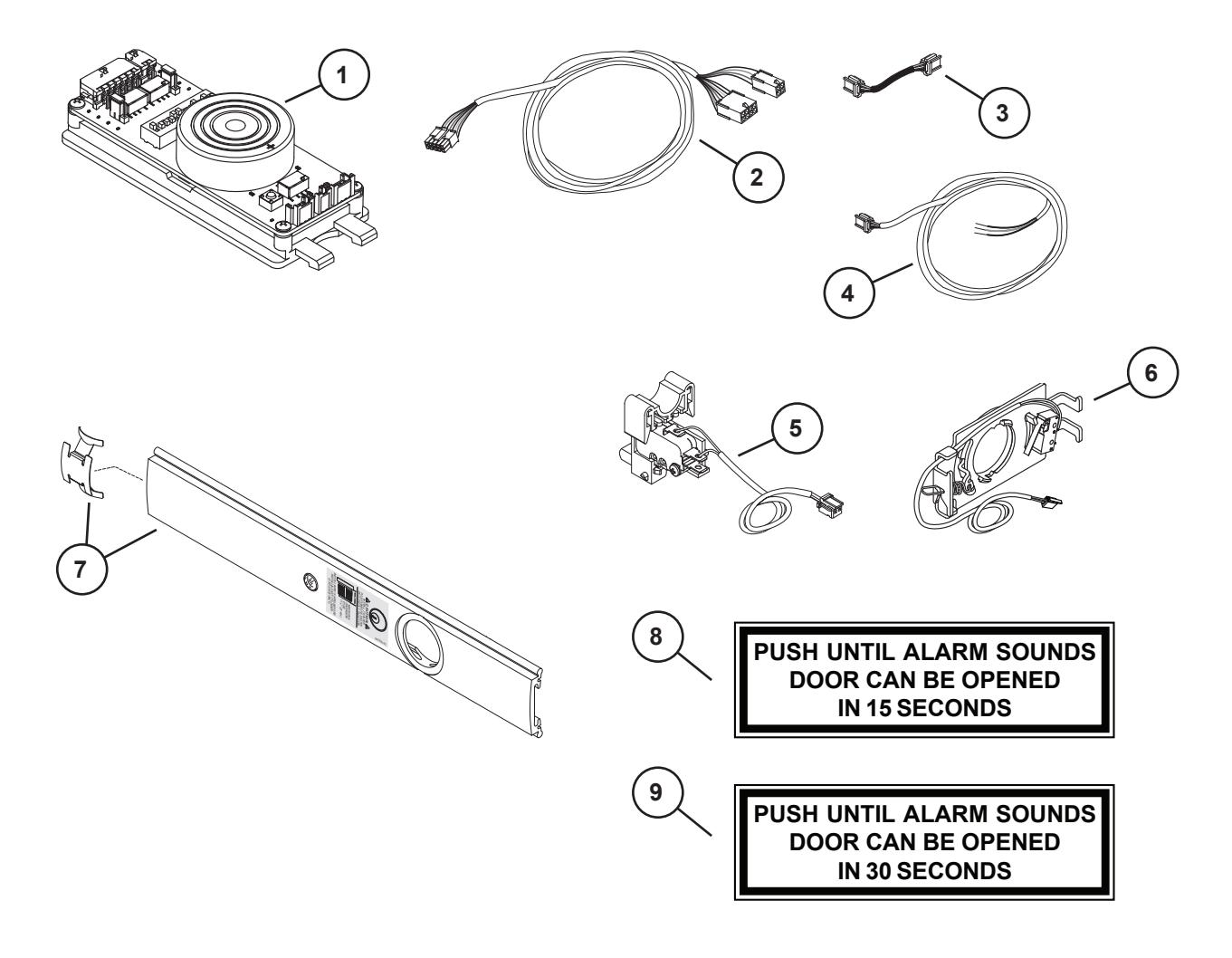

CX98/9947, CX98/9949, & CX98/9950 SERIES CHEXIT

For new Chexit devices made after August, 24 2015

Item No. Quantity Part No. Description Finish
1 1 040086 Standard - 15 Second Release Delay
1* 1 040087 Special Infinite Release Delay
1* 1 040088 Special 30 Second Release Delay
1 1 040089 Special 0 Second Release Delay
1 1 040090 Special Mute 15 Second Release Delay
1 1 040091 BOCA 15 Second Release Delay
2 1 040191 CX Field Wiring Cable
3 1 040192 CX Motor Cable
4 1 040193 CX Trim Device Cable
5 1 116717 CX RX Switch Assembly
6 1 040170 CX Key Switch Assembly 3'
6 1 040189 CX Key Switch Assembly 4'
7 1 040093 CX33/99 Cover Plate Kit X
7 1 040094 CX35/98 Cover Plate Kit X
8 1 113781 Sign 15 Second
9 1 113782 Sign 30 Second

* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.

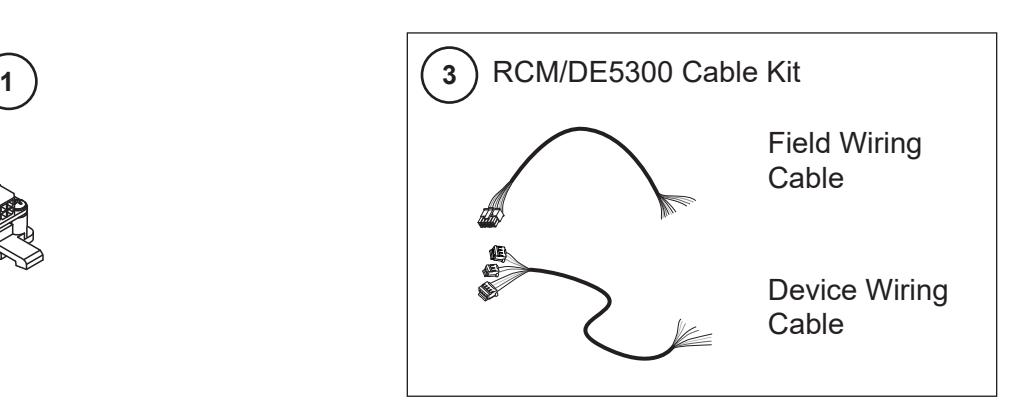

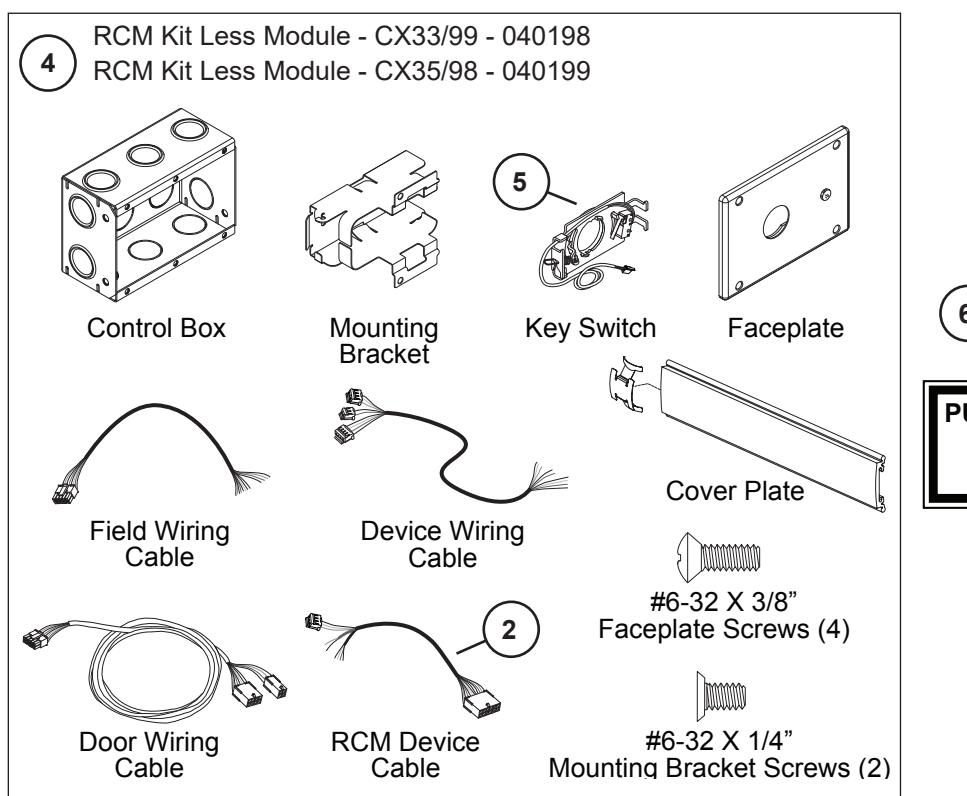

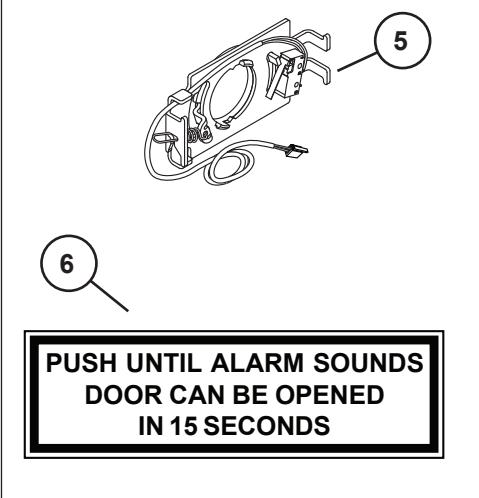

CX-RCM/DE5300 OPTIONS

For new RCM/DE5300 devices made after August, 24 2015

Item No. Quantity Part No, Description Finish
1 1 116711 Standard - 15 Second Release Delay
2 1 040092 RCM Device Cable
3 1 040188 DE5300/RCM Cable Kit
4 1 040198 RCM Kit Less Module - CX33/99 X
4 1 040199 RCM Kit Less Module - CX35/98 X
5 1 040169 DE5300/RCM Key Switch Assy
6 1 113781 Sign 15 Second

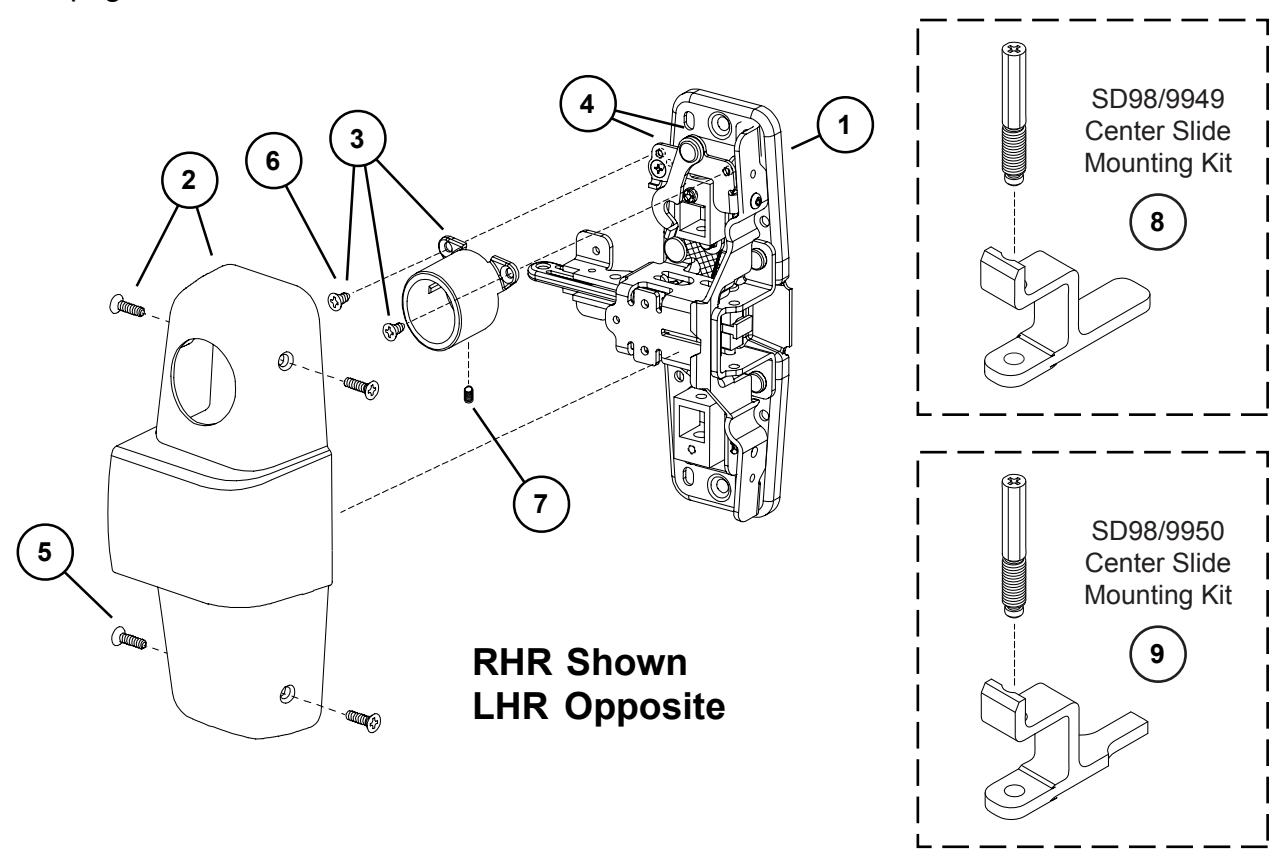

CX-CD/SD98/9947, CX-CD/SD98/9949, & CX-CD/SD98/9950 SERIES OPTION

Item
No. 		Quantity Part
No. 		Description Finish
1* 1 050552 SD98/9947/49/50 RHR Center Case Kit Less Cvr
1* 1 050553 SD98/9947/49/50 LHR Center Case Kit Less Cvr
2 1 050562 SD98/9947/49/50 RHR Center Case Cover Kit X
2 1 050563 SD98/9947/49/50 LHR Center Case Cover Kit X
3 1 112409 CD-CX/SD Cylinder Dog Housing
4 1 112455 CD-CX/SD Cylinder Dog Bracket Kit RHR
4 1 112456 CD-CX/SD Cylinder Dog Bracket Kit LHR
5 4 900892 Center Case Cover Screws X
6 2 PkgServ.1018 8-32 x 1/4" UFPHMS (Pkg of 20)
7 1 964240 Bracket Set Screw
8 1 24123291 SD98/9949 Center Slide Mounting Kit
9 1 47244842 SD98/9950 Center Slide Mounting Kit

* Parts shown are for the CX-CD/SD option. For other available center case parts refer to page 17.

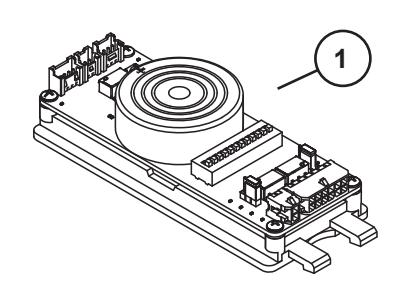

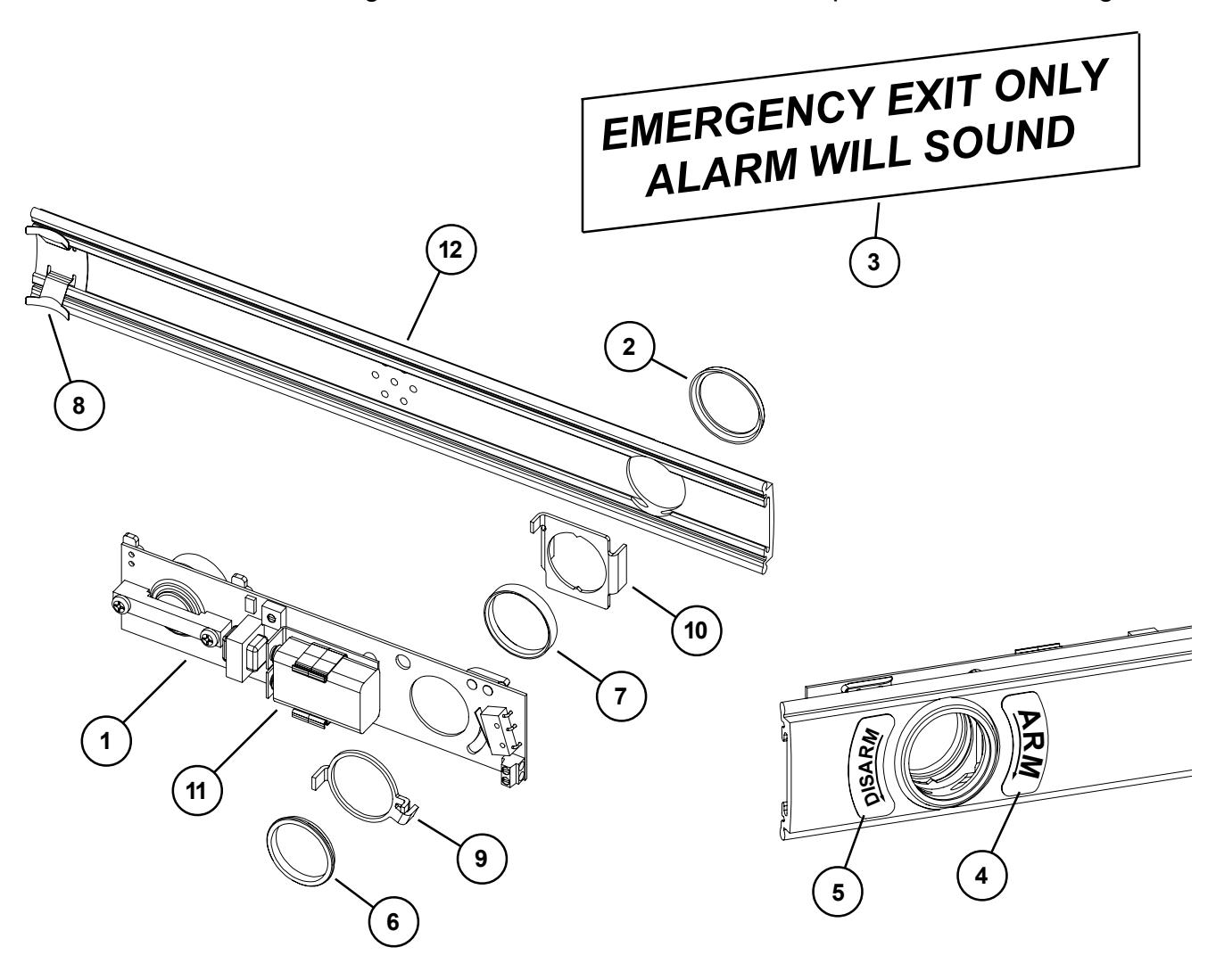

98/9947, 98/9949, & 98/9950 ALK EXIT ALARM KIT

Item No. Quantity Part No. Description Finish
1 1 111795 ALK PCB Assembly
2 1 050525 Cylinder Collar X
3 1 969122 ALK Alarm Device Sign
4 1 969349 ALK Arming Label
5 1 969350 ALK Disarming Label
6 1 969354 Retainer Nut
7 1 970594 ALK Cylinder Spacer
8 1 090036 Cover Plate Anti-rattle spring (Pkg of 10)
9 1 971556 ALK Switch Actuator
10 1 971557 ALK Cylinder Bracket
11 1 990637 ALK Battery
12 1 050569 99 Series ALK Cover Plate Kit Х
12 1 050570 98 Series ALK Cover Plate Kit Х

X in "Finish" column designates finished items; finish must be specified when ordering.

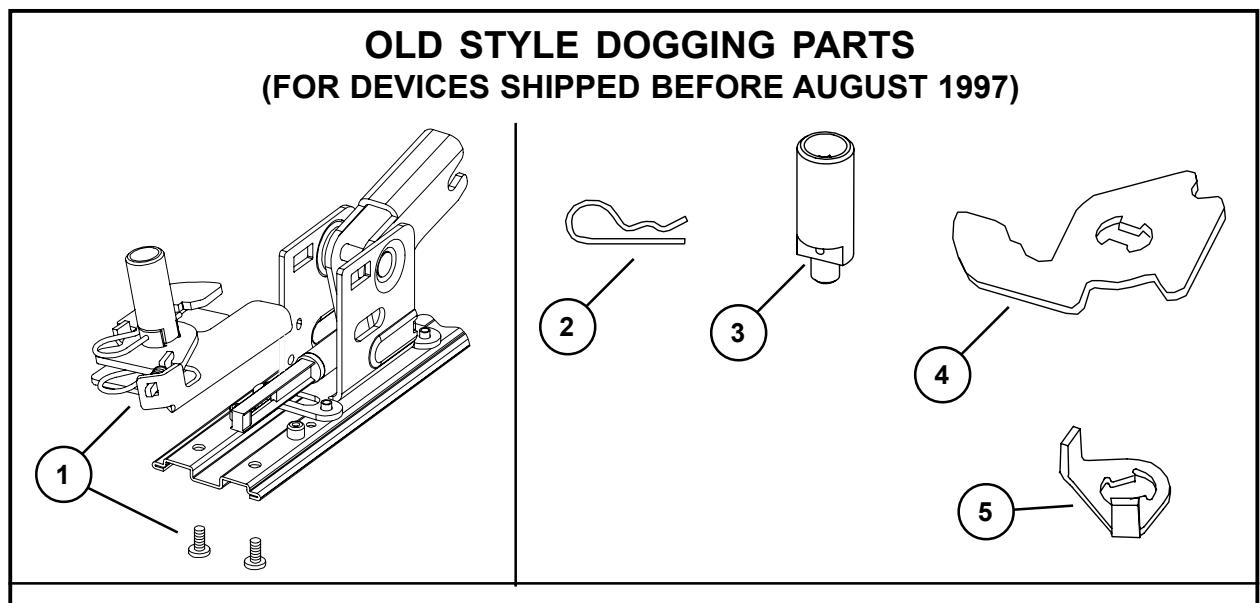

98/9947 SERIES SERVICE REPLACEMENT ITEMS

Item No. Quantity Part No. Description Finish
1 1 050153 Old Style Hex Dogging Replacement Kit
2 1 963909 #22 Hitch Pin - Hex/CD Dogging Old Style
3 1 968112 Old Style Hex Dog Shaft
4 1 969941 Old Style Dogging Hook
5 1 968116 Old Style CD Actuator Arm
6 1 900905 Old Style End Cap and Bracket Assembly X
7 1 970548 Old Style Cover Plate Stop - End Cap
8 1 900901 Old Style End Cap Screw Package X
9 1 971082 Old Style 98/99 End Cap - Stainless Steel X
9 1 971083 Old Style 98/99 End Cap - Brass X
9 1 971084 Old Style 98/99 End Cap - Bronze X
9 1 971085 Old Style 98/99 End Cap - Aluminum X

X in "Finish" column designates finished items; finish must be specified when ordering.

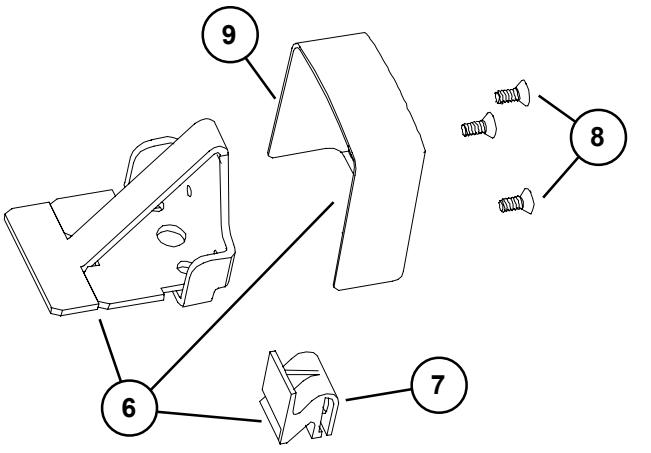

OLD STYLE END CAP PARTS

(FOR DEVICES SHIPPED BEFORE JANUARY 2002)

Note: Newer style end cap kit shown on pages 4-5. Newer style end cap kit can be used on devices manufactured before January 2002, but mechanism case and cover plate on hinge stile must have a square cut and a clean edge.

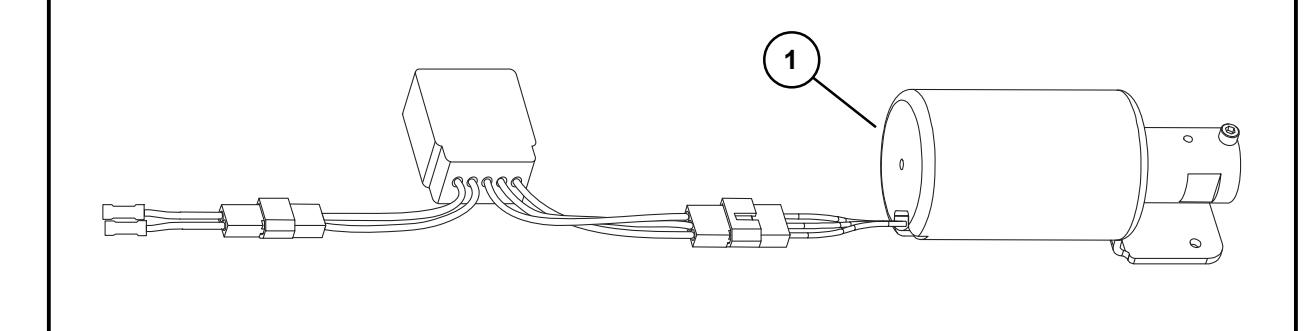

98/9947 SERIES SERVICE REPLACEMENT ITEMS

Item
No. 		Quantity Part
No. 		Description Finish
1 1 050218 EL
Solenoid
Replacement
Kit

X in "Finish" column designates finished items; finish must be specified when ordering.

EL SOLENOID REPLACEMENT KIT (FOR DEVICES SHIPPED BEFORE JANUARY 1987)

Note: This kit replaces the old style EL solenoid parts with the new style.

About Allegion

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 8,000 people and sells products in more than 120 countries across the world. Allegion comprises 27 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.

For more, visit www.allegion.com .
