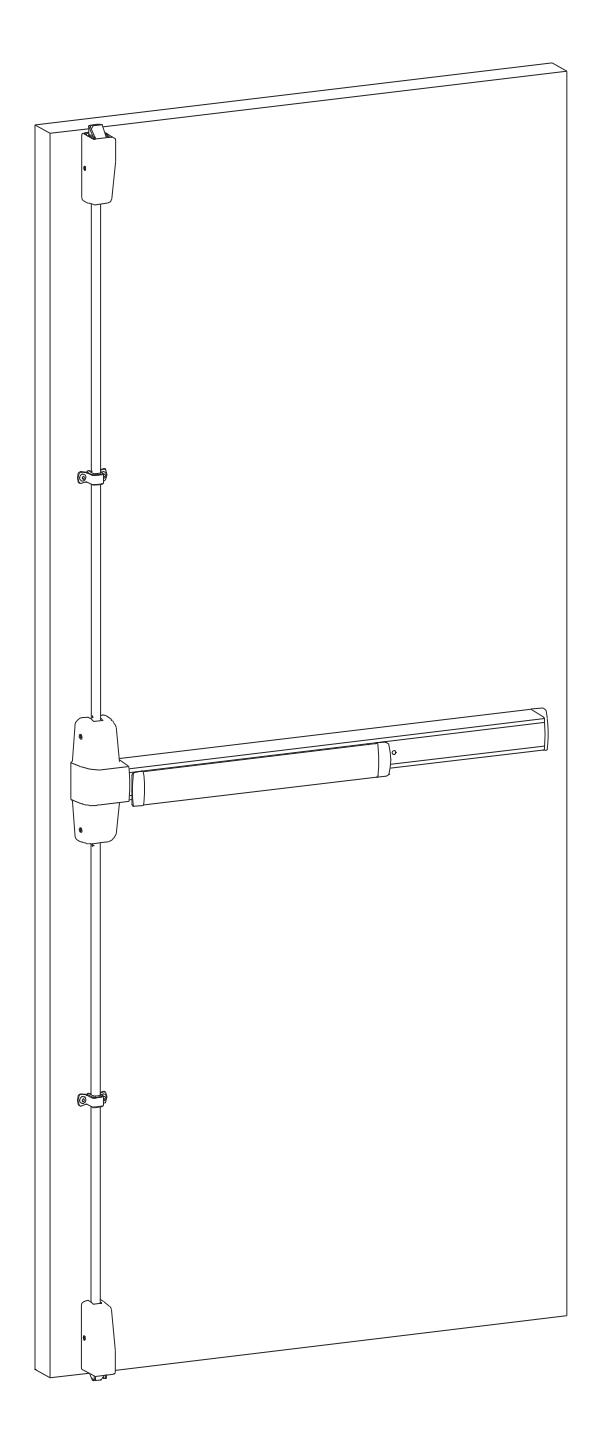

98/9927 Surface Vertical Rod Series Exit Devices
Service manual
INDEX
|
98/9927
Devices |
|
|---|---|
|
Basic
Panic Device |
4-5 |
|
Basic
Fire Device |
6-7 |
|
Vertical
Rods and Latches |
8-9 |
|
BaseplateAssemblies
|
10 |
|
Center
CaseAssembly |
11 |
|
LBR
(Less Bottom Rod) Fire Latch Kit |
11 |
|
Variations
of the Basic Device |
|
|
CD
(Cylinder Dogging) |
4-5 |
|
HD-EL
(Hex Dogging/Electric Latch Retraction) |
12 |
|
EL
(Electric Latch Retraction) |
13 |
|
SS
(Signal Switch) |
13 |
|
RX
(Request to Exit) |
14-15 |
|
LX
(Latch Bolt Monitoring) |
14-15 |
| CX (Chexit Discontinued) | 16 |
| CX (Chexit New) | 17 |

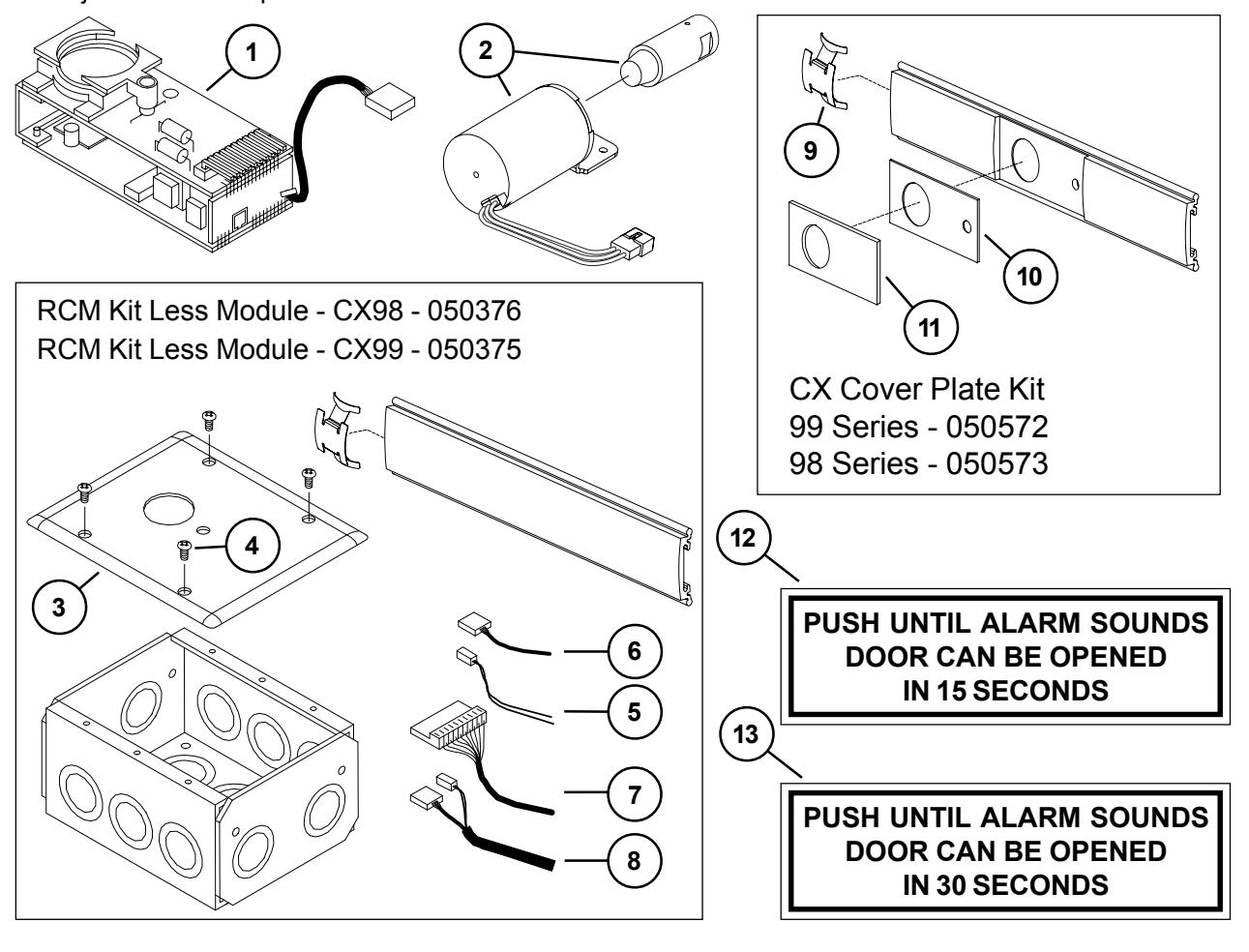

| CX (Chexit New RCM/DE5300 Option) | 18 |
| CX-CD/SD (Chexit/Special Dogging) | 19 |
| ALK (Exit Alarm Kit) | 20 |
|
Service
Replacement Items |
21-22 |
|
General
Information |
|
| Introduction | 2 |
|
How
to Order |
2 |
|
Part
Number Changes |
2 |
|
Finishes
|
3 |
|
Outside
Trim Functions |
3 |
|
Strikes
|
3 |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 98/9927 Exit Hardware Devices. 98 Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 Series has a smooth case.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: 877-671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
98/99 SERIES FINISHES
BHMA
U.S. Std Reference
OUTSIDE TRIM FUNCTIONS
|
OUTSIDE
TRIM FUNCTIONS |
Reference | Reference | Description | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 605 |
Polished
Brass |
||||||||
| US4 | 606 |
Dull
Brass |
|||||||
| US10 | 612 |
Dull
Bronze |
|||||||
| US15 | 619 |
Satin
Nickel |
|||||||
| US26 | 625 |
Polished
Chrome |
|||||||
| US26D | 626 |
Dull
Chrome |
|||||||
| US28 | 628 | AnodizedAlum. | (Clear) | ||||||
| US32D | 630 |
Satin
Stainless |
Steel | ||||||
| 992L | 992L-BE* | 313AN | 710 | AnodizedAlum. | (313) | ||||
| 996L | 996L-BE* | 992EO | 994L | 994L-BE* |
Dark
Bronze |
||||
| 992L-NL** | 992L-DT*** | 996EO | 994L-NL** | 994L-DT*** | 994EO | 315AN | 711 | AnodizedAlum. | (Black) |
| 996L-NL** | 996L-DT*** | ||||||||
| 991K | 991K-BE* | ||||||||
| 991K-NL** | 991K-DT*** | 990EO | 990DT*** | 990NL** | 990TP | 990TP-BE* | 374T | 110NL**** | |
- * "BE" (Blank Escutcheon) no cylinder used lever always active
- ** "NL" (Night Latch) rigid lever key retracts latch bolt
- *** "DT" (Dummy Trim) rigid lever for pull operation
- **** Optional Pull needs to be added

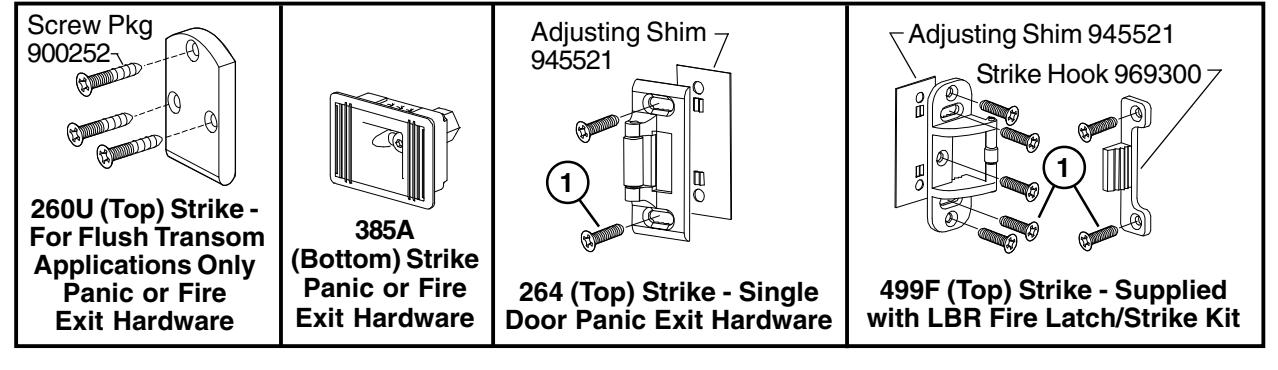

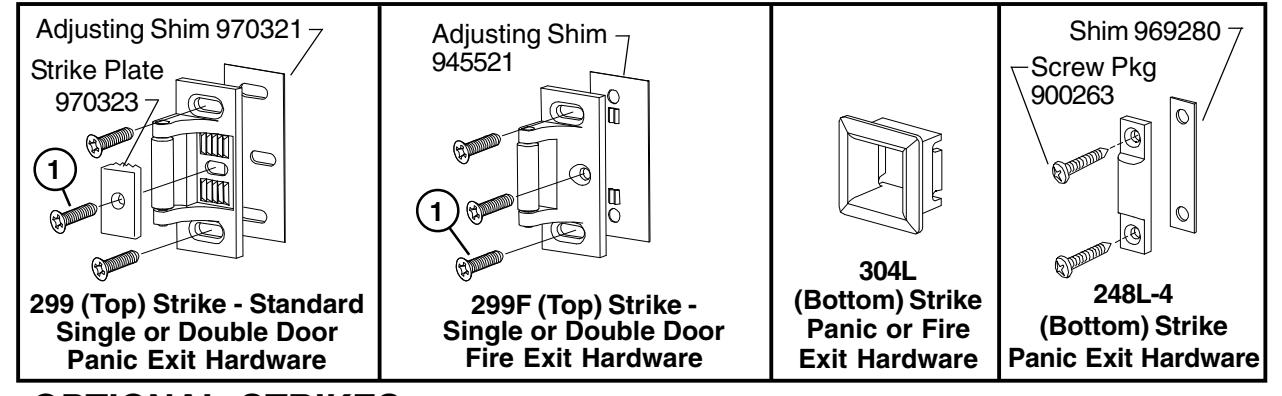

STANDARD STRIKES
1 Metal Door Screw Package PKGSRV.1023 (Pkg of 10) Wood Door Screw 964291 (Qty of 1)
OPTIONAL STRIKES

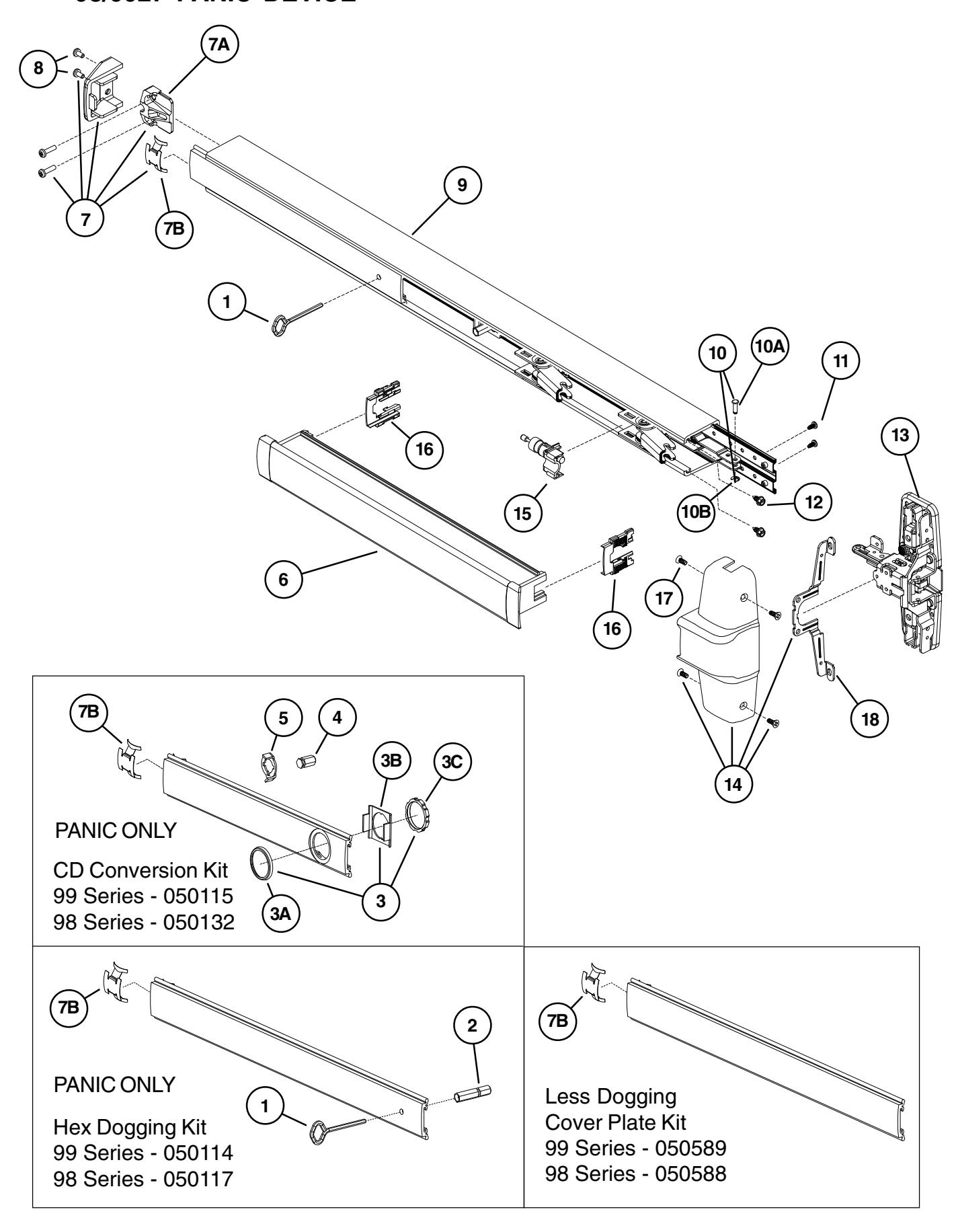

98/9927 PANIC DEVICE
98/9927 PANIC DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900563 |
98/9927
Series Mounting Pkg. (1-3/4) |
||
| 1 | 900568 |
98/9927
Series Mounting Pkg. (2-1/4) |
||
| 1 | 1 | 090085 |
227
Dog Key 5/32" Hex (Pkg of 10) |
|
| 1 | 1 | 090005 |
227
Dog Key 5/32" Hex (Pkg of 2) |
|
| 2 | 1 | 090040 |
Hex
Dog Shaft (Pkg of 2) |
|
| 3 | 1 | 107813 |
Cylinder
MountingPkg |
X |
| 3A | 1 | 050525 |
Cylinder
Collar |
X |
| 3B | 1 | 050490 |
Cylinder
Locating Washer - CD/SS |
|
| 3C | 1 | 050526 |
Cylinder
Locknut |
|
| 4 | 1 | 090046 |
CD
Dogging Plug (Pkg of 2) |
|
| 5 | 1 | 090045 |
CDActuatorArm
(Pkg of 2) |
|
| 6 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 3' Door |
X |
| 6 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 4' Door |
X |
| 7 | 1 | 050014 |
98/99
Series End Cap Kit |
X |
| 7A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 7B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 8 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 9 | 1 | 968144 |
99
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 968146 |
99
Series Mechanism Case - 4' Door |
X |
| 9 | 2 | 970191 |
98
Series Mechanism Case - 3' Door |
X |
| 9 | 1 | 970192 |
98
Series Mechanism Case - 4' Door |
X |
| 10 | 1 | 050529 |
98/99
Series Control Link Pin & Ret. Ring |
|
| 10A | 1 | 090031 |
98/99
Series Control Link Pin (Pkg of 10) |
|
| 10B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 11 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 12 | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 13*** | 1 | 050021 |
98/9927/-F Center
Case Kit Less Cover |
|
| 14** | 1 | 050072 |
98/9927/-F
Center Case Cover Kit |
X |
| 15 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 16 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 17 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
| 18 | 1 | 050564 |
Center
Case Cover Bracket |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3' US28.
** Includes parts for three piece cover conversion.
*** Center case assembly parts shown on page 11.

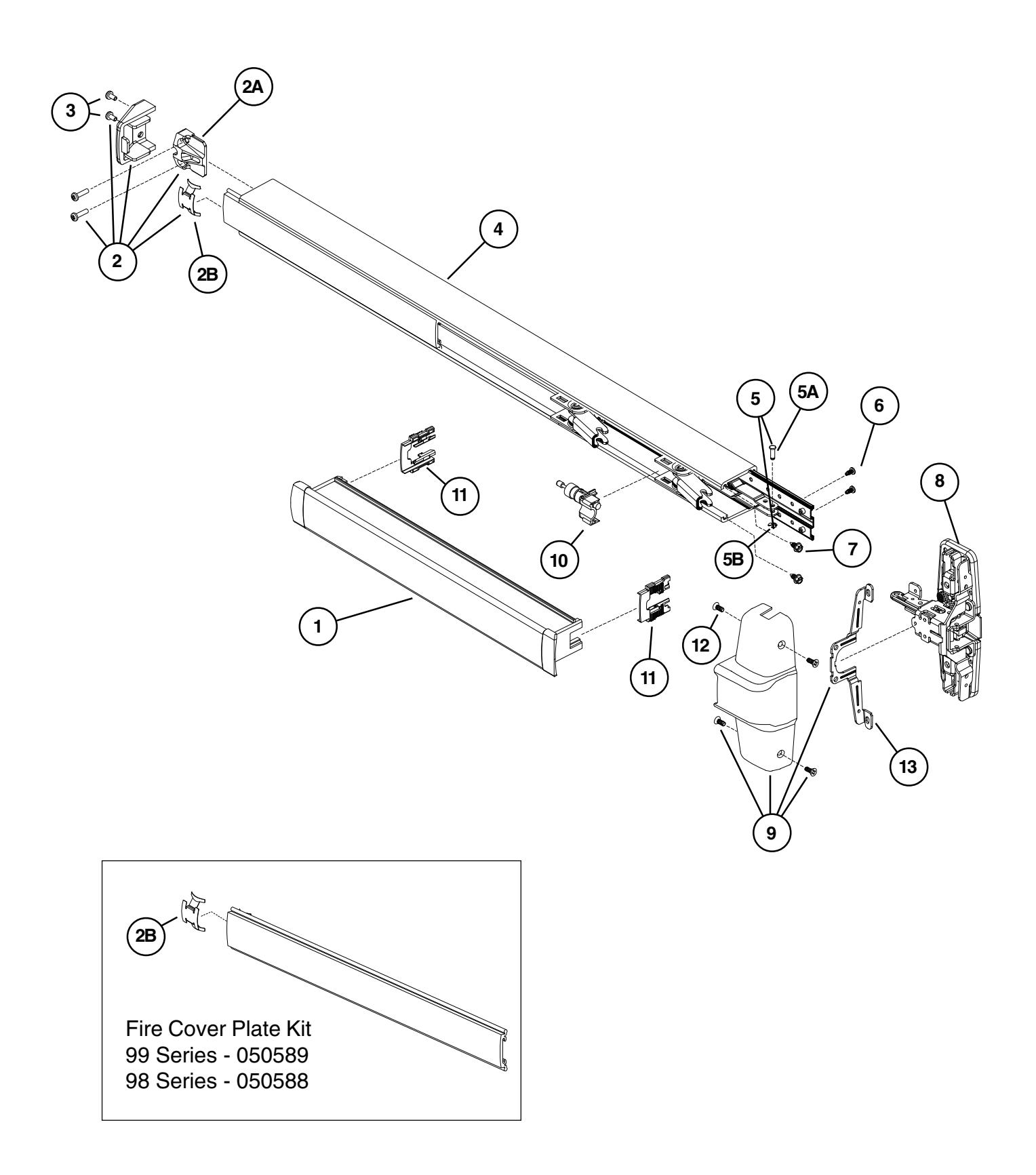

98/9927-F FIRE DEVICE
98/9927-F FIRE DEVICE
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 900563 |
98/9927
Series Mounting Pkg. (1-3/4) |
||
| 1 | 900568 |
98/9927
Series Mounting Pkg. (2-1/4) |
||
| 1 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 3' Door |
X |
| 1 | 1 | *PBKIT |
98/99
Series Push Bar Retrofit Kit - 4' Door |
X |
| 2 | 1 | 050014 |
98/99
Series End Cap Kit |
X |
| 2A | 1 | 050524 |
Impact
ResistantEnd CapBracket |
|
| 2B | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 3 | 1 | 900597 |
Device
End Cap and C/Case Screw Pkg. |
X |
| 4 | 1 | 968144 |
99
Series Mechanism Case - 3' Door |
X |
| 4 | 1 | 968146 |
99
Series Mechanism Case - 4' Door |
X |
| 4 | 1 | 970191 |
98
Series Mechanism Case - 3' Door |
X |
| 4 | 1 | 970192 |
98
Series Mechanism Case - 4' Door |
X |
| 5 | 1 | 050529 |
98/99
Series Control Link Pin & Ret. Ring |
|
| 5A | 1 | 090031 |
98/99
Series Control Link Pin (Pkg of 10) |
|
| 5B | 1 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 6 | 2 | 090037 |
#8-32
x 3/8" Baseplate Screw (Pkg of 10) |
|
| 7 | 2 | 090073 |
Mechanism
Case Bracket Screw (Pkg of 10) |
|
| 8*** | 1 | 050021 |
98/9927/-F Center
Case Kit Less Cover |
|
| 9** | 1 | 050072 |
98/9927/-F
Center Case Cover Kit |
X |
| 10 | 1 | 050491 |
ShockAbsorber
& HolderAssembly |
|
| 11 | 2 | 090049 |
Push
Bar Guide (Pkg of 10) |
|
| 12 | 4 | 900892 |
Center
Case Cover Screws (Pkg of 4) |
X |
| 13 | 1 | 050564 |
Center
Case Cover Bracket |
X in "Finish" column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3' US28.
** Includes parts for three piece cover conversion.
*** Center case assembly parts shown on page 11.

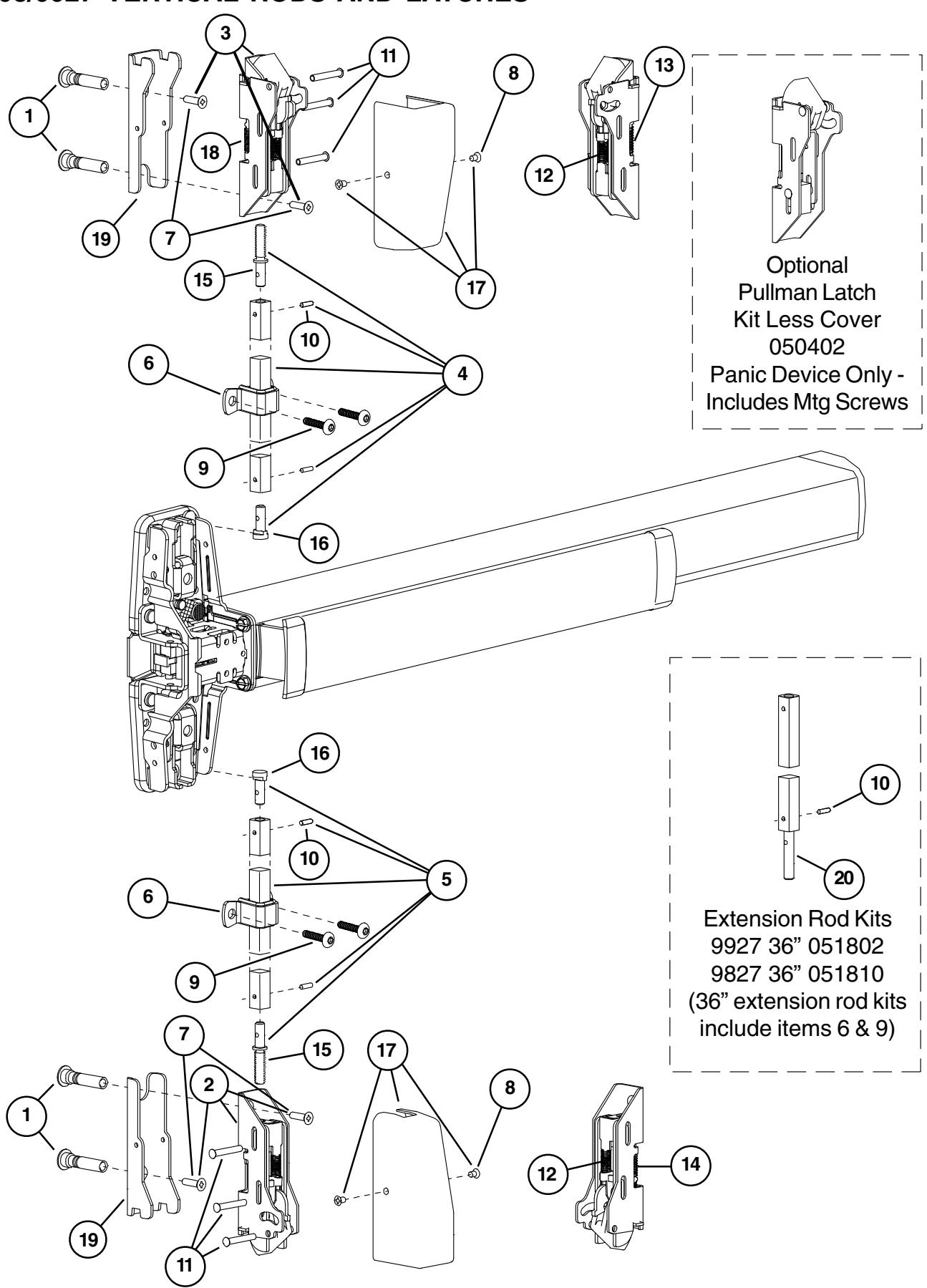

98/9927 VERTICAL RODS AND LATCHES
98/9927 VERTICAL RODS AND LATCHES
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 2 | 034902 |
325
Sex Bolt Package (Pkg of 2) |
X |
| 2 | 1 | 050401 |
98/9927
Bottom Latch Kit Less Cover |
|
| 3 | 1 | 050400 |
98/9927
Top Latch Kit Less Cover |
|
| 4 | 1 | 050512 |
9927
Top Rod Kit |
X |
| 4 | 1 | 050513 |
9827
Top Rod Kit |
X |
| 5 | 1 | 050514 |
9927
Bottom Rod Kit |
X |
| 5 | 1 | 050515 |
9827
Bottom Rod Kit |
X |
| 6 | 2 | 112063 |
98/9927
Rod Guide Pkg |
X |
| 7 | 1 | 900589 |
Latch
Mounting Package (Pkg of 4) |
|
| 8 | 2 | 900850 |
Latch
Case Cover Screw (Pkg of 2) |
X |
| 9 | 2 | 900919 |
98/9927
Rod Guide Mounting Package |
|
| 10 | 4 | 090054 |
Rod
Roll Pin (Pkg of 10) |
|
| 11 | 6 | 090055 |
Housing
Guide Pin (Pkg of 10) |
|
| 12 | 2 | 090065 |
Bolt
Return Spring (Pkg of 10) |
|
| 13 | 1 | 090056 |
Top
Latch Compression Spring (Pkg of 10) |
|
| 13 | 1 | 090057 |
PL
Top Latch Spring (Pkg of 10) |
|
| 14 | 1 | 090058 |
Bottom
Latch Case Spring (Pkg of 10) |
|
| 15 | 2 | 090067 |
Rod
Connector - Latch (Pkg of 2) |
|
| 16 | 2 | 090068 |
Rod
Connector - Center Case (Pkg of 2) |
|
| 17 | 1 | 050566 |
98/9927/27-F
Latch Case Cover Kit |
X |
| 18 | 1 | 090076 |
Aux.
Bolt Spring (Pkg of 10) |
|
| 19 | 2 | 050546 |
Latch
Case Mtg. Bracket Kit |
|
| 20 | 1 | 090075 |
98/9927
Rod Extension Connector (Pkg of 4) |
|
| * | 1 | 050090 |
98/9927
Bottom Latch Retrofit Kit |
X |
| * | 1 | 050091 |
98/9927
Top Latch Retrofit Kit |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.
* For devices shipped before October 1998.

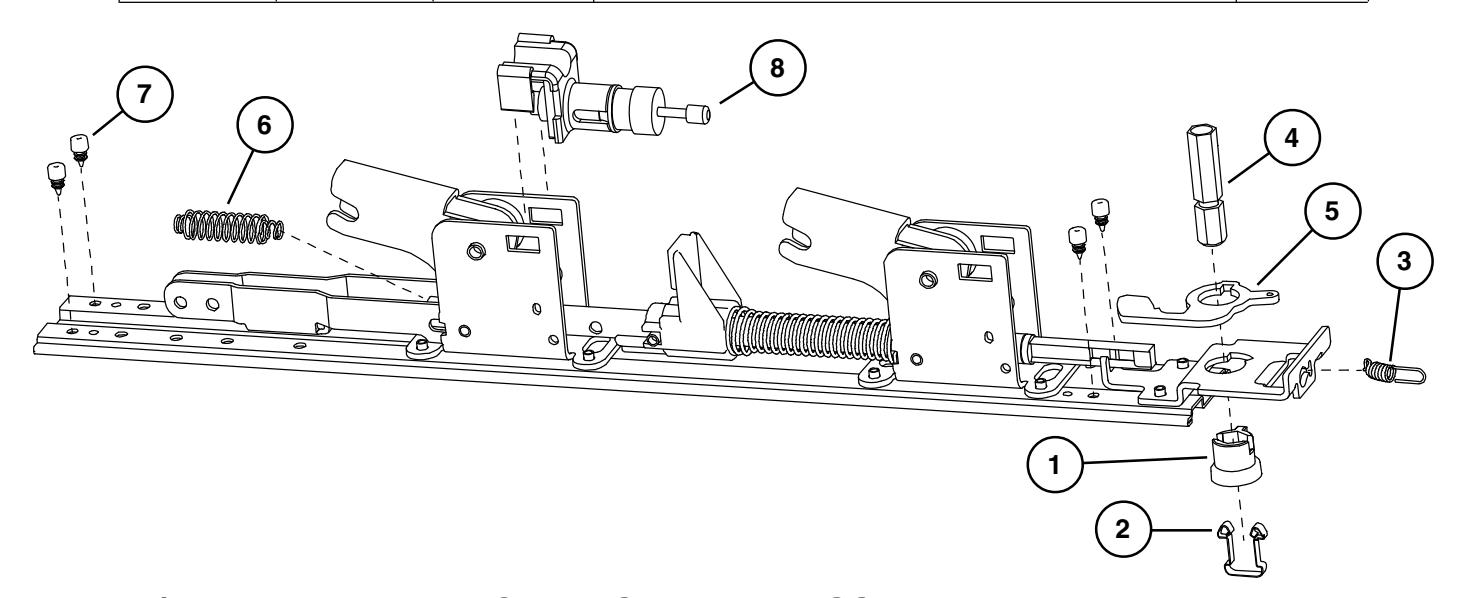

98/9927 PANIC DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 090043 |
Dogging
adapter (Pkg of 2) |
|
| 2 | 1 | 090042 |
Dogging
adapter spring (Pkg of 2) |
|
| 3 | 1 | 090041 |
Dogging
spring (Pkg of 2) |
|
| 4 | 1 | 090040 |
Hex
dogging shaft (Pkg of 2) |
|
| 5 | 1 | 090044 |
Dogging
hook (Pkg of 2) |
|
| 6 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 7 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 8 | 1 | 050491 |
Shock
absorber |

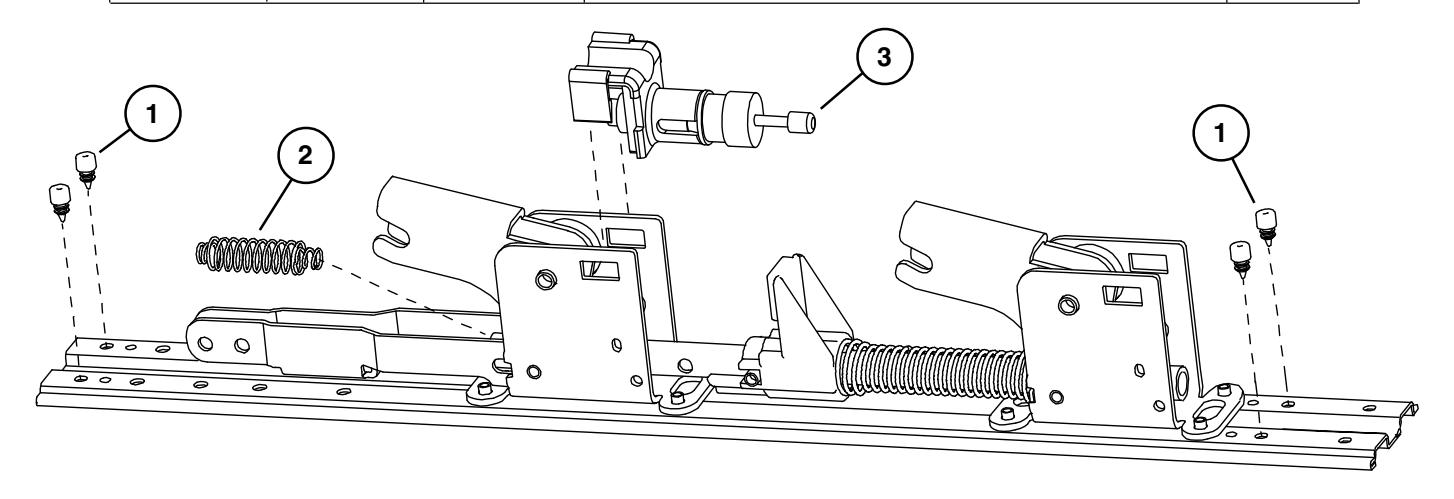

98/9927-F FIRE DEVICE BASEPLATE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 4 | 090038 |
Rubber
bumper (Pkg of 4) |
|
| 2 | 1 | 090039 |
Latch
return spring (Pkg of 10) |
|
| 3 | 1 | 050491 |
Shock
absorber |

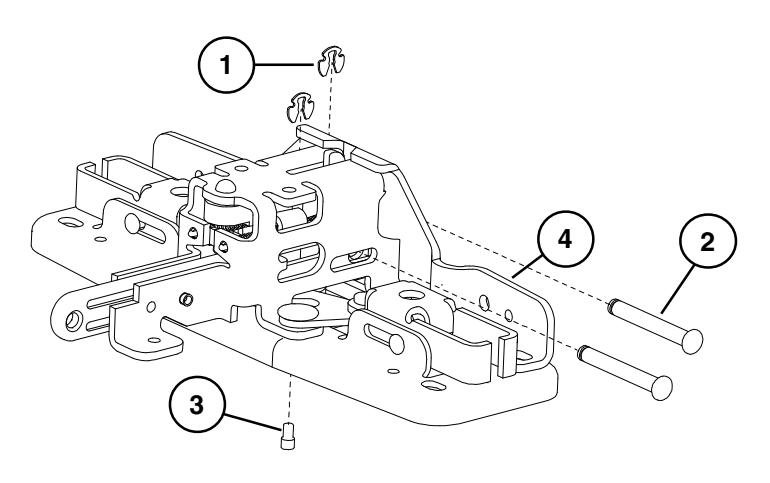

98/9927 DEVICE CENTER CASE ASSEMBLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 2 | 090107 |
Retaining
Ring (Pkg of 10) |
|
| 2 | 2 | 090079 |
Latch
Bolt Pin (Pkg of 10) |
|
| 3 | 1 | 090074 |
NL
Drive Screw (Pkg of 10) |
|
| 4 | 1 | 050565 |
Center
Case Reinforcing Bracket |

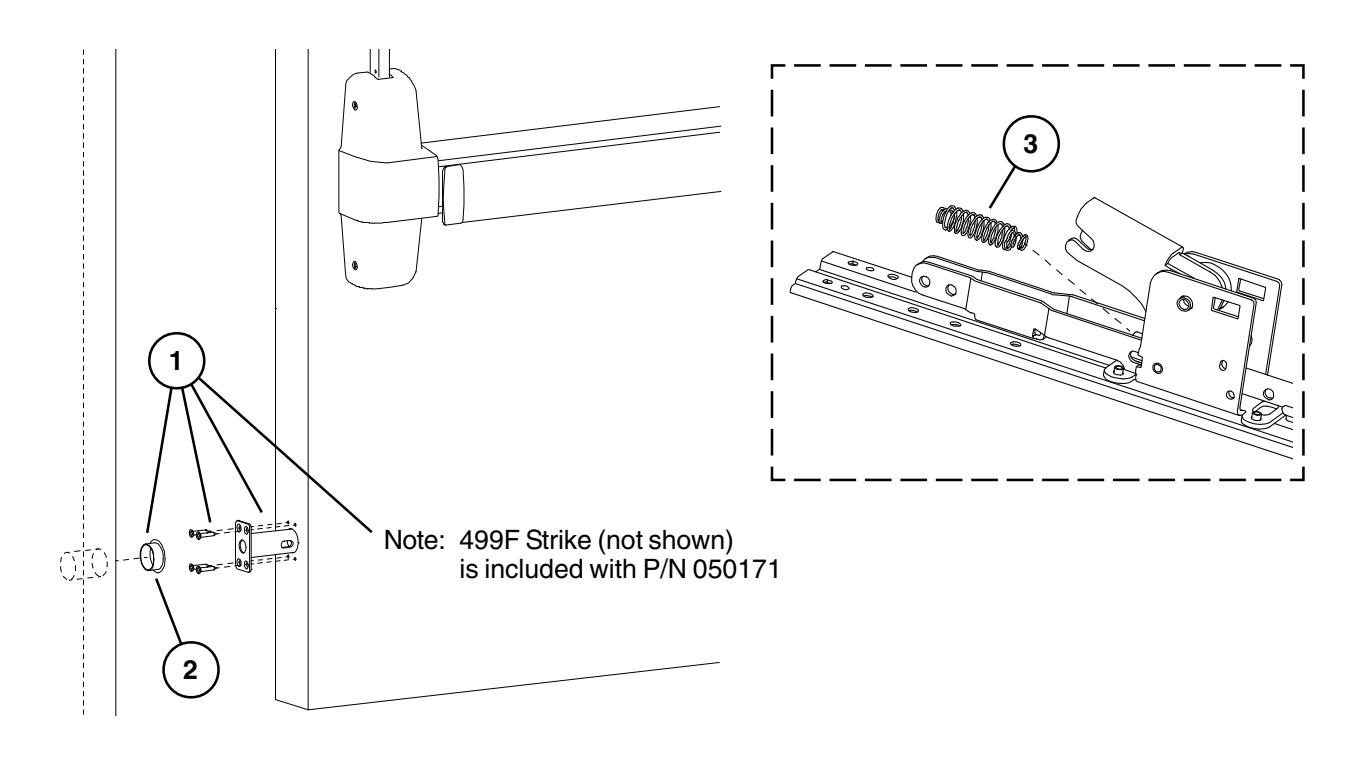

98/9927-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050171 |
LBR
Fire Latch/Strike kit |
|
| 2 | 1 | 050509 |
LBR
Fire Strike Plug |
|
| 3 | 1 | 090088 |
98/9927-F
LBR Latch Spring Pkg of 10 |
|
| 4 | 1 | 900980 |
98/9927-F
LBR Latch Mounting Package |

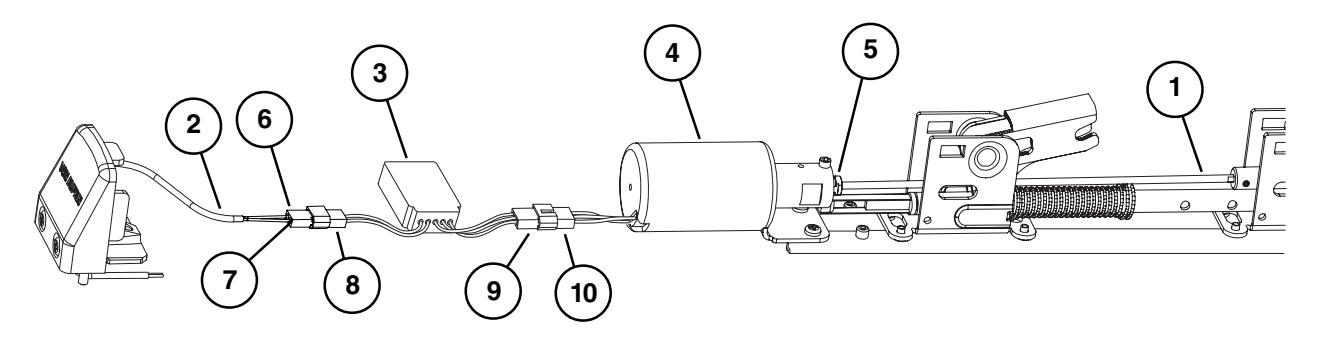

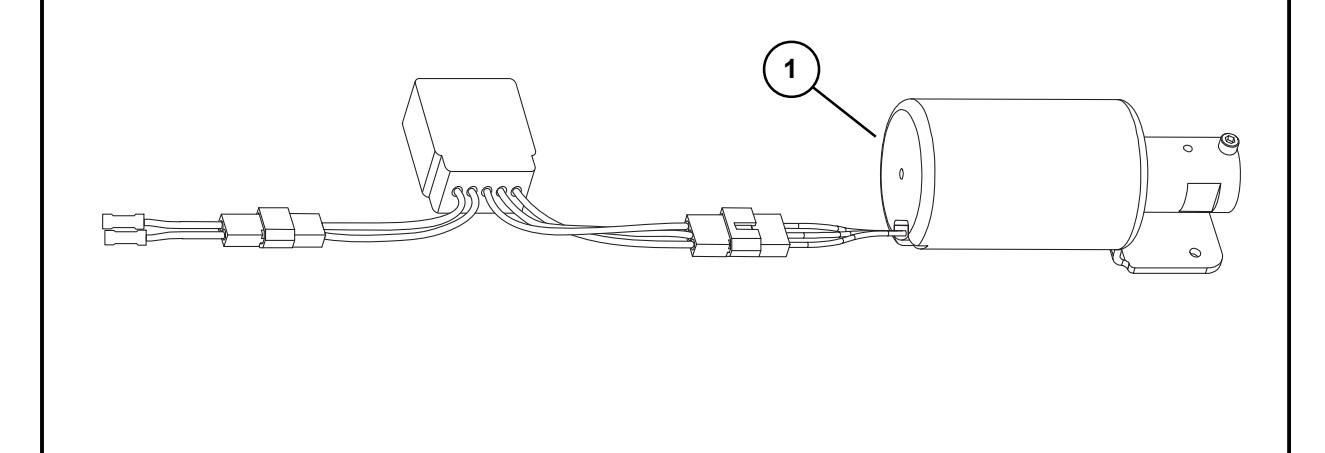

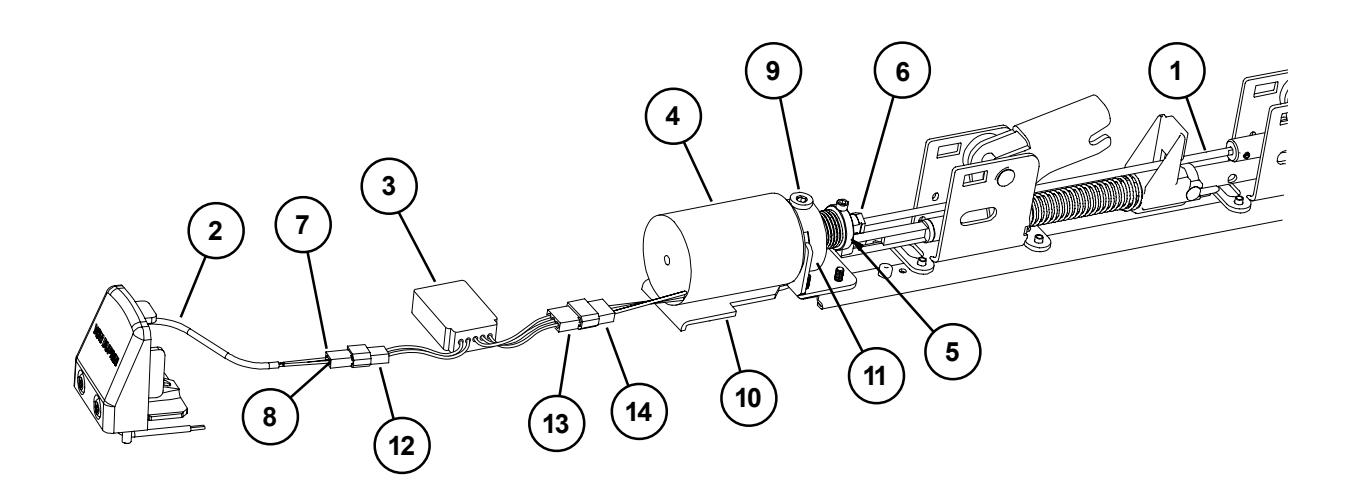

HD-EL9827/HD-EL9927 HEX DOGGING/ELECTRIC LATCH RETRACTION OPTION - PANIC DEVICE ONLY
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050536 | HD-EL Solenoid | |
| 5 | 1 | 050537 | HD-EL Solenoid Plunger | |
| 6 | 1 | 050538 | EL Dogging Rod Retainer | |
| 7 | 1 | 050539 | EL Receptacle Connector - 2 Position | |
| 8 | 2 | 050540 | EL Female Terminal | |
| 9 | 1 | 050541 | HD-EL Dog Screw | |
| 10 | 1 | 050542 | HD-EL Solenoid Bracket | |
| 11 | 1 | 050543 | HD-EL Dogging Spring | |
| 12 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 13 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 14 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050384 | HD-EL Conversion Kit - 3' | |
| * | 1 | 050385 | HD-EL Conversion Kit - 4' |
* Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
EL9827/EL9927 SERIES ELECTRIC LATCH RETRACTION OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050531 | EL Dogging Rod Kit - 3' device | |
| 1 | 1 | 050532 | EL Dogging Rod Kit - 4' device | |
| 2 | 1 | 110388 | EL 6' Cable and Connector | |
| 3 | 1 | 050534 | EL Potted Module | |
| 4 | 1 | 050535 | EL Solenoid Assembly | |
| 5 | 1 | 050538 | EL Dogging Rod Retainer | |
| 6 | 1 | 050539 | EL Receptacle Connector | |
| 7 | 2 | 050540 | EL Female Terminal | |
| 8 | 1 | 990599 | EL Plug Connector - 2 Position | |
| 9 | 1 | 990857 | EL Receptacle Connector - 3 Position | |
| 10 | 1 | 990858 | EL Plug Connector - 3 Position | |
| * | 1 | 050070 | EL Conversion Kit - 3' | |
| * | 1 | 050078 | EL Conversion Kit - 4' |
* Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

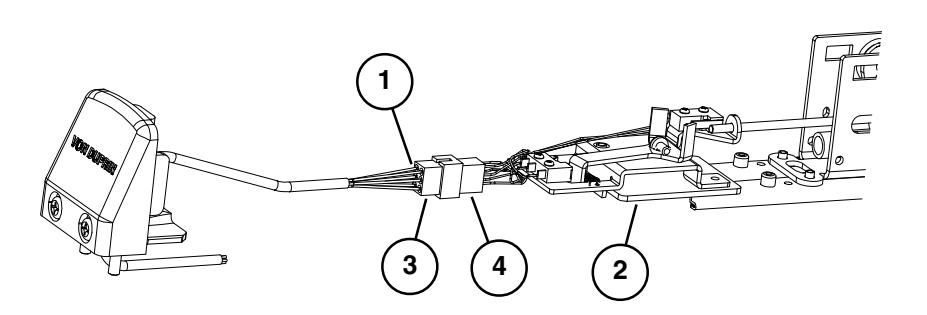

SS9827/SS9927 SERIES (SIGNAL SWITCH) OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050544 |
SS
Cable |
|
| 2 | 1 | 050545 |
SS
Housing |
|
| 3 | 1 | 990601 |
SS
Plug Connector - 6 Position |
|
| 4 | 1 | 990602 |
SS
Receptacle Connector - 6 Position |

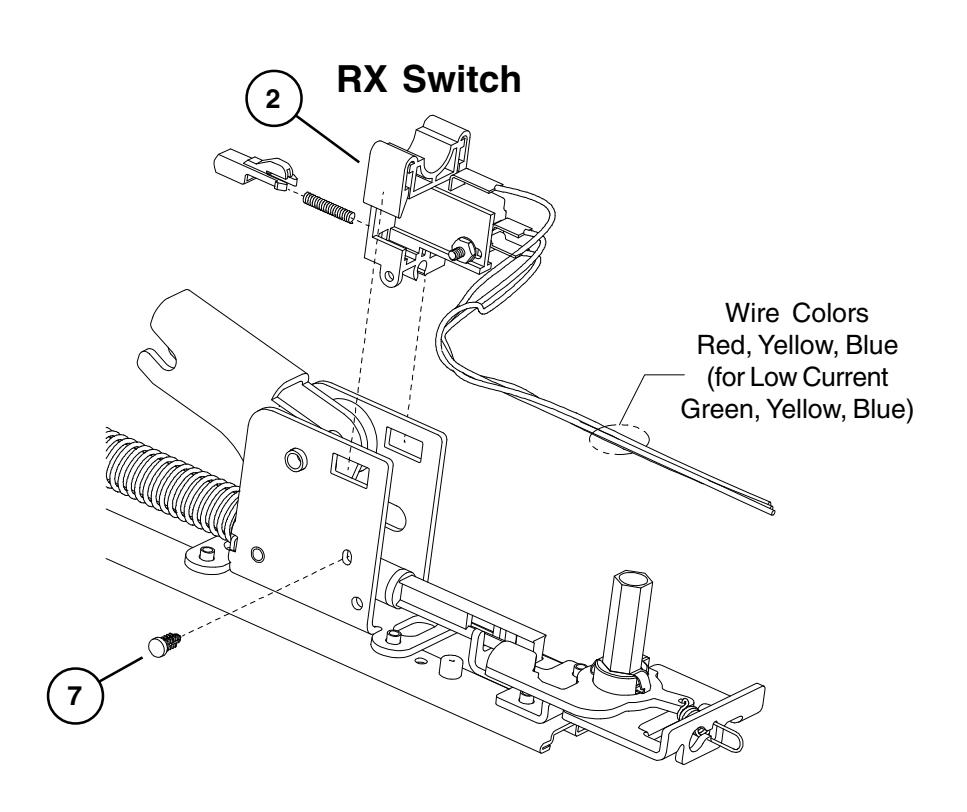

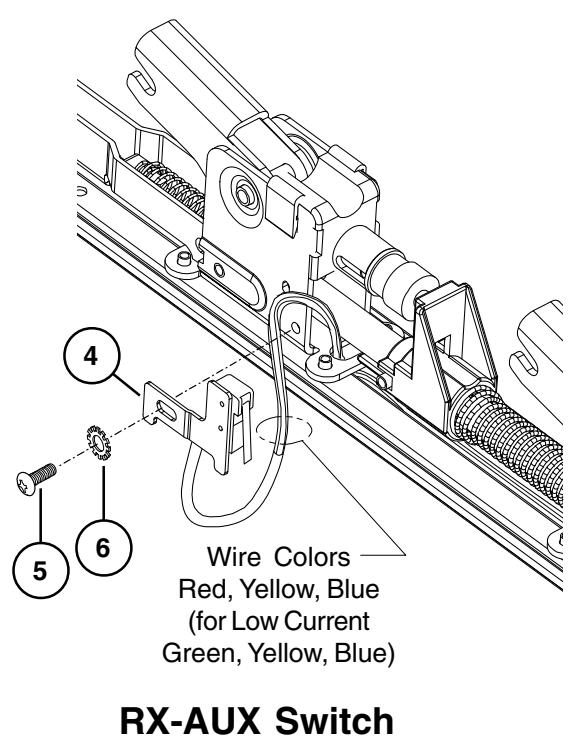

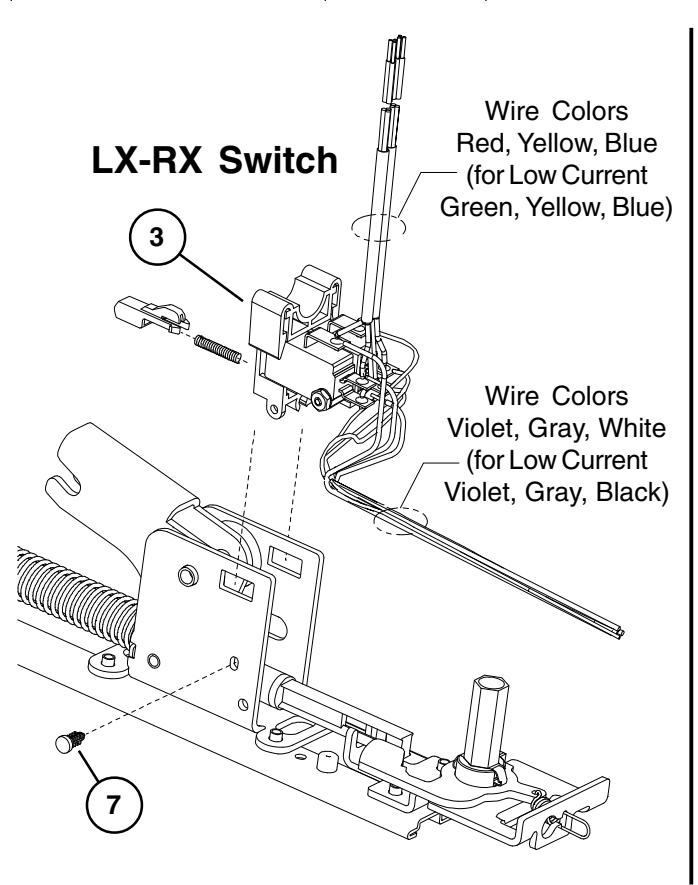

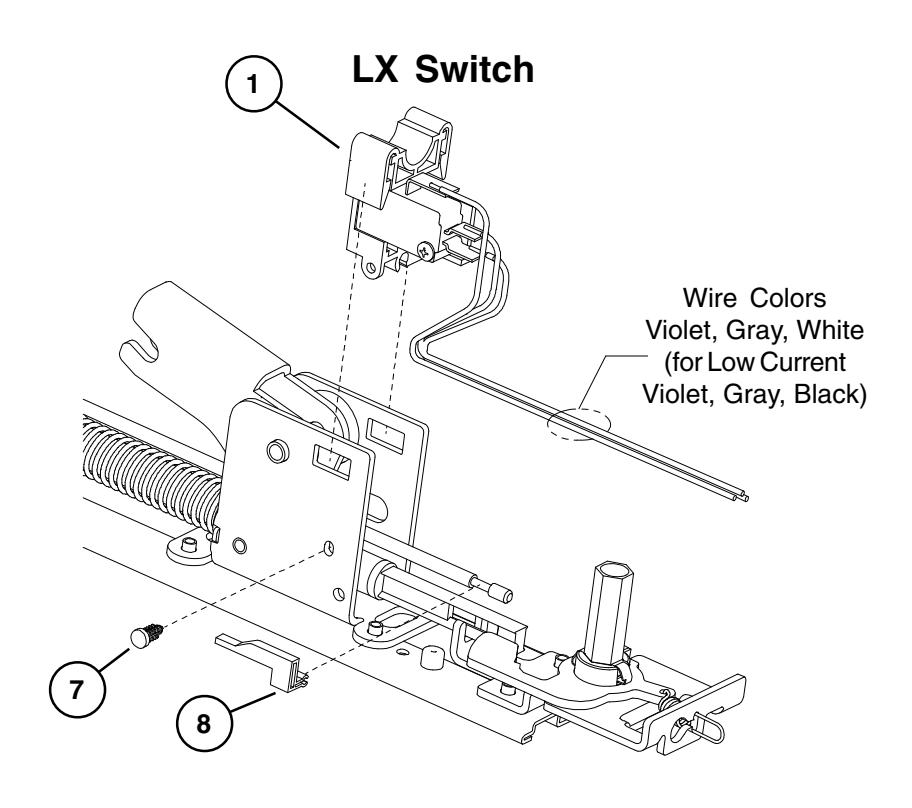

98/9927 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
98/9927 SERIES LX (LATCH BOLT MONITOR) & RX (REQUEST TO EXIT) OPTIONS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050254 |
LX Switch
Kit 3' Device |
|
| 1 | 1 | 050255 |
LX Switch
Kit 4' Device |
|
| 1 | 1 | 050247 |
LX-EL
Switch Kit |
|
| 1 | 1 | 050283 |
LX-LC
(Low Current) Switch Kit 3' Device |
|
| 1 | 1 | 050285 |
LX-LC
(Low Current) Switch Kit 4' Device |
|
| 1 | 1 | 050287 |
LX-LC-EL
(Low Current) Switch Kit |
|
| 2 | 1 | 050251 |
RX Switch
Kit |
|
| 2 | 1 | 050281 |
RX-LC
(Low Current) Switch Kit |
|
| 3 | 1 | 050256 |
LX-RX
Switch Kit 3' Device |
|
| 3 | 1 | 050257 |
LX-RX
Switch Kit 4' Device |
|
| 3 | 1 | 050259 |
LX-RX-EL
Switch Kit |
|
| 3 | 1 | 050289 |
LX-RX-LC
(Low Current) Sw. Kit 3' Device |
|
| 3 | 1 | 050291 |
LX-RX-LC
(Low Current) Sw. Kit 4' Device |
|
| 3 | 1 | 050293 |
LX-RX-LC-EL
(Low Current) Switch Kit |
|
|
2
& 4 |
1 | 050270 |
RX-2
Switch Kit |
|
| 4 | 1 | 050271 |
RX-AUX
Switch Kit |
|
| 5 | 1 | 964558 |
8-32
x 5/16" PPHMS |
|
| 6 | 1 | 964019 |
#8
Washer |
|
| 7 | 1 | 090099 |
Pine
Tree Clip (Pkg of 10) |
|
| 8 | 1 | 971091 | LXActuator |
CX98/9927 SERIES CHEXIT AND CX-RCM OPTION
For discontinued Chexit devices made before August, 24 2015
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050228 |
Chexit
PCB Kit - 15 Second Release |
|
| 1* | 1 | 050700 |
Chexit
PCB Kit - 30 Second Release |
|
| 1 | 1 | 050701 |
Chexit
PCB Kit - 0 Second Release |
|
| 1 | 1 | 050702 |
Chexit
PCB Kit - Boca 15 Second Release |
|
| 1* | 1 | 050703 |
Chexit
PCB Kit - Boca 30 Second Release |
|
| 2 | 1 | 050533 |
CX
Solenoid and Plunger |
|
| 3 | 1 | 113111 |
Faceplate
andAdapter |
X |
| 4 | 4 | 963898 |
6-32
x 3/8" OPHMS Faceplate Screw |
X |
| 5 | 1 | 991338 |
RCM
2-Wire RX Cable |
|
| 6 | 1 | 991339 |
RCM
3-Wire Solenoid Cable |
|
| 7 | 1 | 112018 |
Chexit
Wiring Assembly |
|
| 8 | 1 | 991336 |
CX-RCM
Cable Assy - 5 Wire |
|
| 9 | 1 | 090036 |
Cover
PlateAnti-rattle Spring (Pkg of 10) |
|
| 10 | 1 | 970513 |
LED
Cover Mask - Chexit |
|
| 11 | 1 | 970519 |
LED
Cover - Chexit |
|
| 12 | 1 | 113781 |
Sign
15 Second - Chexit |
|
| 13 | 1 | 113782 |
Sign
30 Second - Chexit |
* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.

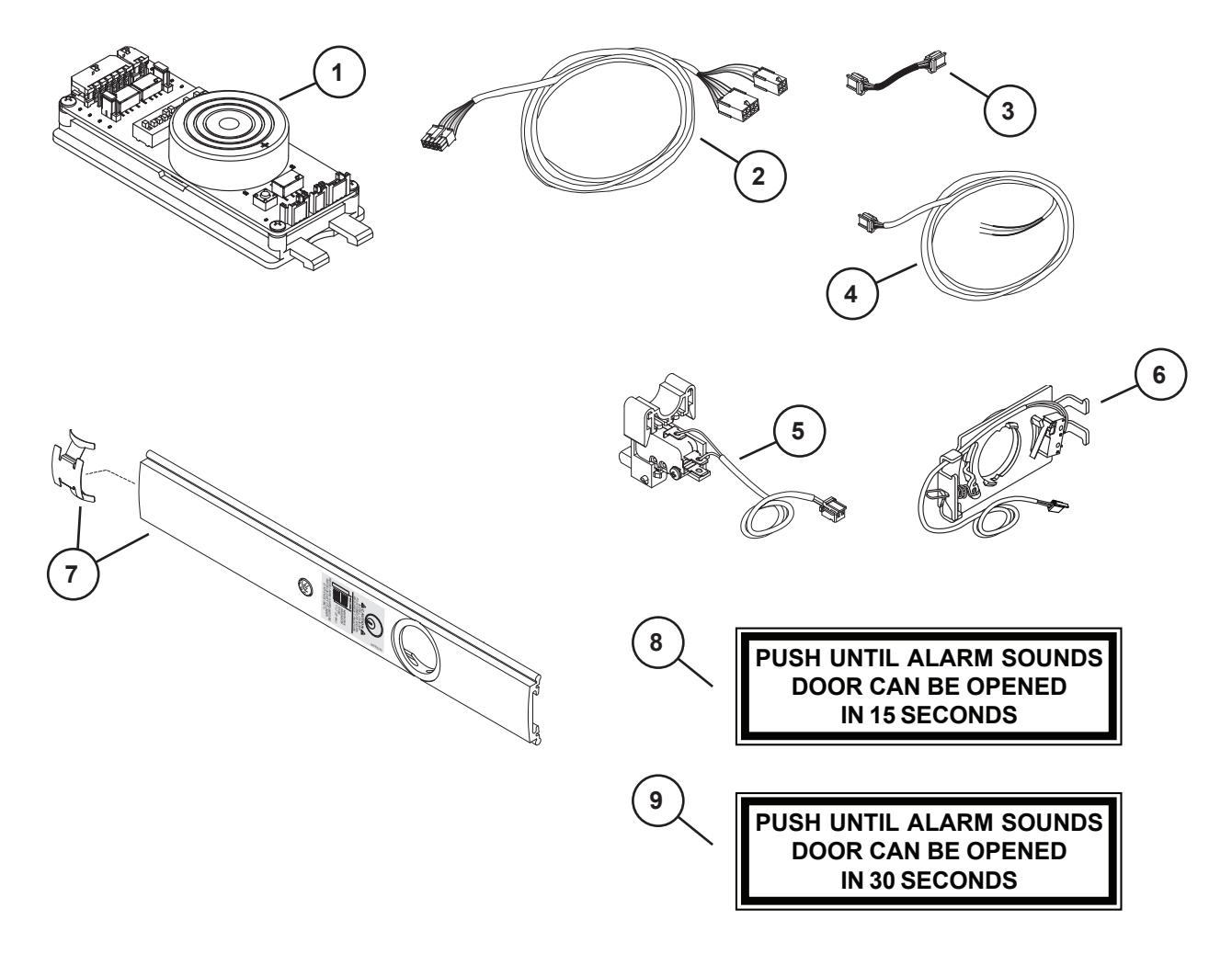

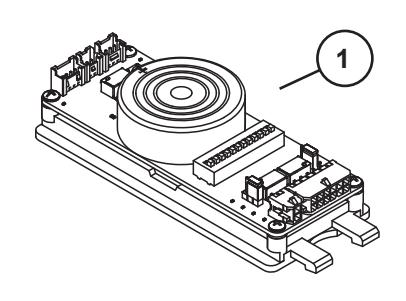

CX98/9927 SERIES CHEXIT
For new Chexit devices made after August, 24 2015
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 040086 | Standard - 15 Second Release Delay | |
| 1* | 1 | 040087 | Special Infinite Release Delay | |
| 1* | 1 | 040088 | Special 30 Second Release Delay | |
| 1 | 1 | 040089 | Special 0 Second Release Delay | |
| 1 | 1 | 040090 | Special Mute 15 Second Release Delay | |
| 1 | 1 | 040091 | BOCA 15 Second Release Delay | |
| 2 | 1 | 040191 | CX Field Wiring Cable | |
| 3 | 1 | 040192 | CX Motor Cable | |
| 4 | 1 | 040193 | CX Trim Device Cable | |
| 5 | 1 | 116717 | CX RX Switch Assembly | |
| 6 | 1 | 040170 | CX Key Switch Assembly 3' | |
| 6 | 1 | 040189 | CX Key Switch Assembly 4' | |
| 7 | 1 | 040093 | CX33/99 Cover Plate Kit | X |
| 7 | 1 | 040094 | CX35/98 Cover Plate Kit | X |
| 8 | 1 | 113781 | Sign 15 Second | |
| 9 | 1 | 113782 | Sign 30 Second |
* Over 15 second delay requires a letter of approval from the authority having local jurisdiction over the premises prior to the installation of the device. Allegion cannot grant such approval nor does it warrant local jurisdiction compliance.

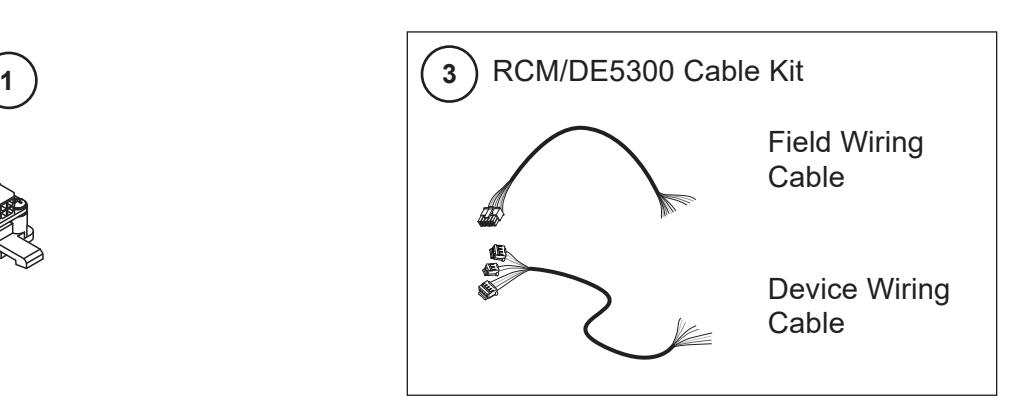

CX-RCM/DE5300 OPTIONS
For new RCM/DE5300 devices made after August, 24 2015
| Item No. | Quantity | Part No, | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 116711 | Standard - 15 Second Release Delay | |
| 2 | 1 | 040092 | RCM Device Cable | |
| 3 | 1 | 040188 | DE5300/RCM Cable Kit | |

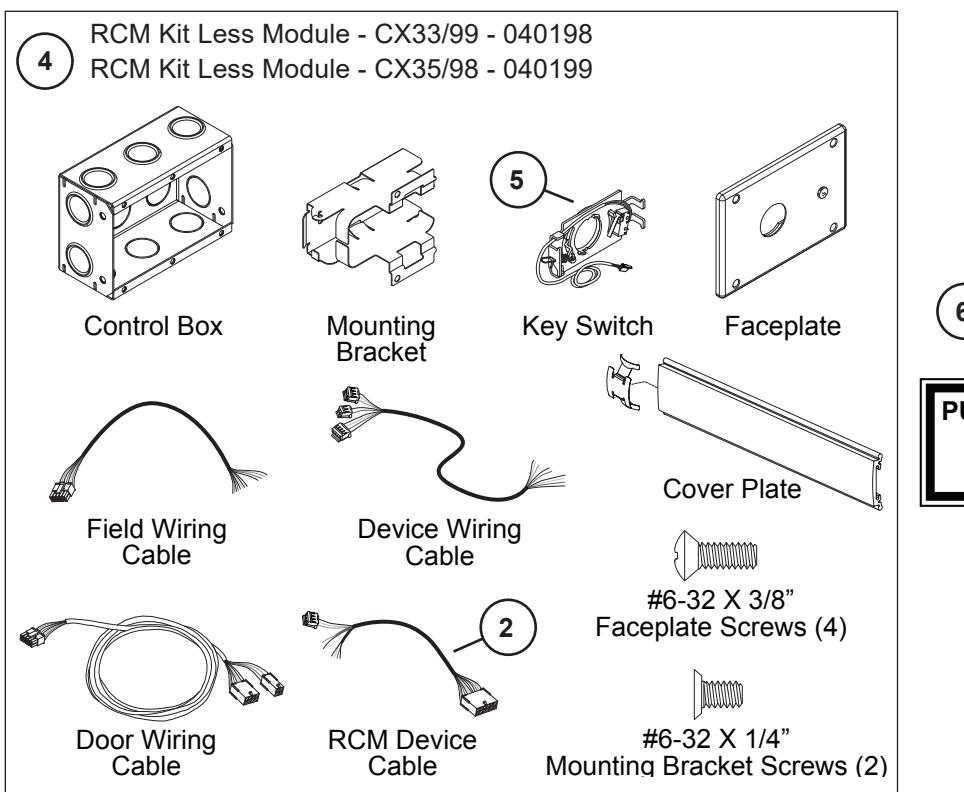

| 4 | 1 | 040198 | RCM Kit Less Module - CX33/99 | X |
| 4 | 1 | 040199 | RCM Kit Less Module - CX35/98 | X |

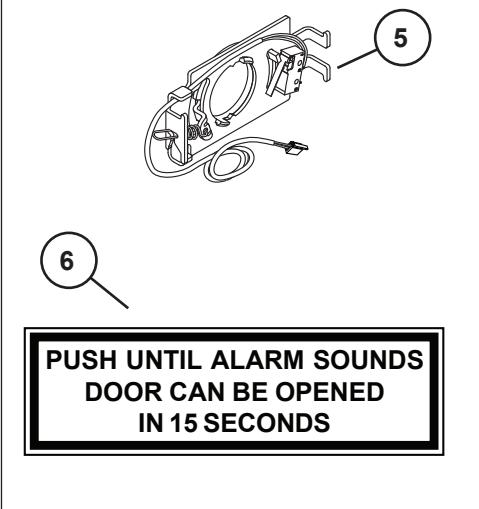

| 5 | 1 | 040169 | DE5300/RCM Key Switch Assy | |
| 6 | 1 | 113781 | Sign 15 Second |

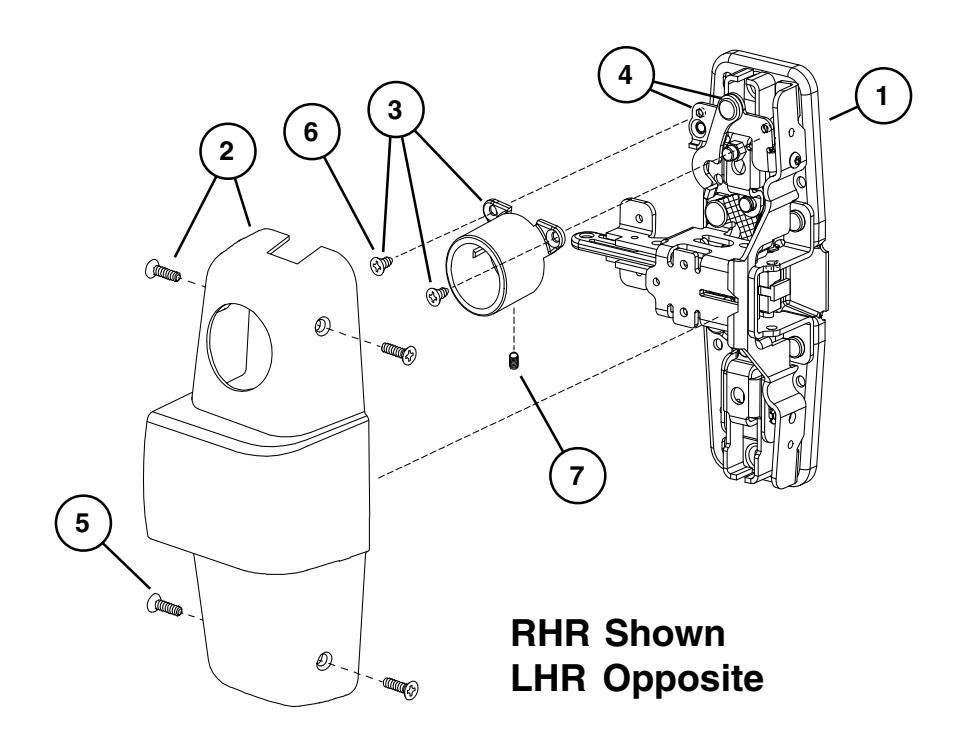

CX-CD/SD98/9927 SERIES OPTION
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1* | 1 | 050550 |
SD98/9927
RHR Center Case Kit Less Cvr |
|
| 1* | 1 | 050551 |
SD98/9927
LHR Center Case Kit Less Cvr |
|
| 2 | 1 | 050559 |
SD98/9927
RHR Center Case Cover Kit |
X |
| 2 | 1 | 050560 |
SD98/9927
LHR Center Case Cover Kit |
X |
| 3 | 1 | 112409 |
CD-CX/SD
Cylinder Dog Housing |
|
| 4 | 1 | 112455 |
CX-CD/SD
Cylinder Dog Bracket Kit RHR |
|
| 4 | 1 | 112456 |
CX-CD/SD
Cylinder Dog Bracket Kit LHR |
|
| 5 | 4 | 900892 |
Center
Case Cover Screws |
X |
| 6 | 2 | PkgServ.1018 |
8-32
x 1/4" UFPHMS (Pkg of 20) |
|
| 7 | 1 | 964240 |
Bracket
Set Screw |
* Parts shown are for the CX-CD/SD option. For other available center case parts refer to page 11.

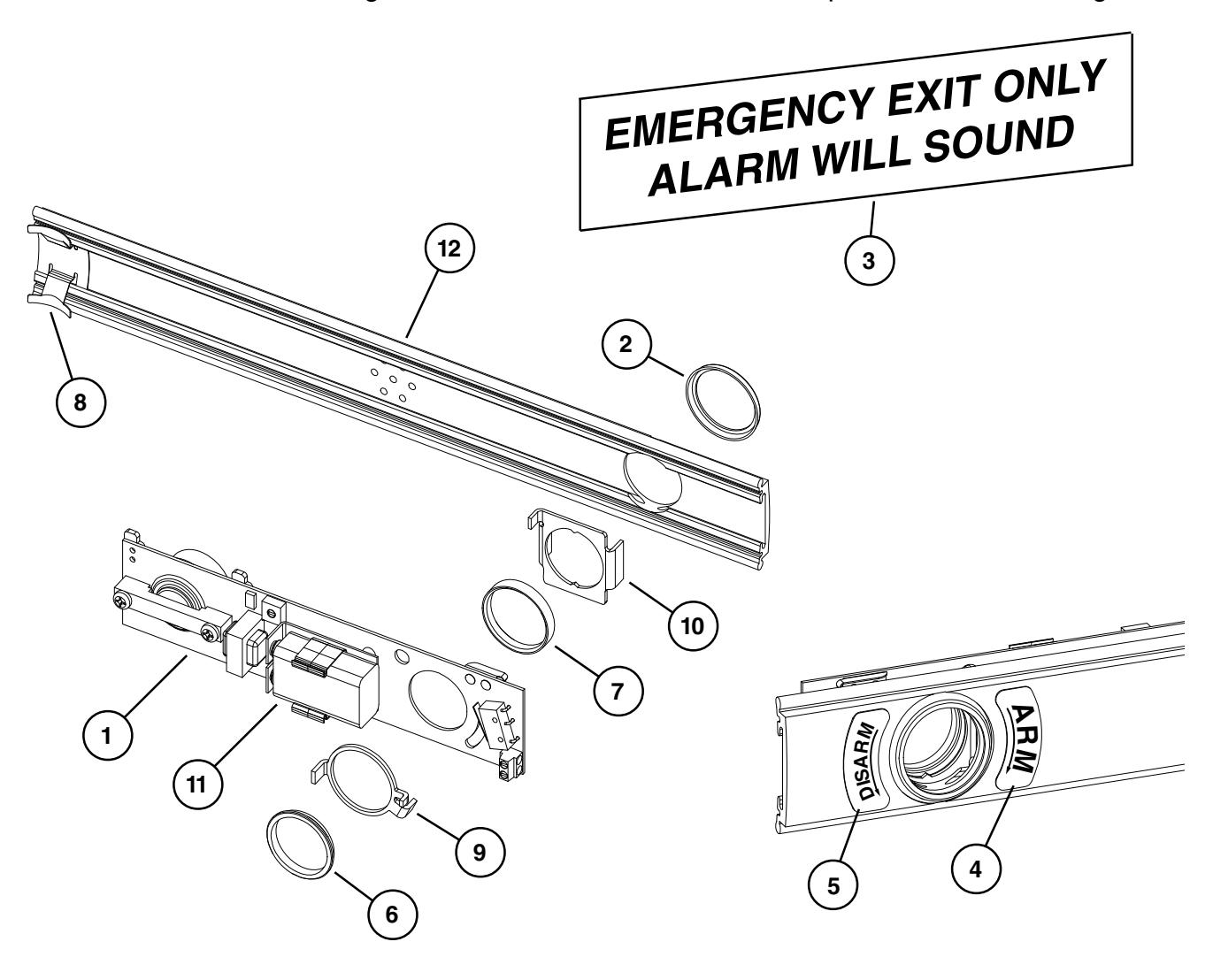

98/9927 ALK EXIT ALARM KIT
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 111795 | ALK PCB Assembly | |
| 2 | 1 | 050525 | Cylinder Collar | X |
| 3 | 1 | 969122 | ALK Alarm Device Sign | |
| 4 | 1 | 969349 | ALK Arming Label | |
| 5 | 1 | 969350 | ALK Disarming Label | |
| 6 | 1 | 969354 | Retainer Nut | |
| 7 | 1 | 970594 | ALK Cylinder Spacer | |
| 8 | 1 | 090036 | Cover Plate Anti-rattle spring (Pkg of 10) | |
| 9 | 1 | 971556 | ALK Switch Actuator | |
| 10 | 1 | 971557 | ALK Cylinder Bracket | |
| 11 | 1 | 990637 | ALK Battery | |
| 12 | 1 | 050569 | 99A Series ALK Cover Plate Kit | Х |
| 12 | 1 | 050570 | 98A Series ALK Cover Plate Kit | Х |
X in "Finish" column designates finished items; finish must be specified when ordering.

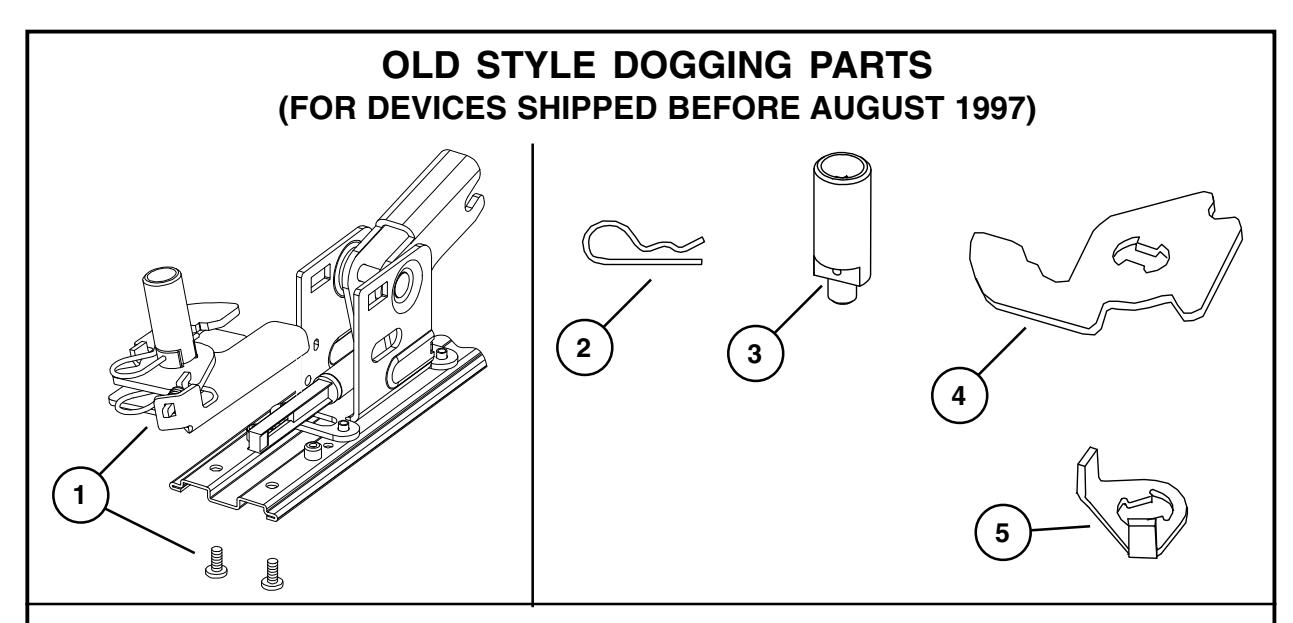

98/9927 SERIES SERVICE REPLACEMENT ITEMS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050153 |
Old
Style Hex Dogging Replacement Kit |
|
| 2 | 1 | 963909 |
#22
Hitch Pin - Hex/CD Dogging Old Style |
|
| 3 | 1 | 968112 |
Old
Style Hex Dog Shaft |
|
| 4 | 1 | 969941 |
Old
Style Dogging Hook |
|
| 5 | 1 | 968116 |
Old
Style CD ActuatorArm |
|
| 6 | 1 | 900905 |
Old
Style End Cap and Bracket Assembly |
X |
| 7 | 1 | 970548 |
Old
Style Cover Plate Stop - End Cap |
|
| 8 | 1 | 900901 |
Old
Style End Cap Screw Package |
X |
| 9 | 1 | 971082 |
Old
Style 98/99 End Cap - Stainless Steel |
X |
| 9 | 1 | 971083 |
Old
Style 98/99 End Cap - Brass |
X |
| 9 | 1 | 971084 |
Old
Style 98/99 End Cap - Bronze |
X |
| 9 | 1 | 971085 |
Old
Style 98/99 End Cap -Aluminum |
X |
X in "Finish" column designates finished items; finish must be specified when ordering.

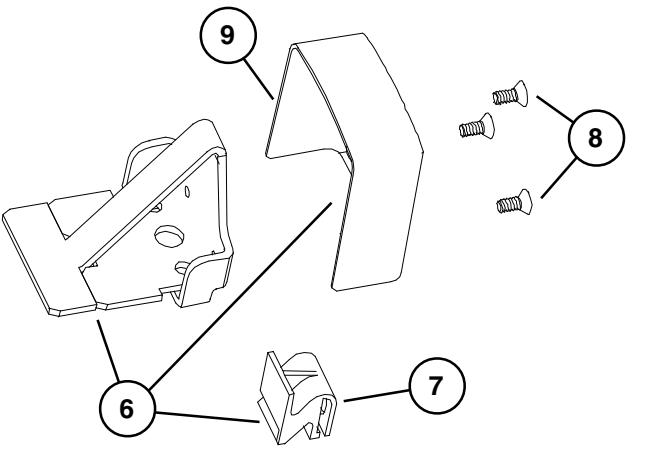

OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED BEFORE JANUARY 2002)
Note: Newer style end cap kit shown on pages 4-5. Newer style end cap kit can be used on devices manufactured before January 2002, but mechanism case and cover plate on hinge stile must have a square cut and a clean edge.
98/9927 SERIES SERVICE REPLACEMENT ITEMS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050218 |
EL
Solenoid Replacement Kit |
X in "Finish" column designates finished items; finish must be specified when ordering.
EL SOLENOID REPLACEMENT KIT (FOR DEVICES SHIPPED BEFORE JANUARY 1987)
Note: This kit replaces the old style EL solenoid parts with the new style.
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 8,000 people and sells products in more than 120 countries across the world. Allegion comprises 27 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.
For more, visit www.allegion.com .
