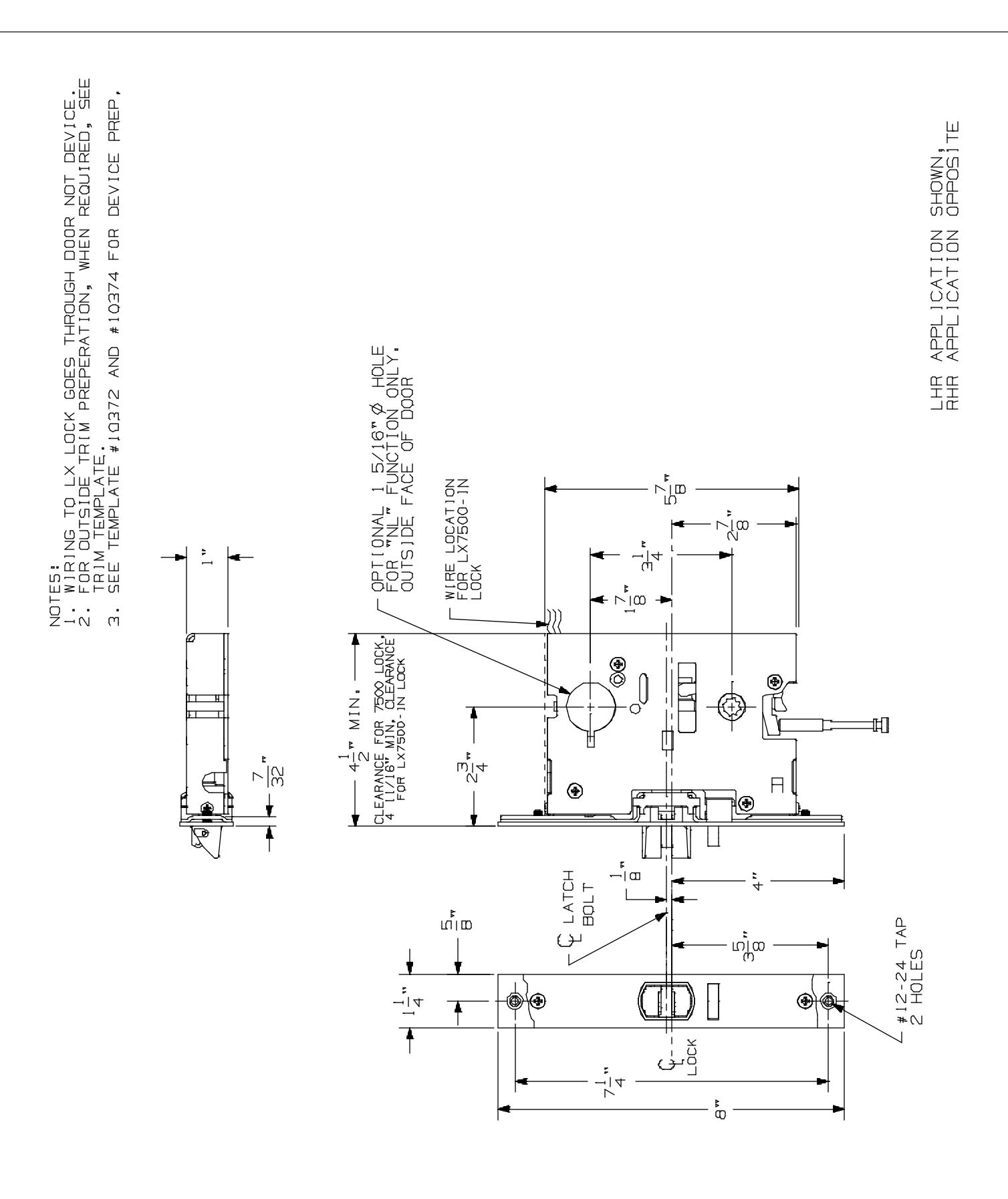

Von Duprin 9475, 9575, 9475-F, 9575-F Series Mortise Lock Dimensions
Open the original PDF document
View PDF
9475/9575 & 9475-F/9575-F Series Mortise Lock Devices
VON DUPRIN ®
TEMPLATE NUMBER:
10373_a
DATE: 05-22-13
Open the original PDF document
View PDF
TEMPLATE NUMBER:
10373_a
DATE: 05-22-13
