Von Duprin 88TP Rim Exit Device For Wood Door Template
Open the original PDF document
View PDF

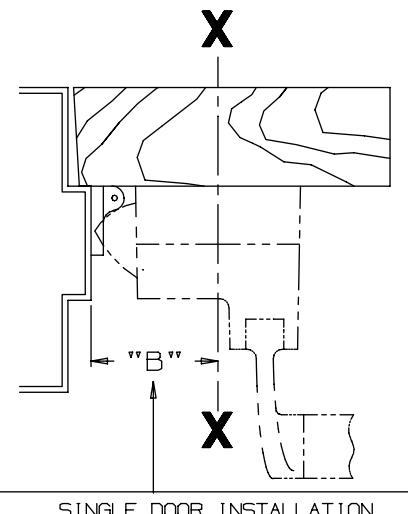

| SINGLE DOOR INSTALLATION | |||||
|---|---|---|---|---|---|
| STRIKE | DIMENSION "B" | MIN. STILE | |||
| 299 | 2 1/2" | 4 3/8" | |||
| 264 | 2 1/4" | 4 1/8" | |||
| 1606 | 2 1/16" | 3 15/16" | |||
|

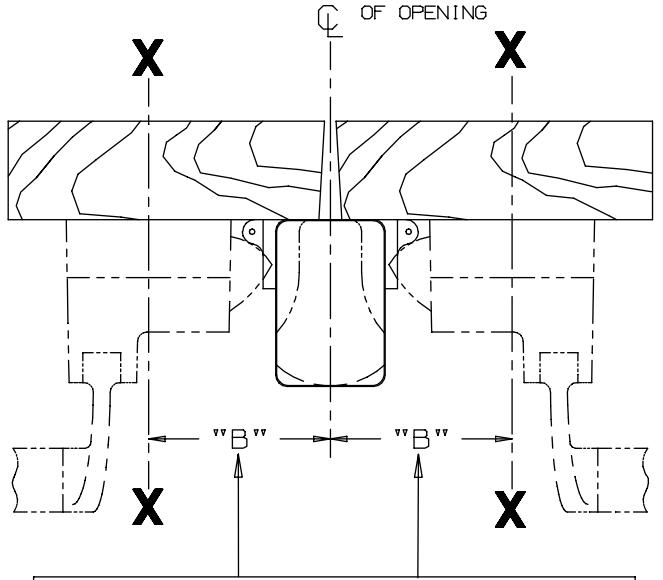

DOUBLE DOOR INSTALLATION
WITH VON DUPRIN MULLIONS |
||||||
|---|---|---|---|---|---|---|
| MULLION | STRIKE | DIMENSION "B" | MIN. STILE | |||
| (1) | 5654 | 299 | 3 1/16" | 4 1/4" | ||
| (1) | 5654 | 264 | 2 13/16" | 4" | ||
| ) | 4954 | 299 | 3 1/2" | 4 11/16" | ||
| 4954 | 264 | 3 1/4" | 4 7/16" | |||
| 1654 | 1606 | 3 1/16" | 4 1/4" | |||
FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.
INSIDE FACE OF LOCK STILE LHR DOOR

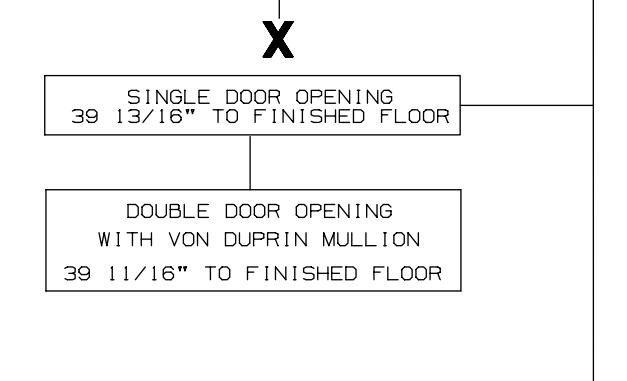

CROSSBAR 36 13/16" FROM FINISHED FLOOR
LHR SHOWN RHR OPPOSITE

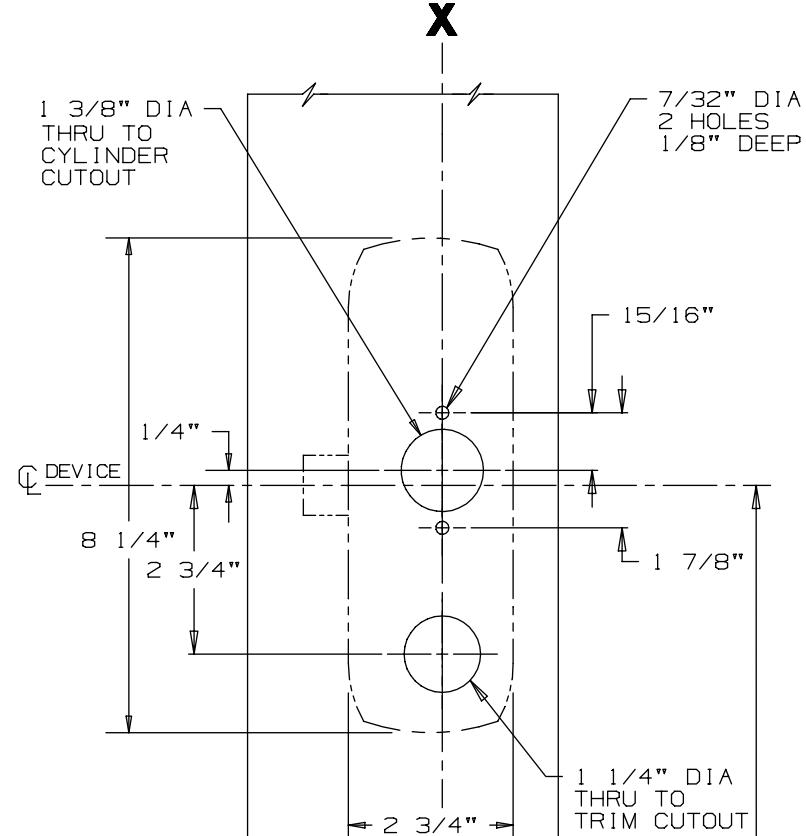

NOTE; MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.
88TP Series Rim Device (Wood Door)
VON DUPRIN ®
TEMPLATE NUMBER:
W10157_a
DATE: 05-29-13
