Von Duprin 88NL Rim Device with 880 Trim for Type “161” Stock Hollow Metal Applications Template

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10156 OR NO. 10170

NOTE: TYPE 161 STOCK HOLLOW METAL APPLICATIONS FOR 88 DEVICES WILL WORK ONLY ON THESE APPLICATIONS: SINGLE DOOR & 299, 299F OR 268 STRIKE.

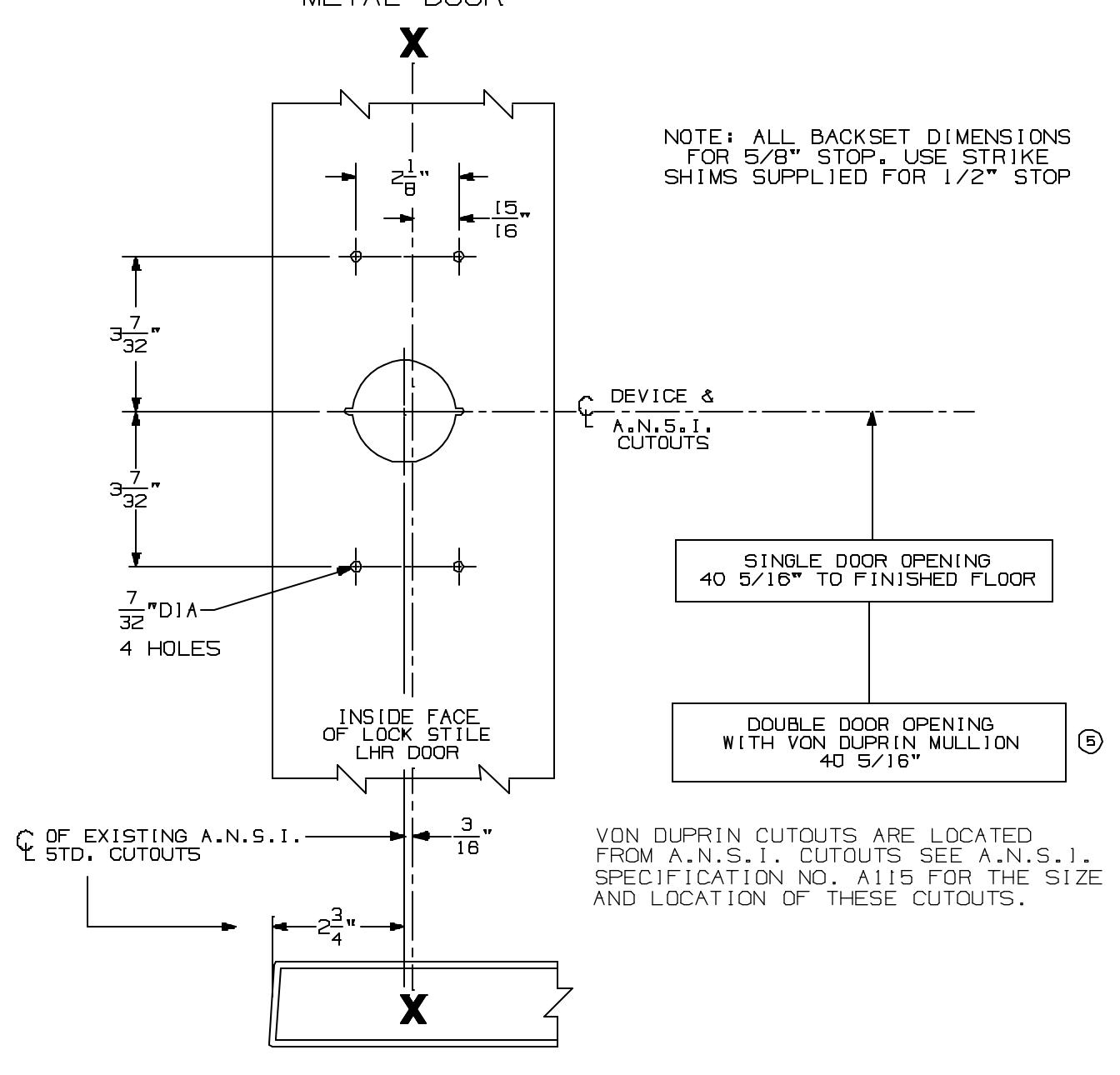

TYPE 161 STOCK HOLLOW METAL DOOR

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

LHR SHOWN RHR OPPOSITE

88NL Rim Device w/ 880 Trim for Type "161" Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

10195 a

DATE: 05-16-13
