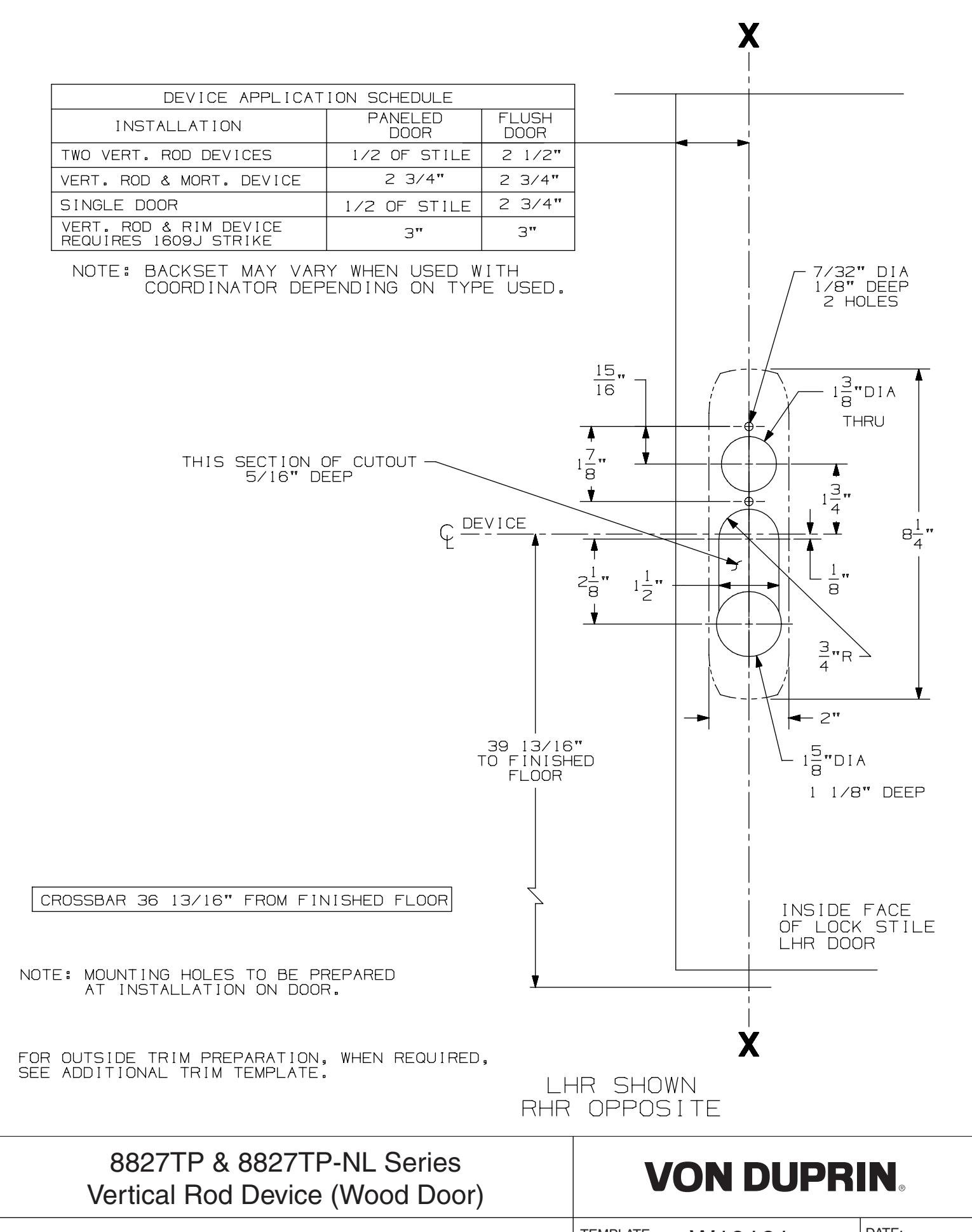

Von Duprin 8827TP and 8827TP NL Series Vertical Rod Device Wood Template 113102
Open the original PDF document
View PDF
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
W10161_a
DATE: 05-29-13
Open the original PDF document
View PDF
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
W10161_a
DATE: 05-29-13
