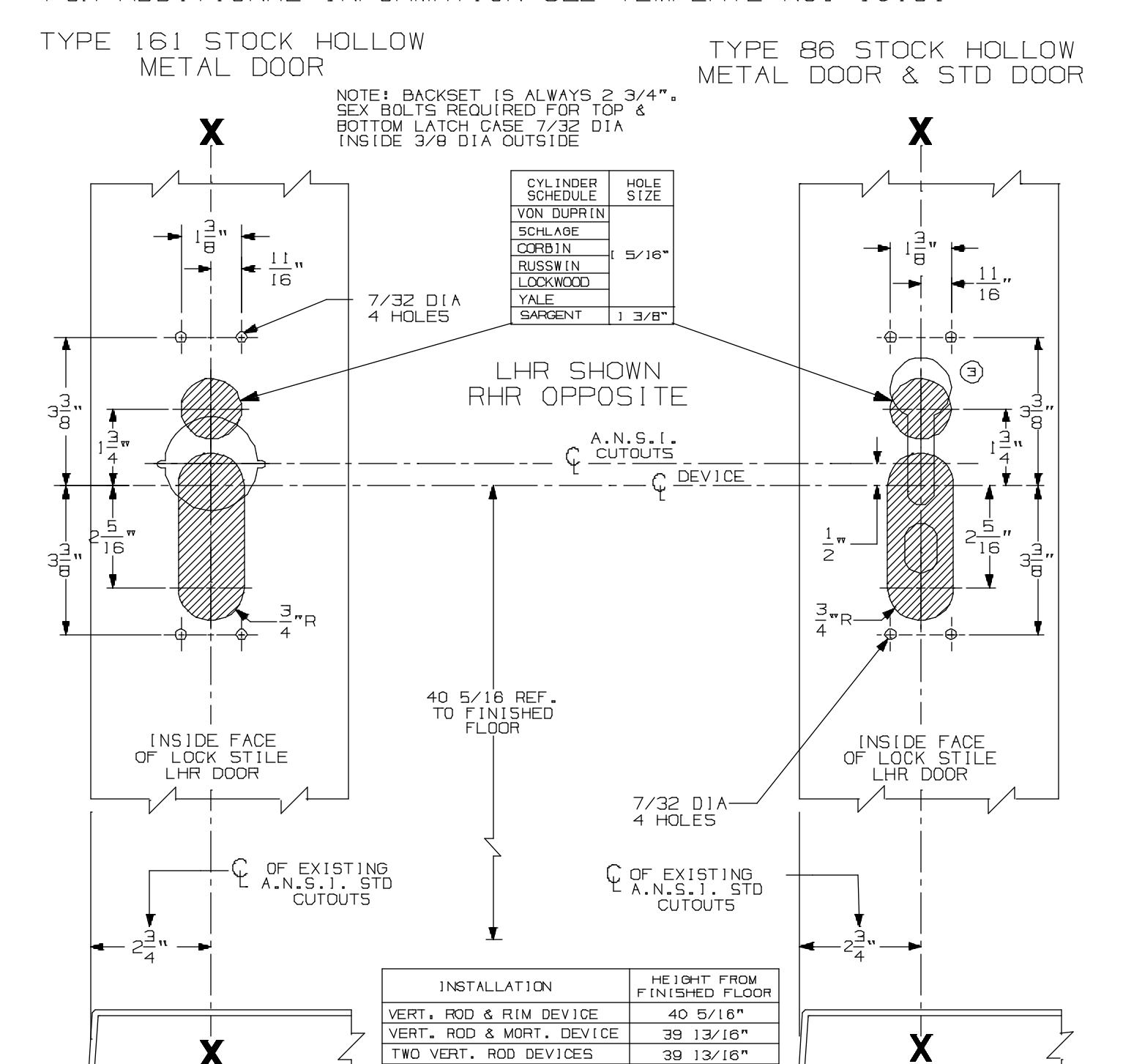

Von Duprin 8827TP Vertical Rod Device with 880 Trim for Stock Hollow Metal Applications Template

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10161

VON DUPRIN CUTOUTS ARE LOCATED FROM A.N.S.I. CUTOUTS SEE A.N.S.I. SPECIFICATION NO. A115 FOR THE SIZE AND LOCATION OF THESE CUTOUTS.

ONE VERT. ROD DEVICE

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

8827TP Vertical Rod Device w/ 880 Trim for Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

39 [3/16"

10200 a

DATE: 05-16-13
