FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

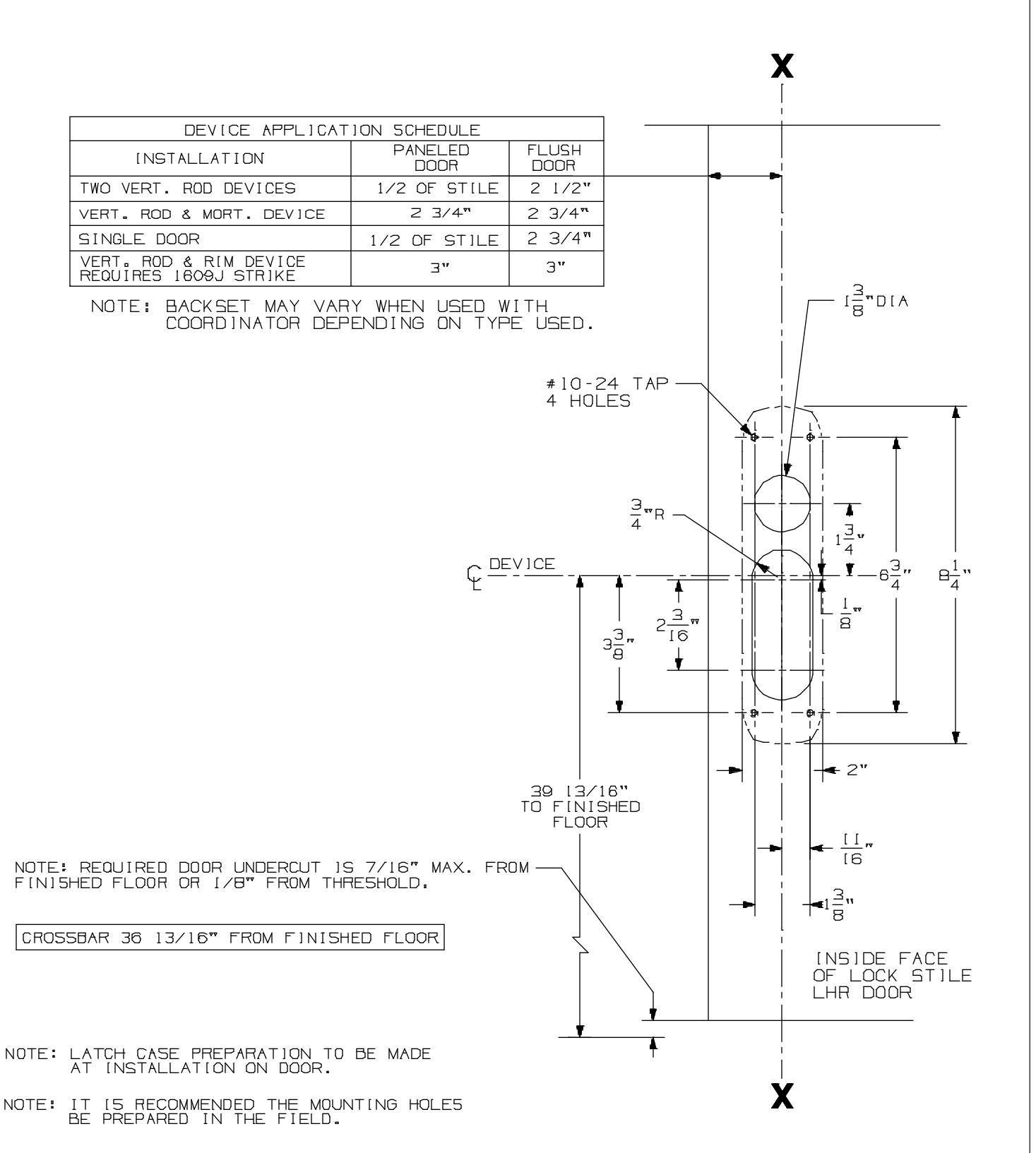

LHR SHOWN RHR OPPOSITE
8827TP & 8827TP-NL Series Vertical Rod Device
VON DUPRIN ®
TEMPLATE NUMBER:
10161_a
DATE: 05-16-13
