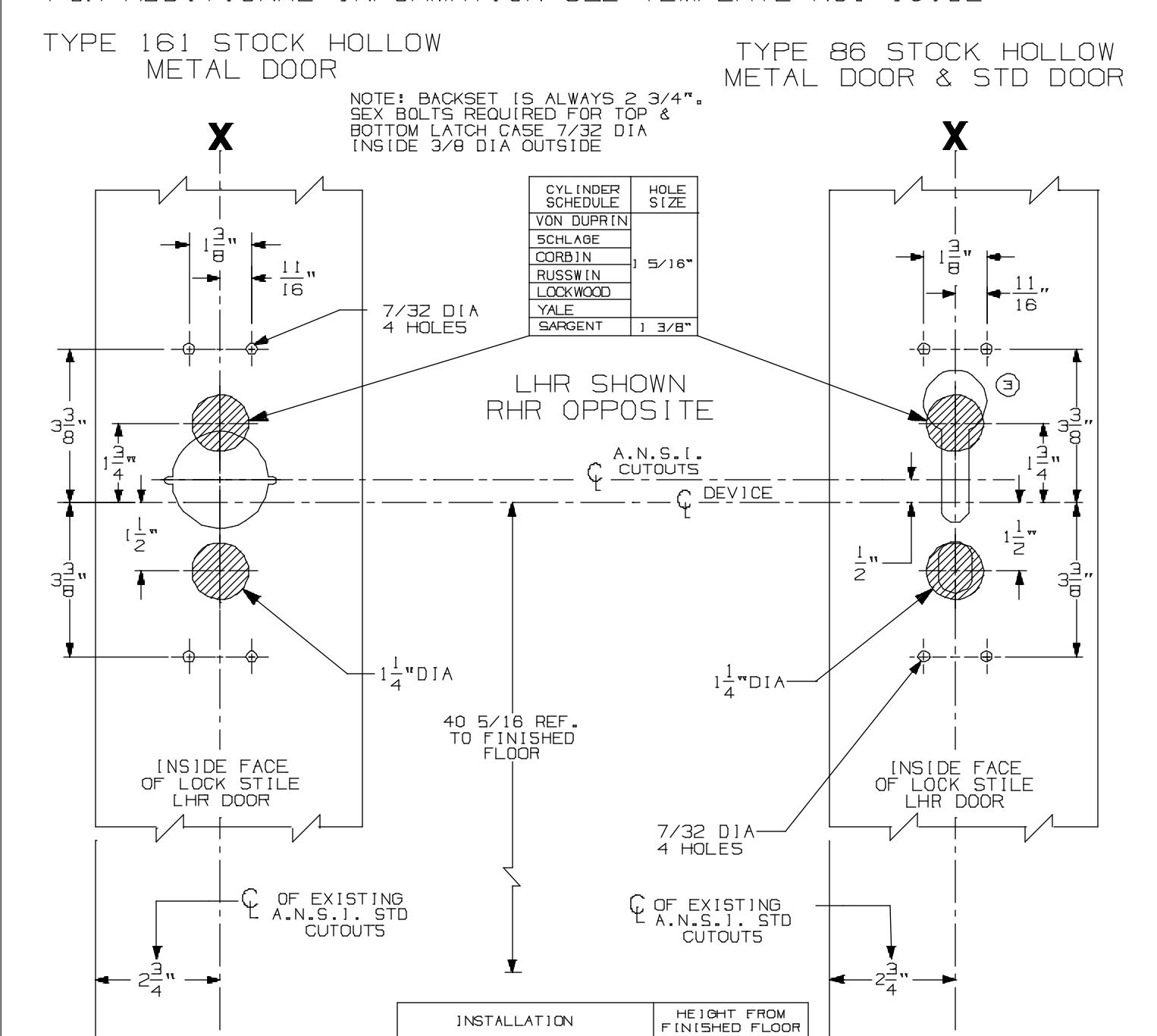

Von Duprin 8827K Vertical Rod Device with 880 Trim for Stock Hollow Metal Applications Template

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10162

VON DUPRIN CUTOUTS ARE LOCATED FROM A.N.S.I. CUTOUTS SEE A.N.S.I. SPECIFICATION NO. A115 FOR THE SIZE AND LOCATION OF THESE CUTOUTS.

VERT. ROD & R[M DEV]CE

TWO VERT. ROD DEVICES

ONE VERT. ROD DEVICE

VERT. ROD & MORT. DEVICE

FOR OUTSIDE TRIM PREPARATION, SEE ADDITIONAL TRIM TEMPLATE.

8827K Vertical Rod Device w/ 880 Trim for Stock Hollow Metal Applications

VON DUPRIN ®

TEMPLATE NUMBER:

40 5/16 "

39 13/16 "

39 13/16"

39 [3/16"

10201 a

DATE: 05-16-13
