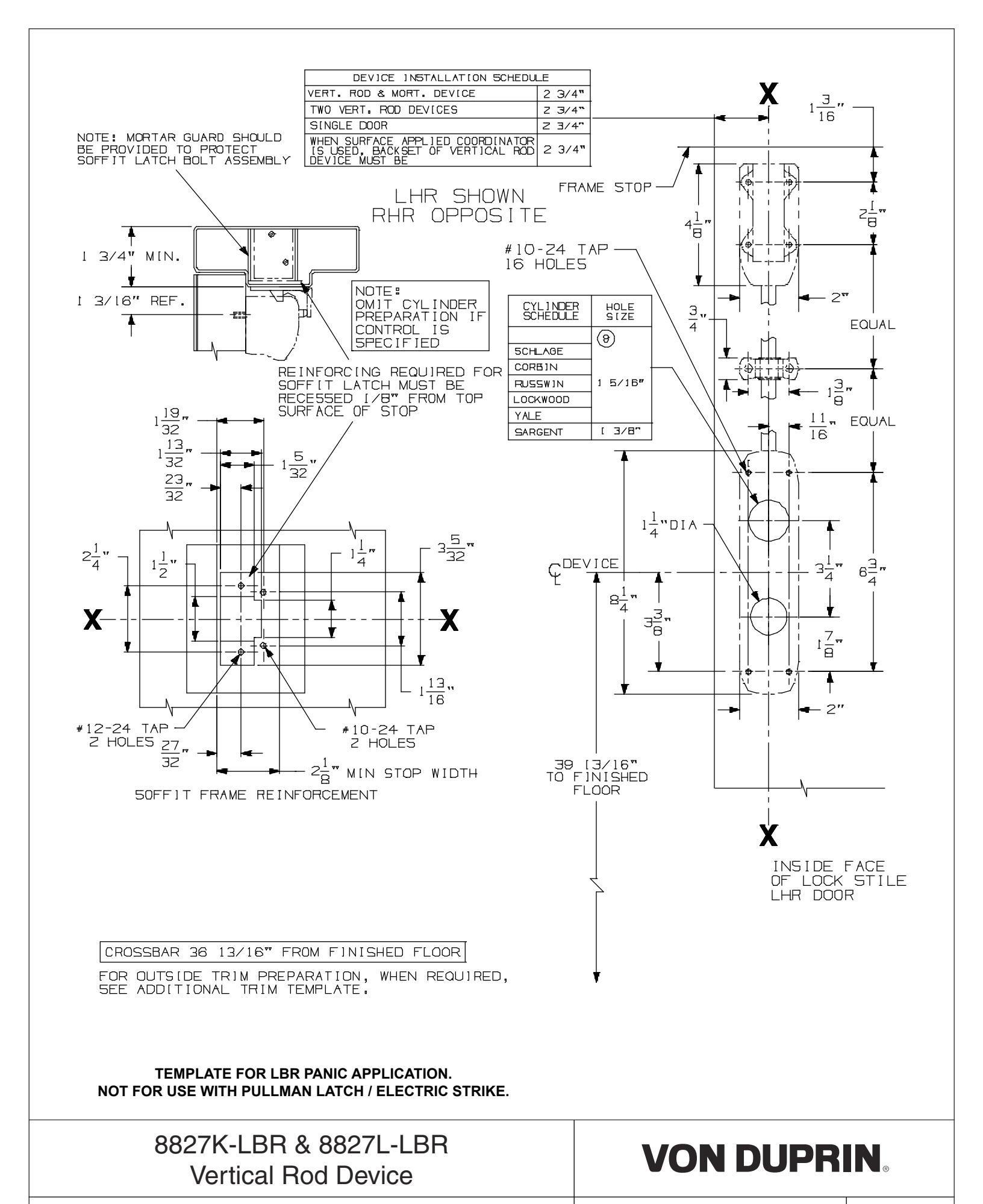

Von Duprin 8827K-LBR & 8827L-LBR Vertical Rod Device For Metal Applications Template

Open the original PDF document

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

941106-00_a

DATE: 11-15-19
