Von Duprin 8827EO & 8827DT Vertical Rod Devices with 880 Trim for Stock Hollow Metal Applications Template

FOR ADDITIONAL INFORMATION SEE TEMPLATE NO. 10160

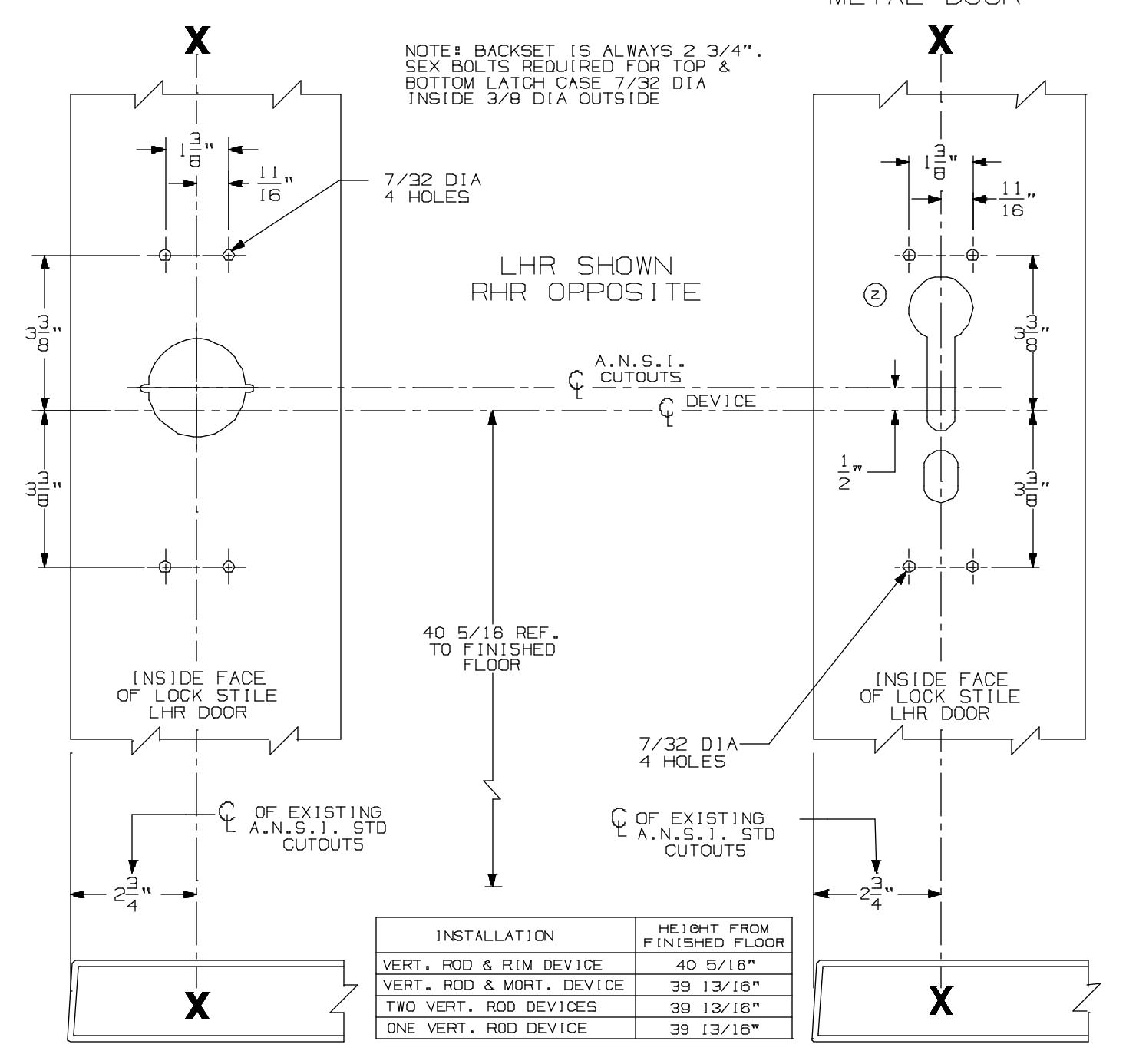

TYPE 161 STOCK HOLLOW METAL DOOR

TYPE 86 STOCK HOLLOW METAL DOOR

VON DUPRIN CUTOUTS ARE LOCATED FROM A.N.S.I. CUTOUTS SEE A.N.S.I. SPECIFICATION NO. A115 FOR THE SIZE AND LOCATION OF THESE CUTOUTS.

FOR OUTSIDE TRIM PREPARATION, WHEN REQUIRED, SEE ADDITIONAL TRIM TEMPLATE.

8827EO & 8827DT Vertical Rod Devices w/ 880 Trim for Stock Hollow Metal Applications

VON DUPRIN ®

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

10199 a

DATE: 05-16-13
