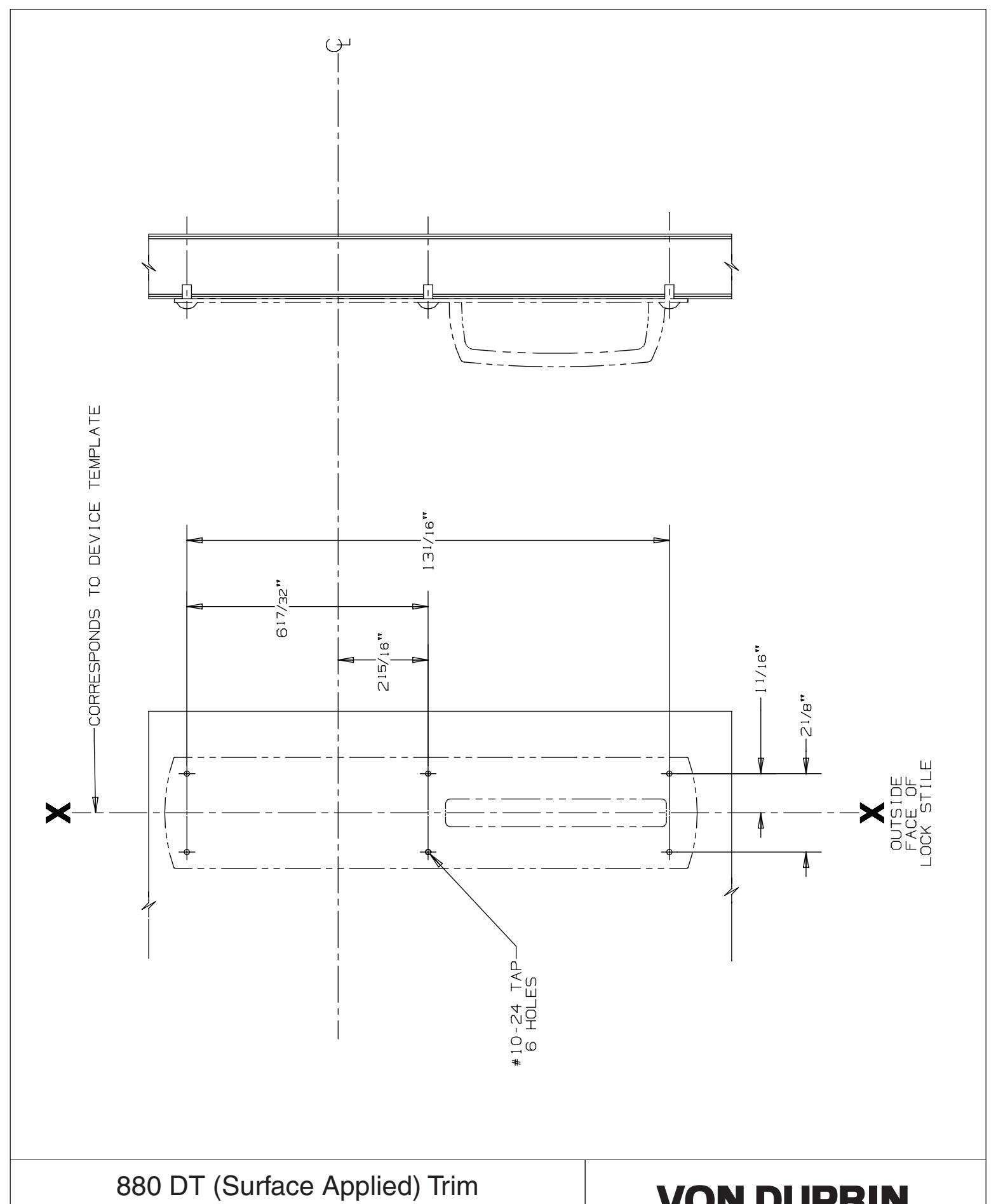

Von Duprin 880DT Surface Applied Trim Used with 8847TL-F For Metal Applications Template
Open the original PDF document
View PDF
8847-F Vertical Rod Device
VON DUPRIN ®
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
20249_a
DATE: 05-28-13
