Von Duprin 576 Strike For 98 and 99 Series Exit Device Metal Door Template
Open the original PDF document
View PDF

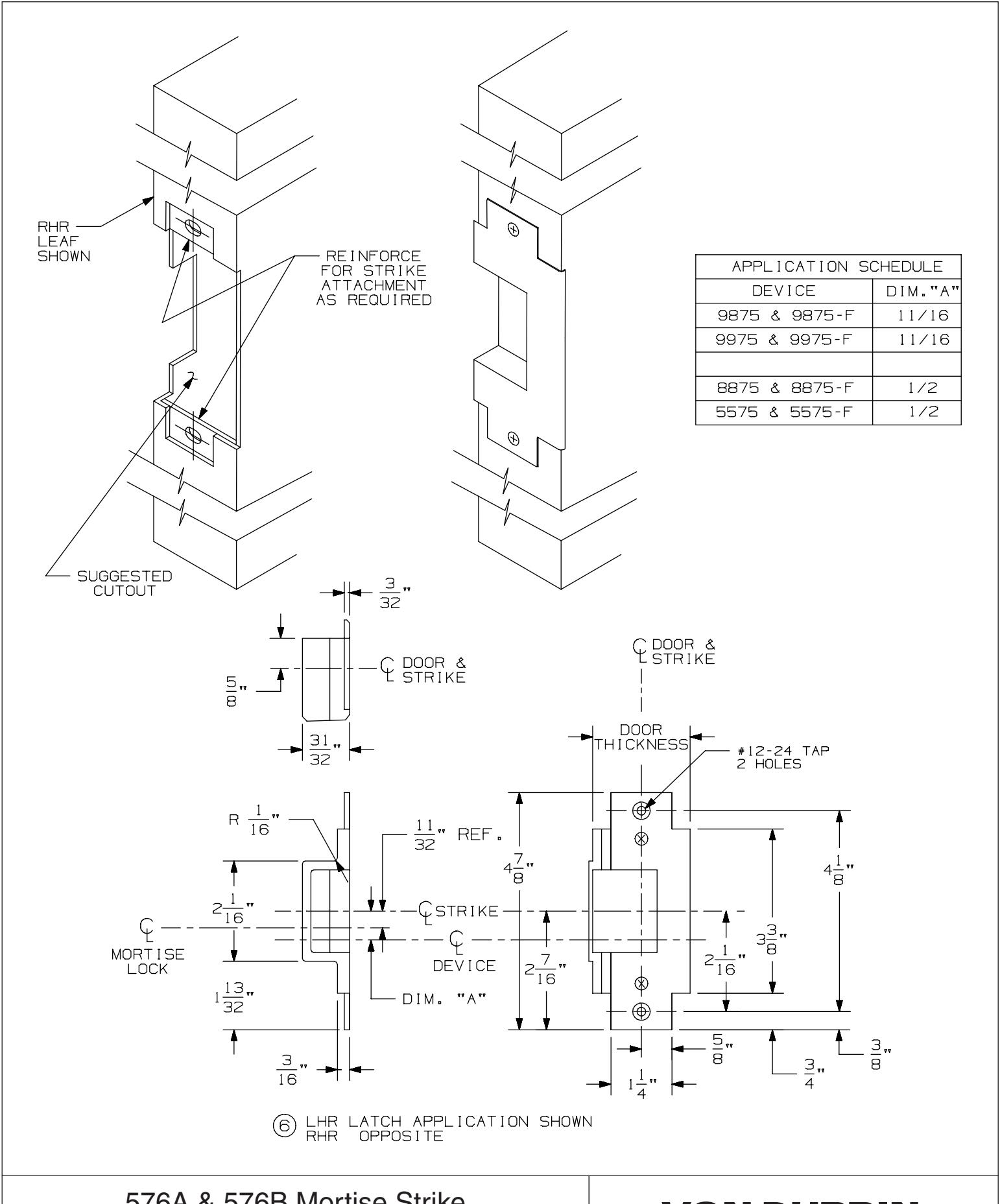

576A & 576B Mortise Strike for 7500 Mortise Lock
VON DUPRIN ®
TEMPLATE NUMBER:
30211_a
DATE: 05-28-13
Open the original PDF document
View PDF
TEMPLATE NUMBER:
30211_a
DATE: 05-28-13
