Von Duprin 575 Sgl Door Strike Used with 8875, 8875-F, E8875, E8875-F For Metal Applications Template
Open the original PDF document
View PDF

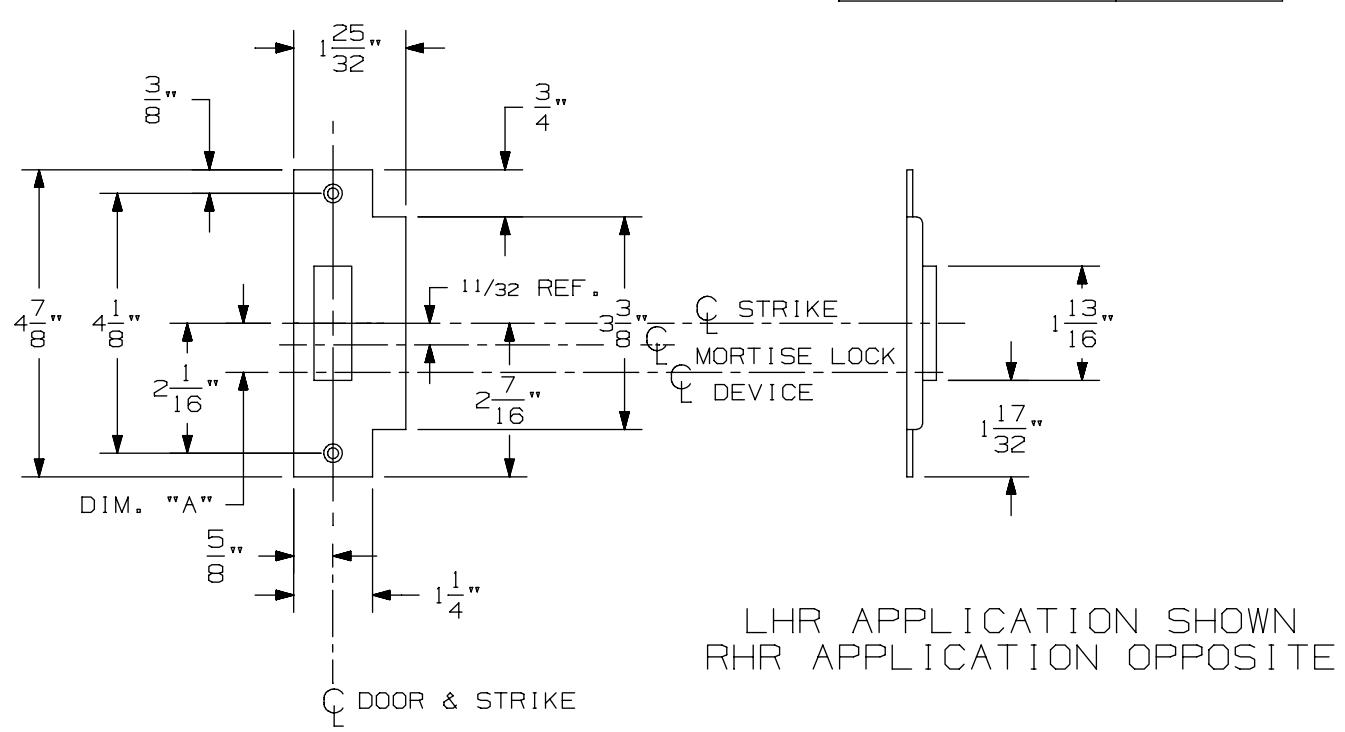

| APPLICATION SCHEDULE | |
|---|---|
| DEVICE | DIM. "A" |
| 9875 & 9875-F | 11/16 |
| 9975 & 9975-F | 11/16 |
| 8875 & 8875-F | 1/2 |
| 5575 & 5575-F | 1/2 |

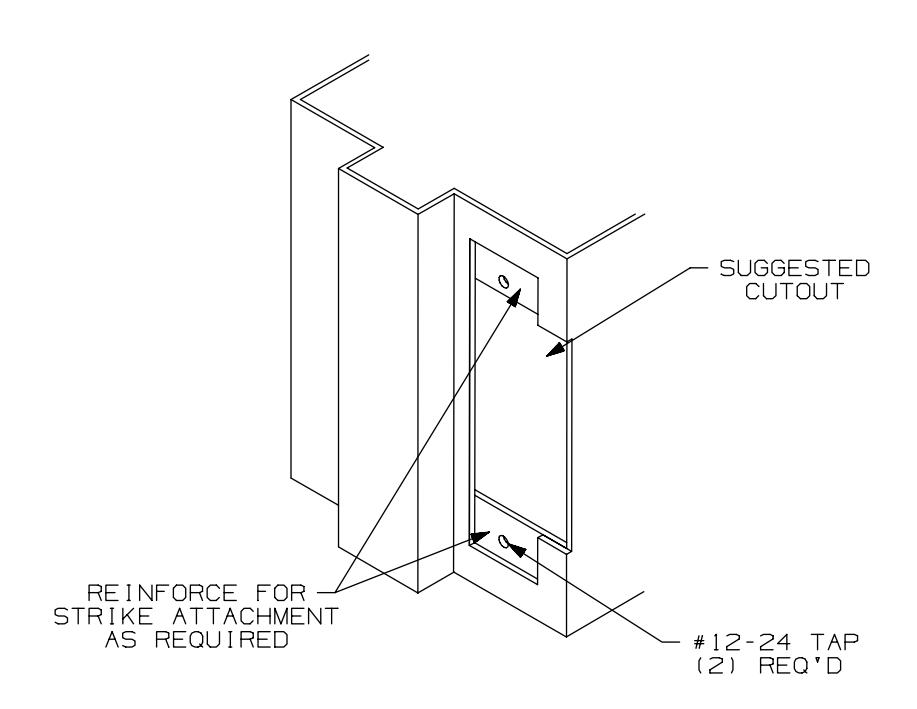

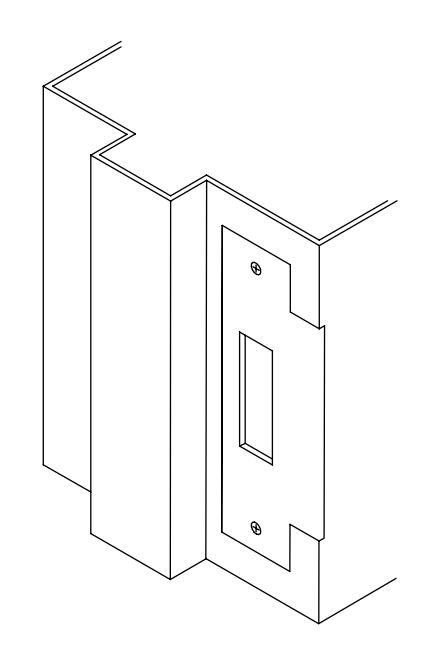

575 Mortise Strike (Single Door) for 7500 Mortise Lock
VON DUPRIN ®
TEMPLATE NUMBER:
30210_b
DATE: 07-22-13
