Von Duprin 5547WDC & 5547WDC-F Series @ 38 inch CL (FOR CALIFORNIA) Vertical Rod Device For Wood Door Template
Open the original PDF document
View PDF
- SEE 370E CONTROL TEMPERTE UI_US4_UI FOR POLE SIDE FACE COTOUT.

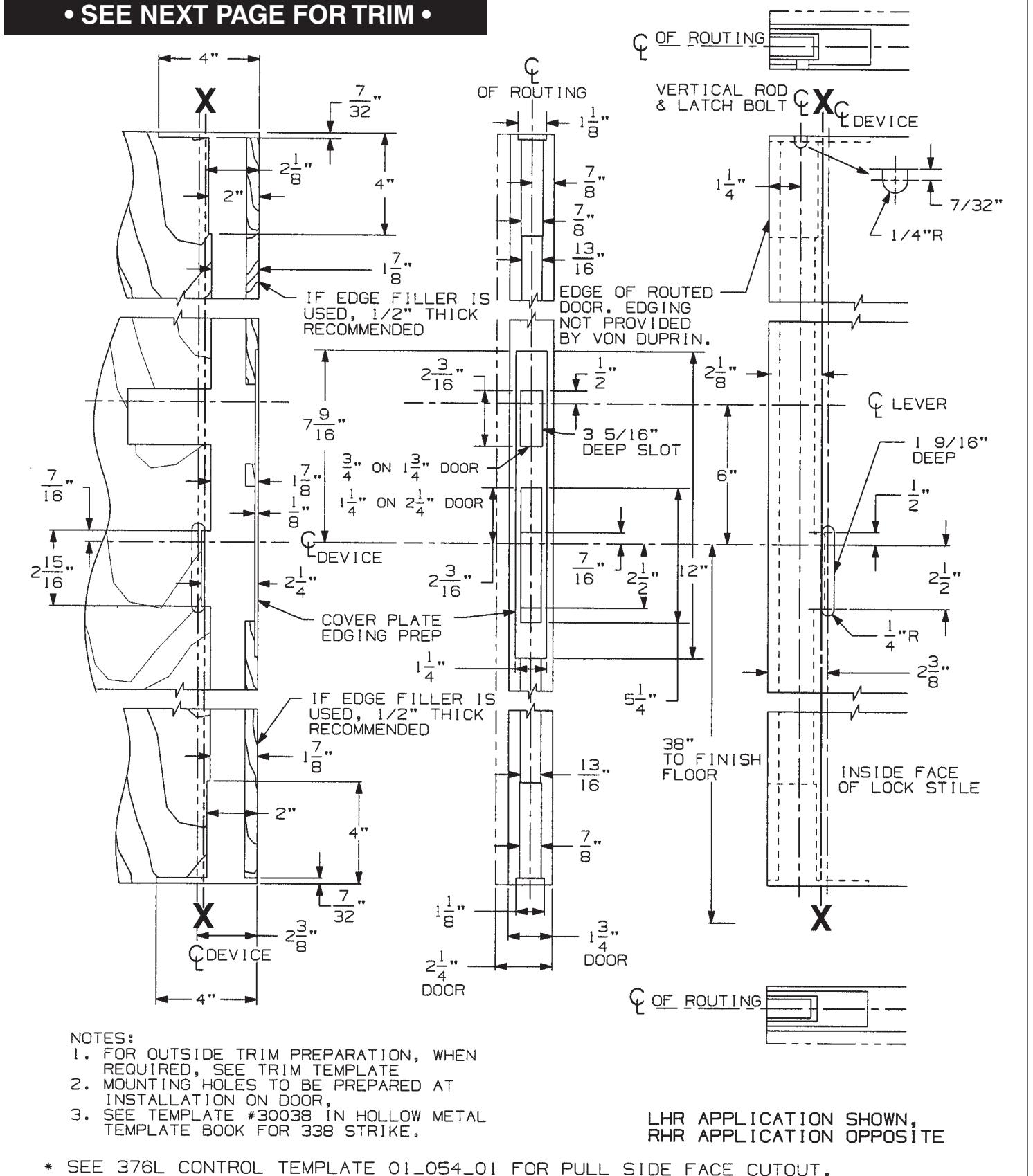

5547WDC & 5547WDC-F SERIES x 376LWDC @ 38" CL (FOR CALIFORNIA) VERTICAL ROD DEVICES (WOOD DOOR)
VON DUPRIN
TEMPLATE NUMBER:
931052_a
DATE: 04-28-20
