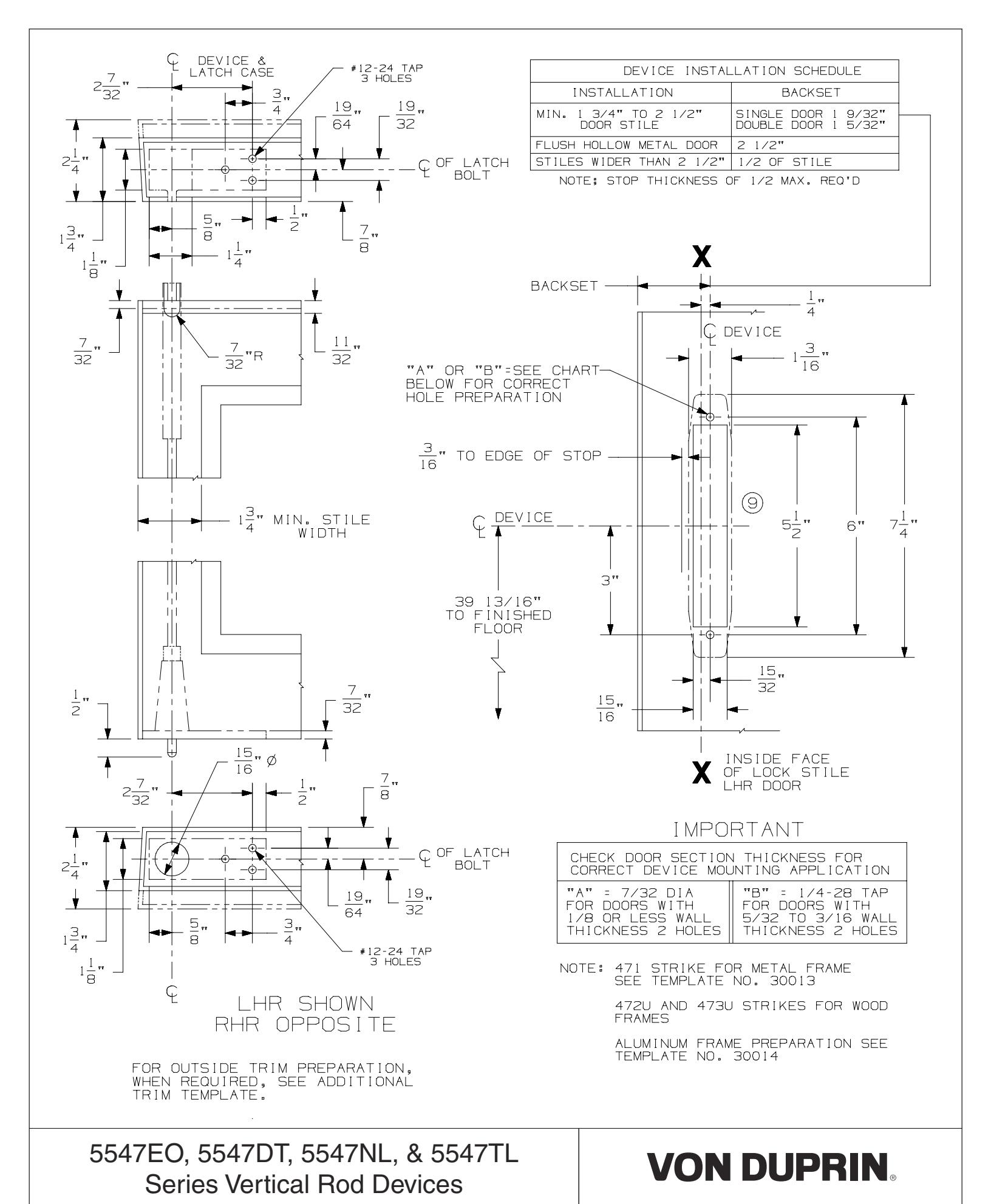

Von Duprin 5547EO, 5547DT, 5547NL, & 5547TL Series Vertical Device For Metal Doors Template
Open the original PDF document
View PDF
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
10066_a
DATE: 05-13
Open the original PDF document
View PDF
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
10066_a
DATE: 05-13
