Von Duprin 392-6 Pull Below Center and On Center For Use With 33A, 35A, 3327A, 3527A, 3347A-WDC, 3547A-WDC Devices For Wood Door Template

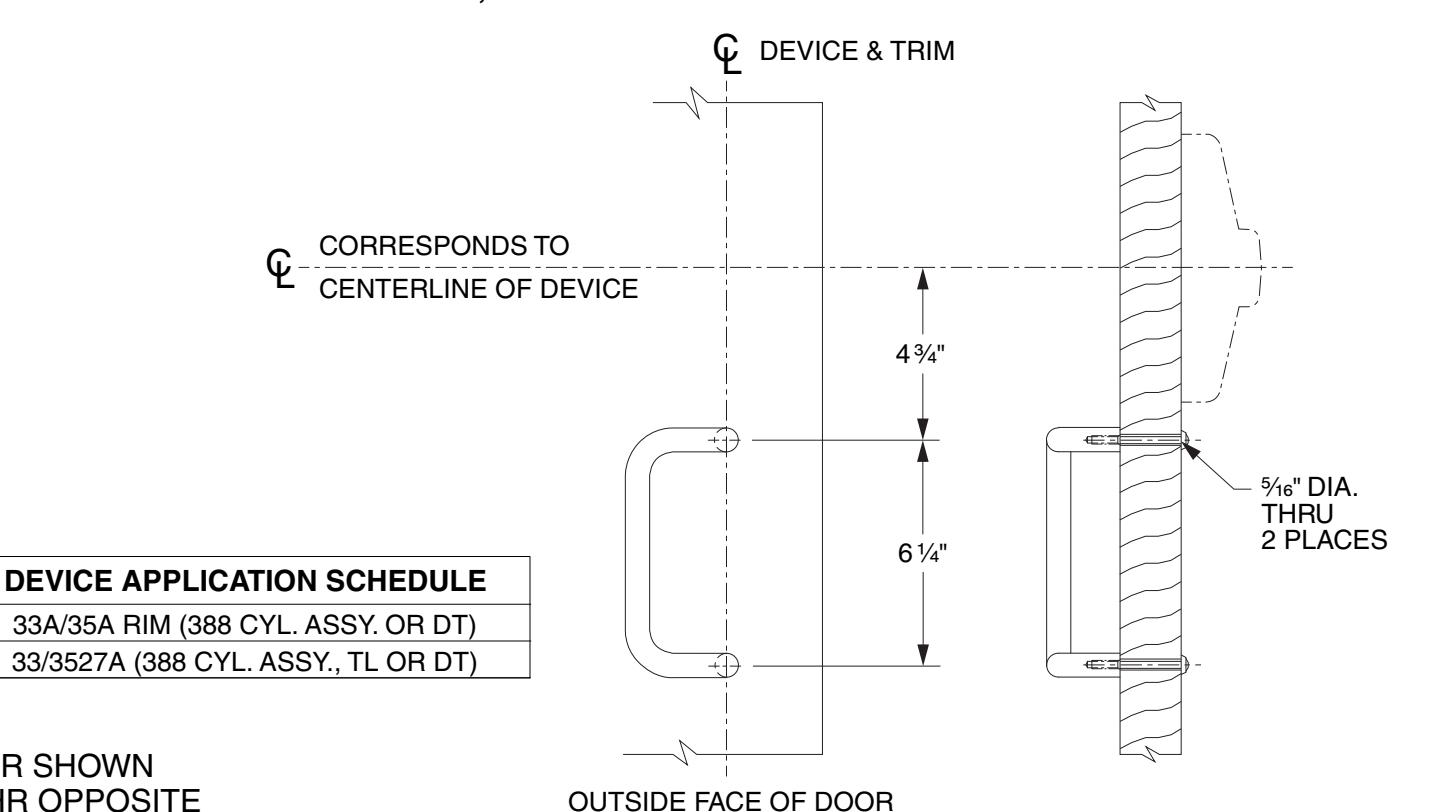

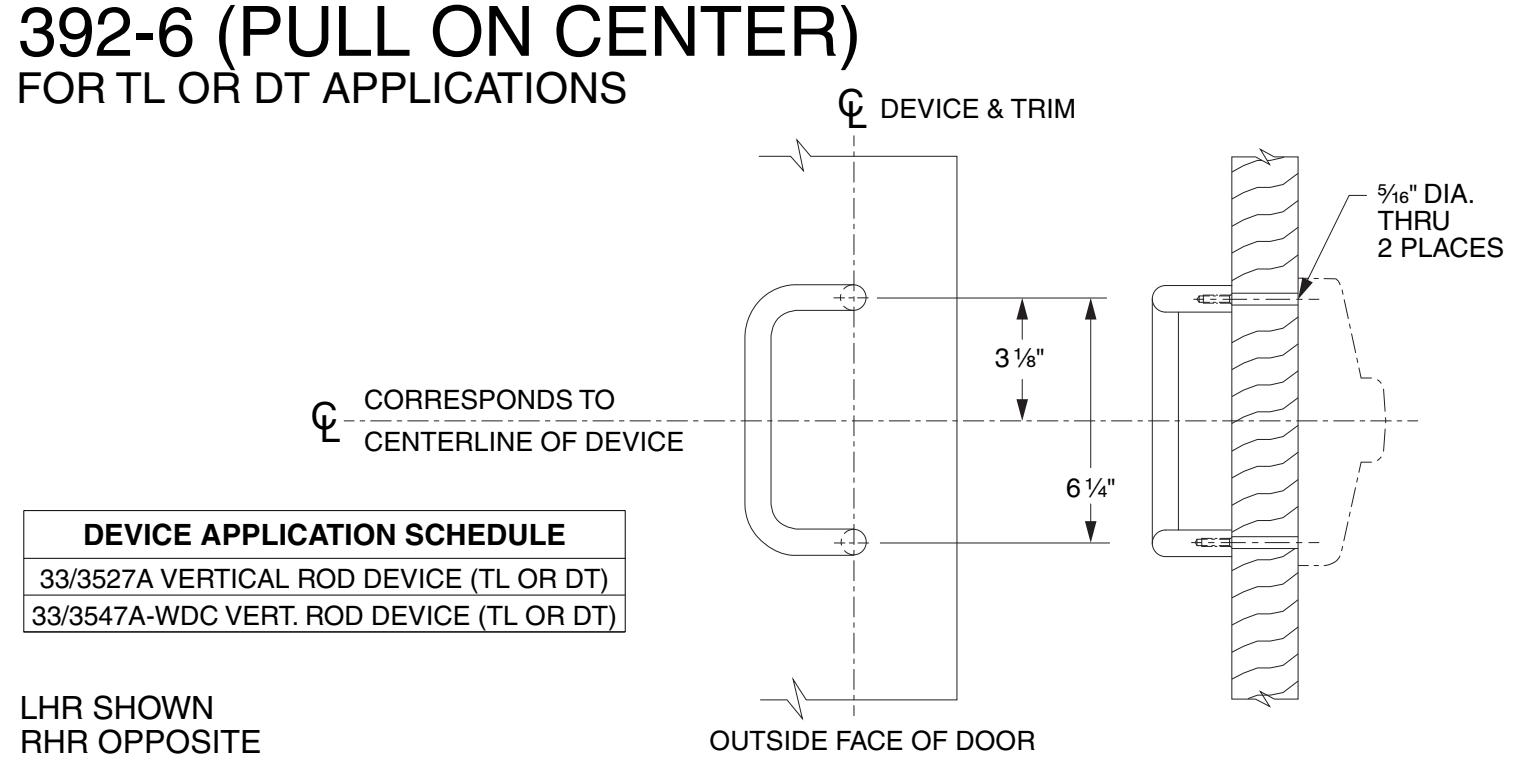

392-6 (PULL BELOW CENTER)

FOR 388 CYLINDER ASSY, TL OR DT APPLICATIONS

LHR SHOWN RHR OPPOSITE

392-6 Pull (Wood Door)

VON DUPRIN

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

W20454 c

DATE: 05-31-13
