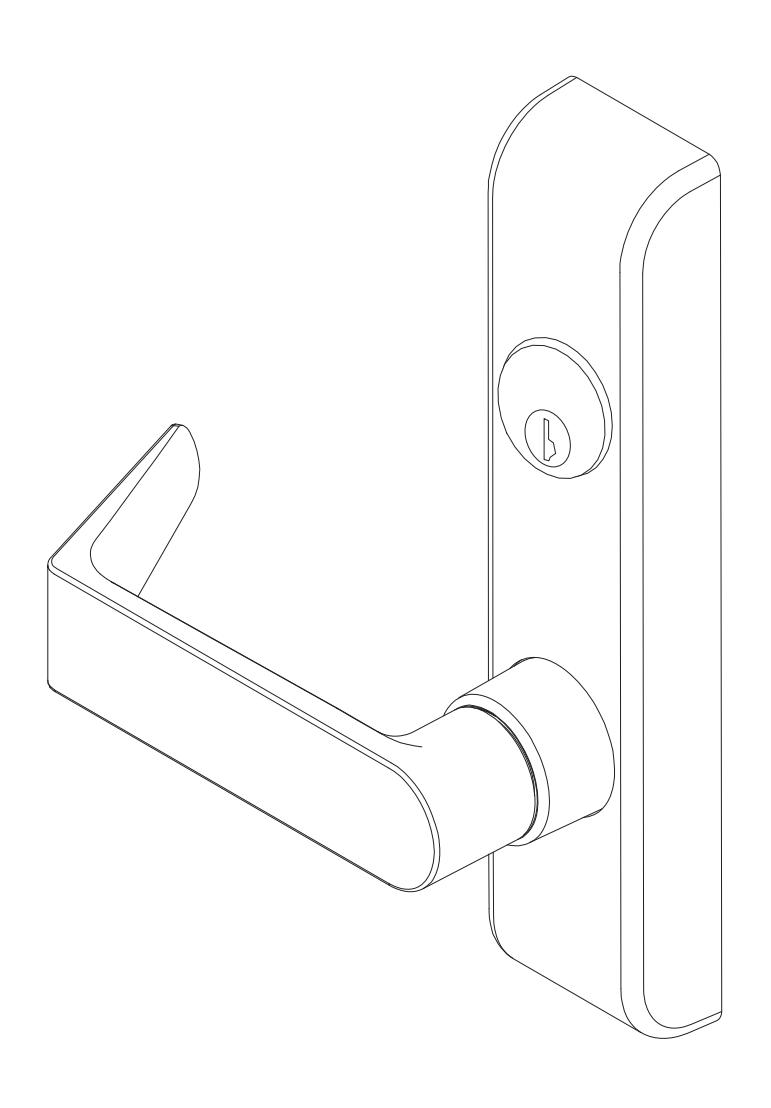

360/370 Series Controls
Service manual
INDEX
| 370-T & 370-T-BE Control |
6
7 8 |
|---|---|
| 371-L & 371-L-BE Control |
6
7 8 |
| 8 | |
| 373-L & 373-L-BE Control | 8 |
| 374-T, 374-T-BE, 376-T-BE, 376-T-WDC & 376-T-WDC-BE CONTROL | Ō |
| 374-T, 374-T-BE Rod Member Kits | Э |
| 376-T, 376-T-BE Rod Member Kits | |
| 376-T-WDC, 376-T-WDC-BE Rod Member Kits | 9 |
| 377-T & 377-T-BE Control | . 10 |
| 360-L & 360-L-BE Control | |
| 360-T & 360-T-BE Control | . 12 |
| 360-L-DT Control | . 13 |
| E360-L-BE Control | 14 |
| General Information | |
| Introduction | 2 |
| How to Order | 2 |
| Part Number Changes | 2 |
| Mounting Scew Packages | 5 |
| Control Levers | 2 |
| Cylinder Mount Accessories |
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 360/370 Series Controls.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
MOUNTING SCREW PACKAGES
| Description | 371/373/378 | 374/376/377 | 375 |
|---|---|---|---|
| Part number | Part number | Part number | |
| Screw Package 1 3/4" Dr | 900807 | 900809 | 900883 |
| Screw Package 2 1/4" Dr | 900808 | 900810 | 900884 |

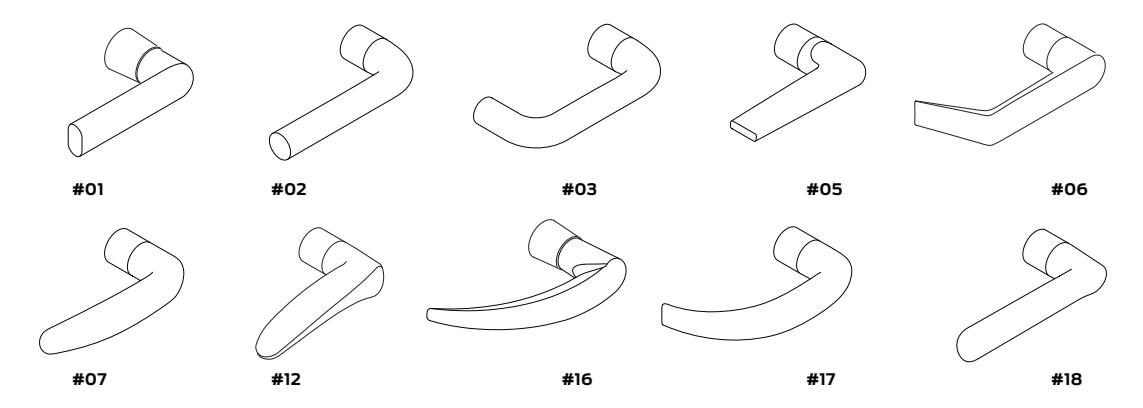

Standard levers

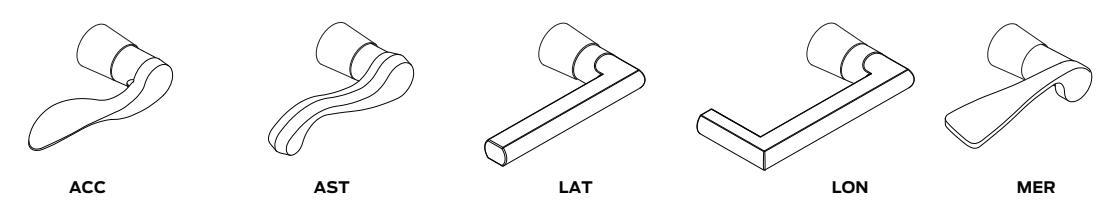

Decorative levers (360-L & E360-L only)

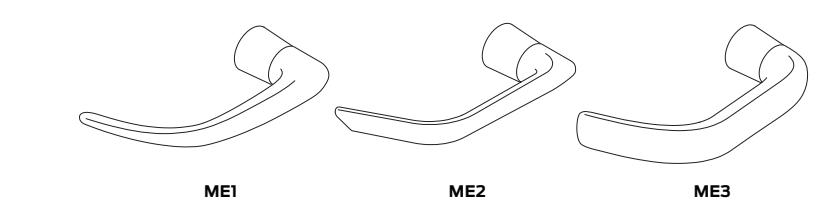

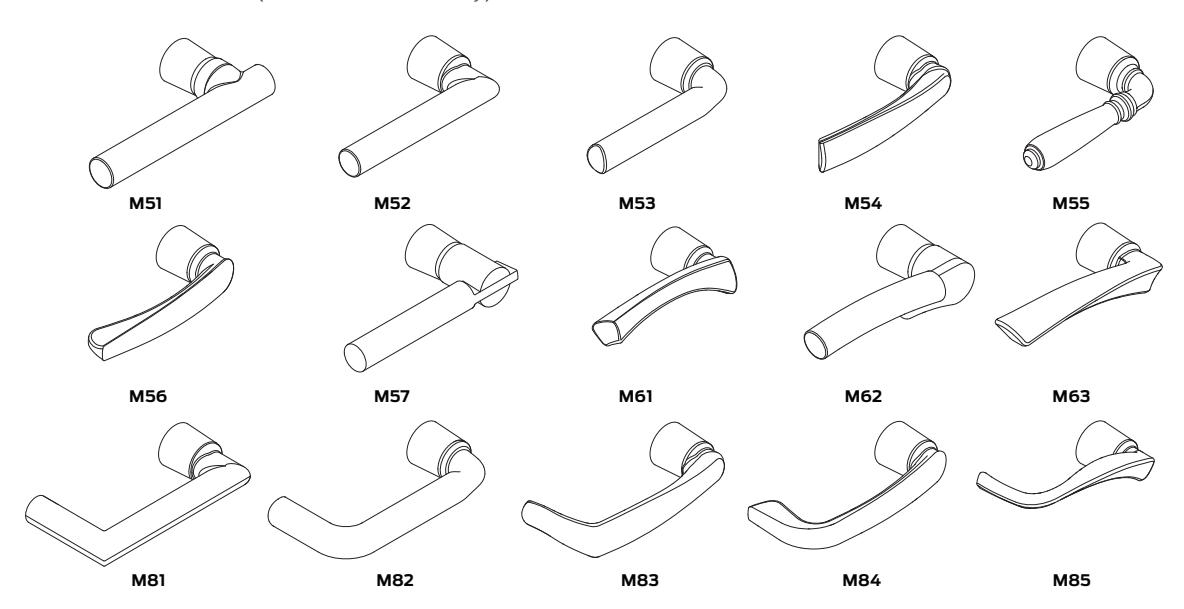

M series levers (360-L & E360-L only)
M Series, Ergonomic Levers (360-L & E360-L only)

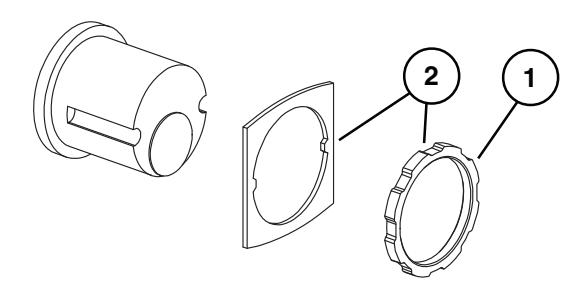

CYLINDER MOUNT ACCESSORIES
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050526 |
Cylinder
Locknut |
|
| 2 | 1 | 109111 |
Cylinder
Locknut & Washer |
Note: 360 series trims require locknut only, 370 series require washer & locknut

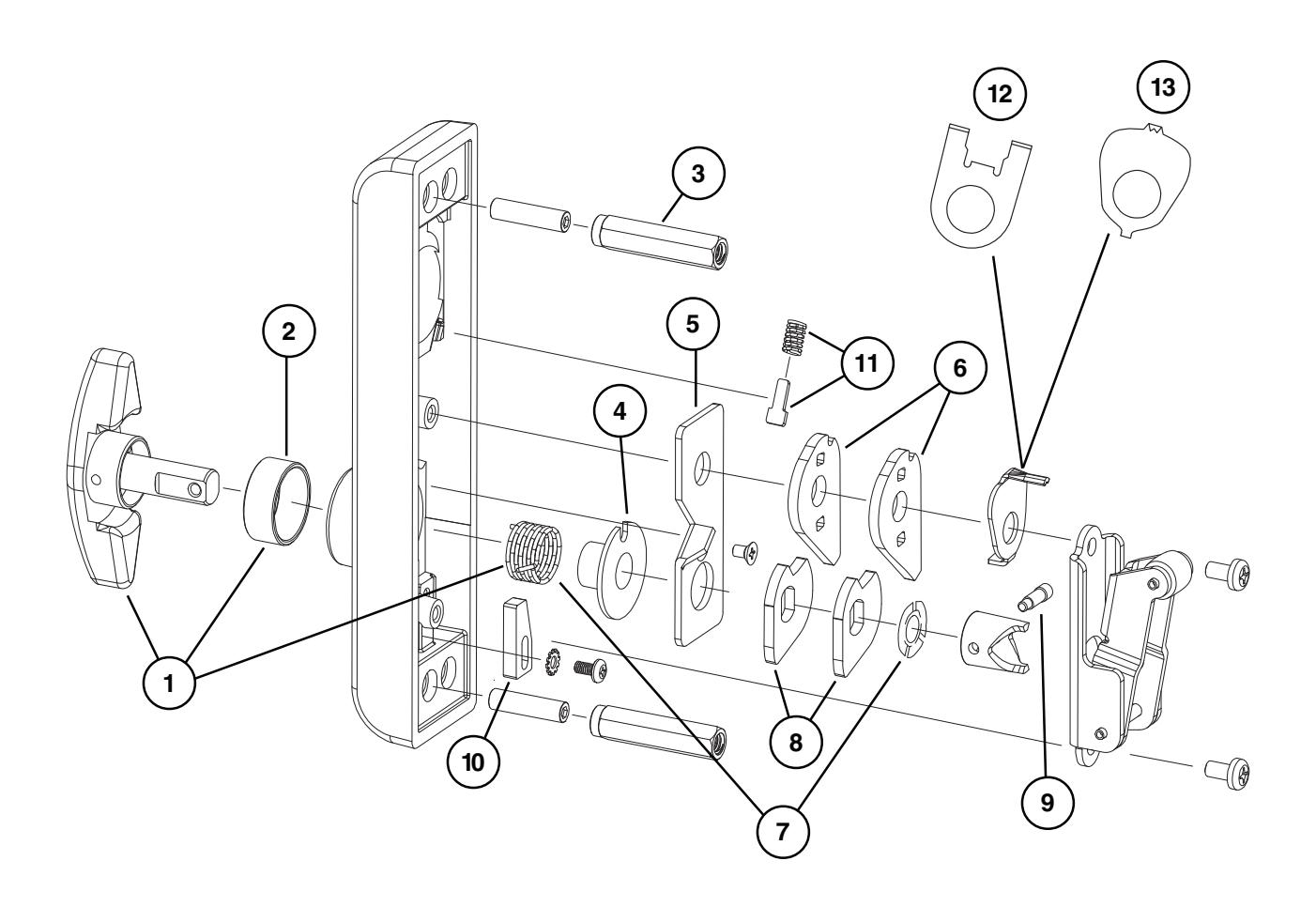

370-T & 370-T-BE CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050592 | ThumbturnKit | X |
| 2 | 1 | 050619 | ThumbturnSleeve | |
| 3 | 2 | 090096 | MountingStud Pkg/2 | |
| 4 | 1 | 050621 | Washer-Bearing | |
| 5 | 1 | 050597 |
Backplate
RHR |
|
| 6 | 2 | 090090 |
Cylinder
Lock Pkg/2 (Not used on BE) |
|
| 7 | 1 | 050616 |
Thumbturn
ControlSpring&WasherKit |
|
| 8 | 2 | 050602 |
LeverShaft
Lock |
|
| 9 | 1 | 090097 |
Cam
Retaining Screw Pkg/4 |
|
| 10 | 1 | 050576 | LeverAdjustmentBlock | |
| 11 | 1 | 050607 |
Dogging
Spring and Guide Kit (Not used on BE) |
|
| 12 | 1 | 050599 |
NL
CylinderPlate (Not used onBE) |
|
| 13 | 1 | 050600 |
TL
CylinderPlate (Not used onBE) |

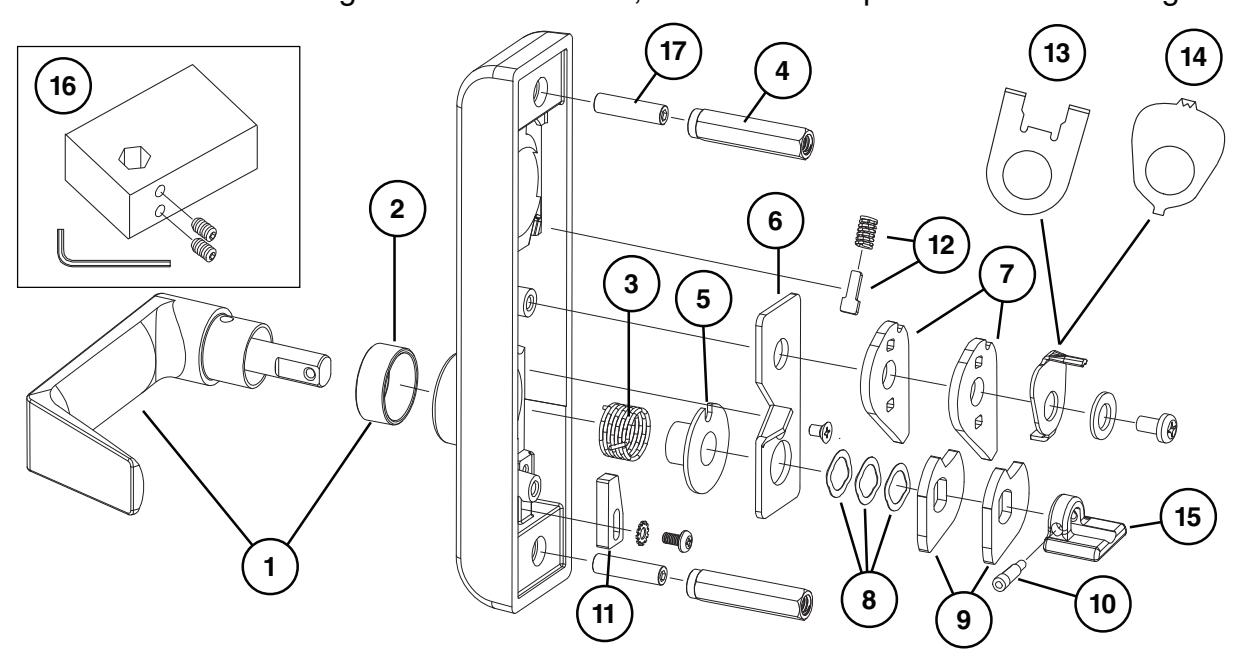

371-L & 371-L-BE CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050750 |
#01
Lever Kit |
X |
| 1 | 1 | 050752 |
#02
Lever Kit |
X |
| 1 | 1 | 050754 |
#03
Lever Kit |
X |
| 1 | 1 | 050756 |
#06
Lever Kit |
X |
| 1 | 1 | 050758 |
#07
Lever Kit |
X |
| 1 | 1 | 050760 |
#17
Lever Kit |
X |
| 1 | 1 | 050762 |
#12
Lever RHR Kit |
X |
| 1 | 1 | 050764 |
#12
Lever LHR Kit |
X |
| 2 | 1 | 050601 | LeverBushing | |
| 3 | 1 | 090092 |
Lever
ControlSpring RHR Pkg/4 |
|
| 3 | 1 | 090091 |
Lever
Control Spring LHR Pkg/4 |
|
| 4 | 2 | 090095 | MountingStud Pkg/2 | |
| 5 | 1 | 050621 | Washer-Bearing | |
| 6 | 1 | 050597 |
Backplate
RHR |
|
| 6 | 1 | 050596 | Backplate LHR | |
| 7 | 2 | 090090 |
Cylinder
Lock Pkg/2 (Not used on BE) |
|
| 8 | 3 | 090103 |
Washer
- Wave Spring Pkg/10 |
|
| 9 | 2 | 050602 |
LeverShaft
Lock |
|
| 10 | 1 | 090097 |
Cam
Retaining Screw Pkg/4 |
|
| 11 | 1 | 050576 | LeverAdjustmentBlock | |
| 12 | 1 | 050607 |
Dogging
Spring and Guide Kit (Not used on BE) |
|
| 13 | 1 | 050599 |
NL
CylinderPlate (Not used onBE) |
|
| 14 | 1 | 050600 |
TL
CylinderPlate (Not used onBE) |
|
| 15 | 1 | 050606 |
Cam
- Vertical Rod |
|
| 16 | 1 | 109126 |
371-L
Rod Member Kit 1-3/4" Dr |
|
| 16 | 1 | 109127 |
371-L
Rod Member Kit 2-1/4" Dr |
|
| 17 | 2 | 963584 |
Threaded
Studs |

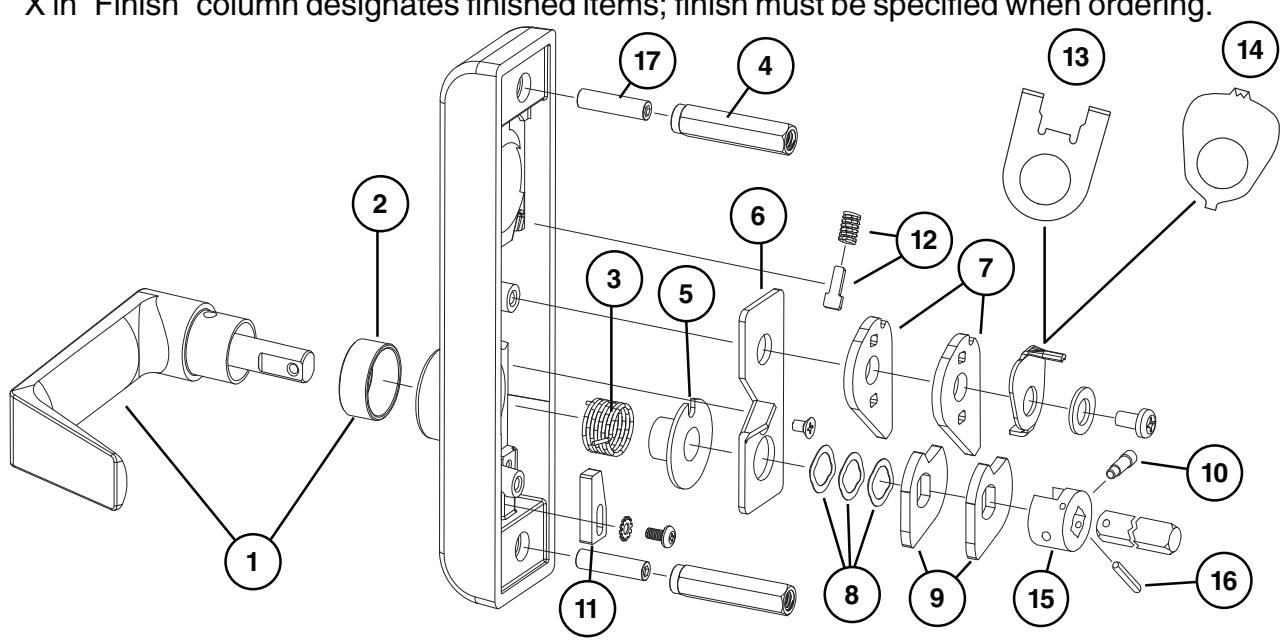

X in "Finish" column designates finished items; finish must be specified when ordering.
373-L & 373-L-BE CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050750 |
#01
Lever Kit |
X |
| 1 | 1 | 050752 |
#02
Lever Kit |
X |
| 1 | 1 | 050754 |
#03
Lever Kit |
X |
| 1 | 1 | 050756 |
#06
Lever Kit |
X |
| 1 | 1 | 050758 |
#07
Lever Kit |
X |
| 1 | 1 | 050760 |
#17
Lever Kit |
X |
| 1 | 1 | 050762 |
#12
Lever RHR Kit |
X |
| 1 | 1 | 050764 |
#12
Lever LHR Kit |
X |
| 2 | 1 | 050601 | LeverBushing | |
| 3 | 1 | 090092 |
Lever
ControlSpring RHR Pkg/4 |
|
| 3 | 1 | 090091 |
Lever
Control Spring LHR Pkg/4 |
|
| 4 | 2 | 090095 | MountingStud Pkg/2 | |
| 5 | 1 | 050621 | Washer-Bearing | |
| 6 | 1 | 050597 |
Backplate
RHR |
|
| 6 | 1 | 050596 | Backplate LHR | |
| 7 | 2 | 090090 |
Cylinder
Lock Pkg/2 (Not used on BE) |
|
| 8 | 3 | 090103 |
Washer
- Wave Spring Pkg/10 |
|
| 9 | 2 | 050602 |
LeverShaft
Lock |
|
| 10 | 1 | 090097 |
Cam
Retaining Screw Pkg/4 |
|
| 11 | 1 | 050576 | LeverAdjustmentBlock | |
| 12 | 1 | 050607 |
Dogging
Spring and Guide Kit (Not used on BE) |
|
| 13 | 1 | 050599 |
NL
CylinderPlate (Not used onBE) |
|
| 14 | 1 | 050600 |
TL
CylinderPlate (Not used onBE) |
|

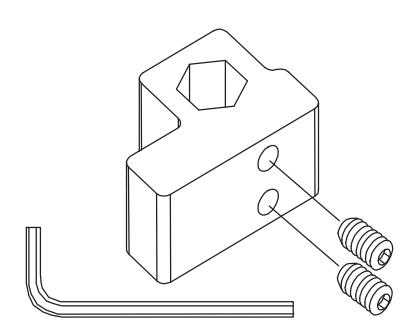

| 15 | 1 | 050609 | MortiseAdaptor | |
| 16 | 1 | 090098 |
Pin
- Spiral 3/32 x 19/32 Pkg/4 |
|
| 17 | 2 | 963584 |
Threaded
Studs |

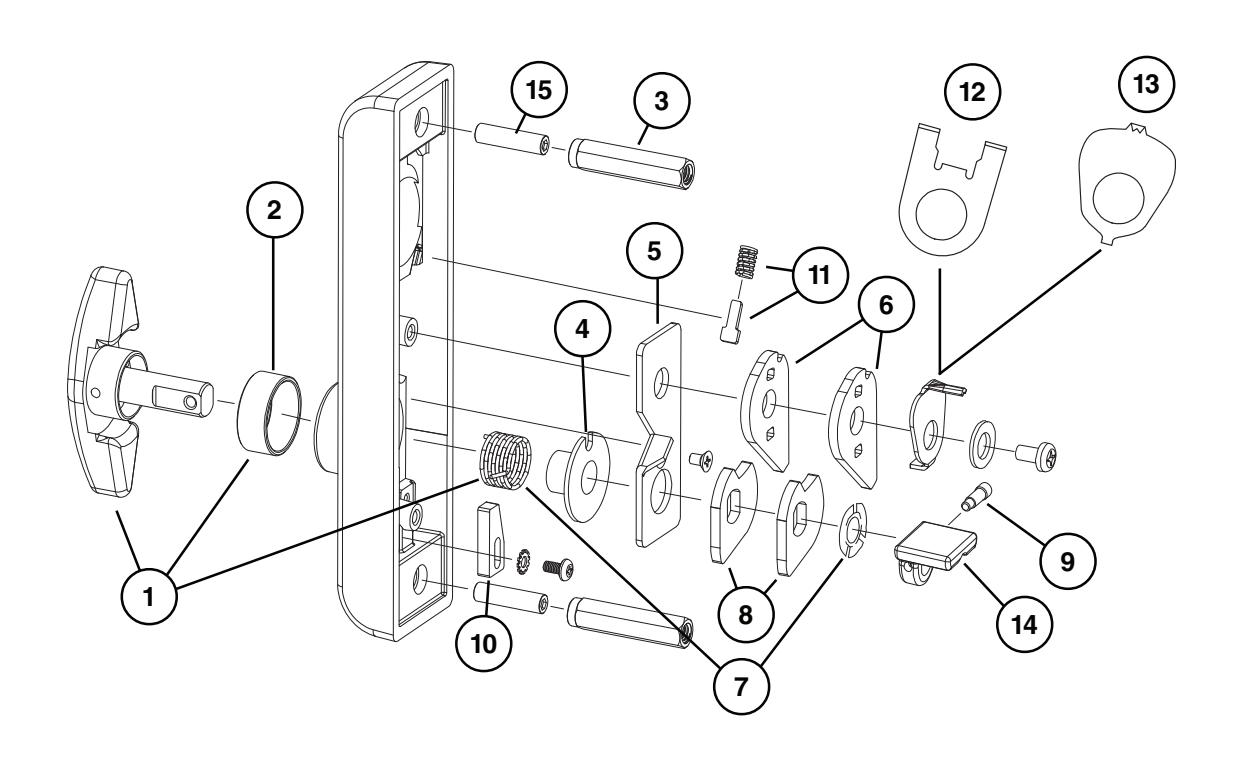

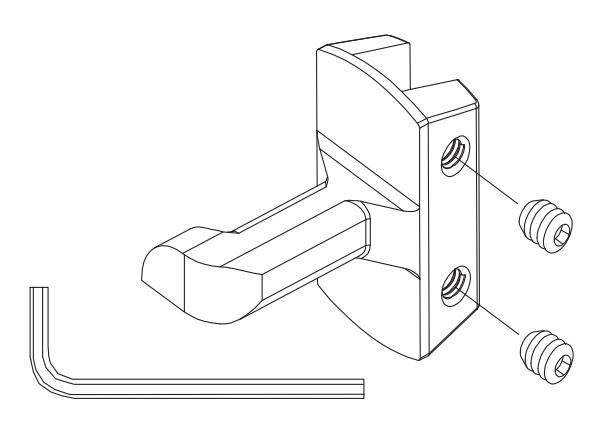

374-T, 374-T-BE, 376-T, 376-T-BE, 376-T-WDC & 376-T-WDC-BE CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050592 | ThumbturnKit | X |
| 2 | 1 | 050619 | Thumbturn Sleeve | |
| 3 | 2 | 090096 | MountingStud Pkg/2 | |
| 4 | 1 | 050621 | Washer-Bearing | |
| 5 | 1 | 050597 |
Backplate
RHR |
|
| 5 | 1 | 050596 | Backplate LHR | |
| 6 | 2 | 090090 |
Cylinder
Lock Pkg/2 (Not used on BE) |
|
| 7 | 1 | 050616 |
Thumbturn
ControlSpring&WasherKit |
|
| 8 | 2 | 050602 |
LeverShaft
Lock |
|
| 9 | 1 | 090097 |
Cam
Retaining Screw Pkg/4 |
|
| 10 | 1 | 050576 | LeverAdjustmentBlock | |
| 11 | 1 | 050607 |
Dogging
Spring and Guide Kit (Not used on BE) |
|
| 12 | 1 | 050599 |
NL
CylinderPlate (Not used onBE) |
|
| 13 | 1 | 050600 |
TL
CylinderPlate (Not used onBE) |
|
| 14 | 1 | 050606 |
Cam
- Vertical Rod |
|
| 15 | 2 | 963584 |
Threaded
Studs |
374-T & 374-T-BE ROD MEMBER KITS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 16 | 1 | 109366 |
374-T
Rod Member Kit 1-3/4" Dr. |
X |
| 16 | 1 | 109367 |
374-T
Rod Member Kit 2-1/4" Dr. |
X |
376-T & 376-T-BE ROD MEMBER KITS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 17 | 1 | 109112 |
376-T
Rod Member Kit 1-3/4" Dr. |
X |
| 17 | 1 | 109115 |
376-T
Rod Member Kit 2-1/4" Dr. |
X |

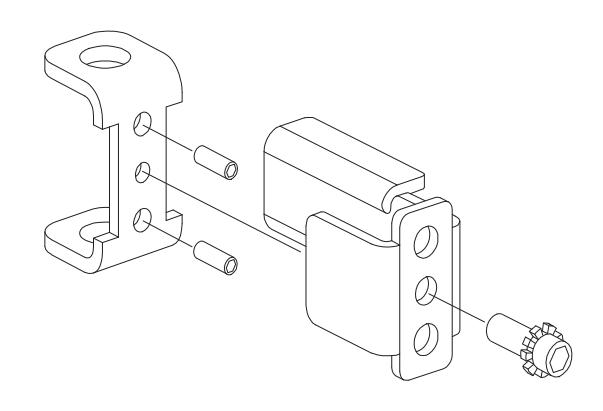

376-T-WDC & 376-T-WDC-BE ROD MEMBER KITS
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 18 | 1 | 900558 |
376-T-WDC
Rod Member Kit 1-3/4" Dr. |
|
| 18 | 1 | 900559 |
376-T
-WDC Rod Member Kit 2-1/4" Dr. |

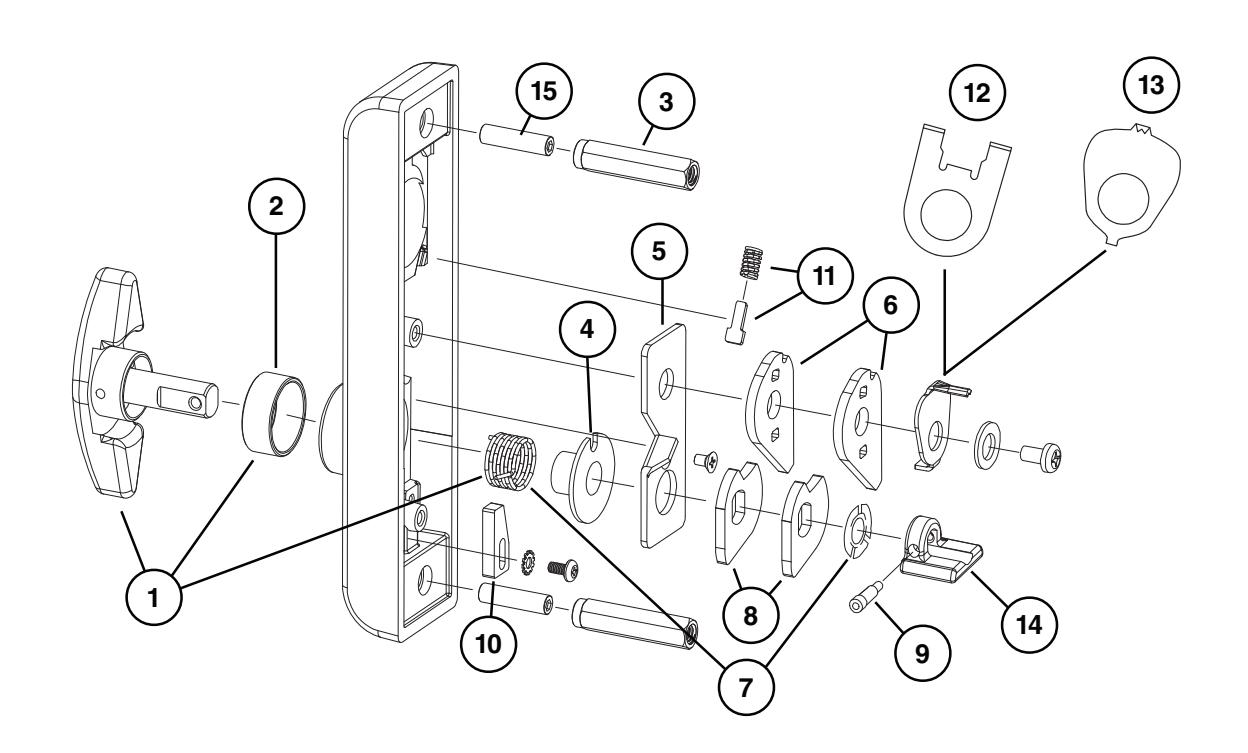

377-T & 377-T-BE CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050592 | ThumbturnKit | X |
| 2 | 1 | 050619 | Thumbturn Sleeve | |
| 3 | 2 | 090096 | MountingStud Pkg/2 | |
| 4 | 1 | 050621 | Washer-Bearing | |
| 5 | 1 | 050597 |
Backplate
RHR |
|
| 5 | 1 | 050596 | Backplate LHR | |
| 6 | 2 | 090090 |
Cylinder
Lock Pkg/2 (Not used on BE) |
|
| 7 | 1 | 050616 |
Thumbturn
ControlSpring&WasherKit |
|
| 8 | 2 | 050602 |
LeverShaft
Lock |
|
| 9 | 1 | 090097 |
Cam
Retaining Screw Pkg/4 |
|
| 10 | 1 | 050576 | LeverAdjustmentBlock | |
| 11 | 1 | 050607 |
Dogging
Spring and Guide Kit (Not used on BE) |
|
| 12 | 1 | 050599 |
NL
CylinderPlate (Not used onBE) |
|
| 13 | 1 | 050600 |
TL
CylinderPlate (Not used onBE) |
|
| 14 | 1 | 050606 |
Cam
- Vertical Rod |
|
| 15 | 2 | 963584 |
Threaded
Studs |

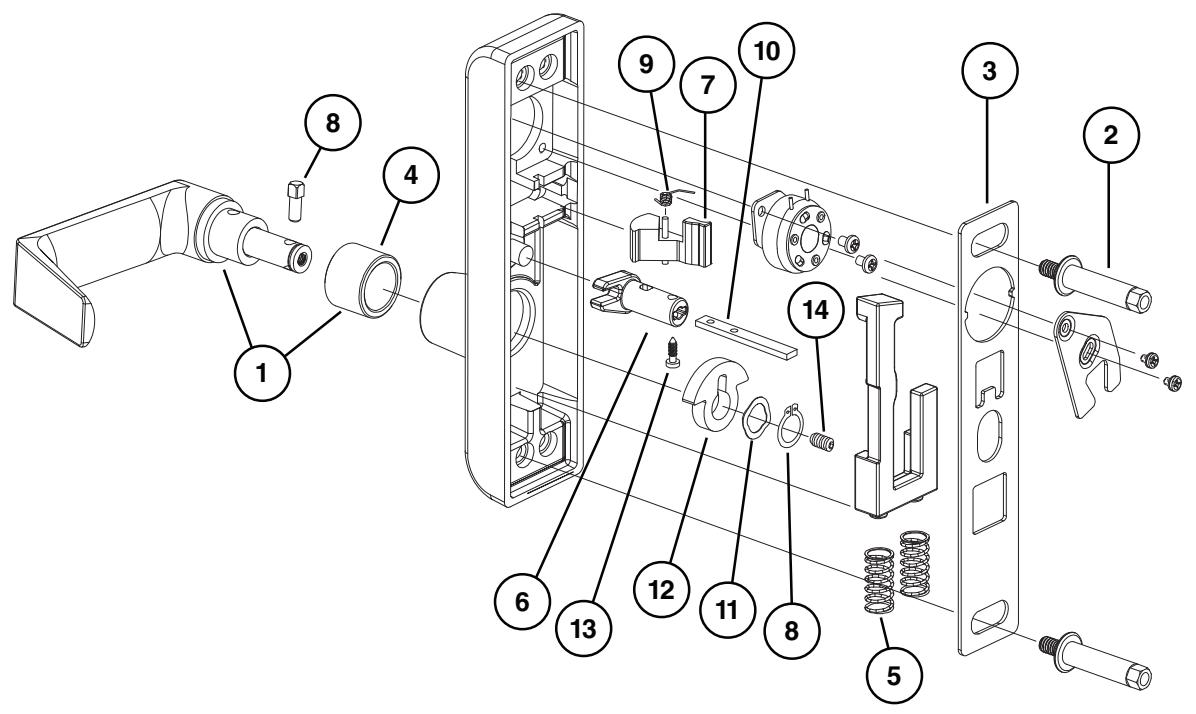

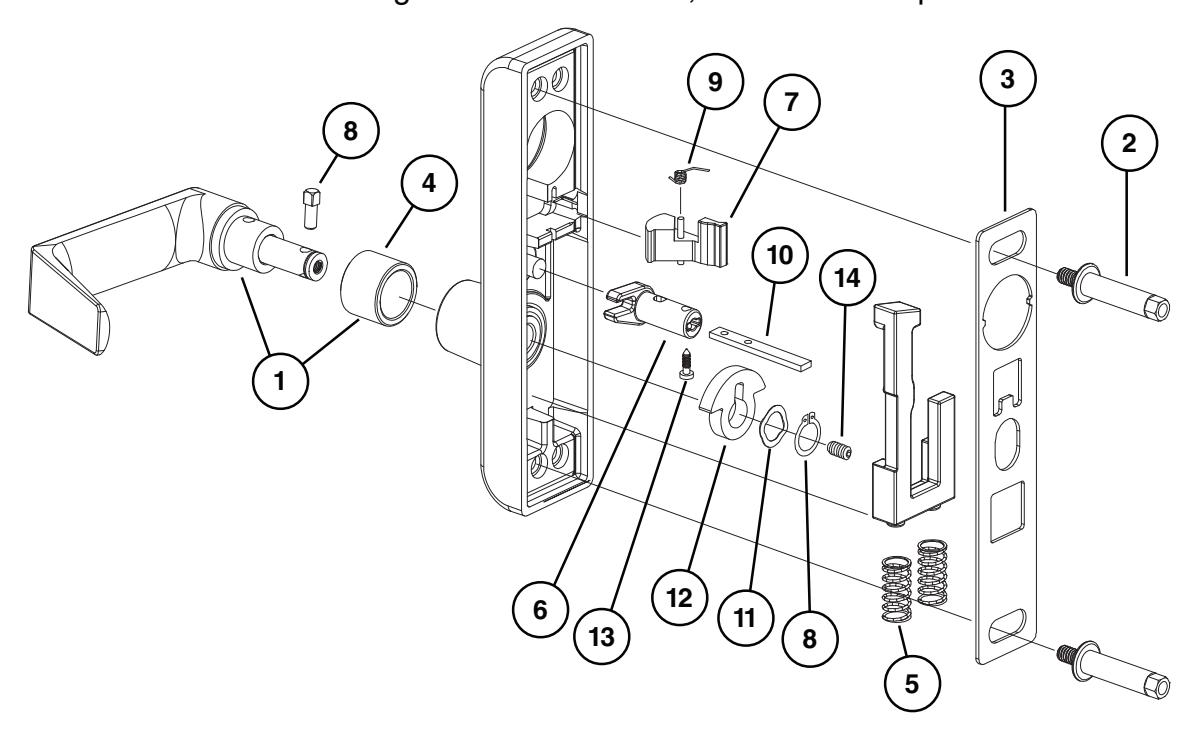

360-L & 360-L-BE CONTROL
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050001 | #01 Lever Kit | X |
| 1 | 1 | 050002 | #02 Lever Kit | X |
| 1 | 1 | 050003 | #03 Lever Kit | X |
| 1 | 1 | 050008 | #05 Lever Kit | X |
| 1 | 1 | 050006 | #06 Lever Kit | X |
| 1 | 1 | 050007 | #07 Lever Kit | X |
| 1 | 1 | 050012 | #12 Lever RHR Kit | X |
| 1 | 1 | 050013 | #12 Lever LHR Kit | X |
| 1 | 1 | 050009 | #16 Lever Kit | X |
| 1 | 1 | 050017 | #17 Lever Kit | X |
| 1 | 1 | 050010 | #18 Lever Kit | X |
| 2 | 2 | 090094 | Mounting Stud Pkg/2 | |
| 3 | 1 | 050595 | Backplate | |
| 4 | 1 | 050579 | Lever Bushing | |
| 5 | 2 | 090093 | Lever Return Spring Pkg/2 | |
| 6 | 1 | 050605 | Cam - Output | |
| 7 | 1 | 050608 | Locking Member (Not used on BE) | |
| 8 | 1 | 050611 | Shear Pin Kit | |
| 9 | 1 | 050615 | Spring - Locking Torsion (Not used on BE) | |
| 10 | 1 | 050587 | Tailpiece | |
| 11 | 1 | 090103 | Washer - Wave Spring Pkg/10 | |
| 12 | 1 | 050604 | Cam - Input | |
| 13 | 1 | 090099 | Pine Tree Clip Pkg/10 | |
| 14 | 1 | 090101 | Socket Set Screw 10-32 x 1/4 Pkg/10 |

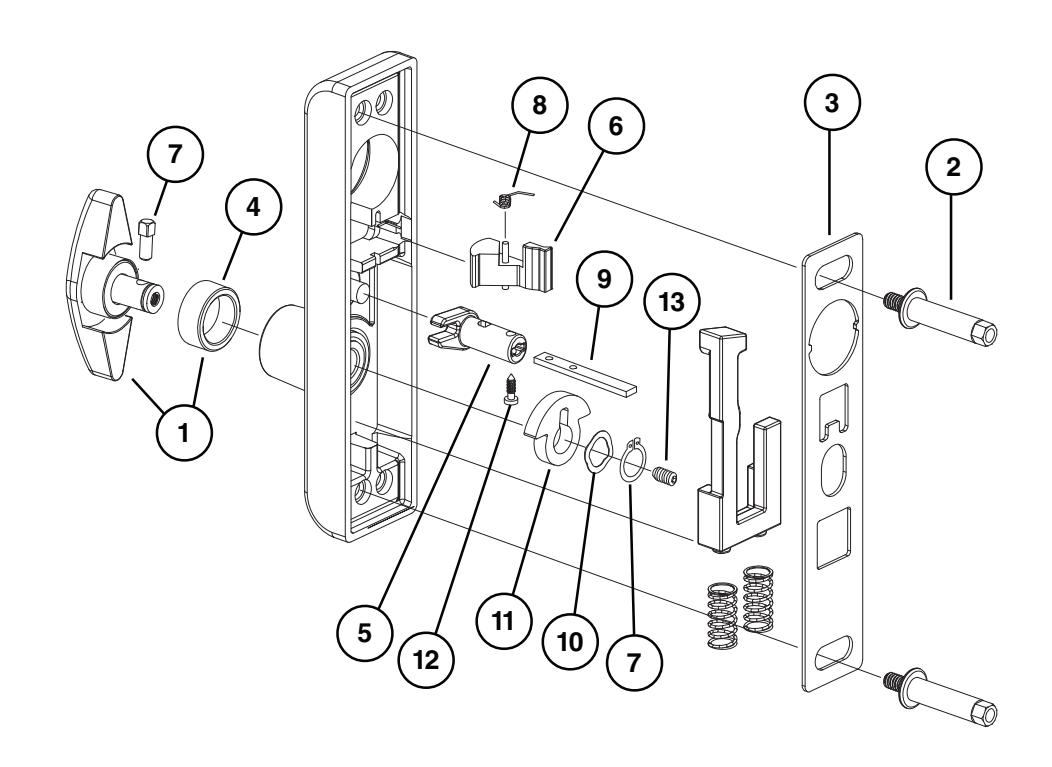

360-T & 360-T-BE CONTROL
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050593 | Thumbturn Kit | X |
| 2 | 2 | 090094 | Mounting Stud Pkg/2 | |
| 3 | 1 | 050595 | Backplate | |
| 4 | 1 | 050579 | Lever Bushing | |
| 5 | 1 | 050605 | Cam - Output | |
| 6 | 1 | 050608 | Locking Member (Not used on BE) | |
| 7 | 1 | 050611 | Shear Pin Kit | |
| 8 | 1 | 050615 | Spring - Locking Torsion (Not used on BE) | |
| 9 | 1 | 050587 | Tailpiece | |
| 10 | 1 | 090103 | Washer - Wave Spring Pkg/10 | |
| 11 | 1 | 050604 | Cam - Input | |
| 12 | 1 | 090099 | Pine Tree Clip Pkg/10 | |
| 13 | 1 | 090101 | Socket Set Screw 10-32 x 1/4 Pkg/10 |

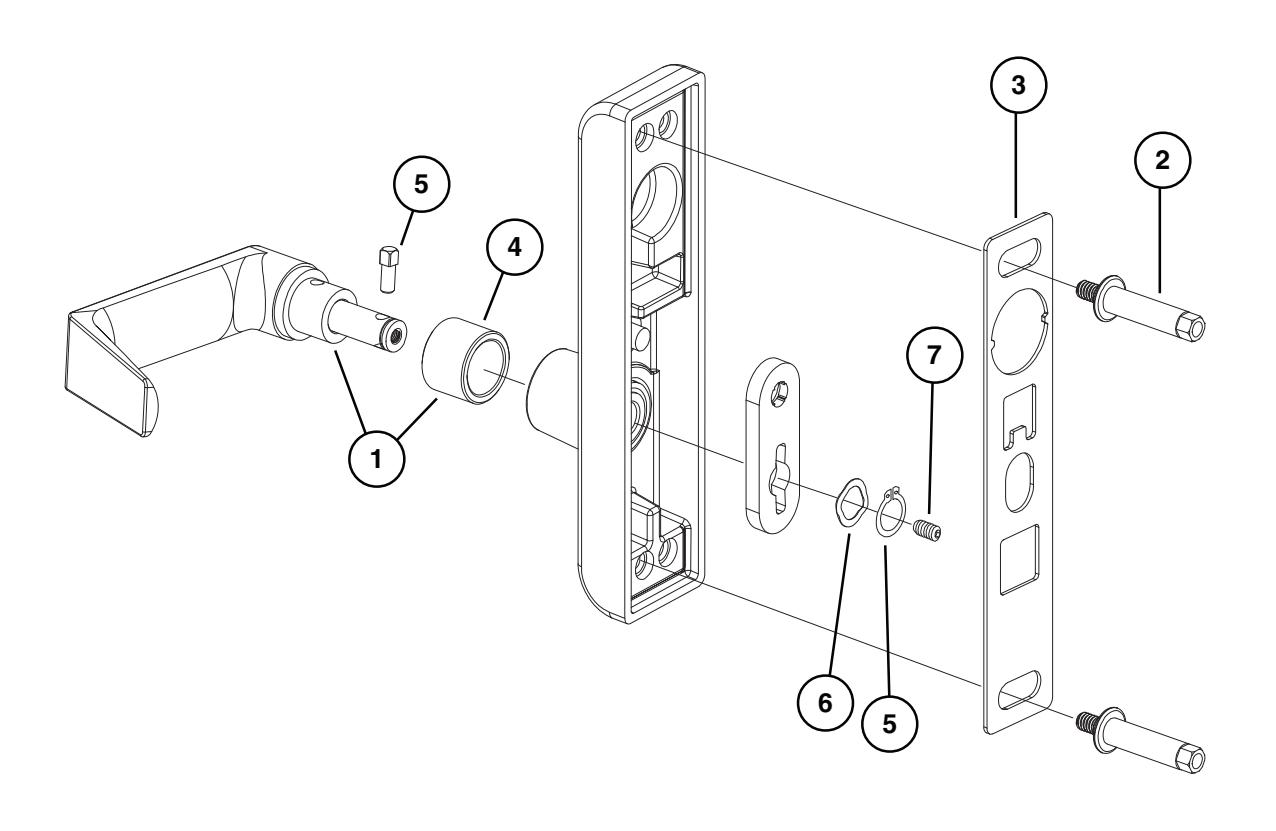

360-L-DT CONTROL
|
Item
No. |
Quantity |
Part
No. |
Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050001 |
#01
Lever Kit |
X |
| 1 | 1 | 050002 |
#02
Lever Kit |
X |
| 1 | 1 | 050003 |
#03
Lever Kit |
X |
| 1 | 1 | 050008 |
#05
Lever Kit |
X |
| 1 | 1 | 050006 |
#06
Lever Kit |
X |
| 1 | 1 | 050007 |
#07
Lever Kit |
X |
| 1 | 1 | 050012 |
#12
Lever RHR Kit |
X |
| 1 | 1 | 050013 |
#12
Lever LHR Kit |
X |
| 1 | 1 | 050009 |
#16
Lever Kit |
X |
| 1 | 1 | 050017 |
#17
Lever Kit |
X |
| 1 | 1 | 050010 |
#18
Lever Kit |
X |
| 2 | 2 | 090094 | MountingStud Pkg/2 | |
| 3 | 1 | 050595 | Backplate | |
| 4 | 1 | 050579 | LeverBushing | |
| 5 | 1 | 050611 |
Shear
Pin Kit |
|
| 6 | 1 | 090103 |
Washer
- Wave Spring Pkg/10 |
|
| 7 | 1 | 090101 |
Socket
Set Screw 10-32 x 1/4 Pkg/10 |
E360-L-BE CONTROL
| Item No. | Quantity | Part No. | Description | Finish |
|---|---|---|---|---|
| 1 | 1 | 050001 | #01 Lever Kit | X |
| 1 | 1 | 050002 | #02 Lever Kit | X |
| 1 | 1 | 050003 | #03 Lever Kit | X |
| 1 | 1 | 050008 | #05 Lever Kit | Х |
| 1 | 1 | 050006 | #06 Lever Kit | Х |
| 1 | 1 | 050007 | #07 Lever Kit | Х |
| 1 | 1 | 050012 | #12 Lever RHR Kit | Х |
| 1 | 1 | 050013 | #12 Lever LHR Kit | Х |
| 1 | 1 | 050009 | #16 Lever Kit | Х |
| 1 | 1 | 050017 | #17 Lever Kit | Х |
| 1 | 1 | 050010 | #18 Lever Kit | X |
| 2 | 2 | 090094 | Mounting Stud Pkg/2 | |
| 3 | 1 | 050595 | Backplate | |
| 4 | 1 | 050579 | Lever Bushing | |
| 5 | 2 | 090093 | Lever Return Spring Pkg/2 | |
| 6 | 1 | 050605 | Cam - Output | |
| 7 | 1 | 050608 | Locking Member (Not used on BE) | |
| 8 | 1 | 050611 | Shear Pin Kit | |
| 9 | 1 | 050615 | Spring - Locking Torsion (Not used on BE) | |
| 10 | 1 | 050587 | Tailpiece | |
| 11 | 1 | 090103 | Washer - Wave Spring Pkg/10 | |
| 12 | 1 | 050604 | Cam - Input | |
| 13 | 1 | 090099 | Pine Tree Clip Pkg/10 | |
| 14 | 1 | 090101 | Socket Set Screw 10-32 x 1/4 Pkg/10 |
About Allegion
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 9,500 people and sells products in more than 130 countries across the world. Allegion comprises 25 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.
For more, visit www.allegion.com .
