Von Duprin 3349A, 3549A Concealed Vertical Cable Aluminium (2 inch stile) Door Template
Open the original PDF document
View PDF
• Device cannot be used on Kawneer 260 aluminum door

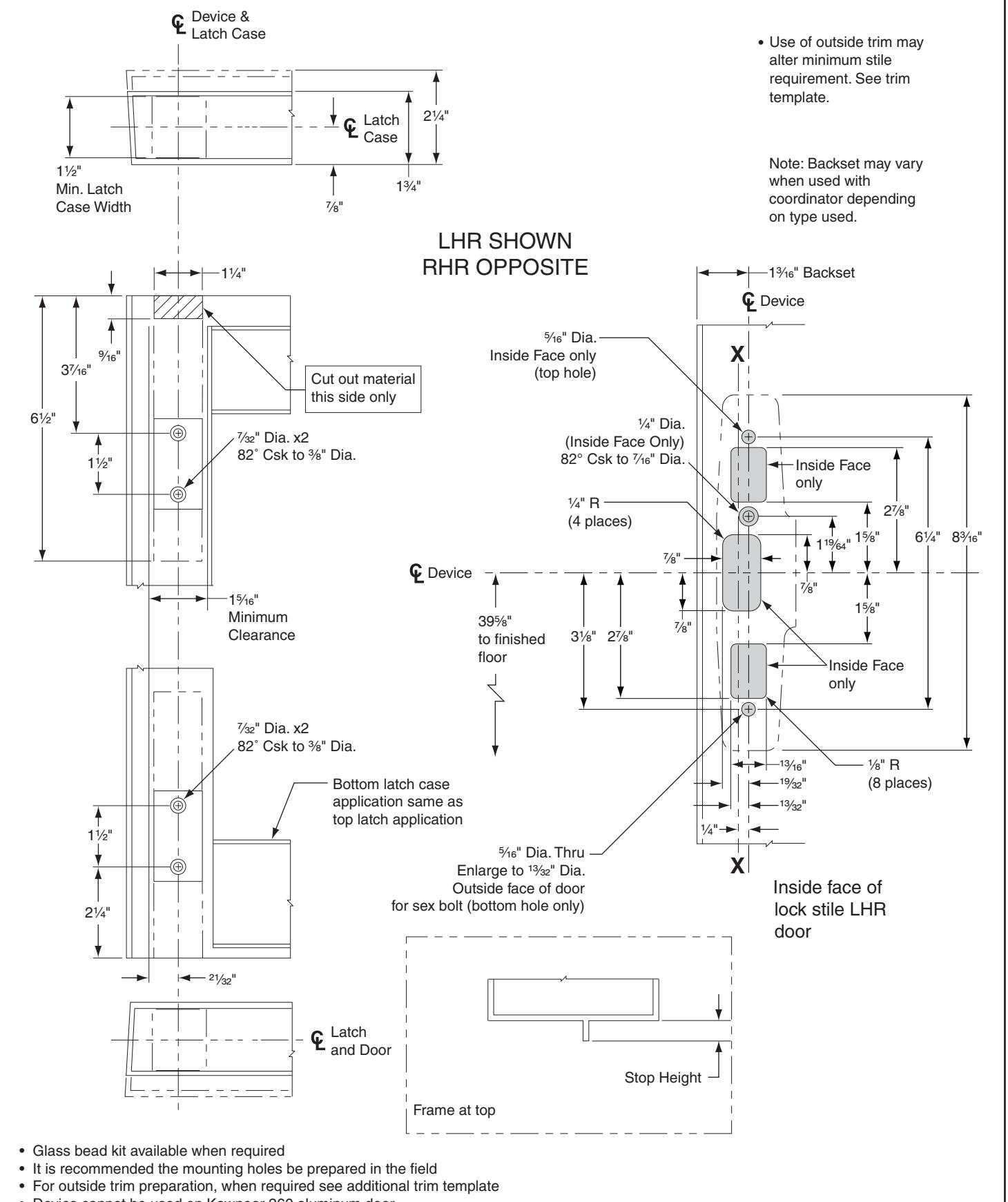

33/3549A CONCEALED VERTICAL DEVICE FOR 2" STILE ON PAIR OF ALUMINUM DOORS
TEMPLATE NUMBER:
DATE: 24081200_e 9-16-16
